DBPV1C Product InformationDri-Box™ Adapters with Non-Metallic Cover and Base Catalog Page E-mail |
Additional Images
Basic Information
| Part Number | DBPV1C |

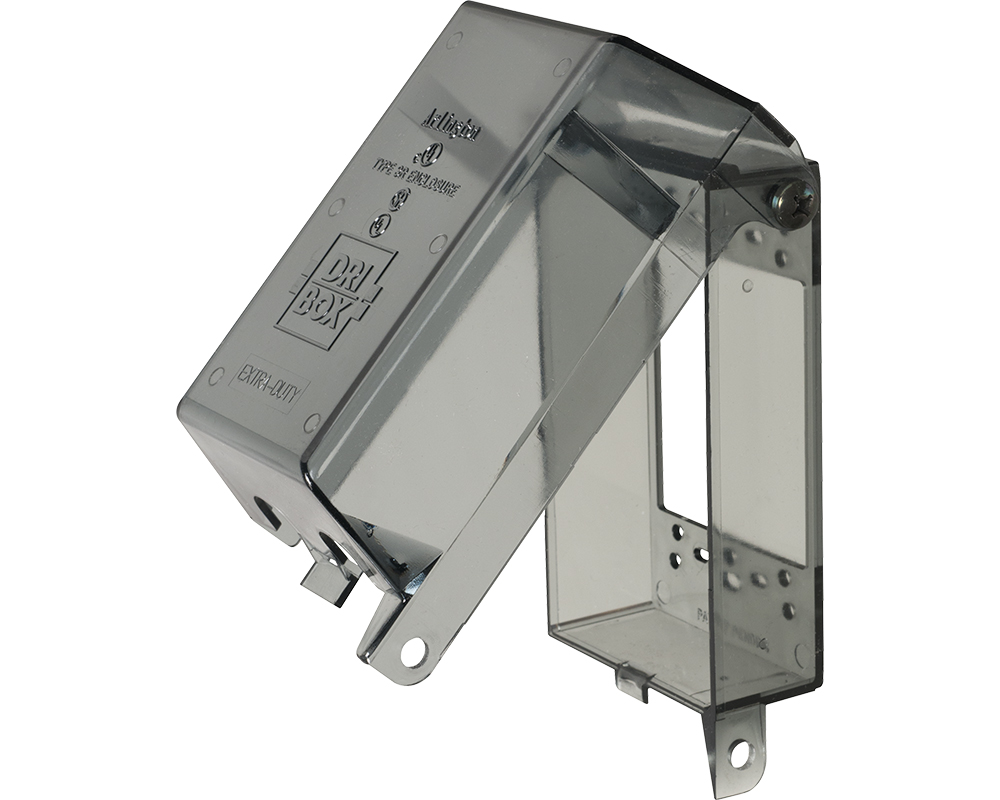

| Description | Dri-box adapter with non metallic cover and base. Accepts any wiring device and standard sized wall plate for a versatile NEMA 3R rated installation. Adapter is for a vertically mounted single gang box and has a clear cover. The depth is 2.9". |
| UPC | 018997178404 |
| Unit Packaging | 1pc |
| Standard Packaging | 4pcs |
| Country of Origin |  |
| Listing |
|
Physical Information
| Weight | 0.434 lbs/each |
| Height | 6.313" |
| Width | 3.078" |
| Color |  Clear |
| Material(s) | UV-Rated Plastic |
Technical Information
| Line Drawing | DBPV1C Line Drawing |
| NEC Compliance | Meets 2021 NEC Section 406.9 (B) for the protection of exterior outlets which require the use of an extra-duty weatherproof while-in-use cover for all outdoor 15 or 20 AMP receptacles. |
| Style | Vertical Mount 1-Gang |
| Trade Size | 1-Gang |
Comes With
| (1) | Single-Gang Wall Plate with screw(s) |
| (1) | Single-Gang Decorator-Style / GFCI Wall Plate with screws |
| (1) | Dri-Box® Cover |
| (1) | Dri-Box® Base |
| (2) | #6-32 x 1" Long Screws |
