low profile in-box with adapter sleeve

DVB1C Product Information

Low Profile InBox™ with Adapter Sleeve for New Brick Construction
Specification SheetCatalog Page E-mail

Basic Information

Part Number DVB1C
Description Low profile Inbox with adapter sleeve for new brick. Vertical with weatherproof while in use clear cover and white box.
UPC 018997436092
Unit Packaging 1pc
Standard Packaging 4pcs
Country of Origin
Listing
Available w/ Grounding Clip Yes - Order Part Number DVB1CGC

Physical Information

Weight1.700 lbs/each
Height7.186"
Width4.934"
Color White
Cover Color Clear
Material(s)UV-Rated Plastic

Technical Information

Line Drawing DVB1C Line Drawing
NEC ComplianceMeets 2021 NEC Section 406.9 (B) for the protection of exterior outlets which require the use of an extra-duty weatherproof while-in-use cover for all outdoor 15 or 20 AMP receptacles.
StyleVertical
Trade Size1-Gang

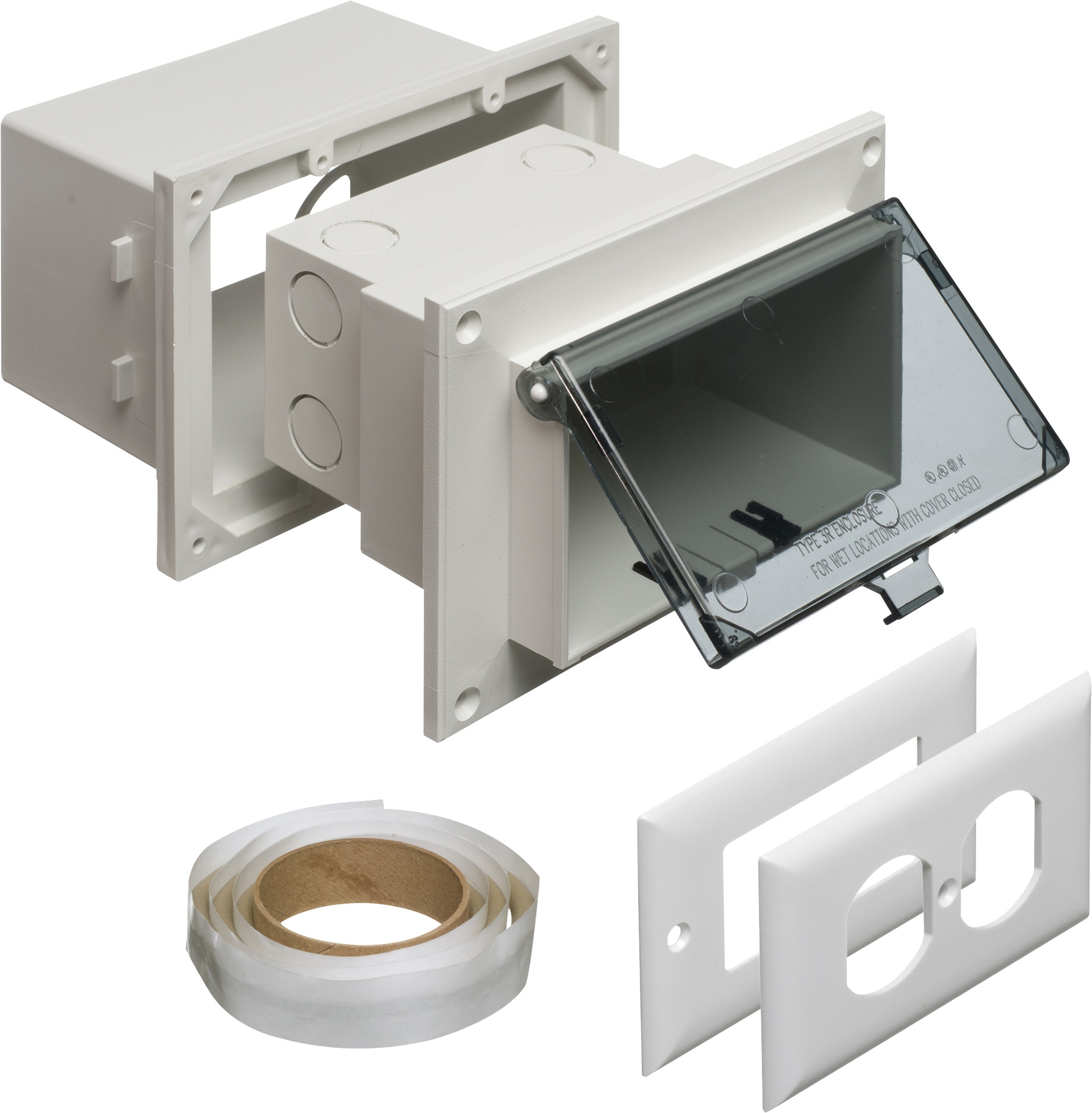

Comes With

(1)Weatherproof-in-use extra-duty cover
(1)Single-Gang Wall Plate with screw(s)
(1)Single-Gang Decorator-Style / GFCI Wall Plate with screws
(1)Roll of caulk
(1)NM94 Cable Connector
(1)Mud Cover
(2)Bug Plugs
(1)Box
(1)Adapter Sleeve
(4)#8-32 x 5/8" Long Screws
