adjustable liquid tight connector

NMLT790 Product Information

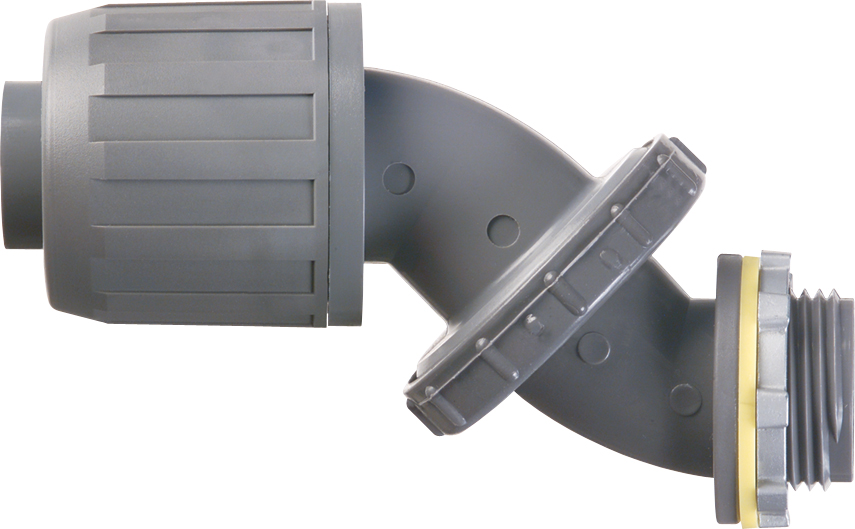

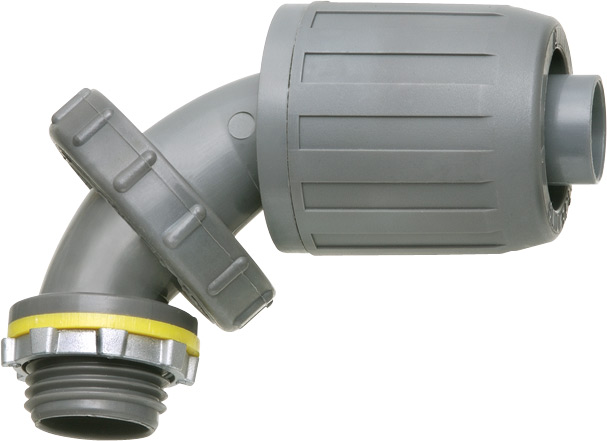

SNAP2IT Zero to 90™ Non-Metallic Push-On Connector
Catalog Page E-mail

Additional Images

adjustable liquid tight connector

Basic Information

Part Number NMLT790
Description Zero to 90 degree SNAP2IT non metallic liquid tight connector for type B only. 3/4" Trade Size. Adjusts for all angles from 0 to 90 degrees by simply loosening the center nut, twist to the correct angle and then retightening the nut. Push on Installation.
UPC 018997039026
Unit Packaging 10pcs
Standard Packaging 50pcs
Country of Origin
Listing

Physical Information

Weight0.141 lbs/each
Height2.900"
Width3.875"
Color Gray
Additional Color Options Black - NMLT790BL
Material(s)UV-Rated Plastic

Technical Information

Line Drawing NMLT790 Line Drawing
AdjustableYes - Adjusts from 0° to 90°
Conduit TypeNon-Metallic Liquid Tight Conduit, Type B Only
Knockout Size(s)3/4"
StylePush-On
Trade Size3/4"
