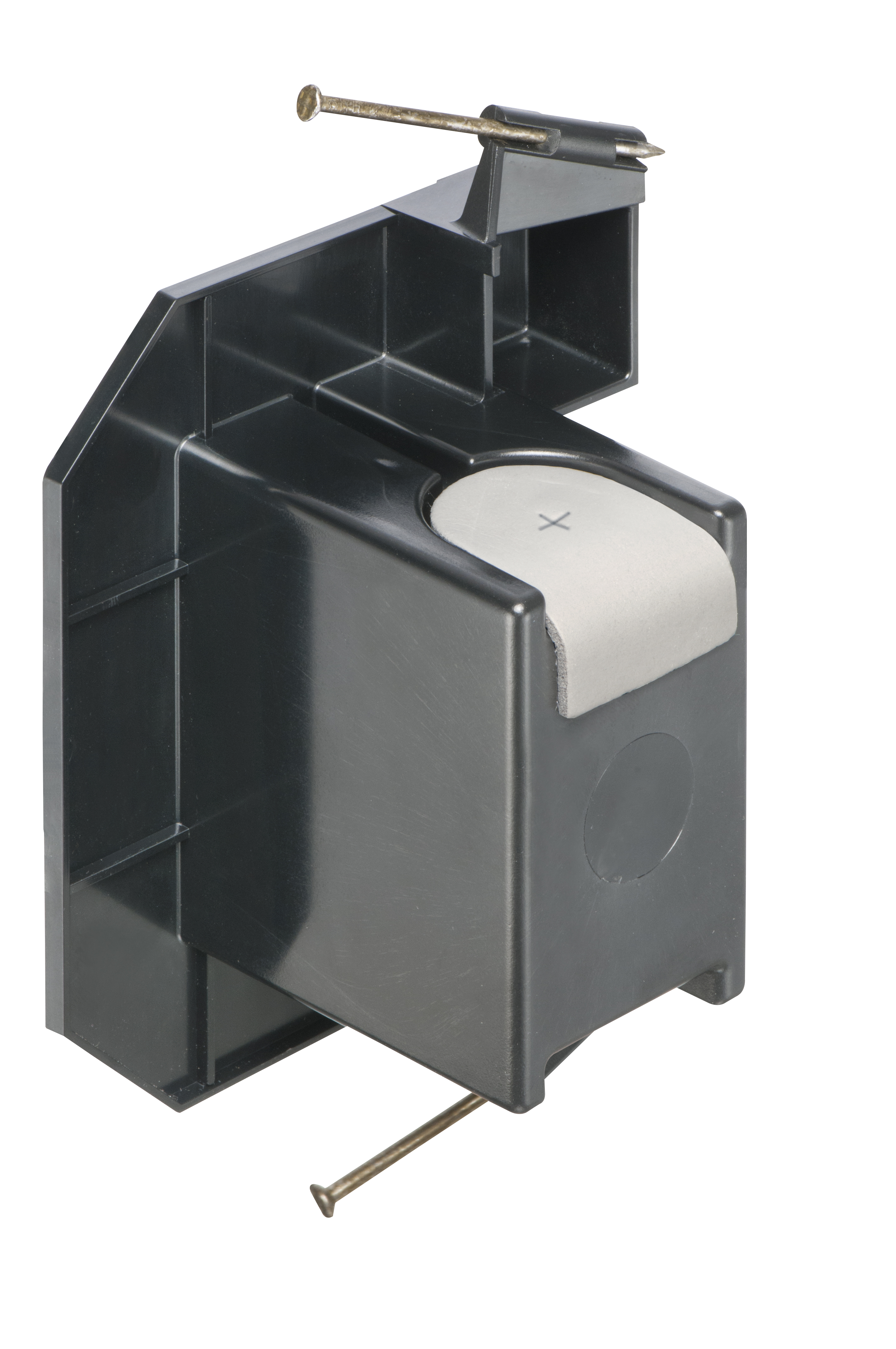

nail-on vapor box

FN101FL Product Information

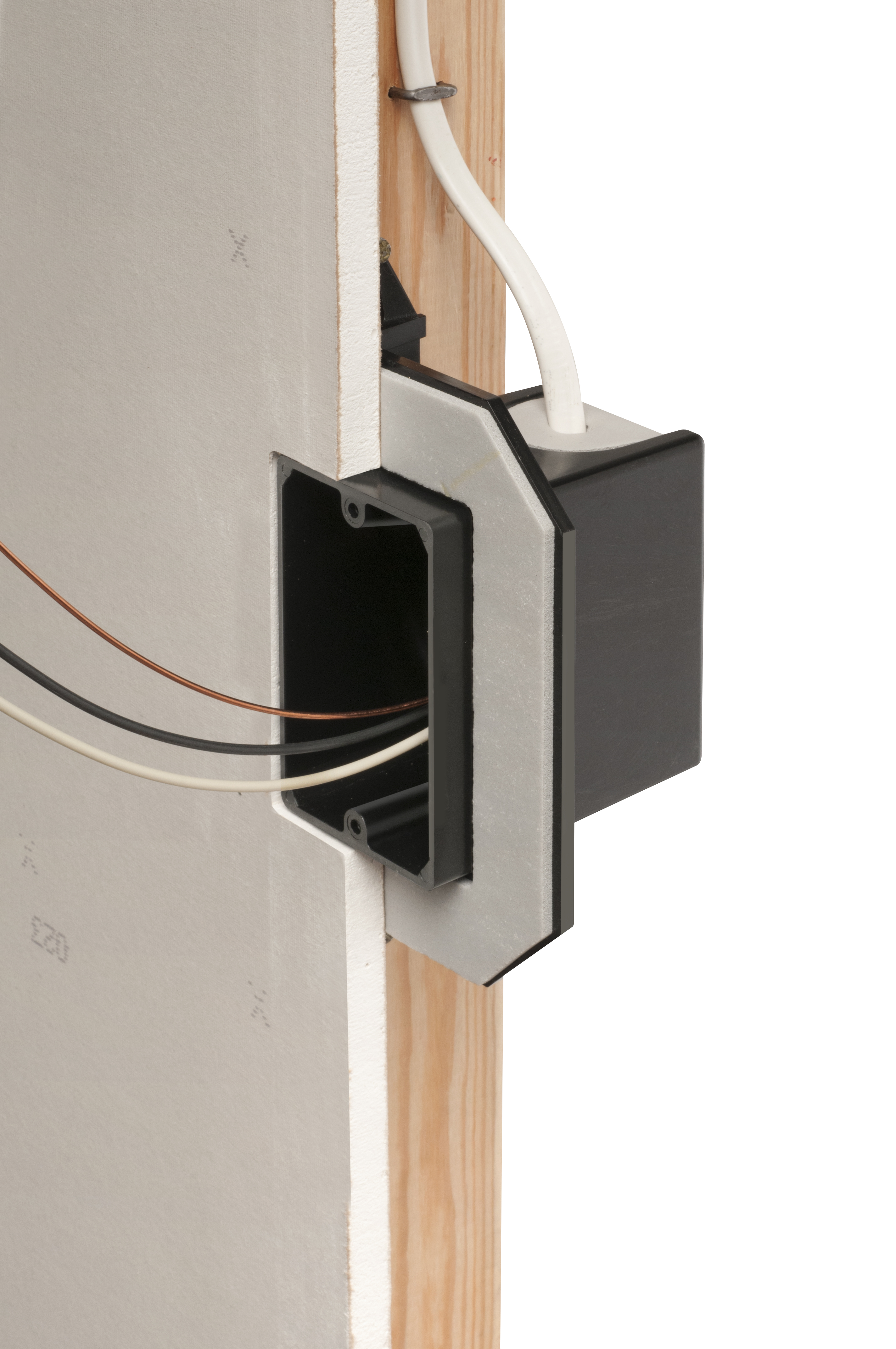

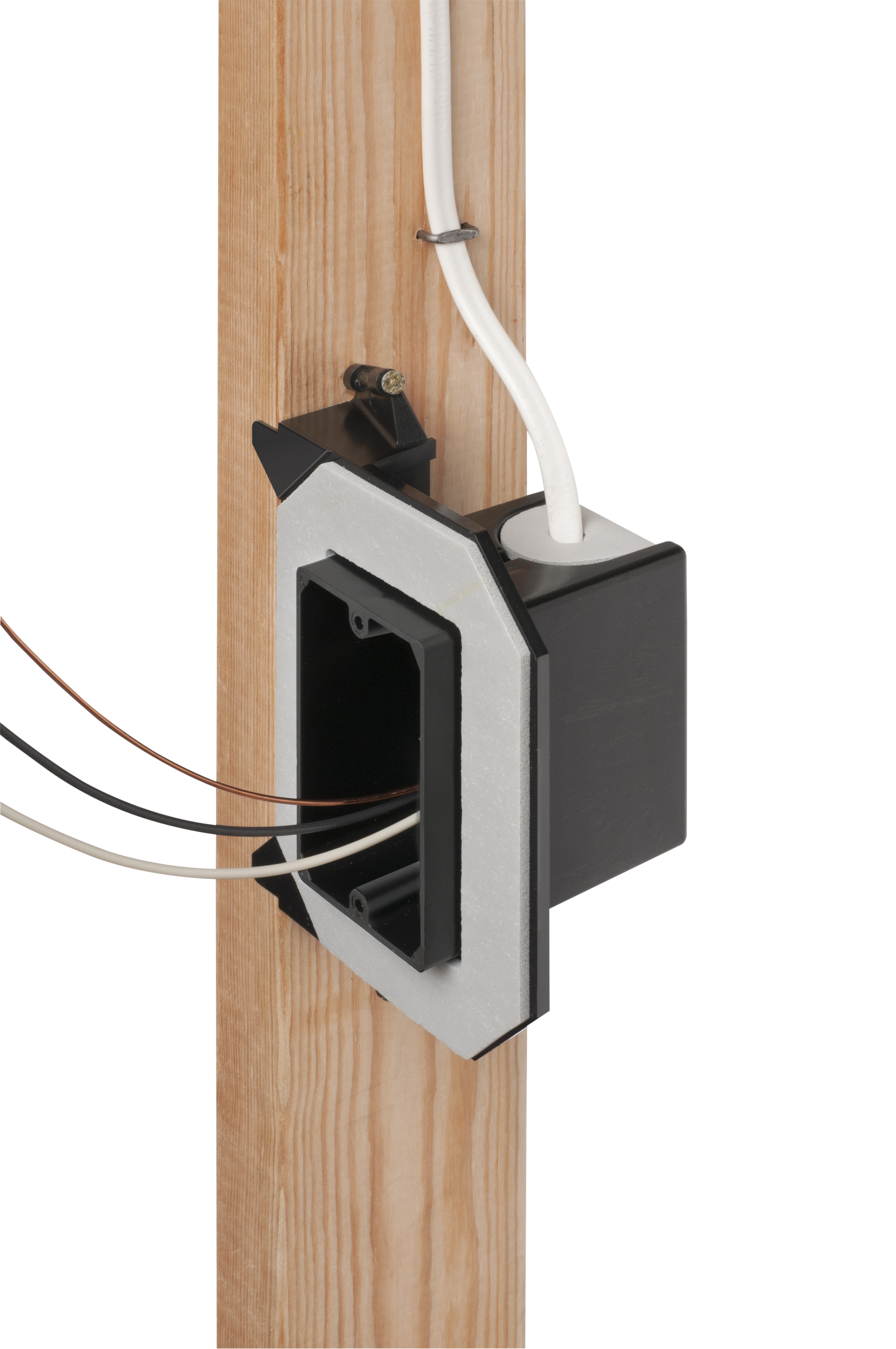

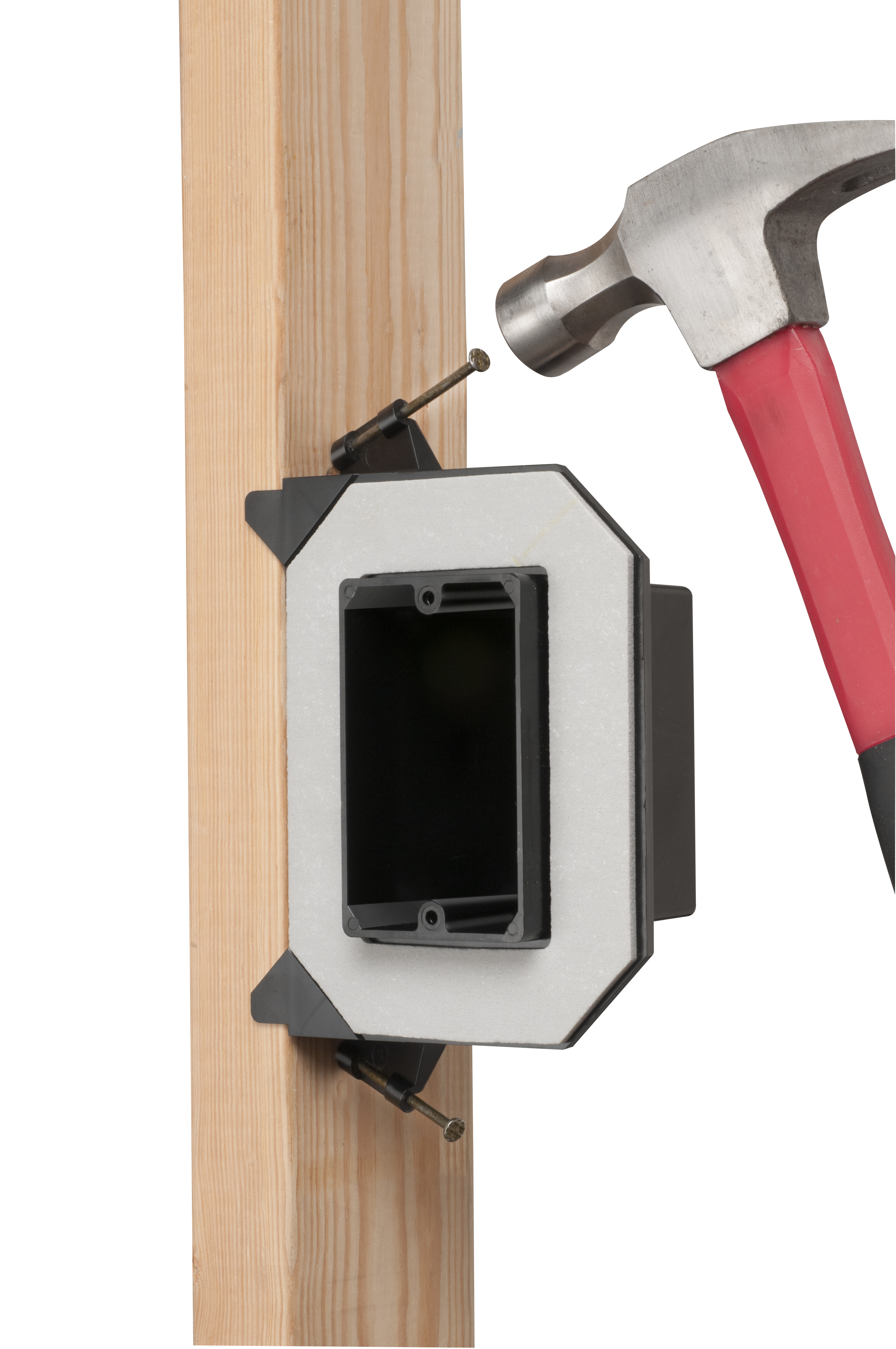

Easy to install, this box has gaskets that form a protective barrier that prevents air infiltration inside—to meet International Conservation Codes (IECC) and other codes where required.
Specification SheetCatalog Page E-mail

Additional Images

Basic Information

Part Number FN101FL
Description Versatile non conductive outlet box for new construction, single gang screw on. 22 cu inches. Ultra thin alignment tabs prevents drywall bulge. 2 Hour Fire Rating.
UPC 018997098146
Unit Packaging 25pcs
Standard Packaging 25pcs
Country of Origin
Listing

Physical Information

Weight0.358 lbs/each
Height7.664"
Width5.000"
Color Black
Material(s)Plastic

Technical Information

Line Drawing FN101FL Line Drawing
Fire Rating2-Hour Fire Rating
Trade Size1-Gang

Comes With

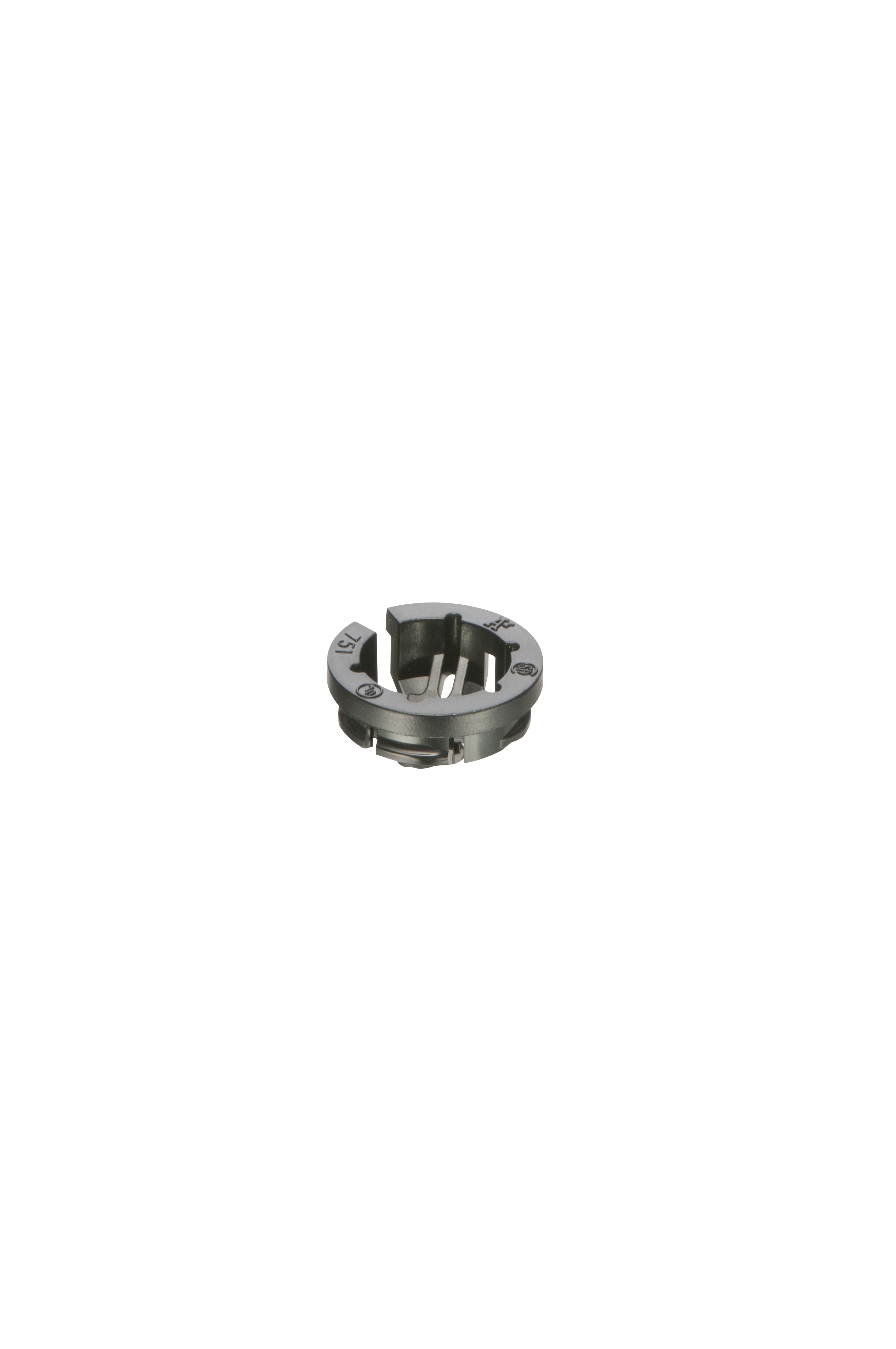

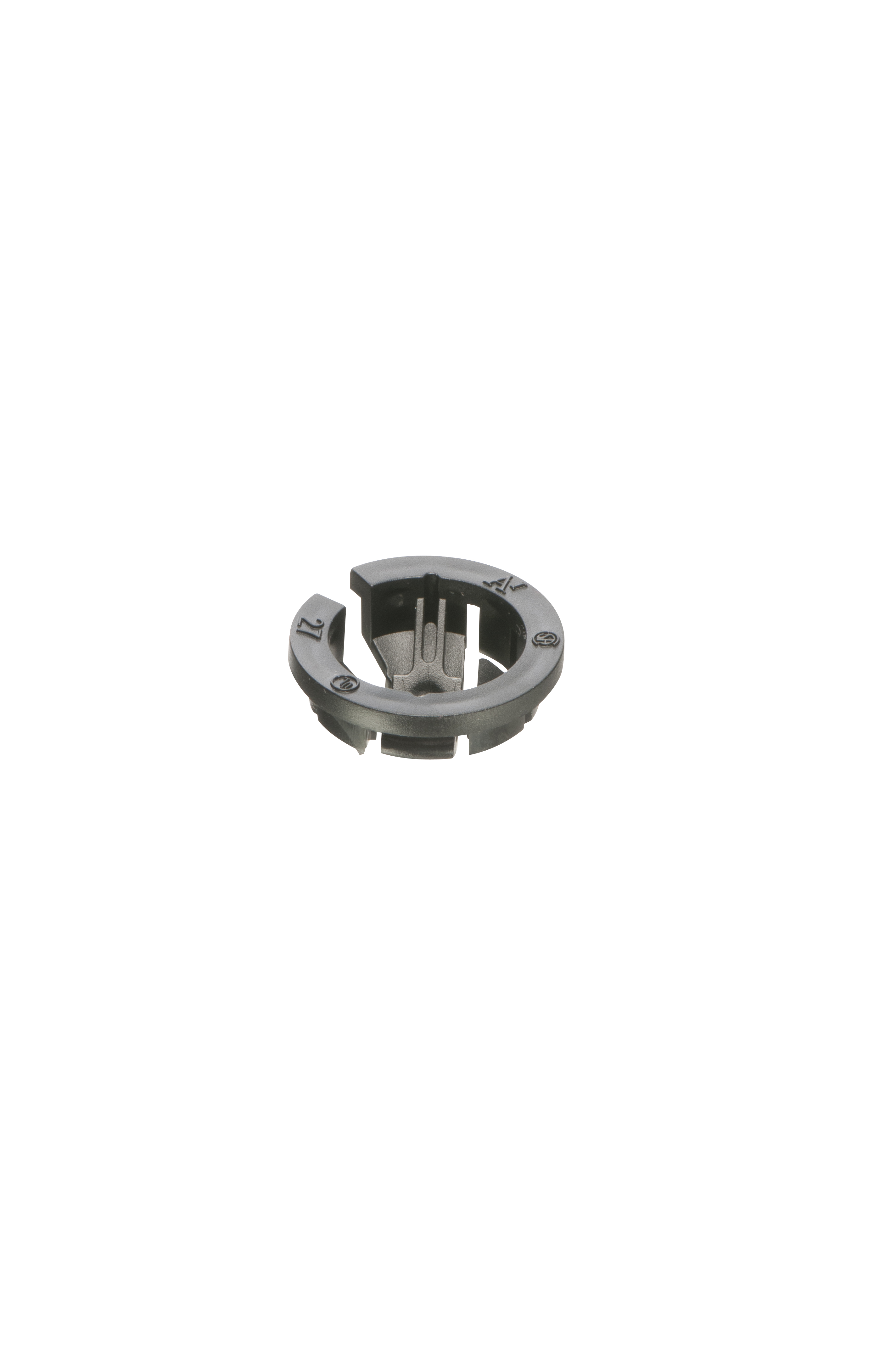

(2)NM94 Cable Connectors

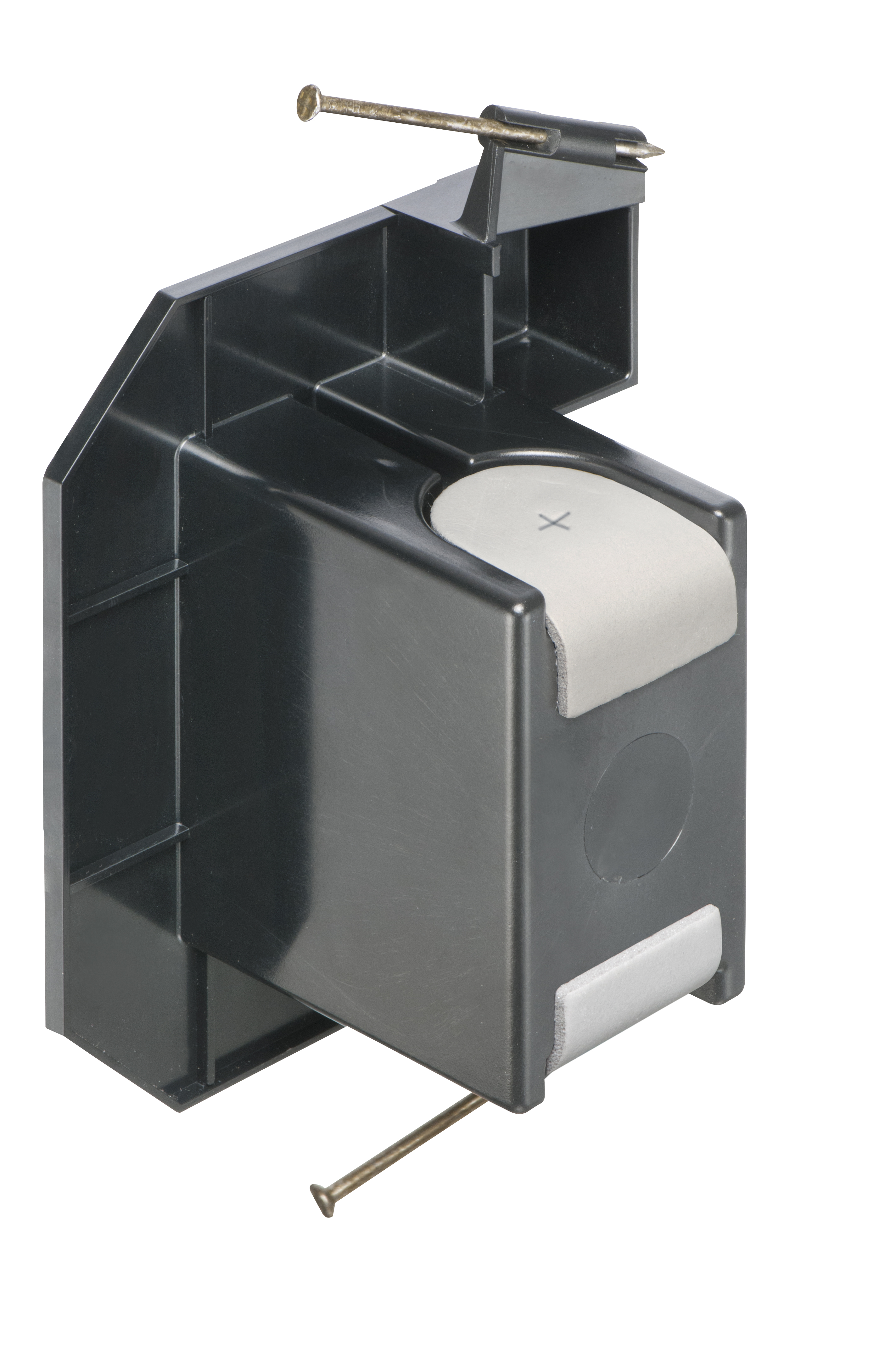

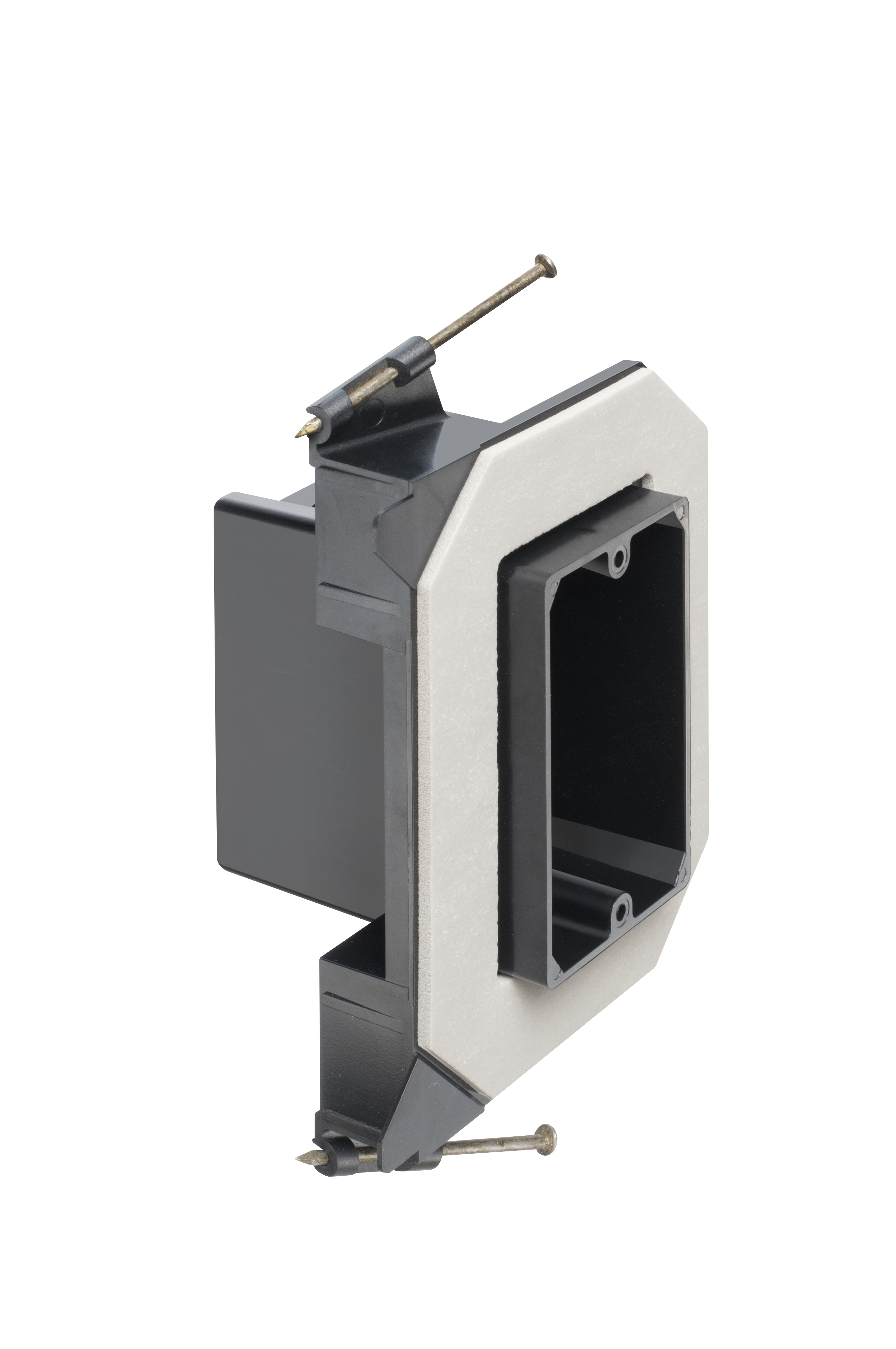

(1)Nail-on single-gang vapor box

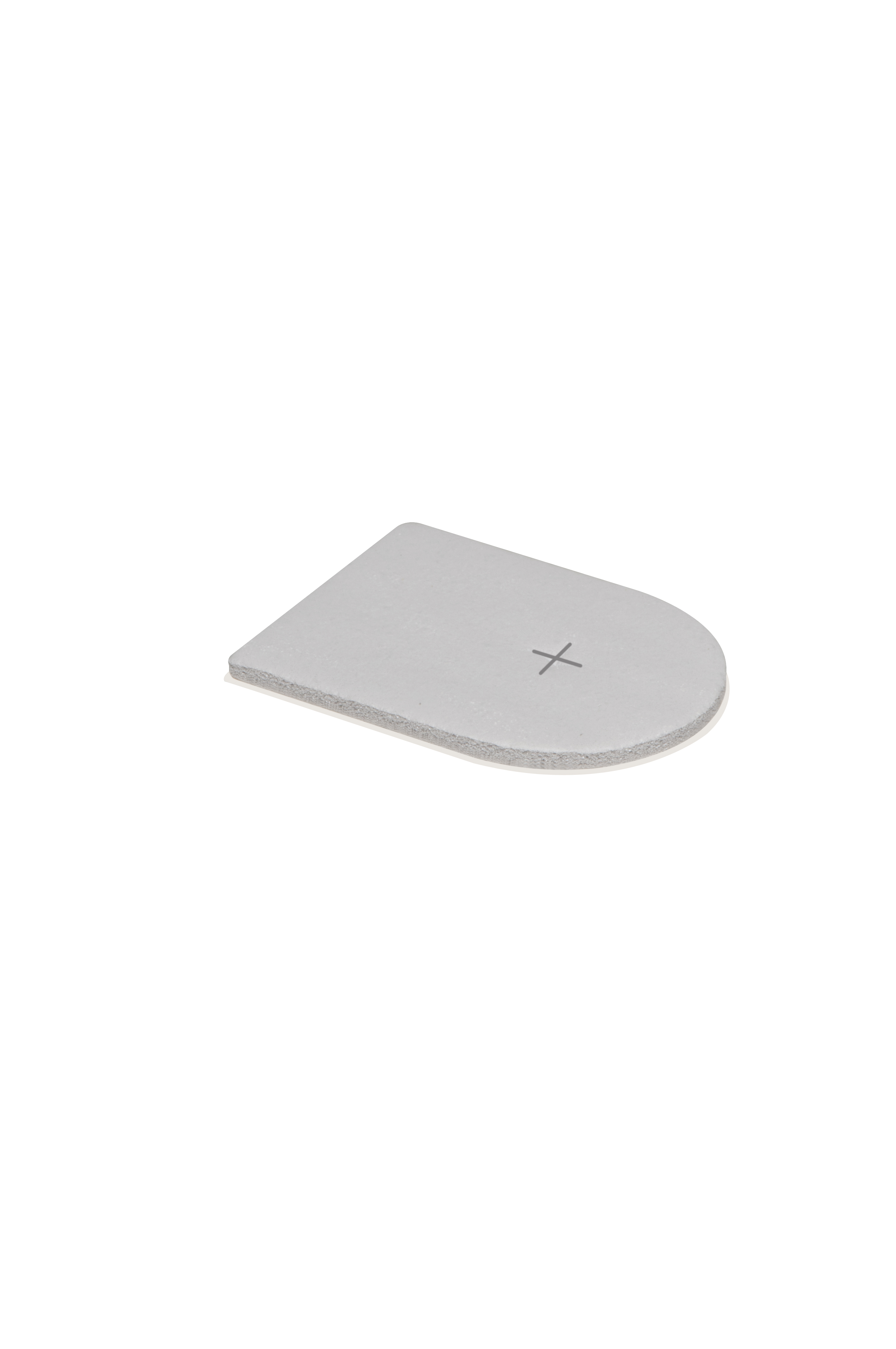

(2)Gaskets for knockouts
(1)Flange gasket
