Arlington

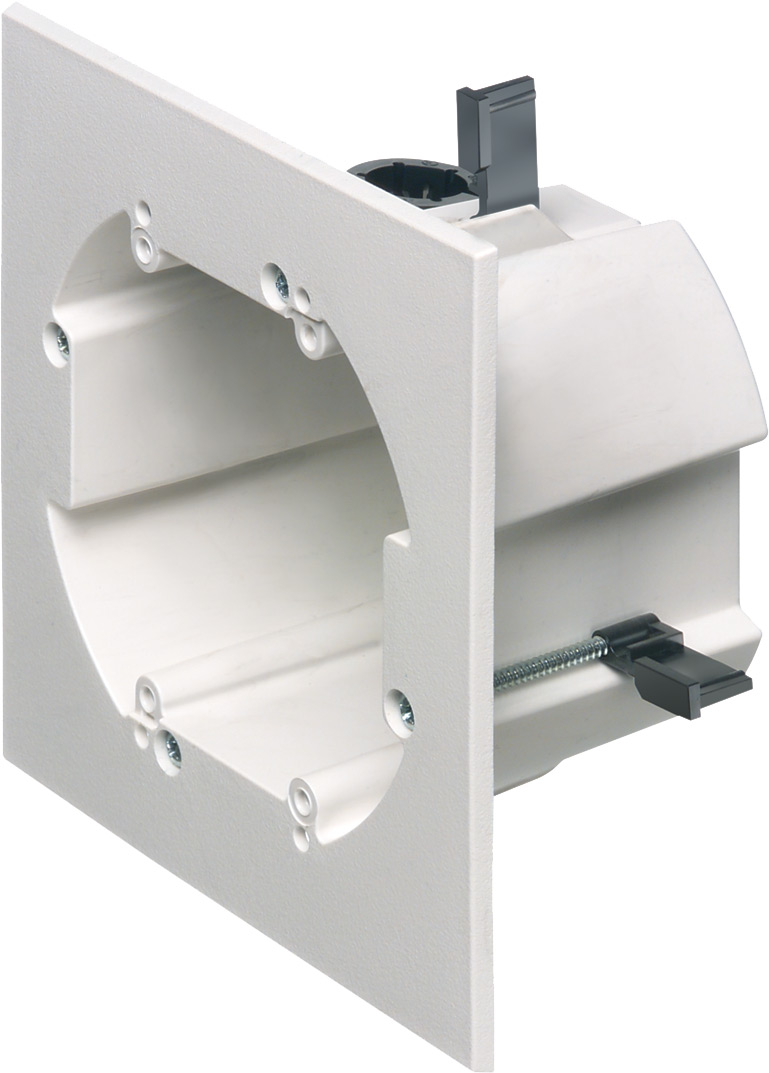

one-piece box

FD2RP Product Information

One-Piece Non-Metallic Box
Catalog Page E-mail

Additional Images

outlet with cord plugged in

Basic Information

Part Number FD2RP
Description One piece two gang retrofit non-metallic box. installs with a 4-1/2" diameter hole saw. Adjusts to fit 3/4" to 1-1/2" wall thicknesses. 18.0 cu. in. Textured paintable front surface. 2 hour Fire Rating.
UPC 018997753014
Unit Packaging 25pcs
Standard Packaging 25pcs
Country of Origin
Listing
Available w/ Grounding Clip Yes - Order Part Number FD2RPGC

Physical Information

Instructional Video FD2RP Instructional Video
Weight0.335 lbs/each
Height5.704"
Width5.454"
Color White
Material(s)Plastic
PaintableYes

Technical Information

Line Drawing FD2RP Line Drawing
Cubic Inches31.0
StyleInstalls w/ 3.5" Hole Saw
Trade Size2-Gang

Comes With

(1)NM94 Cable Connector
(1)2-Gang Box
