retrofit power and low voltage box

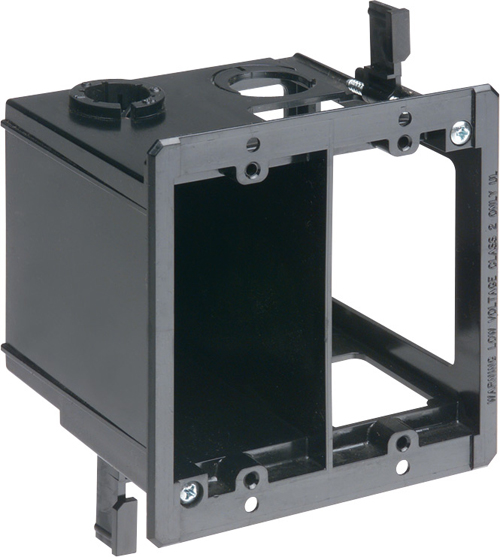

LVDR2 Product Information

Power and Low Voltage Box for Existing Construction
Specification SheetCatalog Page E-mail

Basic Information

Part Number LVDR2
Description Power and low voltage box for existing construction, nail on. Low voltage side provides combination 1/2" and 3/4" knockout. 2 hour fire rating. 20 cu. in.
UPC 018997010001
Unit Packaging 25pcs
Standard Packaging 25pcs
Country of Origin
Listing

Physical Information

Weight0.250 lbs/each
Height4.250"
Width4.185"
Color Black
Material(s)Plastic

Technical Information

Line Drawing LVDR2 Line Drawing
Cubic Inches17.0 (Power Side)
Fire Rating2 Hour
Knockout Size(s)1/2" and 3/4"
StyleTwo-Gang Power/Low-Voltage Combination Box for Existing Construction
Trade Size2-Gang
UsageEasy Installation of Power and Phone/Cable/Fiber Optic Outlets Together

Comes With

(1)Power and low voltage box
(1)NM94 Cable Connector
