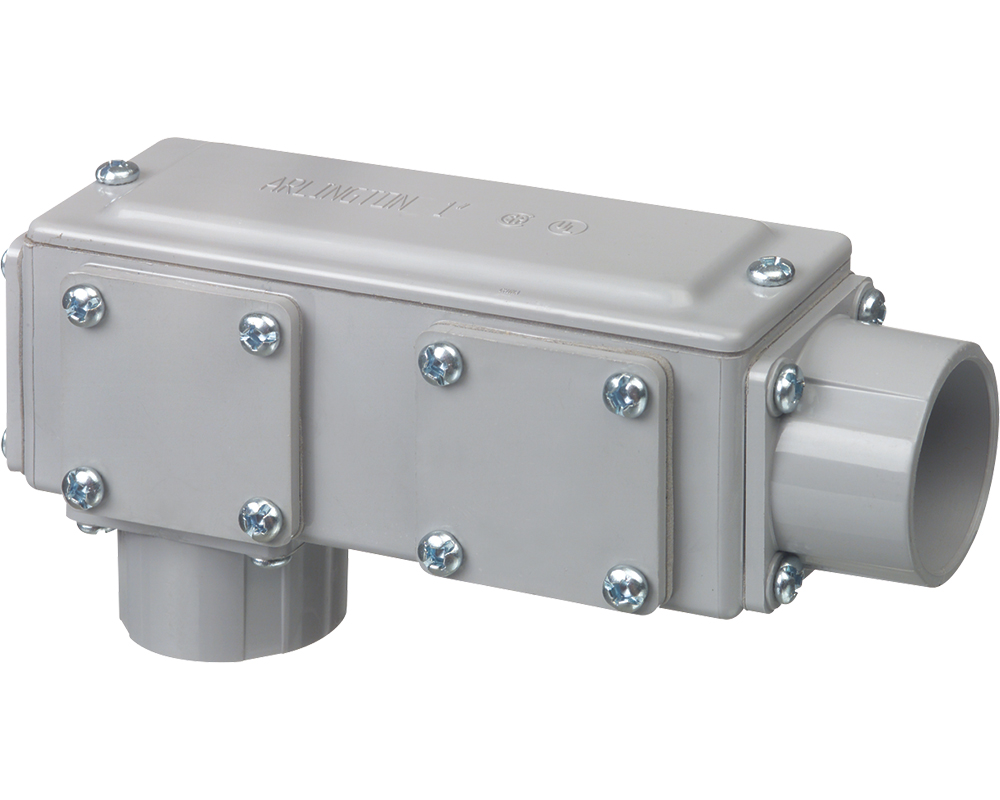

any body non-metallic conduit body in LR configuration

939NM Product Information

AnyBODY® Non-Metallic Conduit Body

Specification Sheet Catalog Page E-mail

Additional Images

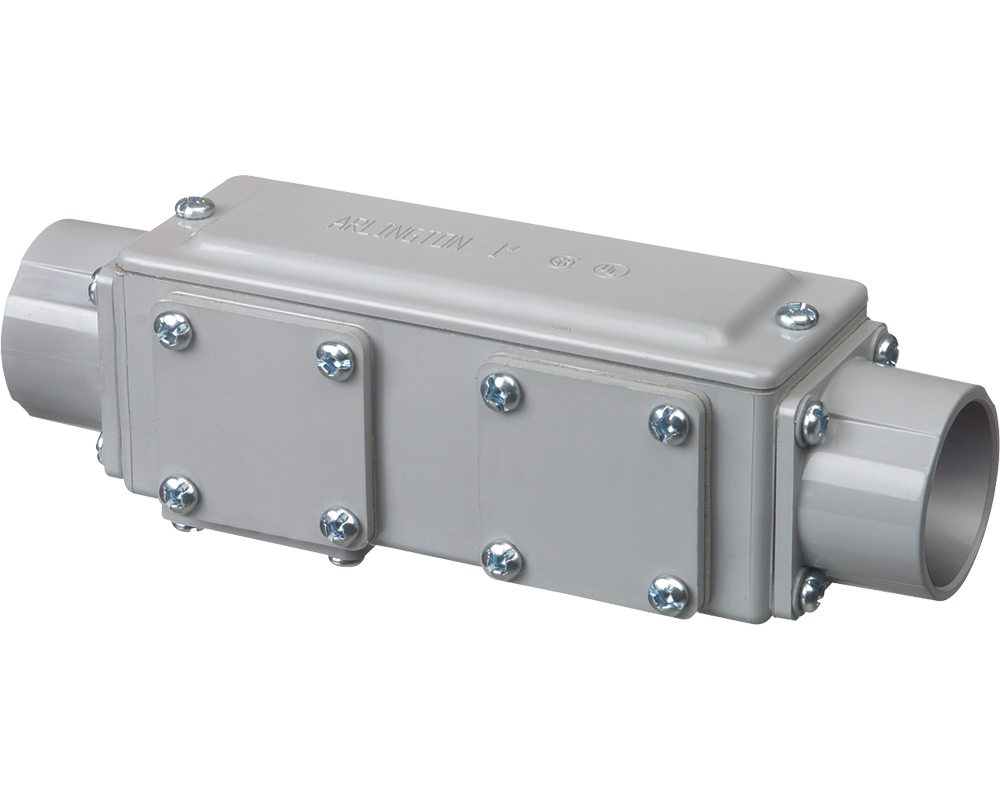

any body non-metallic conduit body in C configuration

any body non-metallic conduit body in LL configuration

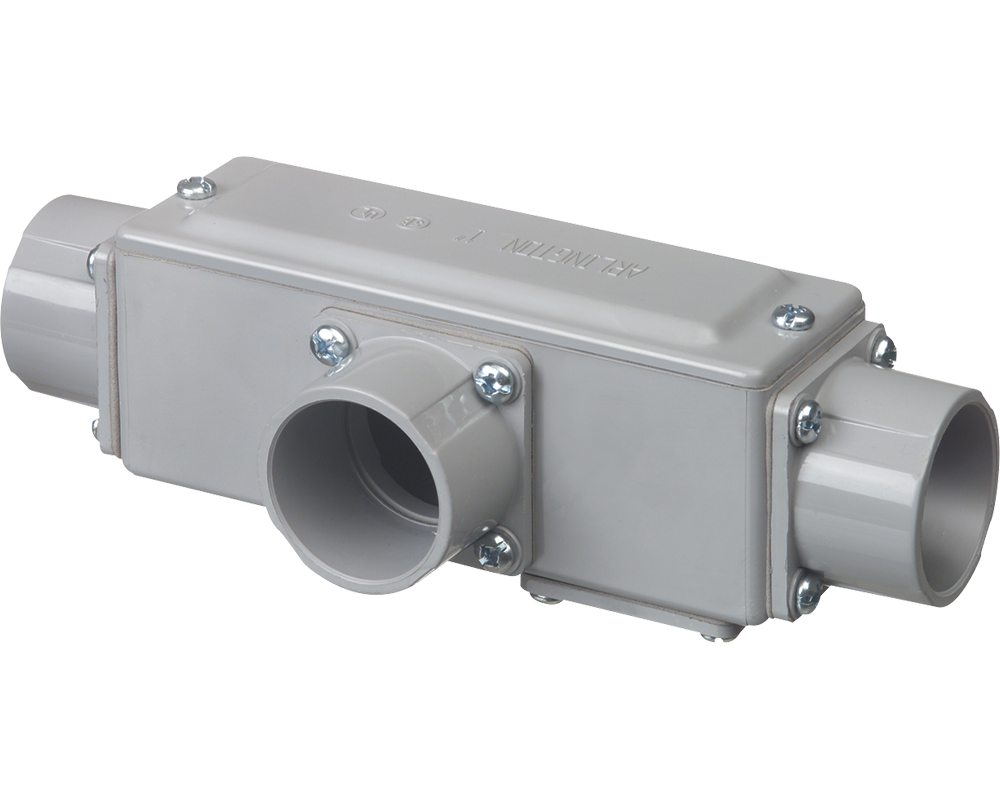

any body non-metallic conduit body in T configuration

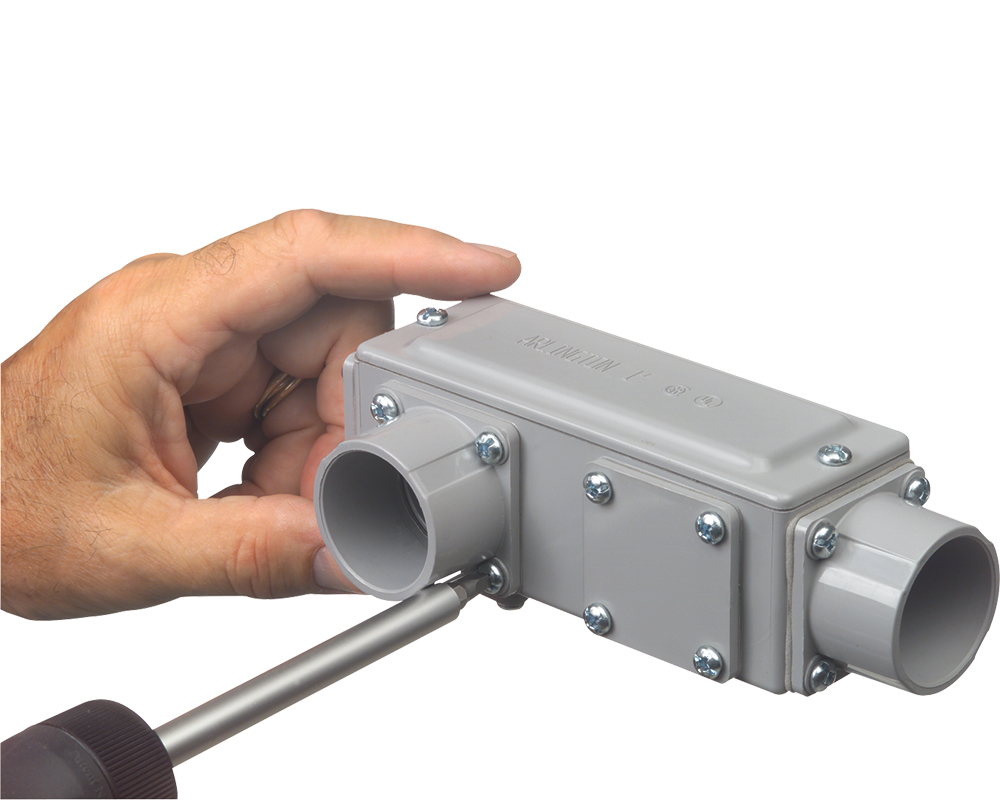

person installing flange with screwdriver

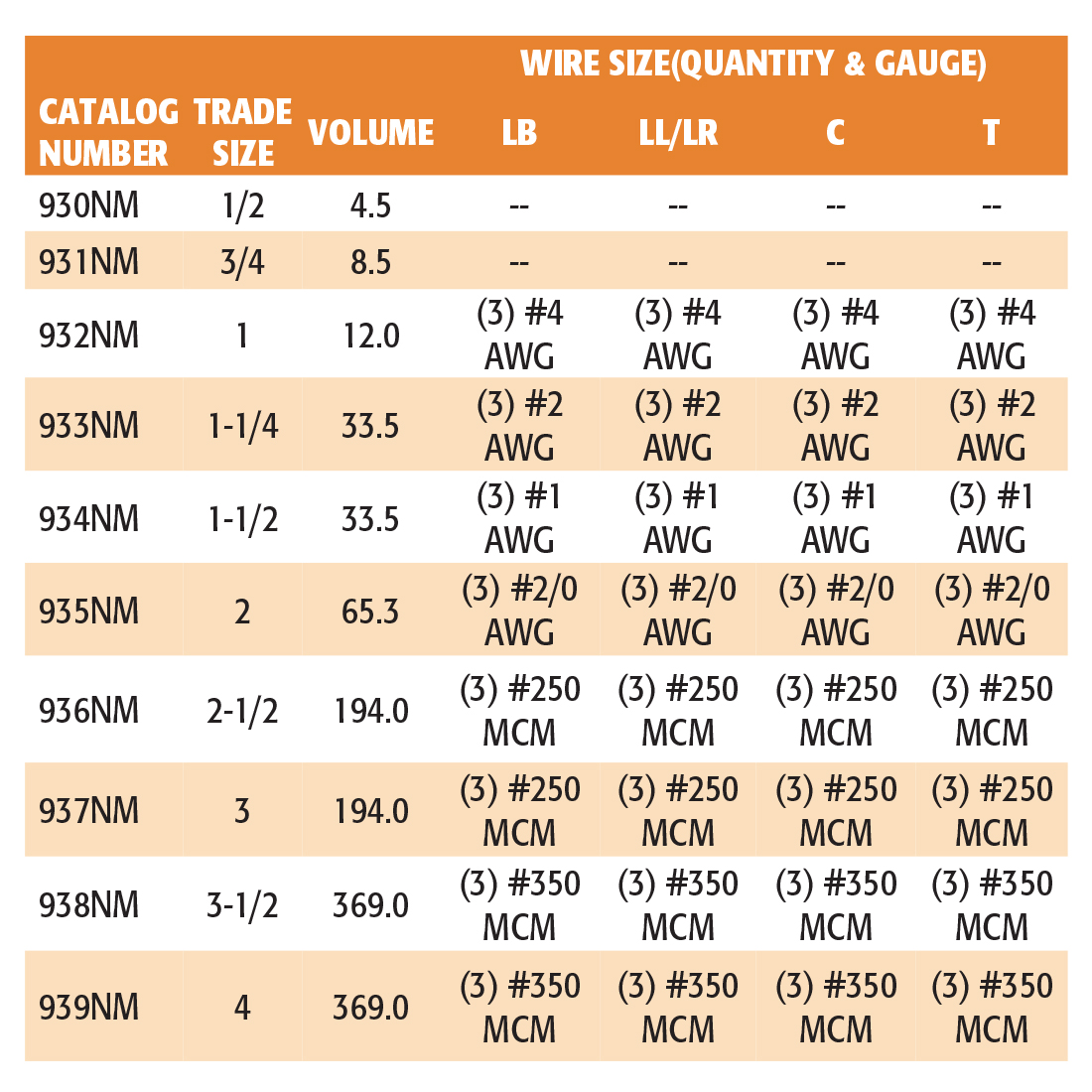

chart with wire quantity and size capacities

Basic Information

Part Number	939NM
Description	Non-Metallic. five conduit bodies in one. Ships as an LB but converts to a T, LL, LR, or C. Trade Size 4"
UPC-A	018997125095
Unit Packaging	1pc
Standard Packaging	1pc
Listing

Physical Information

Instructional Video	939NM Instructional Video
Weight	6.450 lbs/each
Height	17.250"
Width	7.690"
Color	Gray
Material(s)	Plastic

Technical Information

Line Drawing	939NM Line Drawing
NEC Compliance	Section 314.16 (c) (2) of the 2014 NEC
Trade Size	4"
Volume	369.00 Cubic Inches

Comes With

(1)	Non-Metallic Body
(3)	Flanges
(4)	Cover Plates
(1)	Access Cover Gasket
(1)	Access Cover
