NMPV125 Product Information

Non-Metallic Cord Grips (Ideal for Solar Applications)
Specification SheetCatalog Page E-mail

Additional Images

Basic Information

Part Number NMPV125

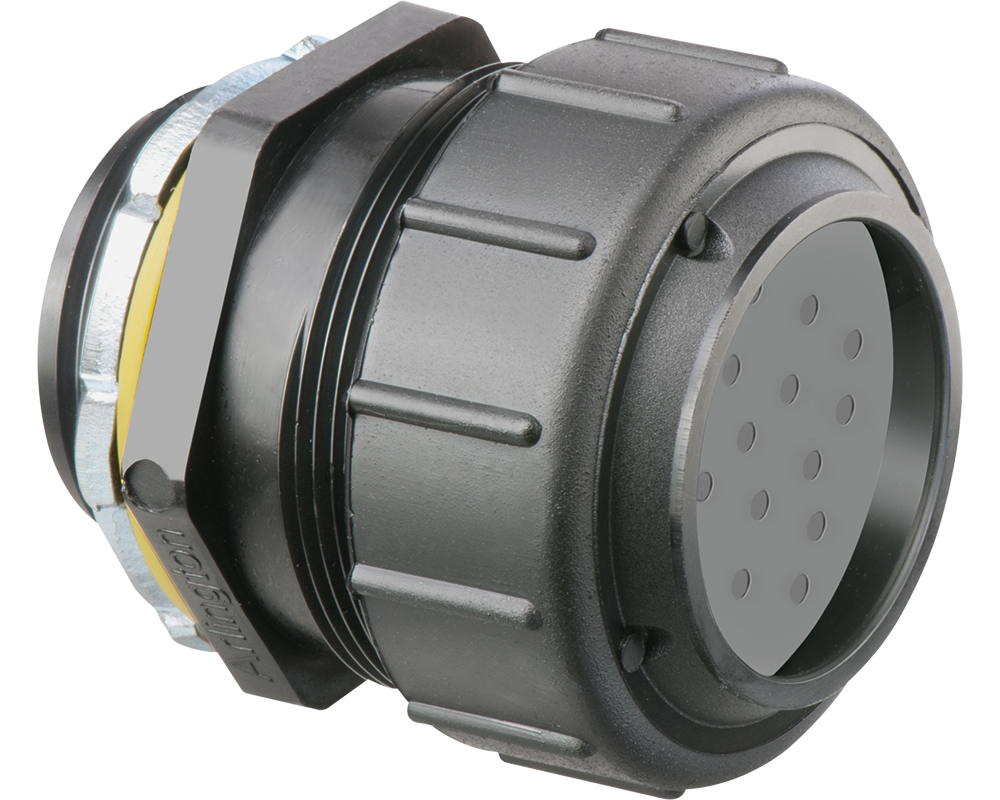

Description Arlington's UV rated, multi-hole connectors are ideal for solar and other outdoor jobs requiring the connection of multiple cables into raceways, fittings, and combiner or junction boxes. This series can accommodate thirteen cables ranging from 0.225" to 0.255" in diameter each, and has a trade size of 1-1/4". As the nut is tightened, a moisture resistant seal is created around each cable.
UPC 018997768711
Unit Packaging 25pcs
Standard Packaging 25pcs
Country of Origin

Physical Information

Weight0.244 lbs/each
Color Black

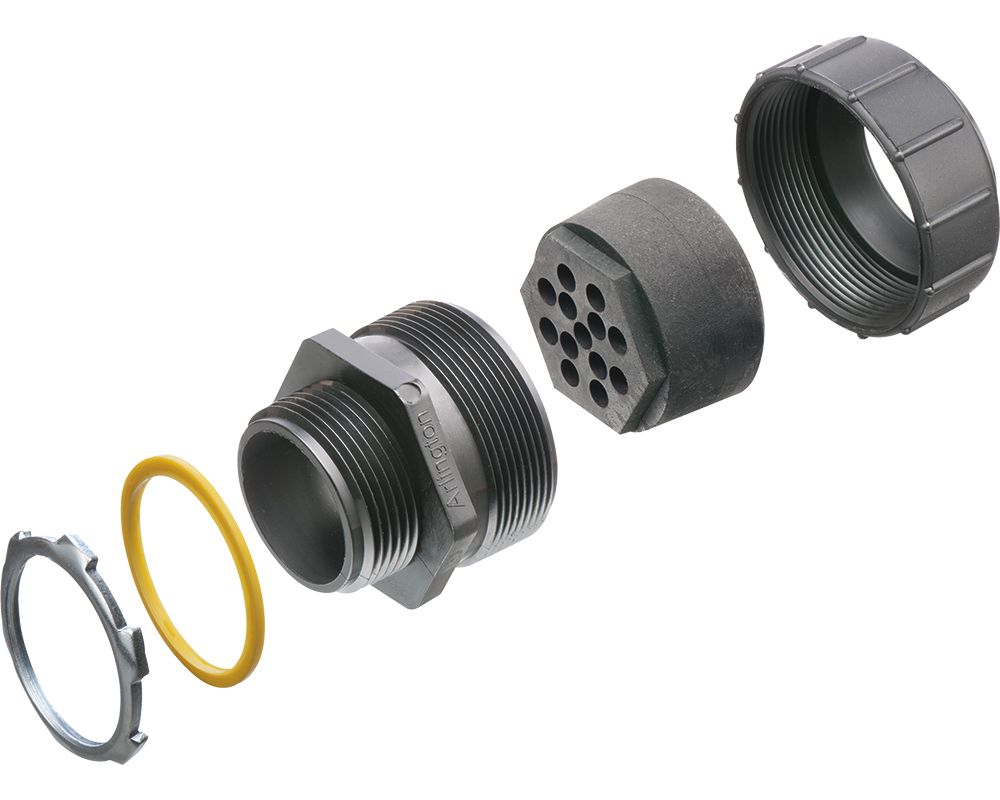

Material(s)UV-Rated Plastic (Body)
Polyethylene (Sealing Ring)
Zinc Die-Cast (Locknut)

Technical Information

Line Drawing NMPV125 Line Drawing
ApplicationConnect Cables into Raceways, Fittings, Combiner, or Junction Boxes
Cable Capacity1 to 13 Cables
Cable Range0.225" - 0.255"
Grommet ColorBlack
Trade Size1-1/4"
