NMPV75 Product Information

Non-Metallic Cord Grips (Ideal for Solar Applications)
Specification SheetCatalog Page E-mail

Additional Images

Basic Information

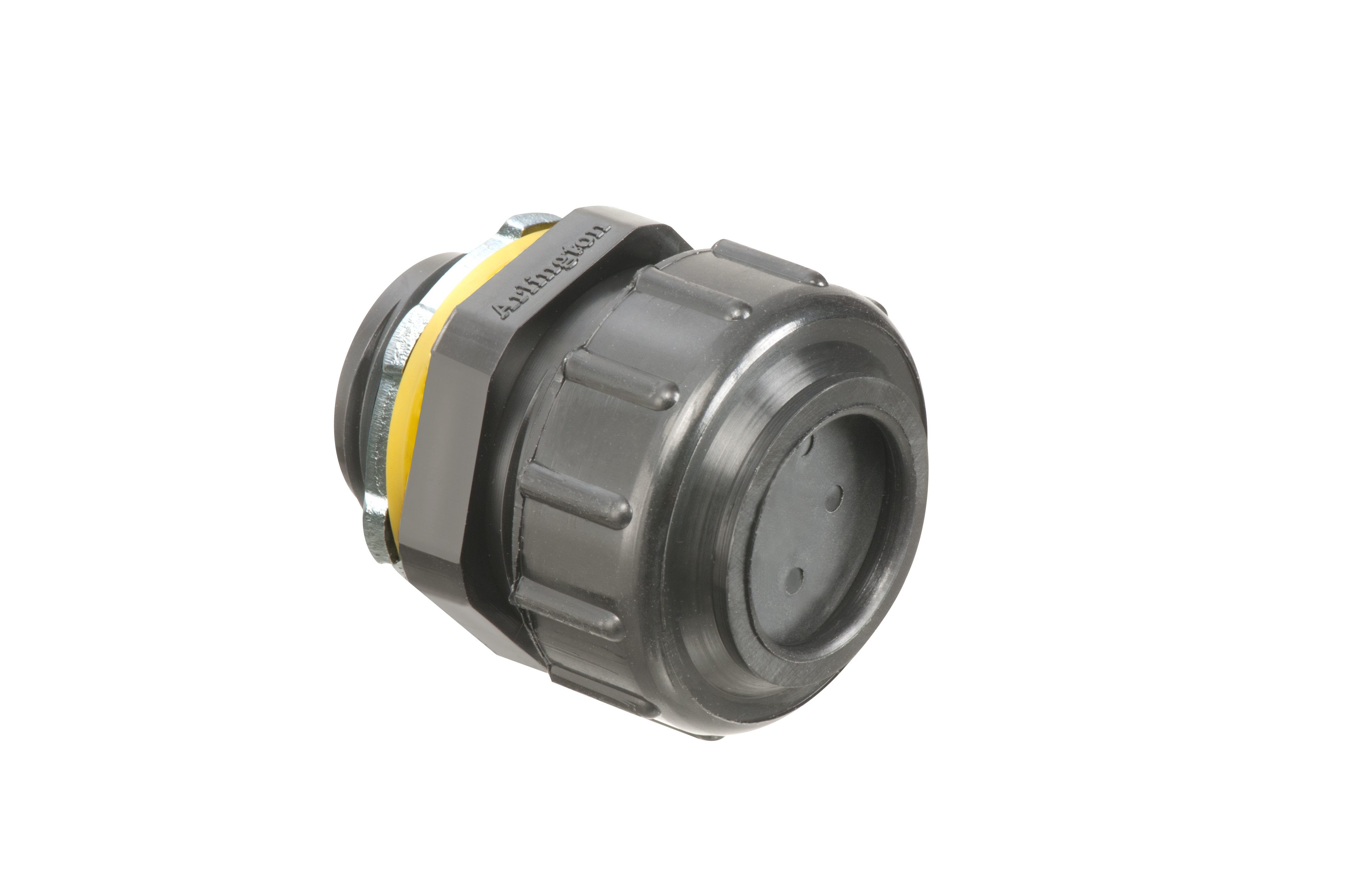

Part Number NMPV75

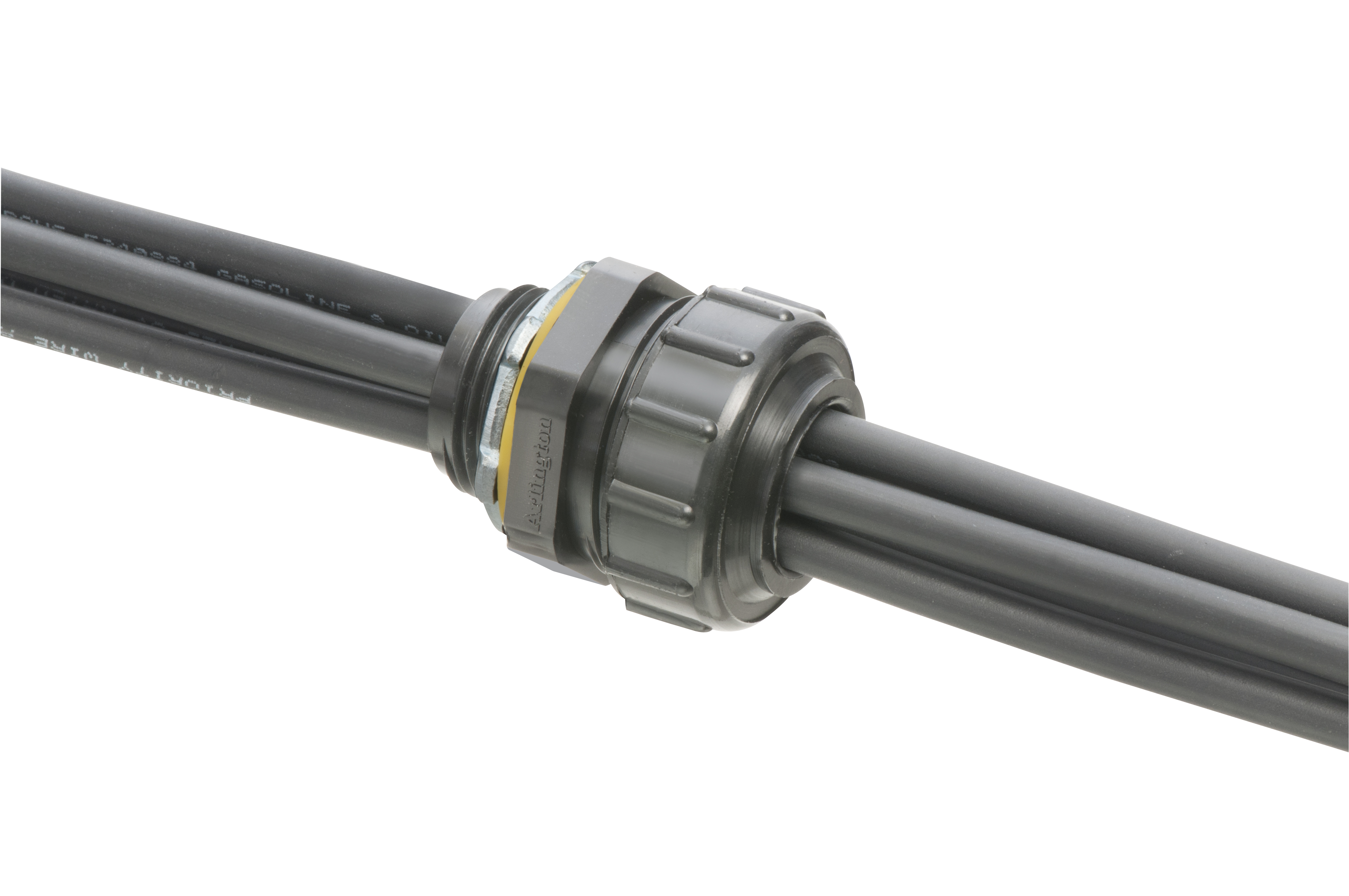

Description Arlington's UV rated, multi-hole connectors are ideal for solar and other outdoor jobs requiring the connection of multiple cables into raceways, fittings, and combiner or junction boxes. This series can accommodate five cables ranging from 0.225" to 0.255" in diameter each, and has a trade size of 3/4". As the nut is tightened, a moisture resistant seal is created around each cable.
UPC 018997007308
Unit Packaging 25pcs
Standard Packaging 25pcs
Country of Origin

Physical Information

Weight0.072 lbs/each
Height1.595"
Width1.752"
Color Black

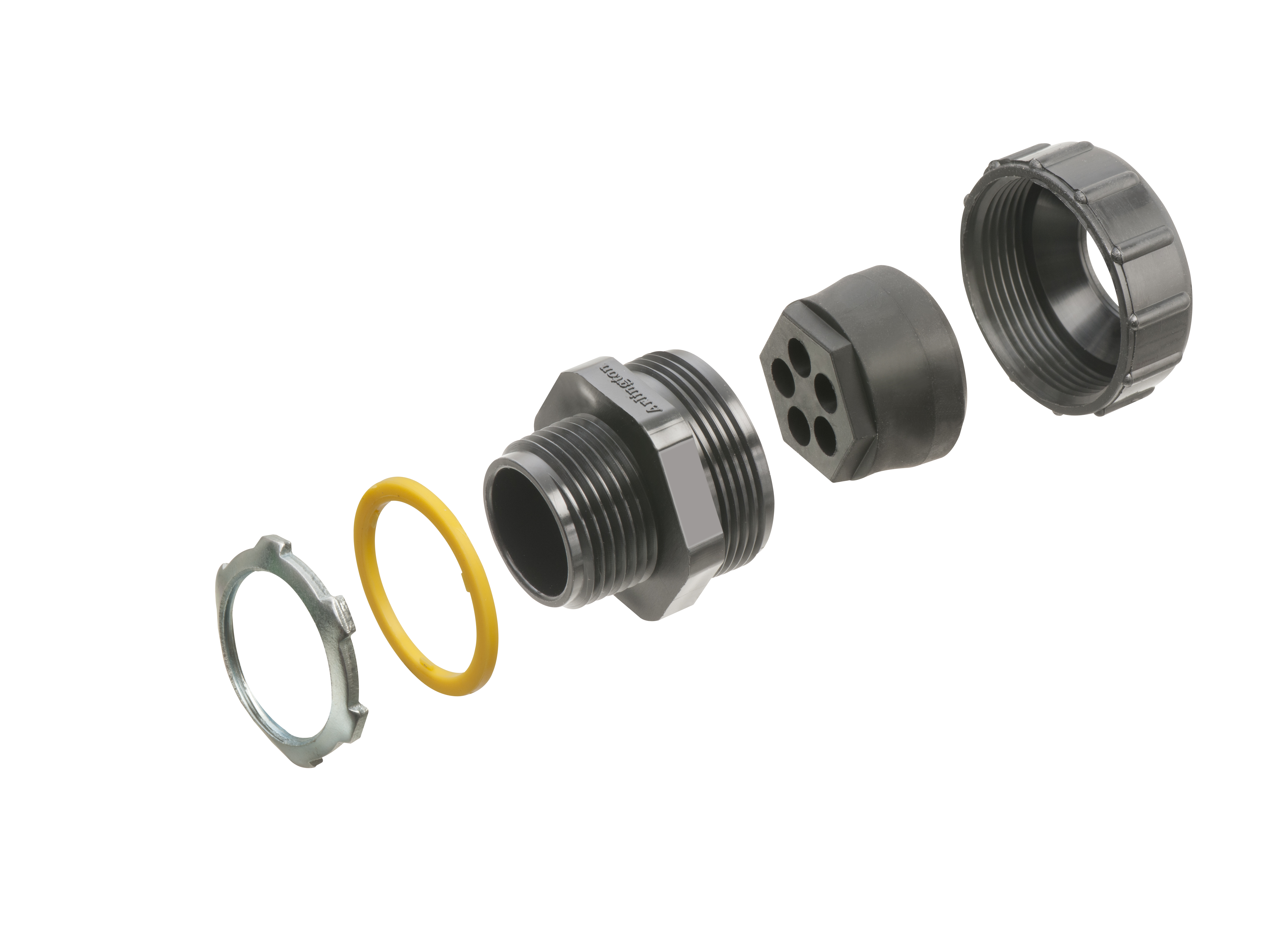

Material(s)UV-Rated Plastic (Body)
Polyethylene (Sealing Ring)
Zinc Die-Cast (Locknut)

Technical Information

Line Drawing NMPV75 Line Drawing
ApplicationConnect Cables into Raceways, Fittings, Combiner, or Junction Boxes
Cable Capacity1 to 5 Cables
Cable Range0.225" - 0.255"
Grommet Color Black
Trade Size3/4"
