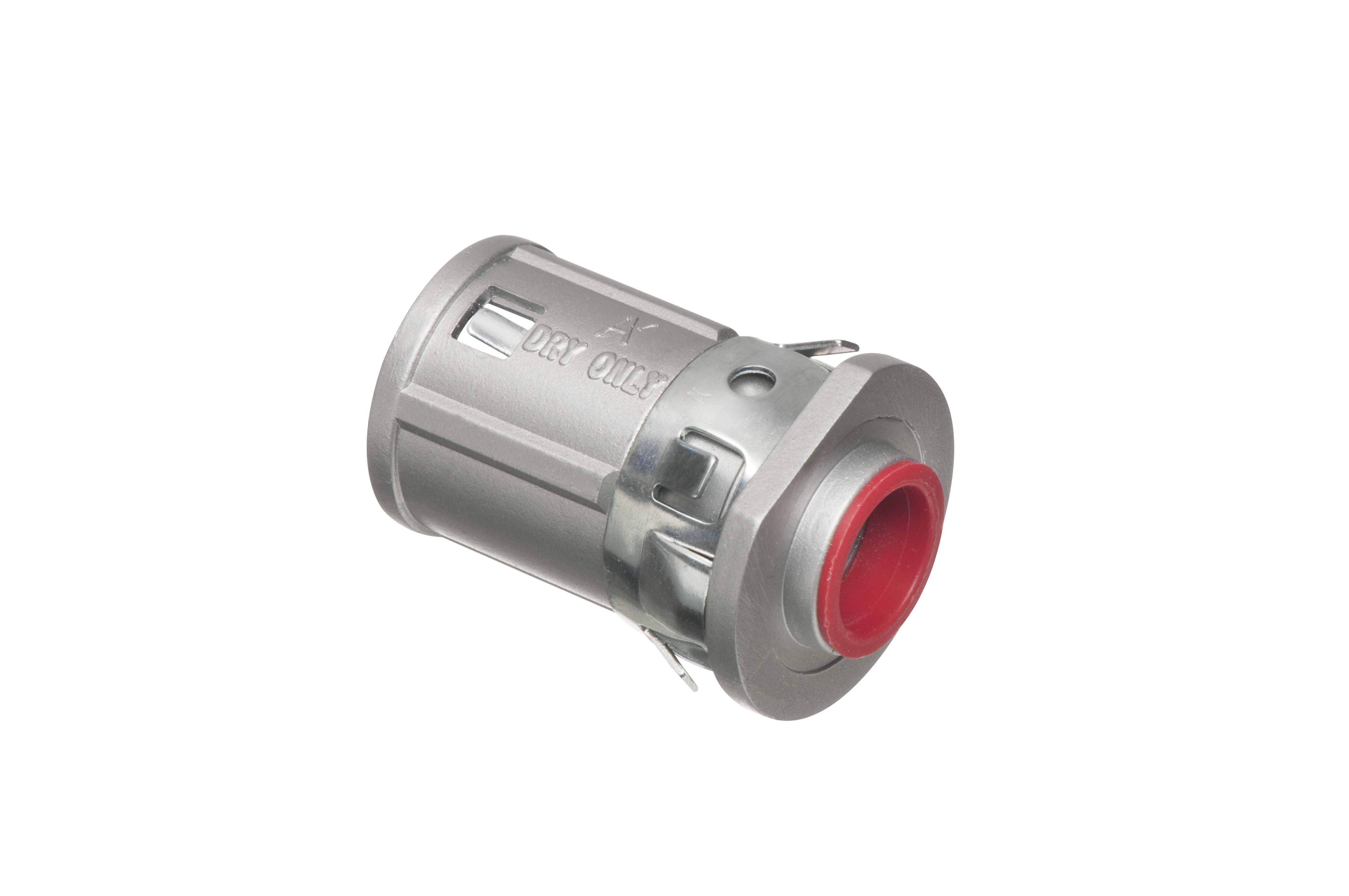

38RAST Product Information

Retrofit Snap²IT® MC Cable Connectors
Specification SheetCatalog Page E-mail

Basic Information

Part Number 38RAST
Description Zinc die-cast, 1/2" knockout with 3/8" trade size MC cable connector snaps quickly onto the conduit with an internal spring steel clip and then snaps into knockout with external spring steel clip, no tools required. Concrete tight when taped and comes with insulated throat. Has rectangular end stop and a cable range of 0.405" to 0.605".
UPC 018997135865
Unit Packaging 25pcs
Standard Packaging 25pcs
Country of Origin
Listing

Physical Information

Weight0.061 lbs/each
Height1.390"
Width1.000"
Color Silver
Material(s)Zinc

Technical Information

Line Drawing 38RAST Line Drawing
Cable Range14/2 and 12/2 w/ and w/o ground, 14/3, 14/4, 12/3, 12/4, 10/2, 10/3
Trade Size1/2"
