Snap 2 it connector for retrofit

40RAST Product Information

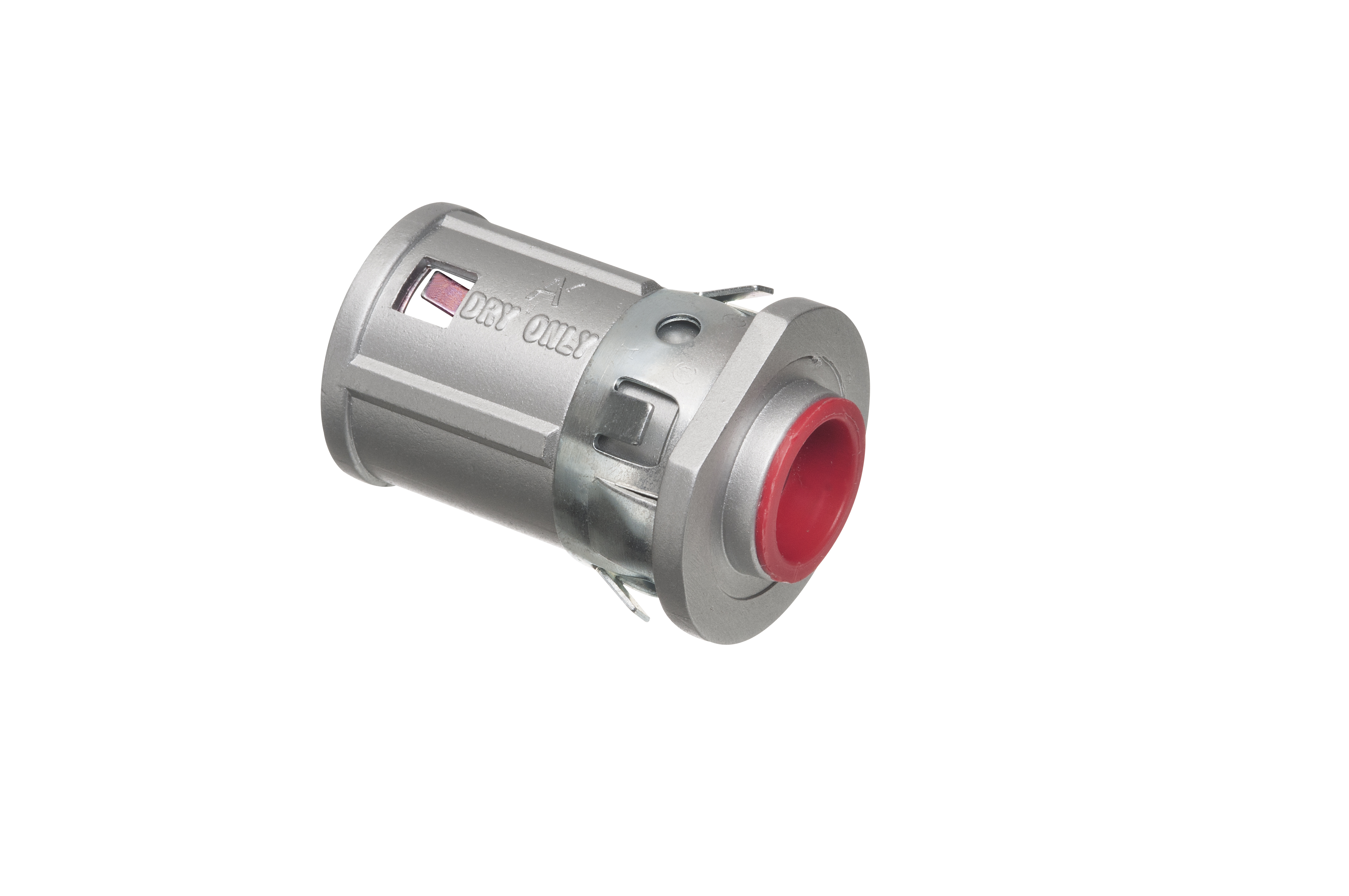

Retrofit Snap²IT® MC Cable Connectors
Specification SheetCatalog Page E-mail

Basic Information

Part Number 40RAST
Description Zinc die-cast, 1/2" Knockout MC cable connector snaps quickly on to the conduit with an internal spring steel clip and then snaps into knockout with external spring steel clip, no tools required. Concrete tight when taped. Red tinted internal clip indicates easier insertion of conduit and comes with Insulated throat. Has rectangular end stop.
UPC 018997135872
Unit Packaging 25pcs
Standard Packaging 25pcs
Country of Origin
Listing

Physical Information

Weight0.062 lbs/each
Height1.390"
Width1.000"
Color Silver
Material(s)Zinc

Technical Information

Line Drawing 40RAST Line Drawing
Cable Range14/3, 12/2 and 12/3 w/ and w/o ground, 14/4, 12/4, 10/2, 10/3
Trade Size1/2"
