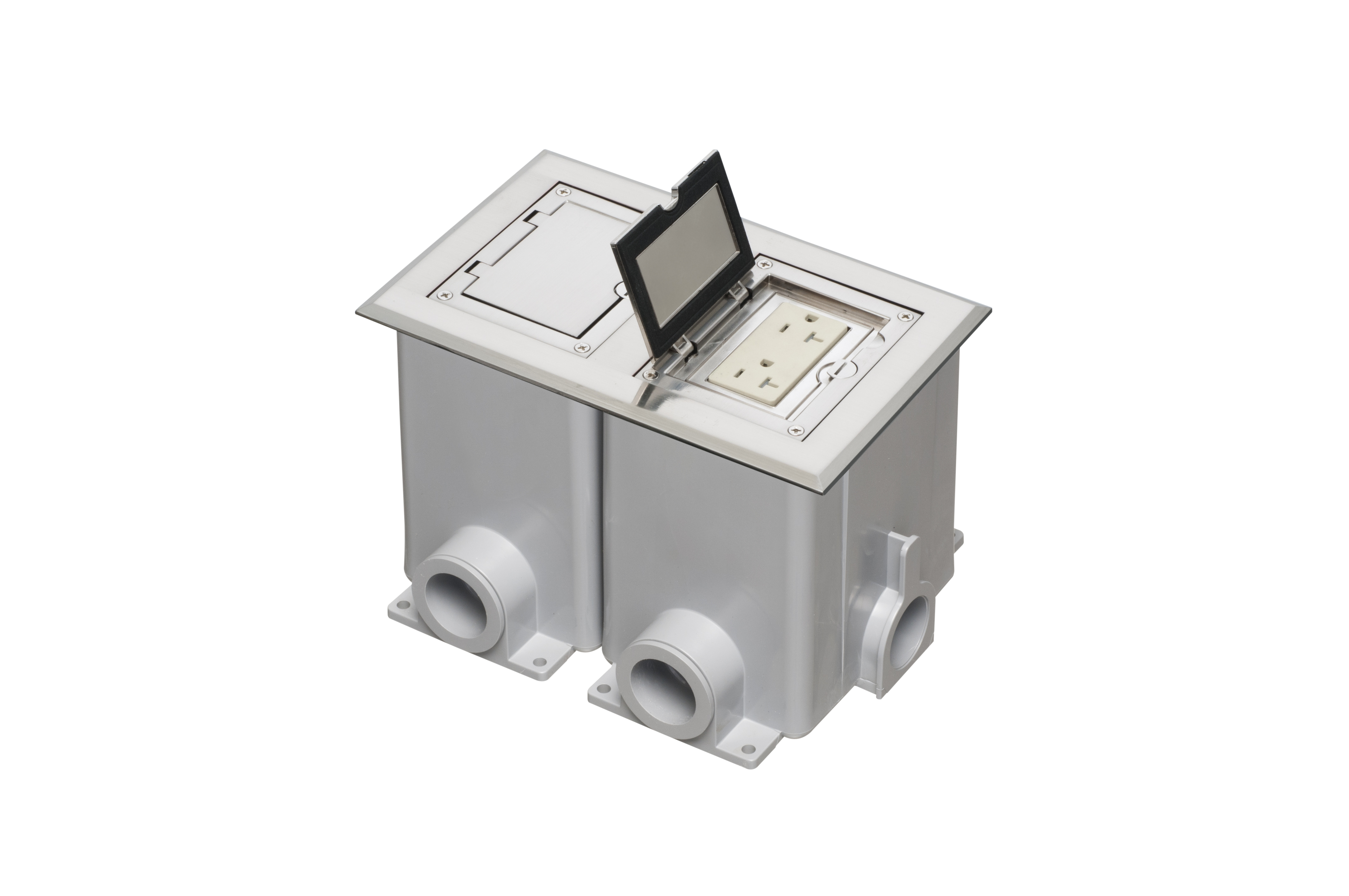

two gang frame kit installed in concrete floor boxes

FLBC8520NL Product Information

Two Gang Frame
Specification SheetCatalog Page E-mail

Additional Images

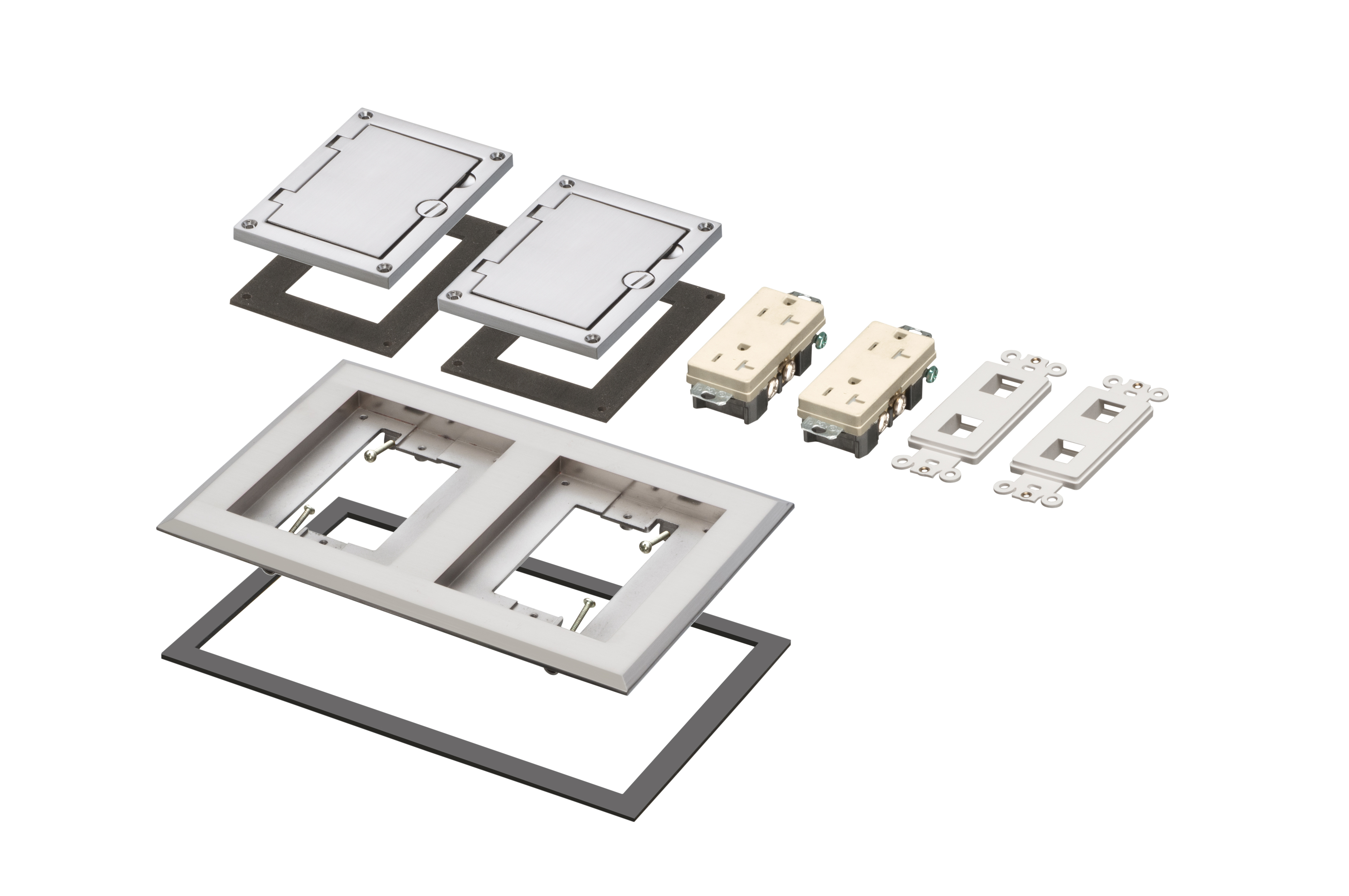

two gang frame and gasket exploded view of two gang floor box cover kit

Basic Information

Part Number FLBC8520NL
Description Nickel two gang frame kit with Flip lid cover. Includes (2) 20A decorator style receptacle, (2) gasket, low voltage insert and installation screws.. Flip lid cover can be opened in any direction.
UPC 018997229564
Unit Packaging 1pc
Standard Packaging 1pc
Listing

Physical Information

Instructional Video FLBC8520NL Instructional Video
Instruction Sheet FLBC8520NL Instruction Sheet
Weight3.064 lbs/each
Height6.094"
Width9.288"
ColorNickel
Material(s)Nickel

Technical Information

Line Drawing FLBC8520NL Line Drawing
Submittal Drawing FLBC8520NL Submittal Drawing
Trade Size2-Gang

Comes With

(4)Low-voltage spacers
(2)Low-voltage inserts
(1)Frame Gasket
(1)Frame
(2)Covers
(2)Cover Gaskets
(2)20A Tamper-Resistant Decorator-Style Duplex Receptacles
(12)#6-32 x 3/4" Long Screws
(4)#6-32 x 1" Long Screws
