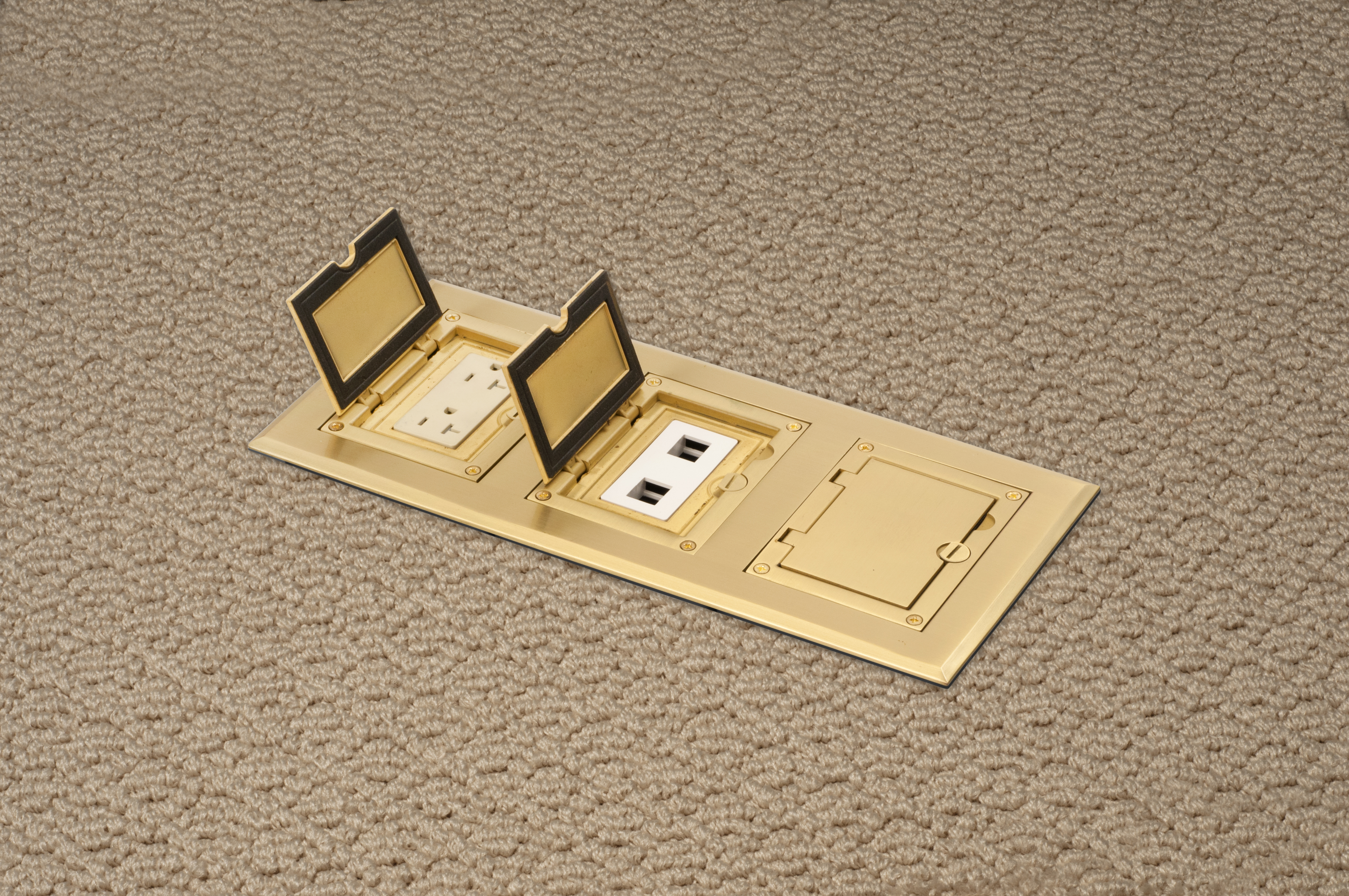

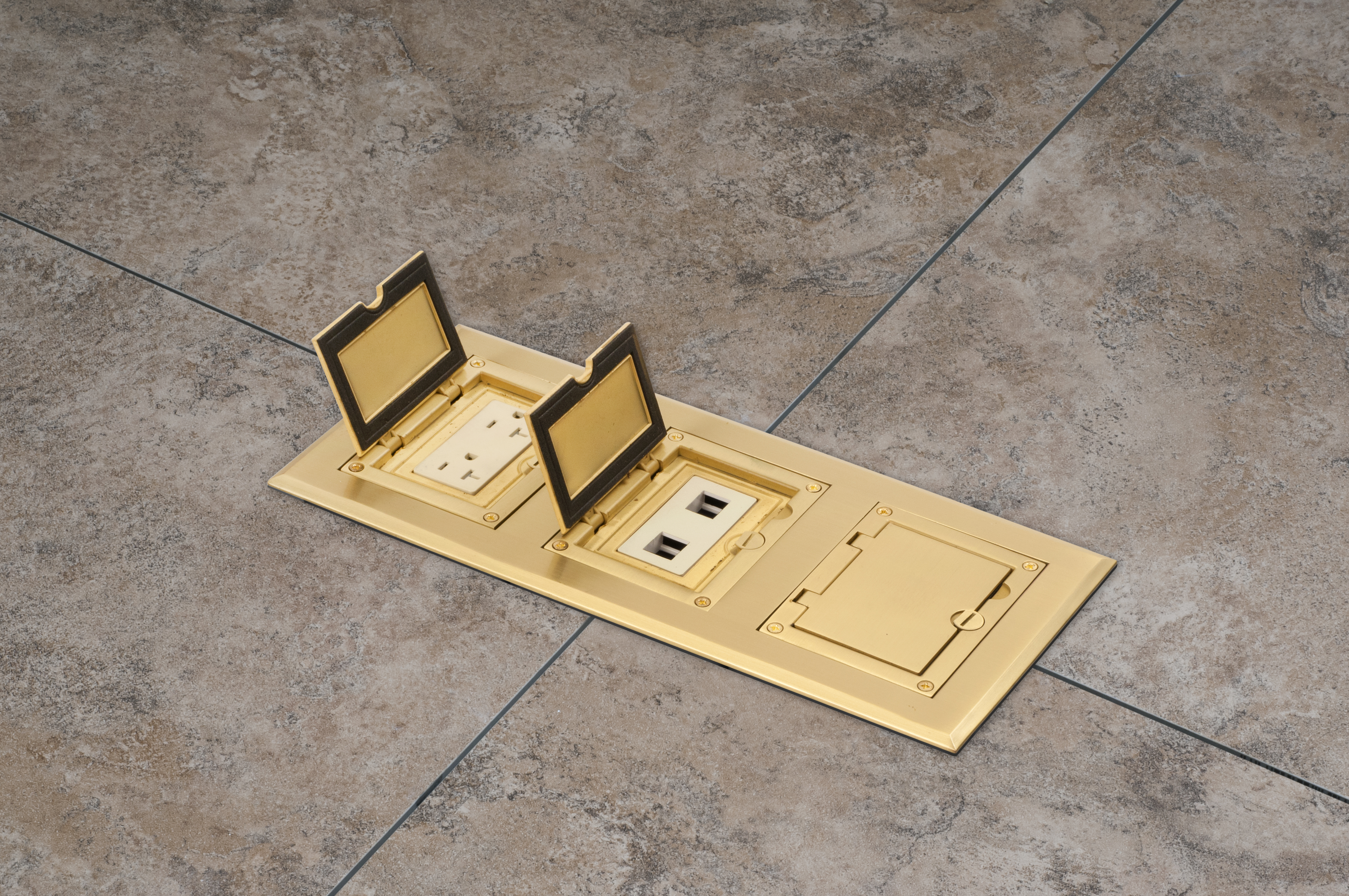

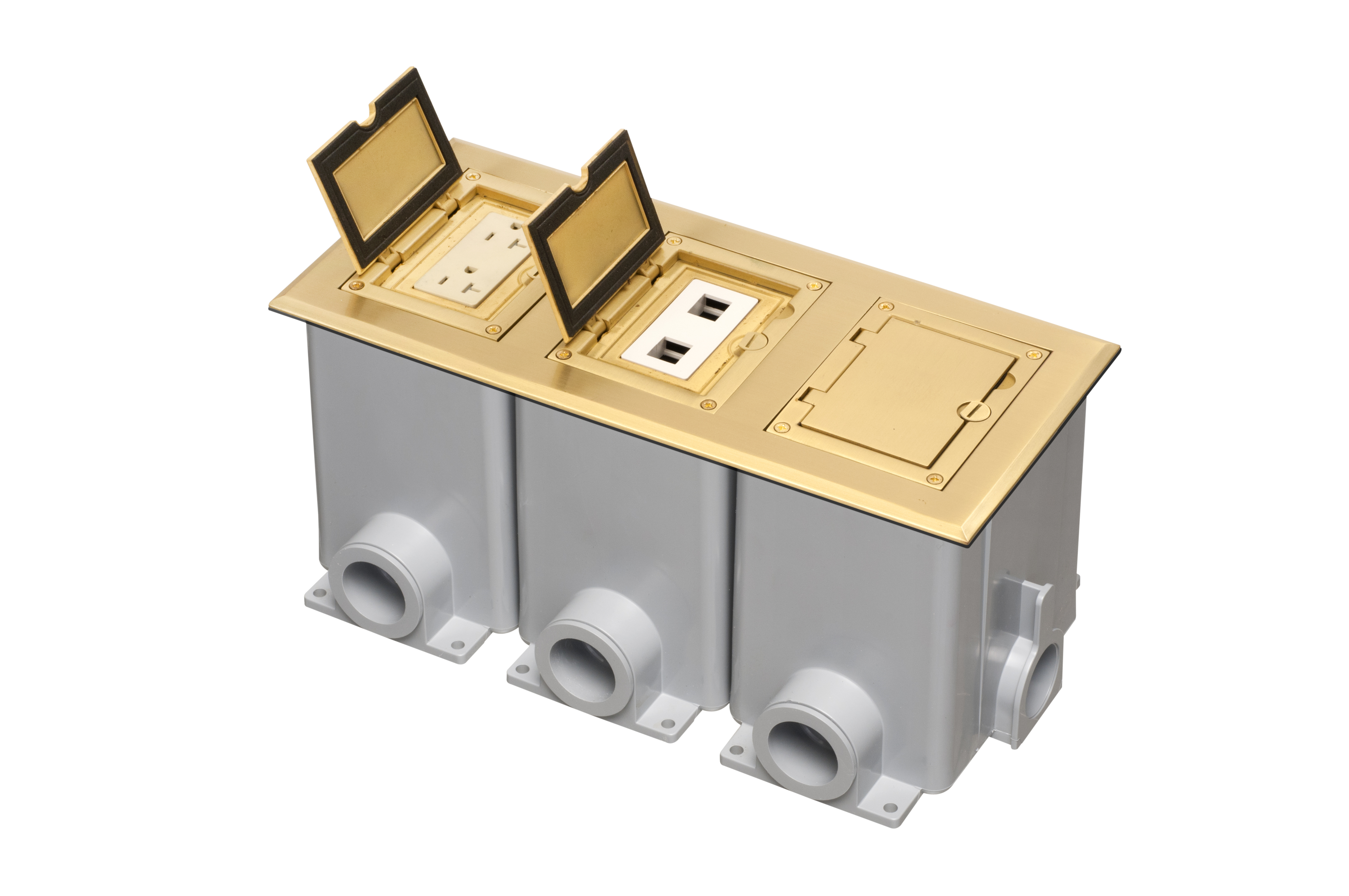

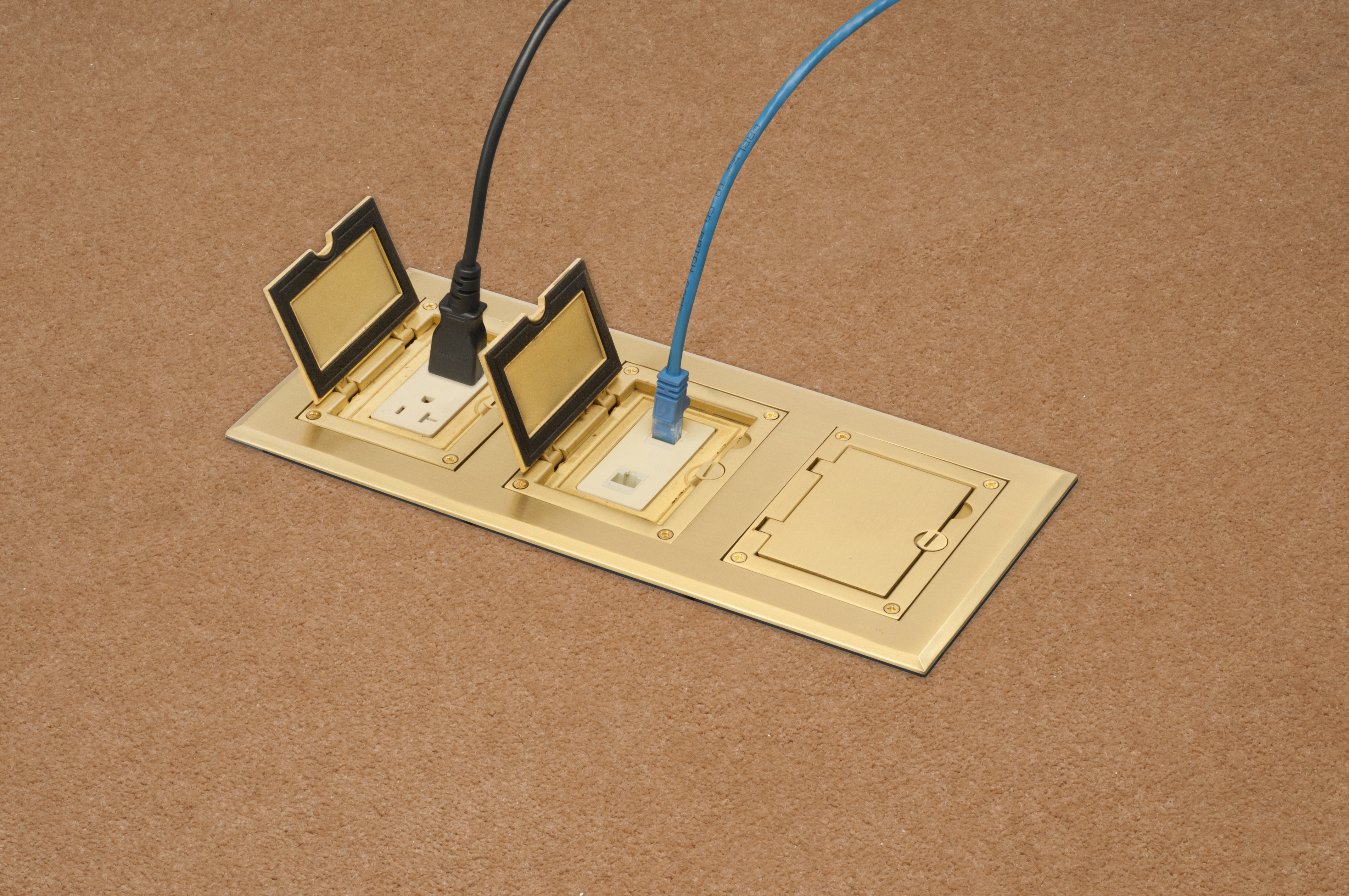

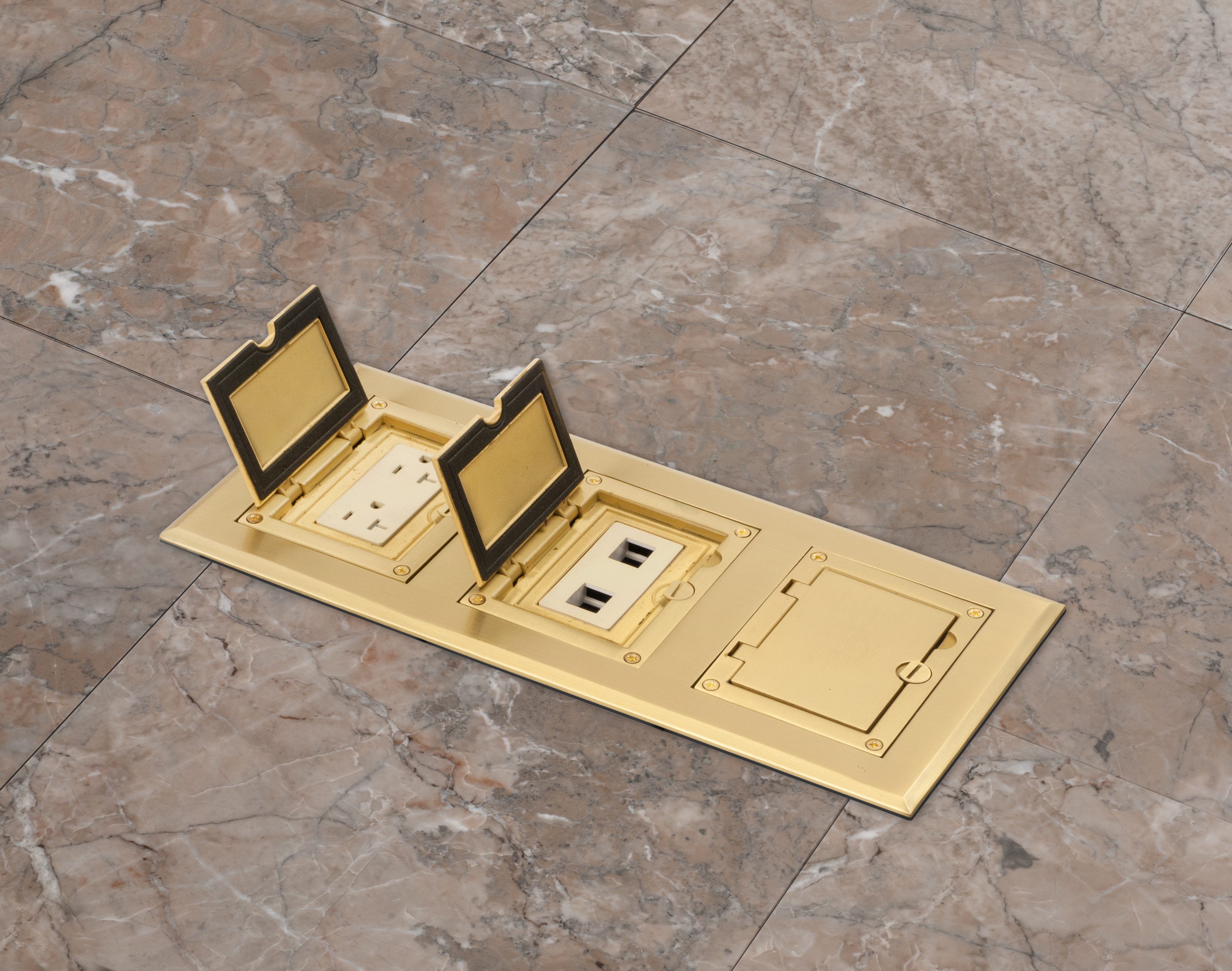

three gang frame kit installed in concrete floor boxes

FLBC8530MB Product Information

Three Gang Frame
Specification SheetCatalog Page E-mail

Additional Images

Basic Information

Part Number FLBC8530MB
Description Brass three gang frame kit with Flip lid cover. Includes (3) 20A decorator style receptacle, (3) gasket, low voltage insert and installation screws. Flip lid cover can be opened in any direction.
UPC 018997229571
Unit Packaging 1pc
Standard Packaging 1pc
Listing

Physical Information

Instructional Video FLBC8530MB Instructional Video
Instruction Sheet FLBC8530MB Instruction Sheet
Weight4.836 lbs/each
Height6.094"
Width13.546"
ColorBrass
Material(s)Brass

Technical Information

Line Drawing FLBC8530MB Line Drawing
Trade Size3-Gang

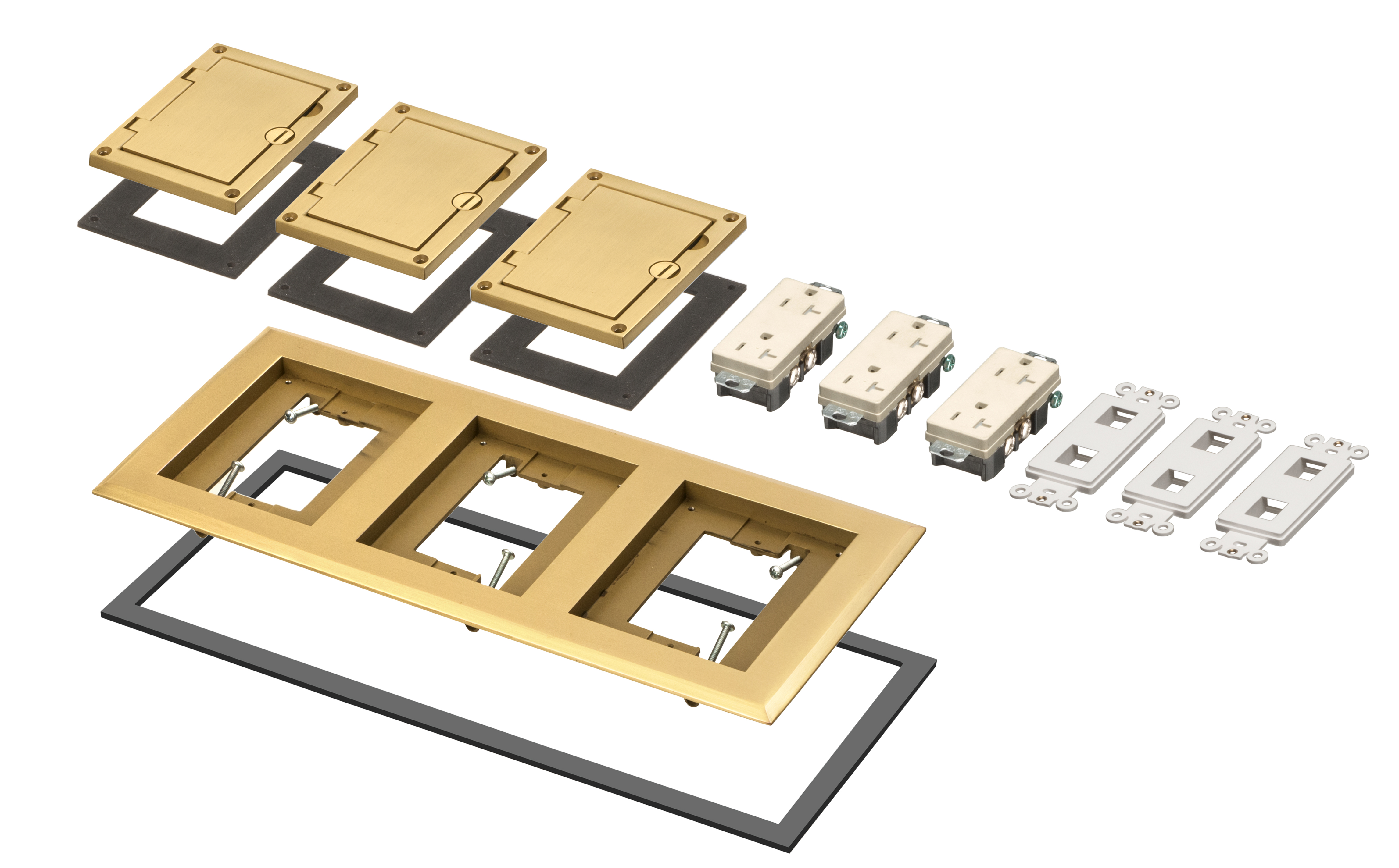

Comes With

(6)Low-voltage spacers
(3)Low-voltage inserts
(1)Frame Gasket

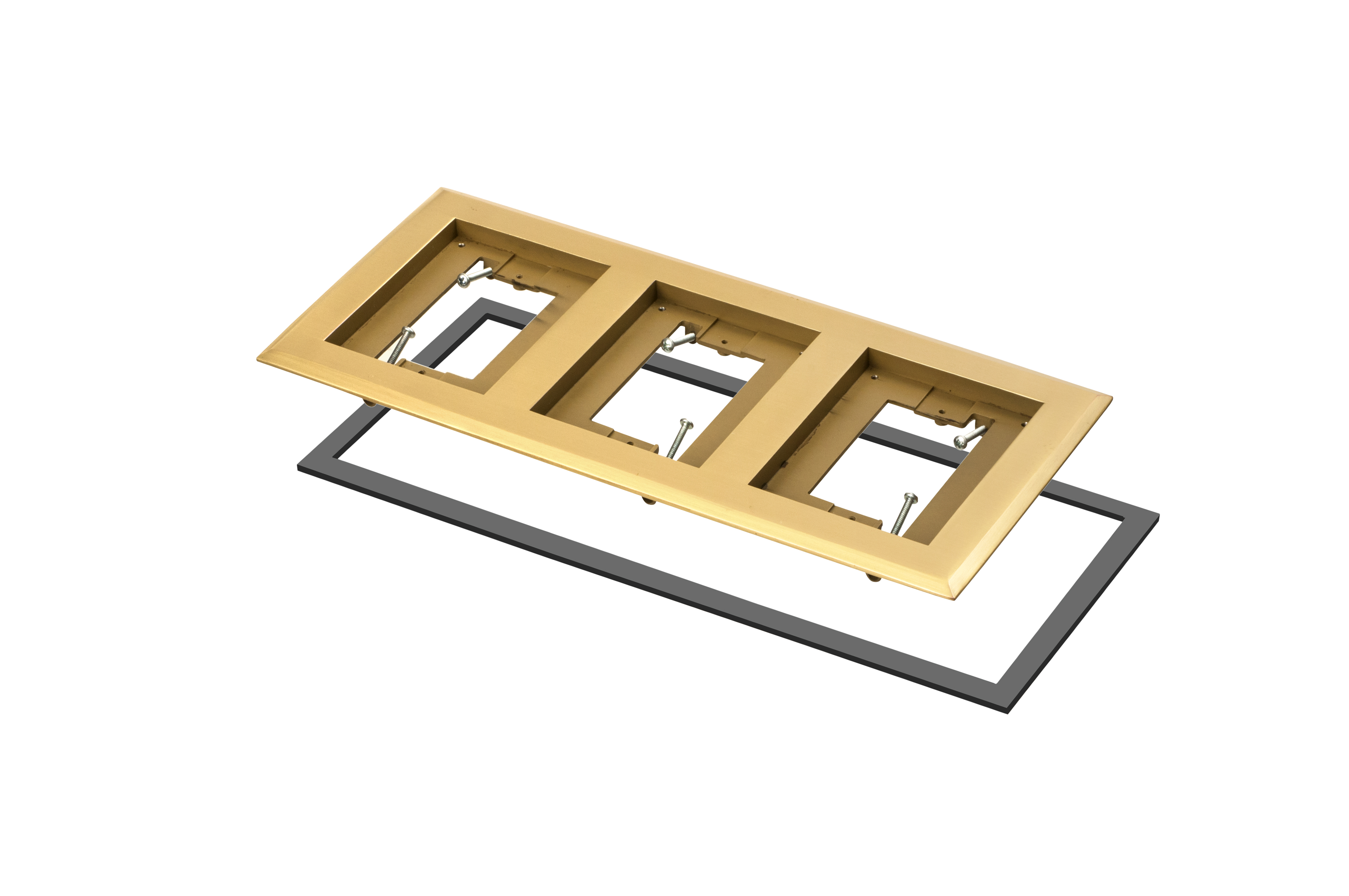

(1)Frame
(3)Covers
(3)Cover Gaskets
(3)20A Tamper-Resistant Decorator-Style Duplex Receptacles
(18)#6-32 x 3/4" Long Screws
(6)#6-32 x 1" Long Screws
