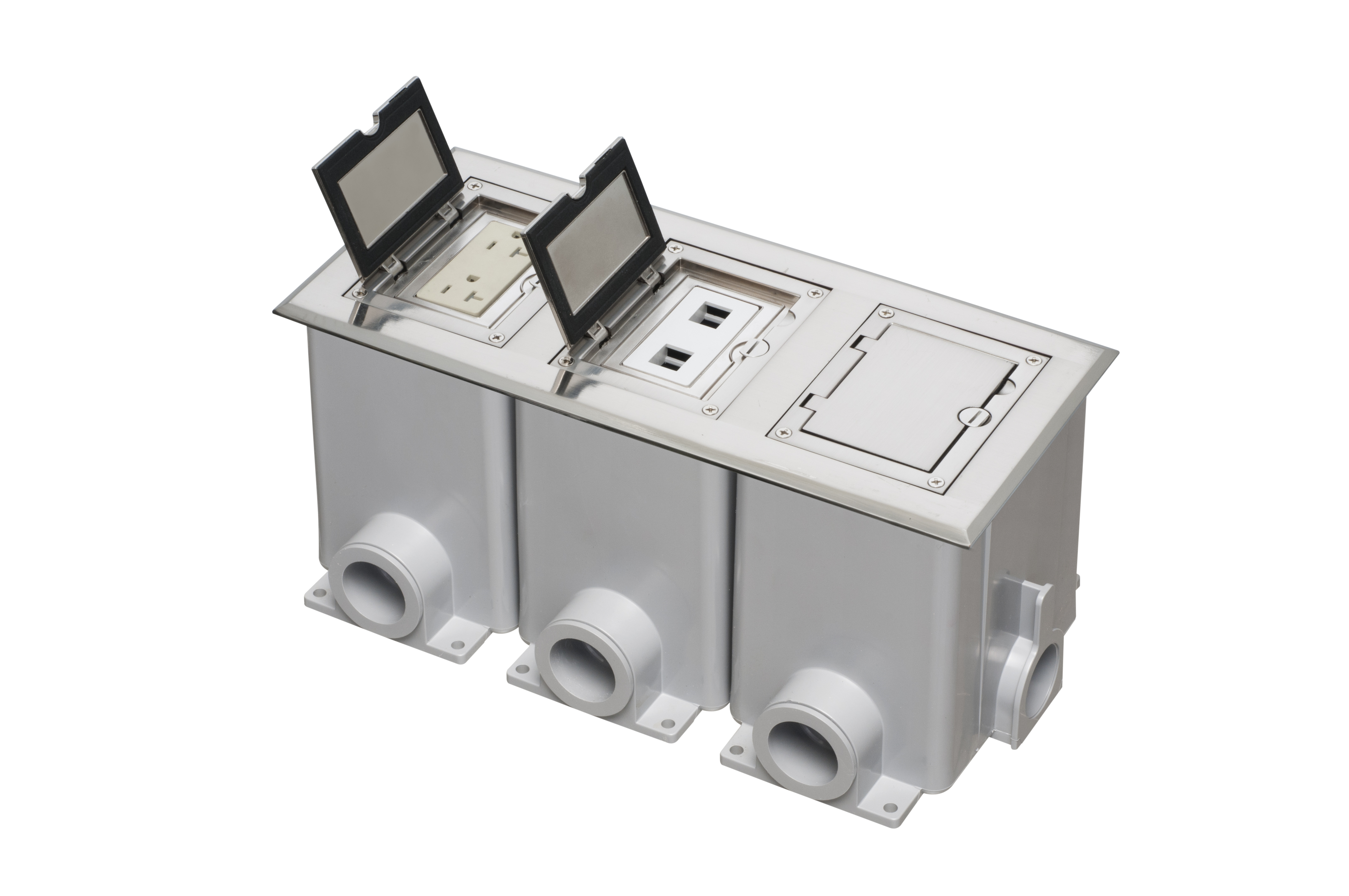

three gang frame kit installed in concrete floor boxes

FLBC8530NL Product Information

Three Gang Frame
Specification SheetCatalog Page E-mail

Additional Images

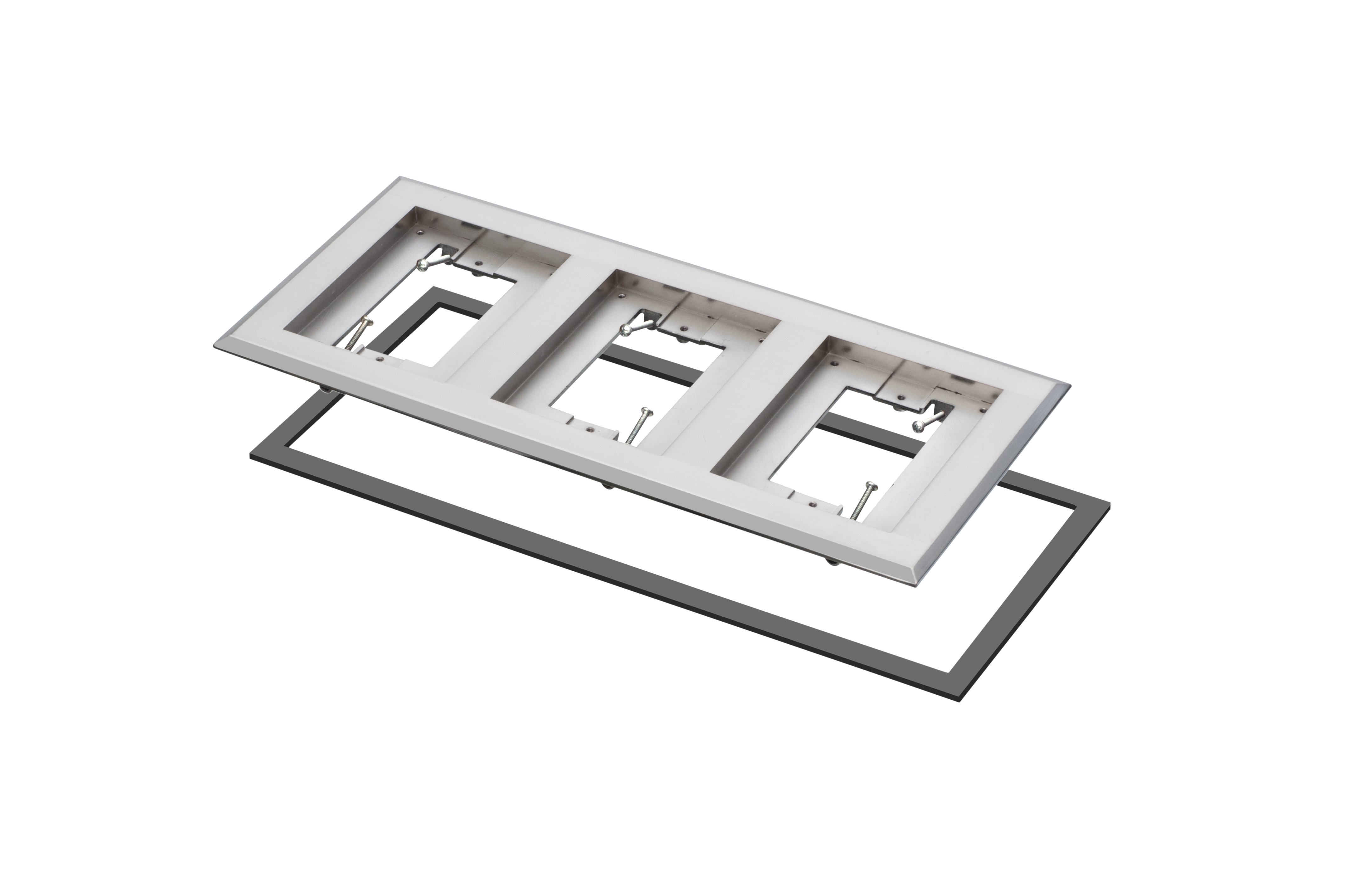

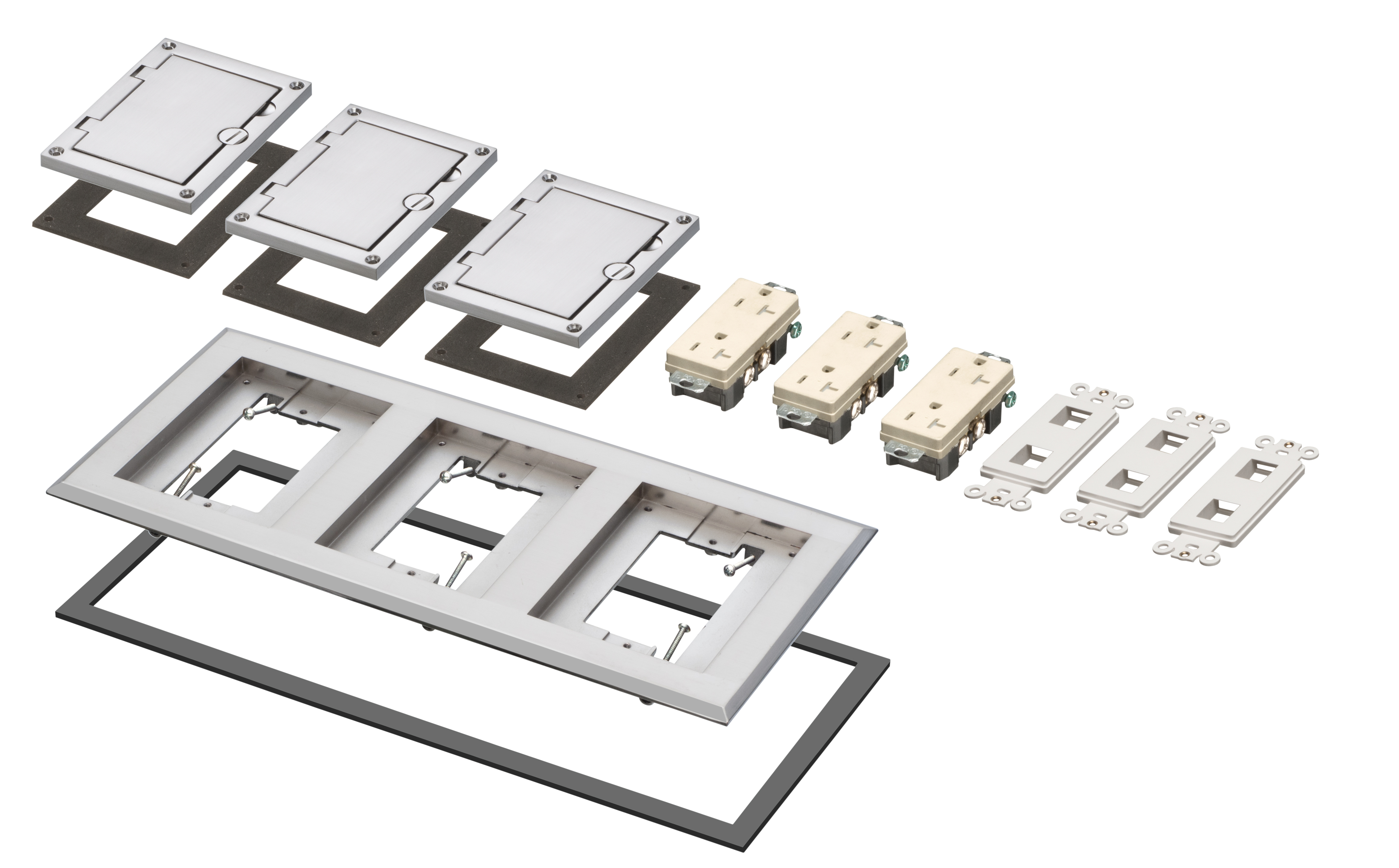

three gang frame and gasket exploded view of three gang floor box cover kit

Basic Information

Part Number FLBC8530NL
Description Nickel three gang frame kit with Flip lid cover. Includes (3) 20A decorator style receptacle, (3) gasket, low voltage insert and installation screws. Flip lid cover can be opened in any direction.
UPC 018997229588
Unit Packaging 1pc
Standard Packaging 1pc

Physical Information

Instructional Video FLBC8530NL Instructional Video
Instruction Sheet FLBC8530NL Instruction Sheet
Weight4.836 lbs/each

Technical Information

Line Drawing FLBC8530NL Line Drawing
Trade Size3-Gang

Comes With

(6)Low-voltage spacers
(3)Low-voltage inserts
(1)Frame Gasket
(3)Cover Gaskets
(3)20A Tamper-Resistant Decorator-Style Duplex Receptacles
(18)#6-32 x 3/4" Long Screws
(6)#6-32 x 1" Long Screws
