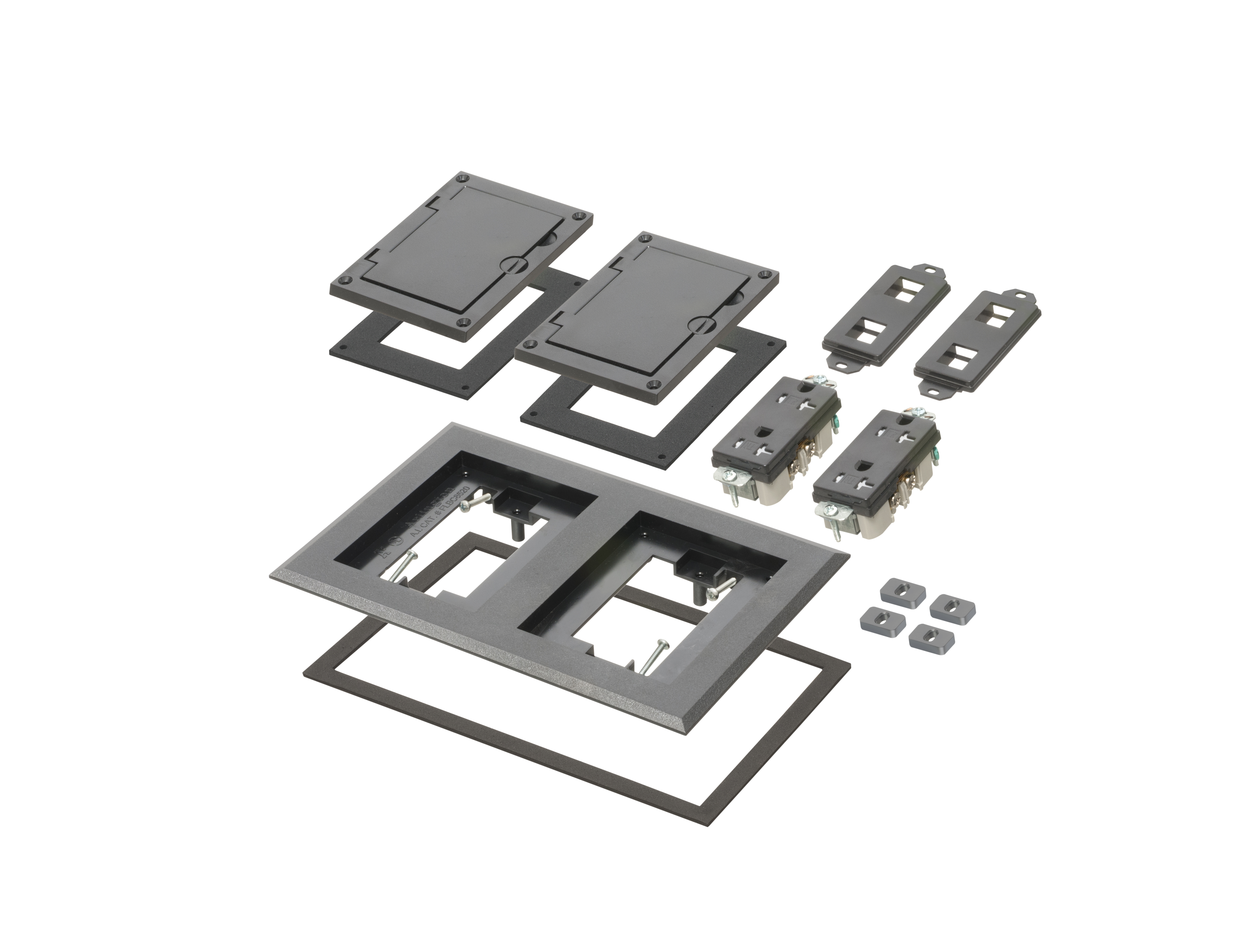

exploded view of components included in floor box cover kit

FLBC8520BL Product Information

Two Gang Plastic Cover Frame Kits
Specification SheetCatalog Page E-mail

Additional Images

Basic Information

Part Number FLBC8520BL

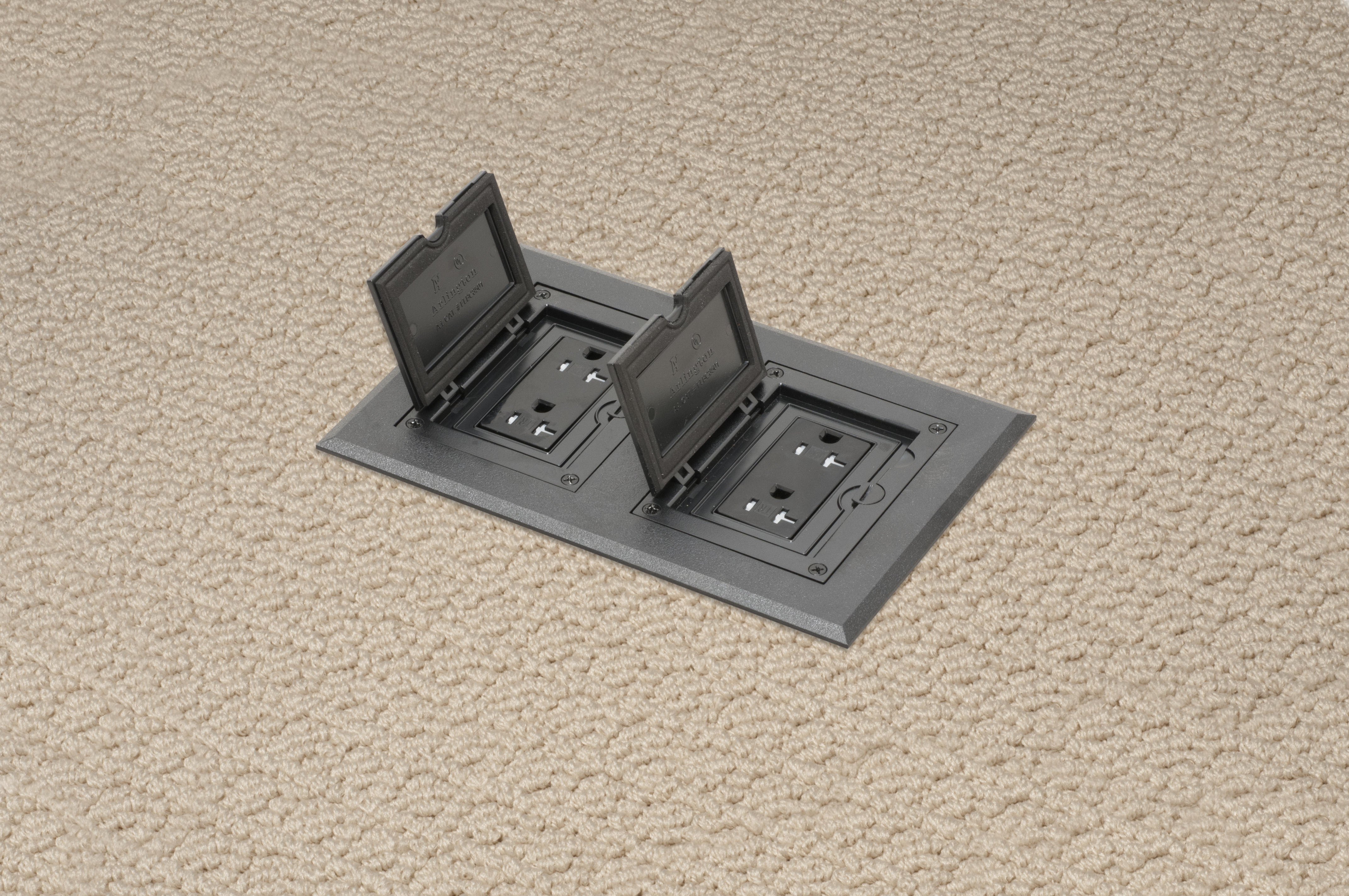

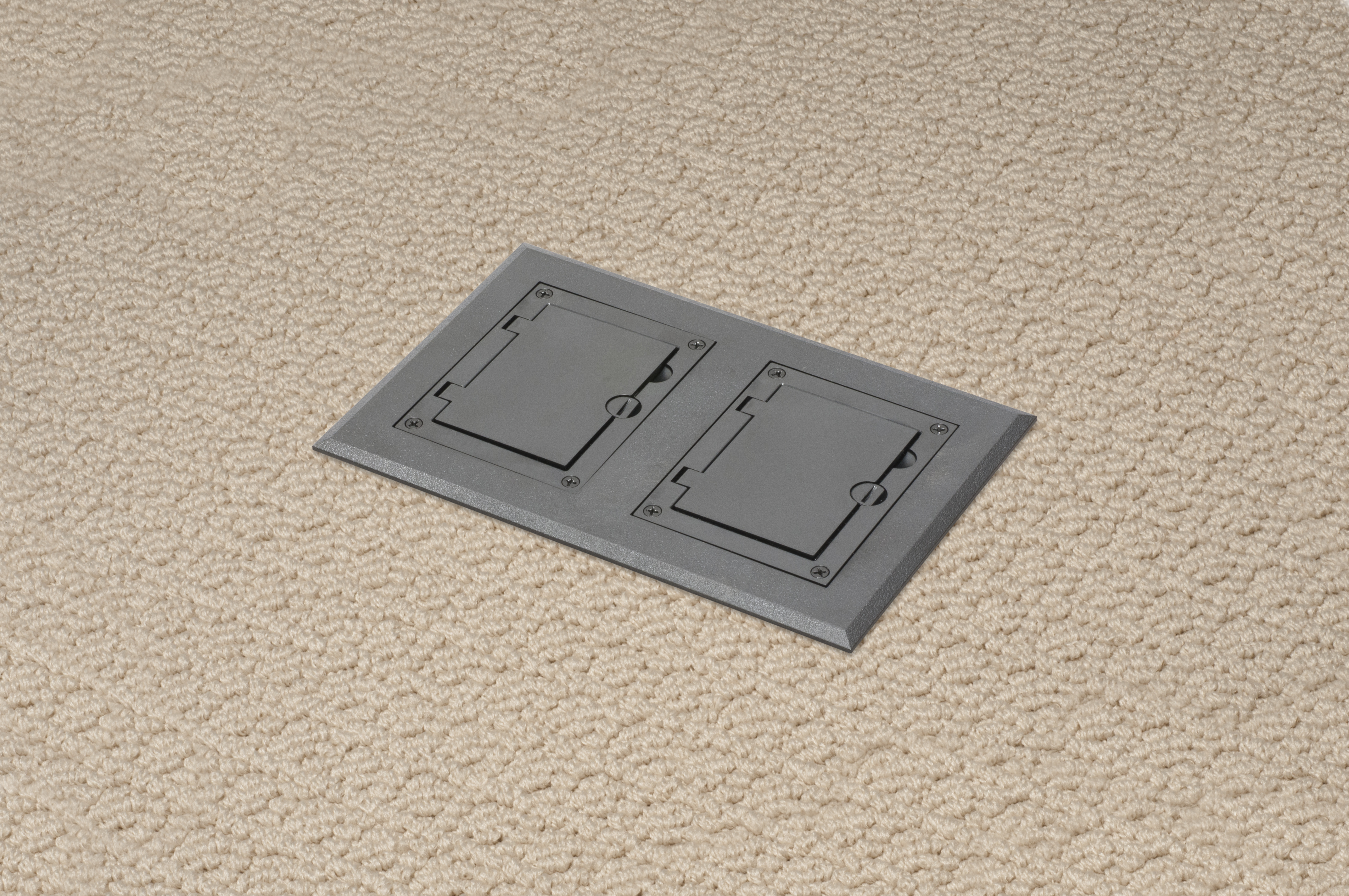

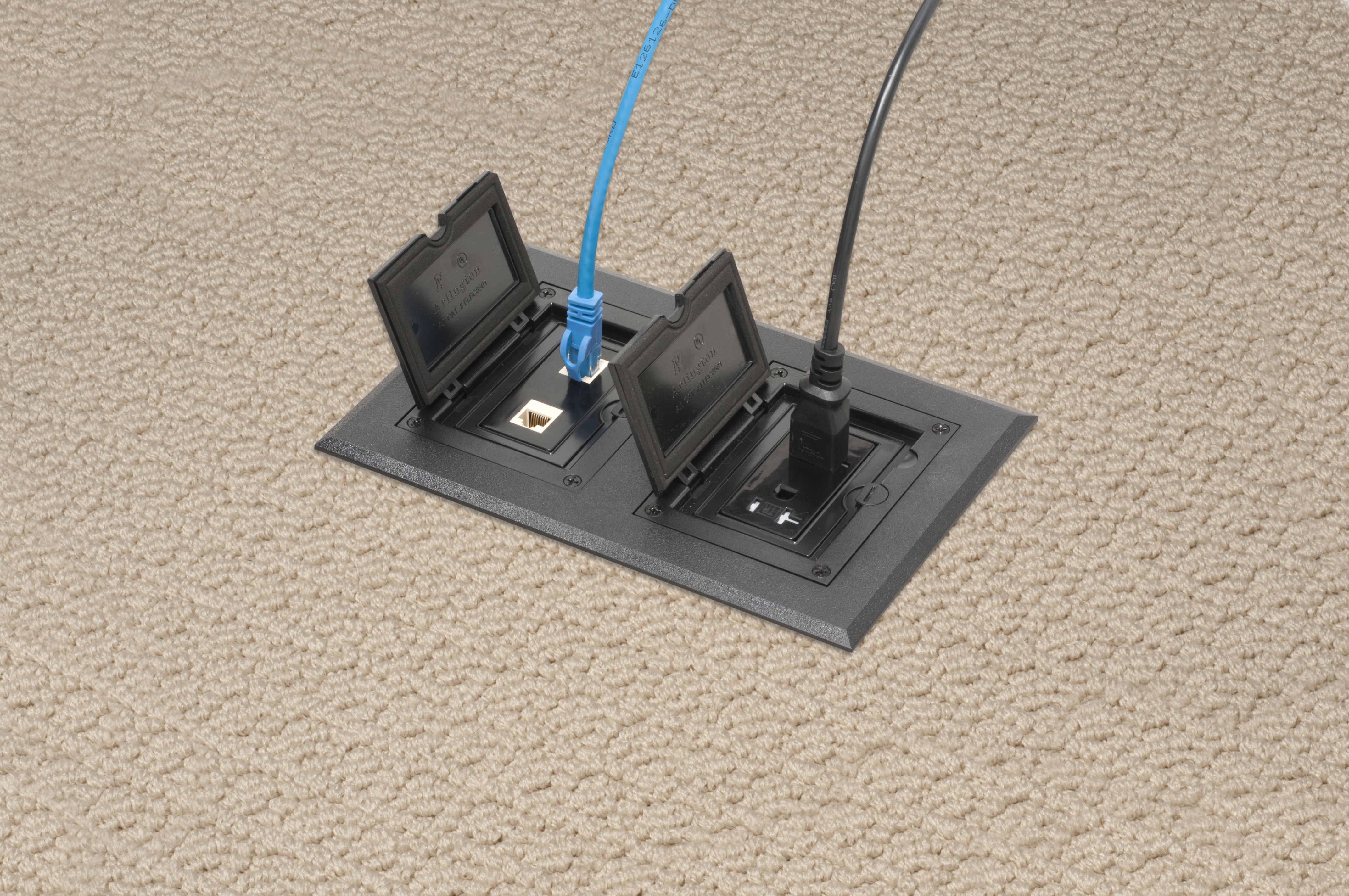

Description Black non-metallic two gang frame kit with (2) flip lid covers. Includes (2) 20A decorator style receptacles, (2) gaskets, low voltage insert and installation screws. Flip lid cover can be opened in any direction.
UPC 018997229670
Unit Packaging 1pc
Standard Packaging 1pc
Country of Origin
Listing

Physical Information

Instruction Sheet FLBC8520BL Instruction Sheet
Weight1.044 lbs/each
Height6.094"
Width9.288"
Color Black
Material(s)Plastic

Technical Information

Line Drawing FLBC8520BL Line Drawing
Submittal Drawing FLBC8520BL Submittal Drawing
Trade Size2-Gang

Comes With

(4)Low-voltage spacers
(2)Low-voltage inserts
(1)Frame Gasket
(1)Frame
(2)Covers
(2)Cover Gaskets
(2)20A Tamper-Resistant Decorator-Style Duplex Receptacles
(12)#6-32 x 3/4" Long Screws
(4)#6-32 x 1" Long Screws
