Arlington

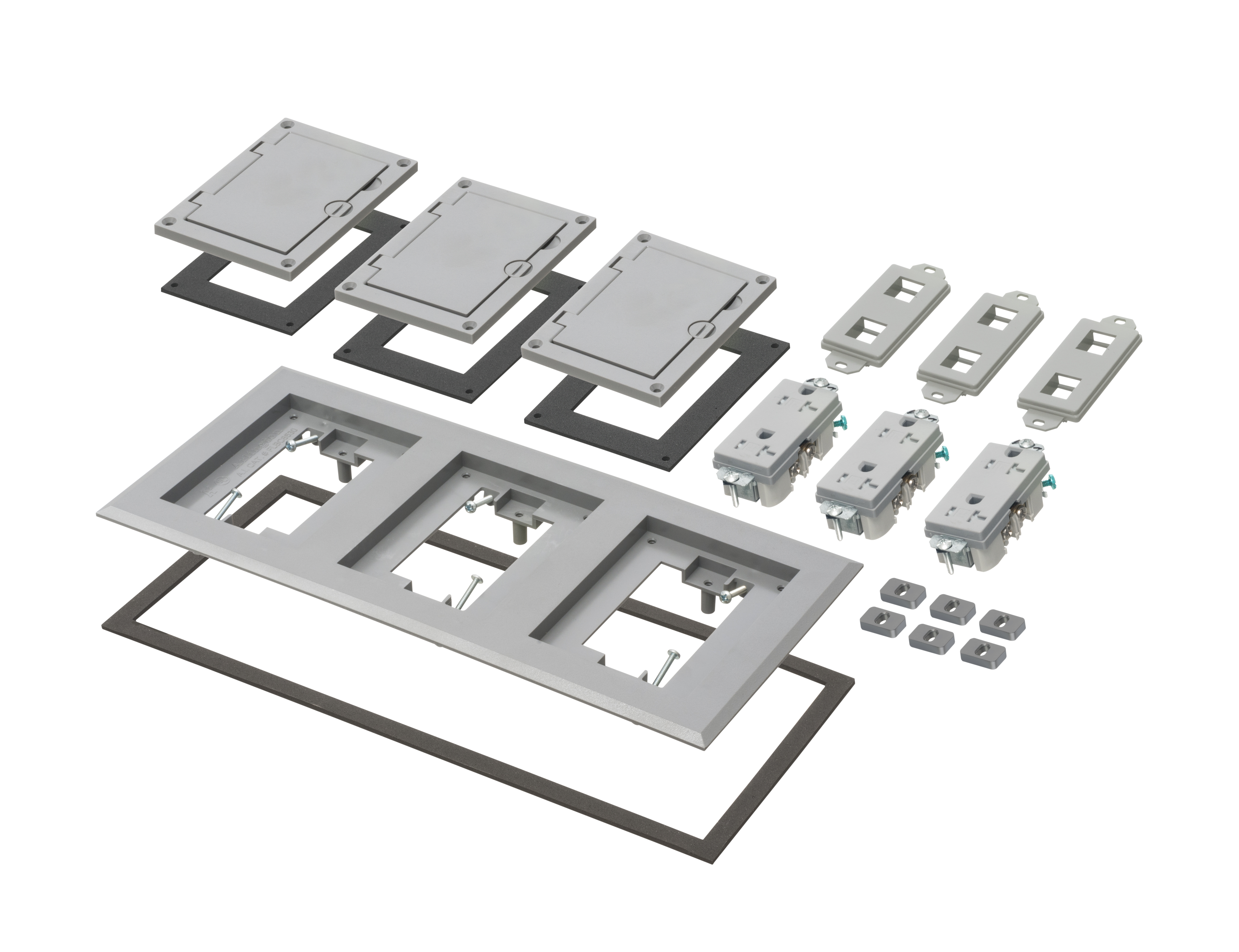

exploded view of three gang floor box cover kit

FLBC8530GY Product Information

Three Gang Plastic Cover Frame Kits
Specification SheetCatalog Page E-mail

Additional Images

Basic Information

Part Number FLBC8530GY
Description Gray non-metallic three gang frame kit with (3) flip lid covers. Includes (3) 20A decorator style receptacles, (3) gaskets, low voltage insert and installation screws. Flip lid cover can be opened in any direction.
UPC 018997229724
Unit Packaging 1pc
Standard Packaging 1pc
Country of Origin
Listing

Physical Information

Instruction Sheet FLBC8530GY Instruction Sheet
Weight1.290 lbs/each
Height6.094"
Width13.546"
Color Gray
Cover Color Gray
Material(s)Plastic

Technical Information

Line Drawing FLBC8530GY Line Drawing
Trade Size3-Gang

Comes With

(6)Low-voltage spacers
(3)Low-voltage inserts
(1)Frame Gasket
(1)Frame
(3)Covers
(3)Cover Gaskets
(3)20A Tamper-Resistant Decorator-Style Duplex Receptacles
(18)#6-32 x 3/4" Long Screws
(6)#6-32 x 1" Long Screws
