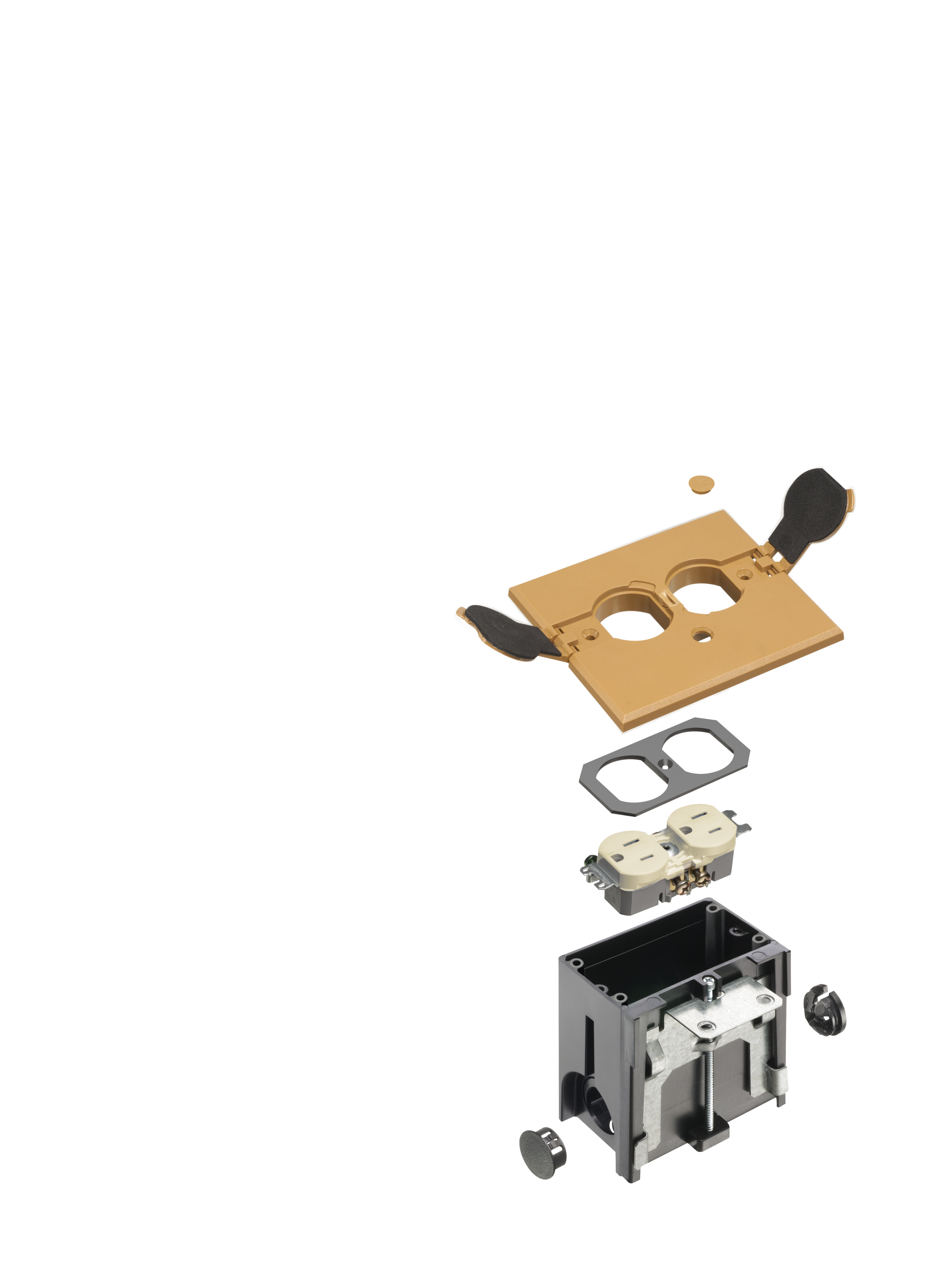

exploded view of components included in adjustable floor box kit

FLBAF101CA Product Information

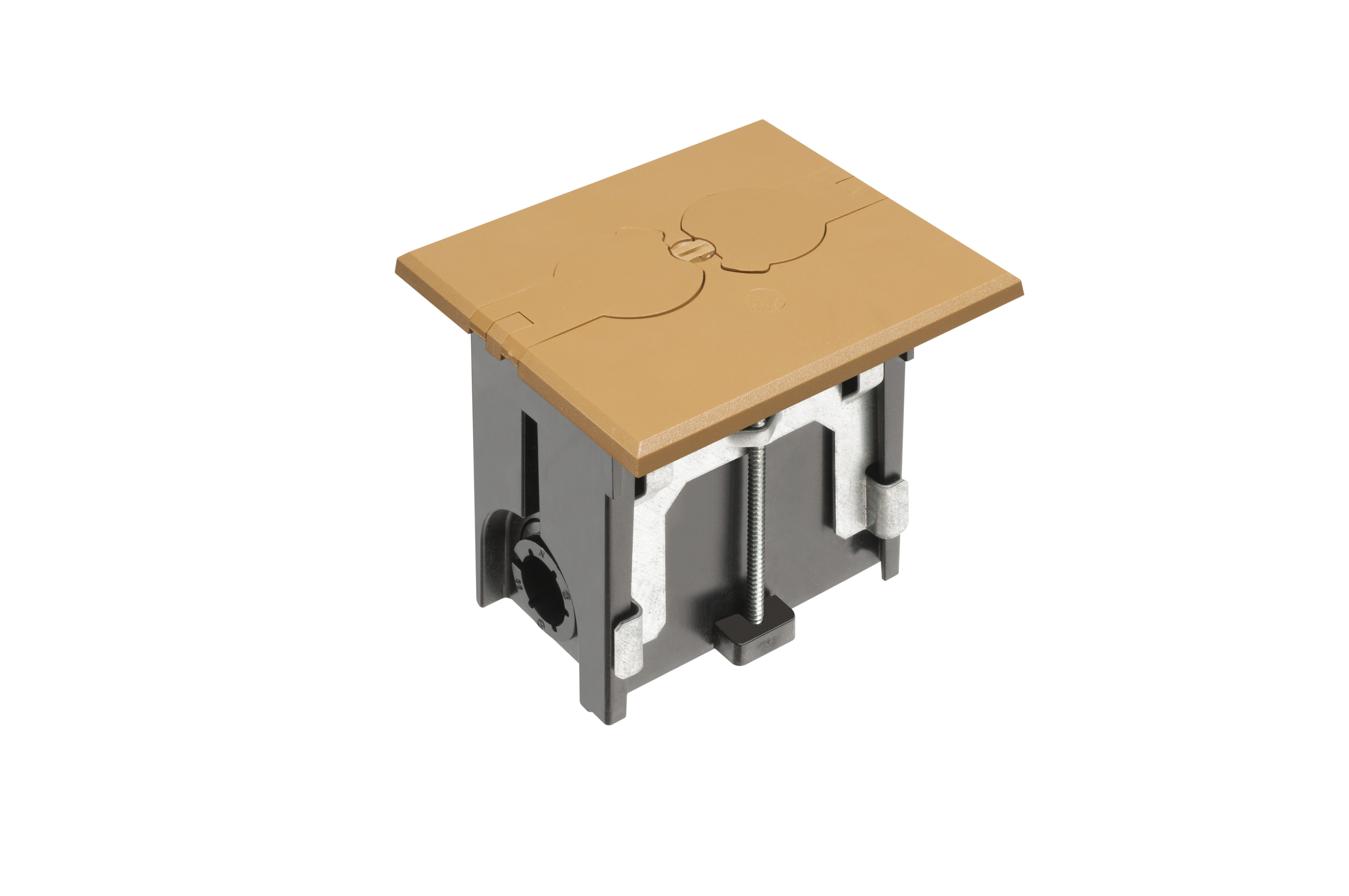

Adjustable Non-Metallic Floor Box for New Floors with Flip Lids
Specification SheetCatalog Page E-mail

Additional Images

Basic Information

Part Number FLBAF101CA
Description Non Metallic adjustable floor box. Caramel with flip lids. Includes tamper resistant duplex receptacle, cover plate with gasket and Arlington NM94 connector and Arlington NM900 knockout plug.
UPC 018997523013
Unit Packaging 1pc
Standard Packaging 4pcs
Country of Origin
Listing

Physical Information

Instructional Video FLBAF101CA Instructional Video
Instruction Sheet FLBAF101CA Instruction Sheet
Weight0.657 lbs/each
Height4.655"
Width3.750"
ColorCaramel (Cover)
Material(s)Plastic (Box)

Technical Information

Line Drawing FLBAF101CA Line Drawing
StyleNon-metallic, adjustable gasketed floor box with flip lids
Trade Size1-Gang
UsageNew floor construction

Comes With

(1)Tamper-Resistant Duplex Receptacle
(1)NM94 Cable Connector
(1)NM900 Snap-In Blank
(1)Metal Clip
(1)Cover
(1)Adjustment Screw Cap
(1)Adjustable Floor Box
(2)#6-32 x 1" Long Screws
(4)#6 Drywall Screws
