FLB6242MB Product Information

One Low Voltage Device and One 110v receptacle
Specification SheetCatalog Page E-mail

Additional Images

Basic Information

Part Number FLB6242MB
Description A combination floor box kit with installed low voltage divider. Includes four flip lids and gasket, One low voltage device and one 110v receptacle. Round Brass Cover.
UPC 018997228048
Unit Packaging 1pc
Standard Packaging 1pc
Listing

Physical Information

Instruction Sheet FLB6242MB Instruction Sheet
Weight2.800 lbs/each
Height6.000"
Width6.000"
ColorBrass
Cover ColorBrass
Material(s)Brass, Steel, Plastic

Technical Information

Line Drawing FLB6242MB Line Drawing
StyleFlip Lid
Trade Size2-Gang
Voltage110v

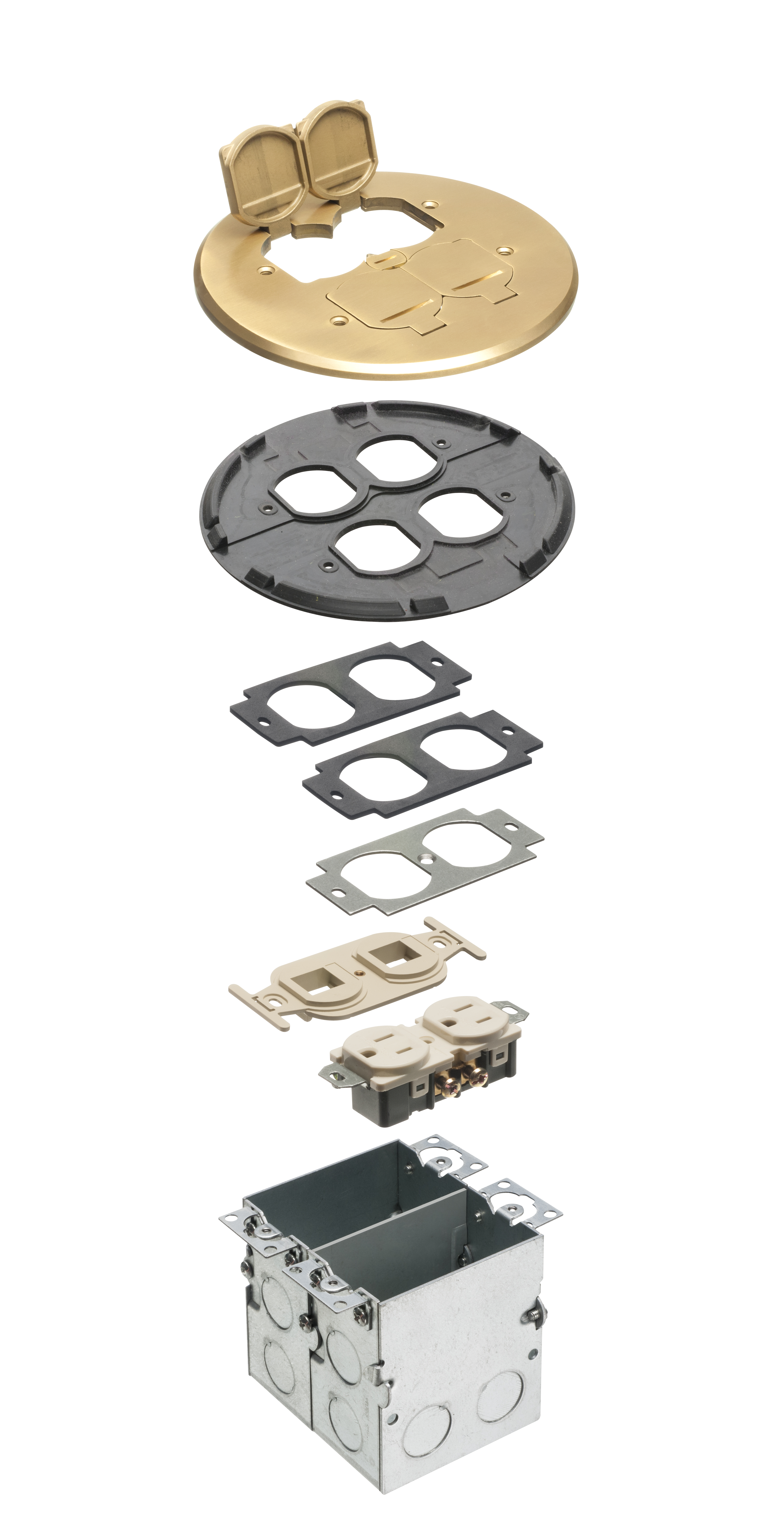

Comes With

(1)Tamper-Resistant Duplex Receptacle
(1)Low-voltage insert
(2)Gaskets
(1)Gasket support plate
(1)Cover
(1)2-gang steel combo box with installed low-voltage divider
(1)#6-32 x 1/2" Long Screw
(4)#6-32 x 1-3/16" Long Screws
