FLB6242NL Product InformationOne Low Voltage Device and One 110v receptacle Specification SheetCatalog Page E-mail |
Additional Images
Basic Information
| Part Number | FLB6242NL |

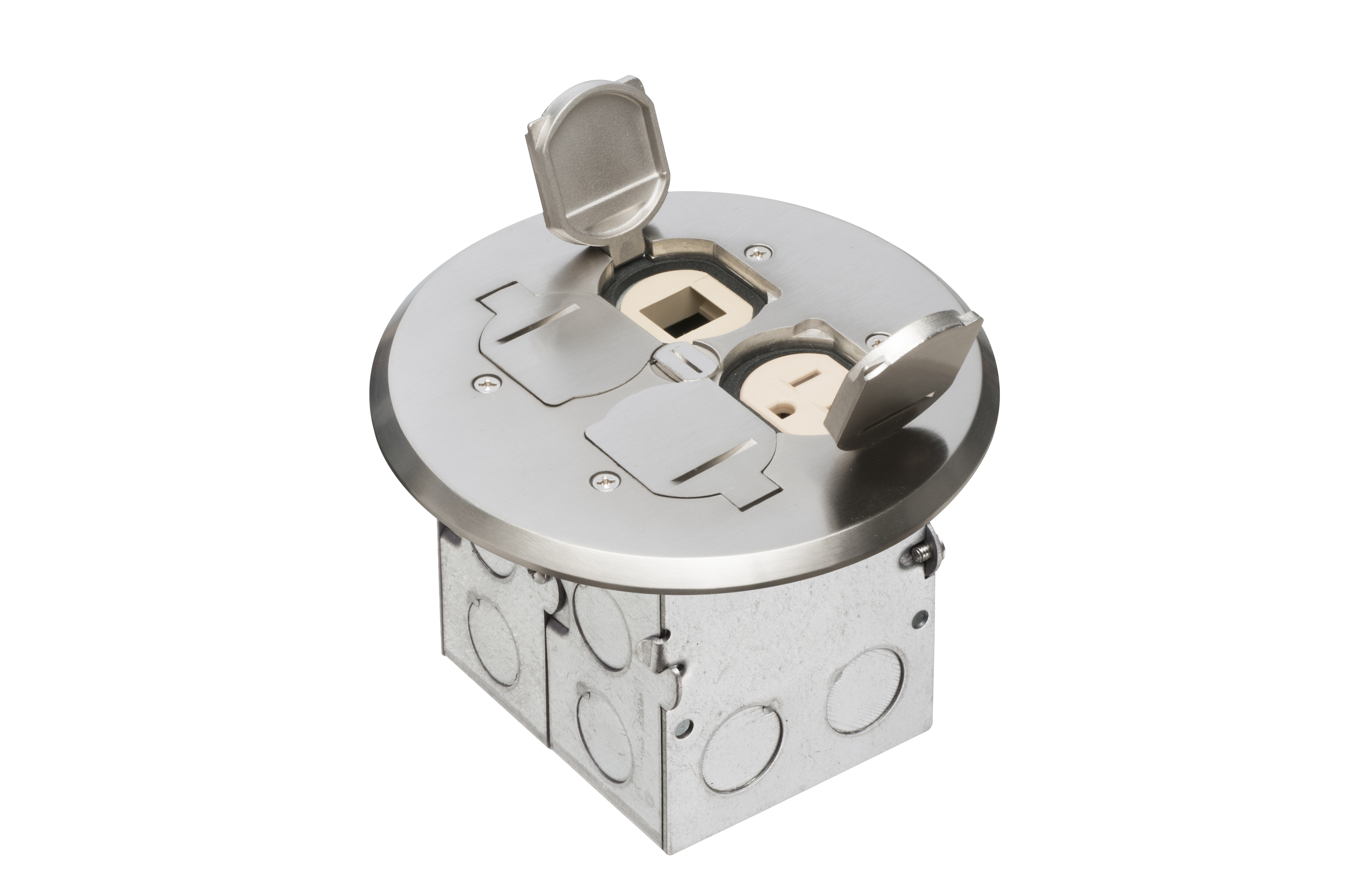

| Description | A combination floor box kit with installed low voltage divider. Includes four flip lids and gasket, One low voltage device and one 110v receptacle. Round Nickel Plated Cover. |
| UPC-A | 018997228055 |
| Unit Packaging | 1pc |
| Standard Packaging | 1pc |
| Listing |
|
Physical Information
| Instruction Sheet | FLB6242NL Instruction Sheet |
| Weight | 2.800 lbs/each |
| Height | 6.000" |
| Width | 6.000" |
| Color | Nickel |
| Cover Color | Nickel |
| Material(s) | Nickel, Plastic, Steel |
Technical Information
| Line Drawing | FLB6242NL Line Drawing |
| Style | Flip Lid |
| Trade Size | 2-Gang |
| Voltage | 110 |

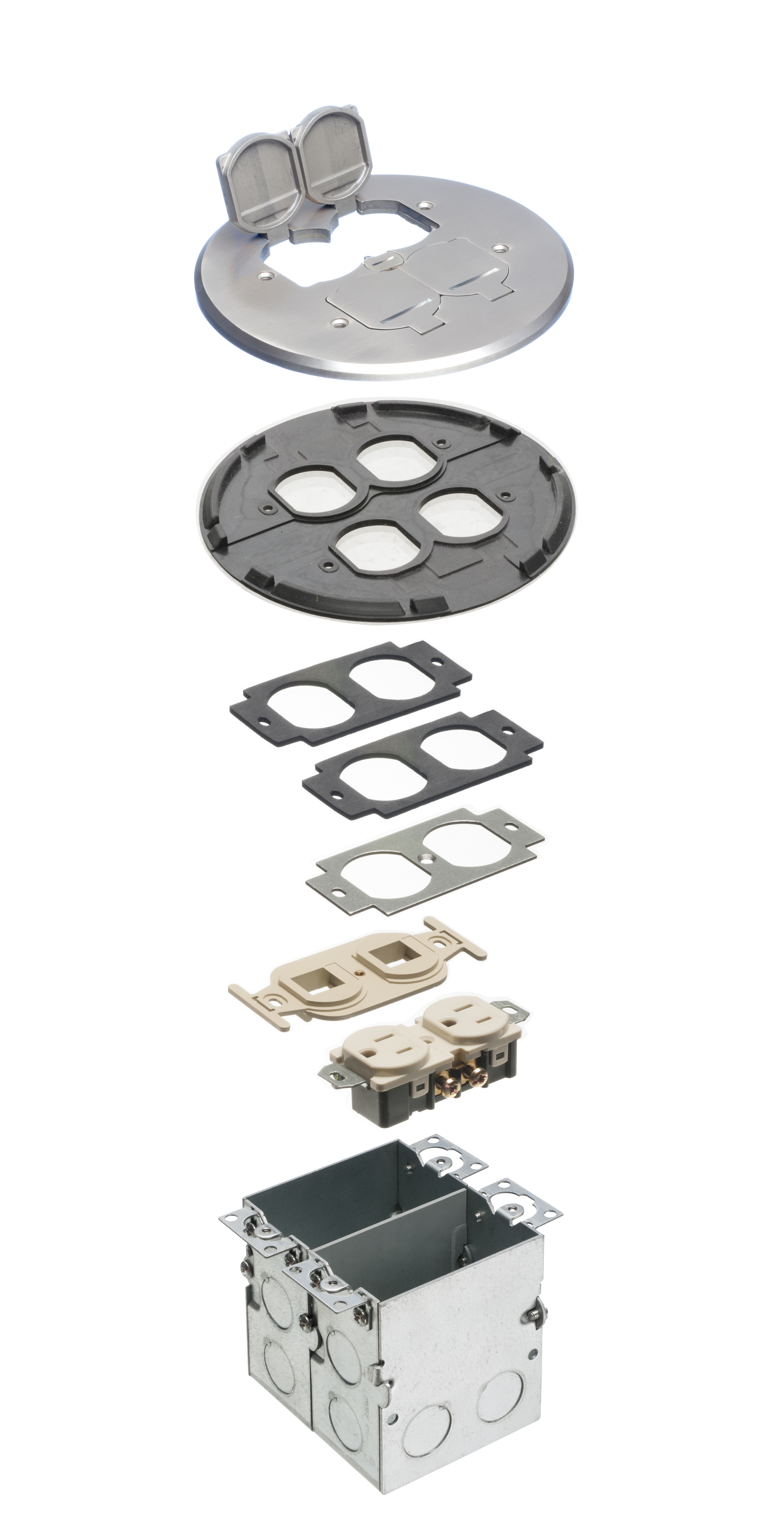

Comes With
| (1) | Tamper-Resistant Duplex Receptacle |
| (1) | Low-voltage insert |
| (2) | Gaskets |
| (1) | Gasket support plate |
| (1) | Cover |
| (1) | 2-gang steel combo box with installed low-voltage divider |
| (1) | #6-32 x 1/2" Long Screw |
| (4) | #6-32 x 1-3/16" Long Screws |
