TVBU505K Product InformationTwo-Gang Recessed TV Box® for Power and Low Voltage Kit Specification SheetCatalog Page E-mail |
Additional Images
Basic Information
| Part Number | TVBU505K |

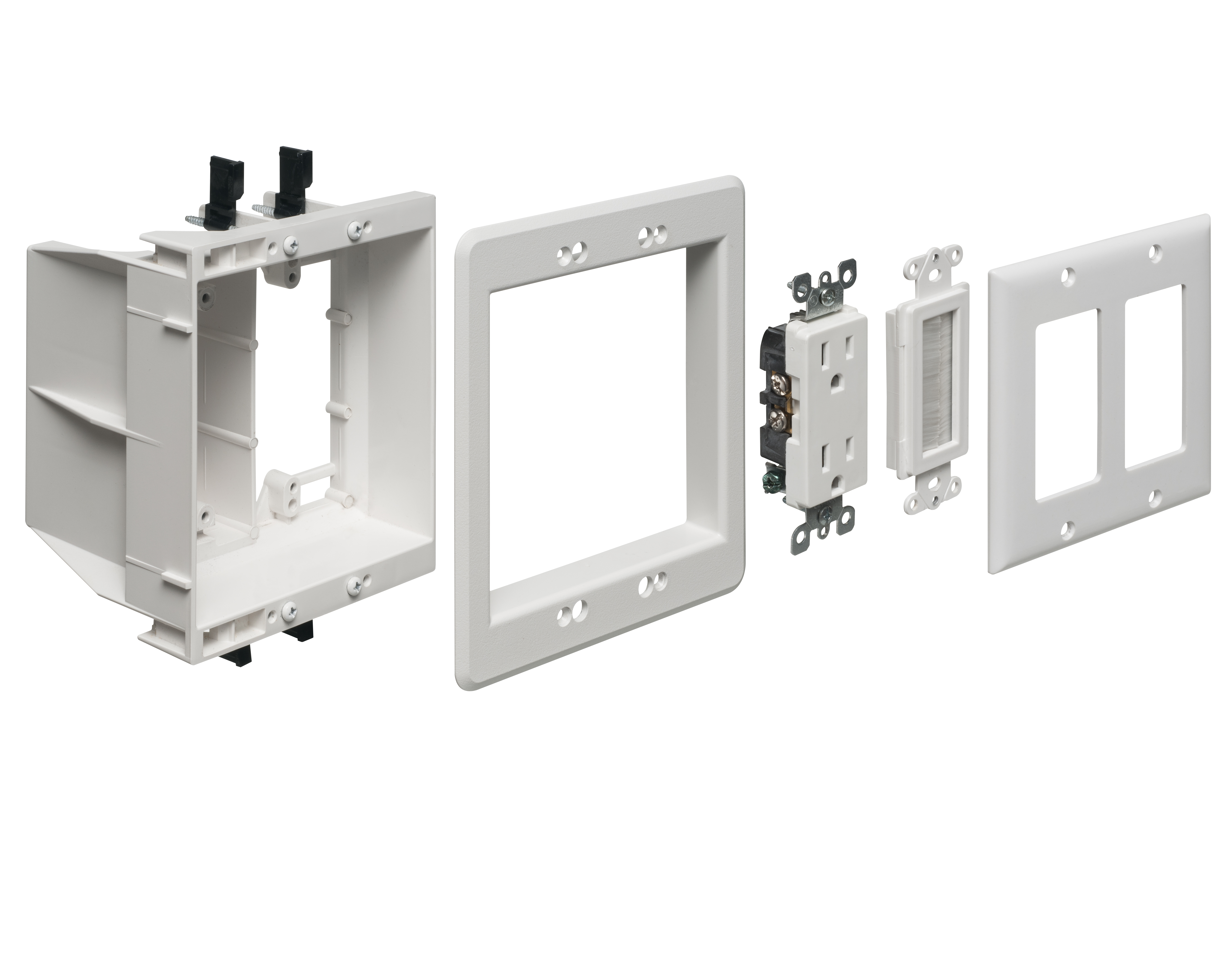

| Description | Plastic recessed TV BOX® for power and low voltage. For new and old construction. Kit includes recessed combo box, (1) tamper resistant duplex receptacle, Arlington's SCOOP, Arlington's PASS THROUGH devices and cover plate. |
| UPC-A | 018997096821 |
| Unit Packaging | 1pc |
| Standard Packaging | 4pcs |
| Country of Origin |  |
| Listing |
|
Physical Information
| Weight | 0.992 lbs/each |
| Height | 6.942" |
| Width | 6.254" |
| Color |  White |
| Material(s) | Plastic |
Technical Information
| Line Drawing | TVBU505K Line Drawing |
| Application | Mount LCD/Plasma TVs and other System Components Flush Against-the-Wall for New or Existing Work |
| Style | Two-Gang Recessed Power and Low-Voltage TV Box™ |
| Trade Size | 2-Gang |
| Wall Depth | 1/2", 5/8", and up to 1-1/2" |
Comes With
| (1) | Trim Plate |
| (1) | Tamper-Resistant Duplex Receptacle |
| (1) | Recessed Combo Box |
| (1) | NM94 Cable Connector |
| (1) | CED135 SCOOP™ |
| (1) | 2-Gang Decorator-Style / GFCI Wall Plate with screws |
| (2) | #8 x 3" Long Screws |
| (4) | #6-32 x 1/2" Long Screws |
