recessed TV box for power and low voltage

TVB613BL Product Information

Recessed TV Box™ for Power and Low Voltage
Specification SheetCatalog Page E-mail

Additional Images

recessed TV box mounted in wall with power and low voltage devices plugged in

Basic Information

Part Number TVB613BL
Description Non Metallic TV BOX for power and low voltage. Recessed so plugs do not protrude from wall. For new construction and retrofit. Comes with low voltage divider in power box. 4 Gang. Color Black.
UPC 018997096340
Unit Packaging 1pc
Standard Packaging 1pc
Country of Origin
Listing
Available w/ Grounding Clip Yes - Order Part Number TVB613BLGC

Physical Information

Instructional Video TVB613BL Instructional Video
Instruction Sheet TVB613BL Instruction Sheet
Weight1.324 lbs/each
Height7.000"
Width17.000"
Color Black
Material(s)Plastic

Technical Information

Line Drawing TVB613BL Line Drawing
Trade Size4-Gang

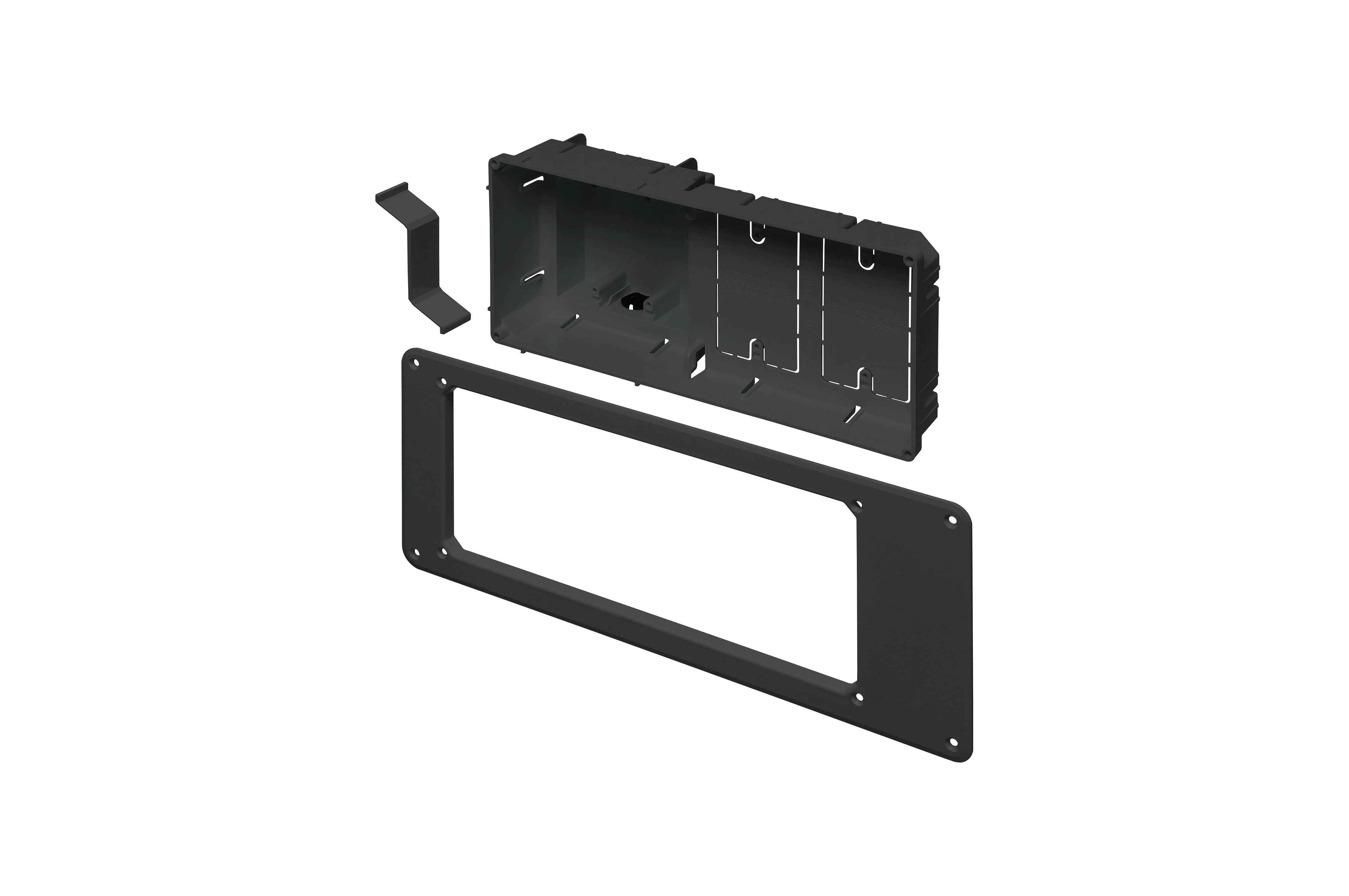

Comes With

(1)Voltage Separator
(1)Trim Plate
(1)NM Cable Connector
(1)Box Section
(4)#8 x 3/4" Long Screws
(4)#8 x 1-1/2" Long Screws
