low profile in-box

DBVME1C Product Information

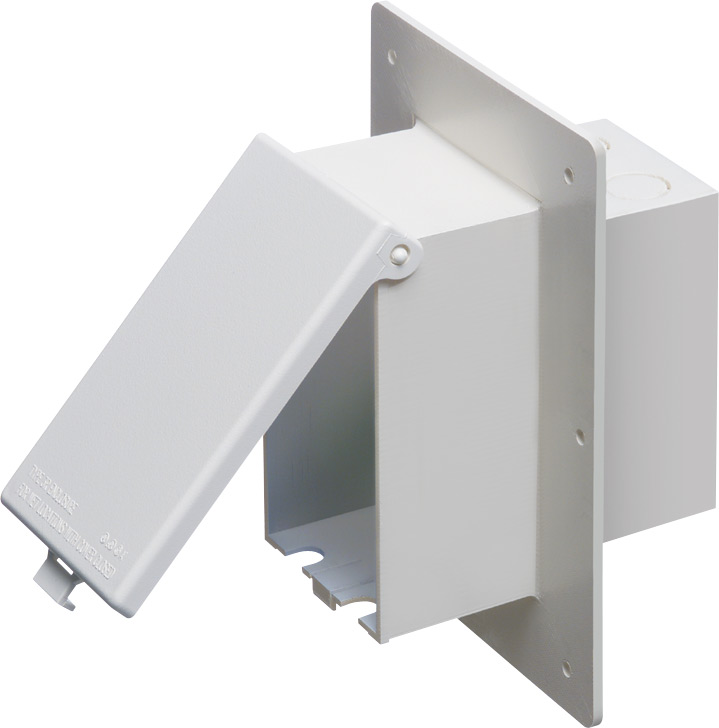

Low Profile InBox™ for 1-1/2" Wall Systems
Specification SheetCatalog Page E-mail

Additional Images

person removing mud cover from installed in-box

Basic Information

Part Number DBVME1C
Description Low profile inbox for 1-1/2" wall systems. Vertical with weatherproof while in use clear cover.
UPC 018997776457
Unit Packaging 1pc
Standard Packaging 4pcs
Country of Origin
Available w/ Grounding Clip Yes - Order Part Number DBVME1CGC

Physical Information

Weight1.010 lbs/each
Color White
Cover Color Clear
Material(s)UV-Rated Plastic

Technical Information

Line Drawing DBVME1C Line Drawing
NEC ComplianceMeets 2021 NEC Section 406.9 (B) for the protection of exterior outlets which require the use of an extra-duty weatherproof while-in-use cover for all outdoor 15 or 20 AMP receptacles.
Trade Size1-Gang

Comes With

(1)Weatherproof-in-use extra-duty cover
(1)Single-Gang Wall Plate with screw(s)
(1)Single-Gang Decorator-Style / GFCI Wall Plate with screws
(1)NM94 Cable Connector
(1)Mud Cover
(2)Bug Plugs
