steel cable support

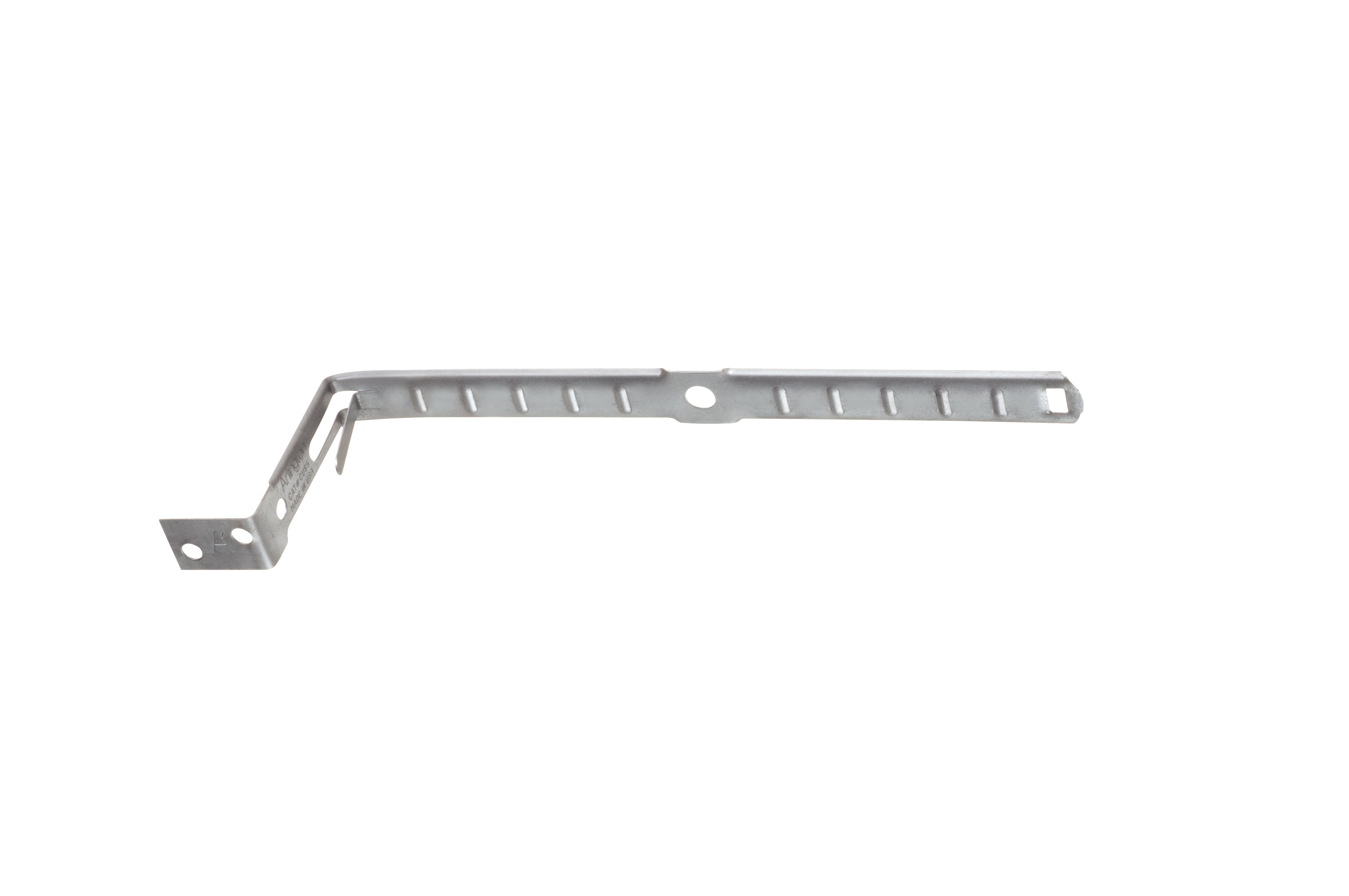

CUS6 Product Information

Economical galvanized steel Cable Support holds cable secure and centered on a metal or wood stud. It's perfect for fastening and positioning up to six individual NM cables, or four metal cables on a 2x4.

Specification Sheet Catalog Page E-mail

Additional Images

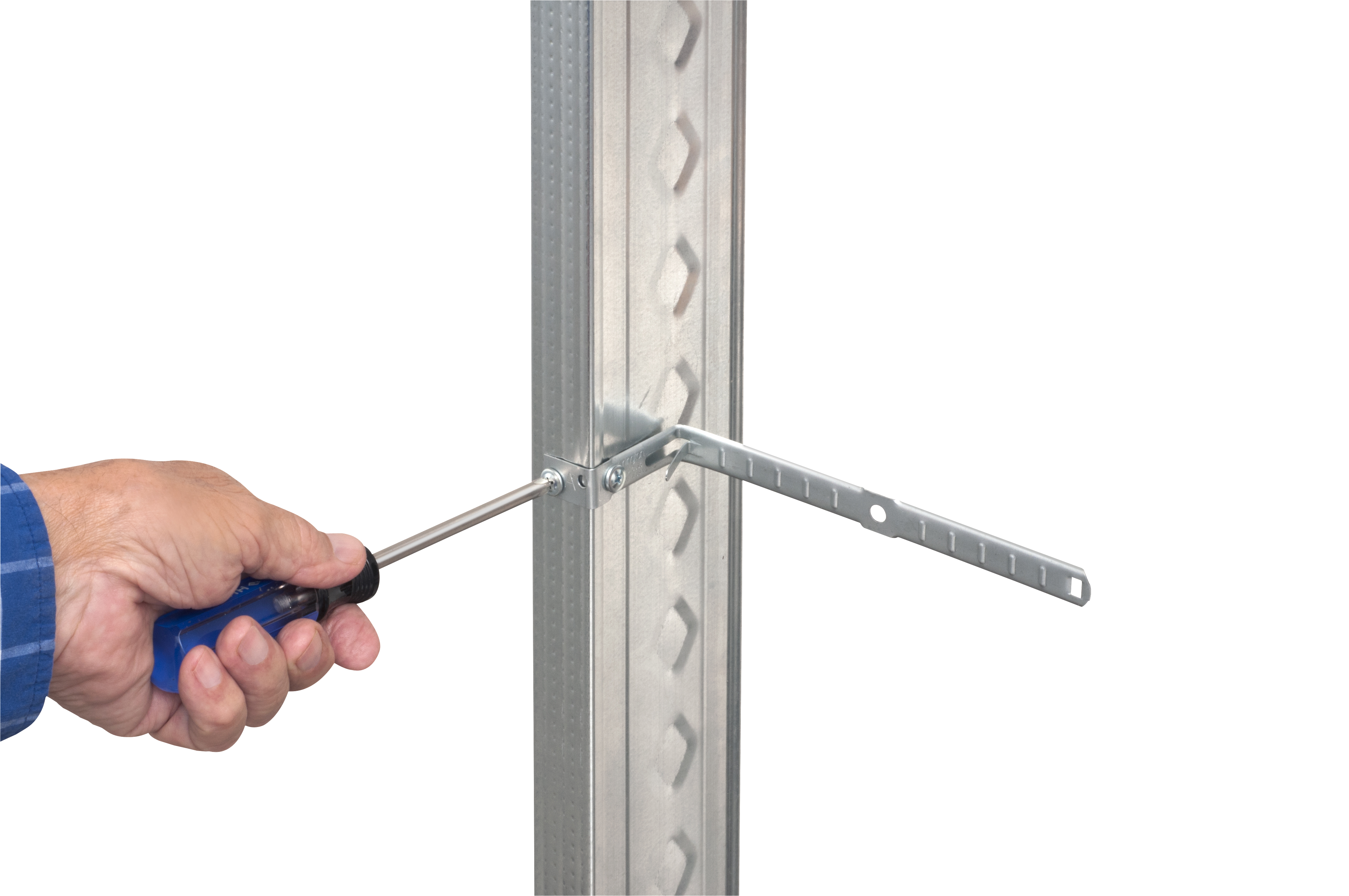

person installing cable support to metal stud with screwdriver

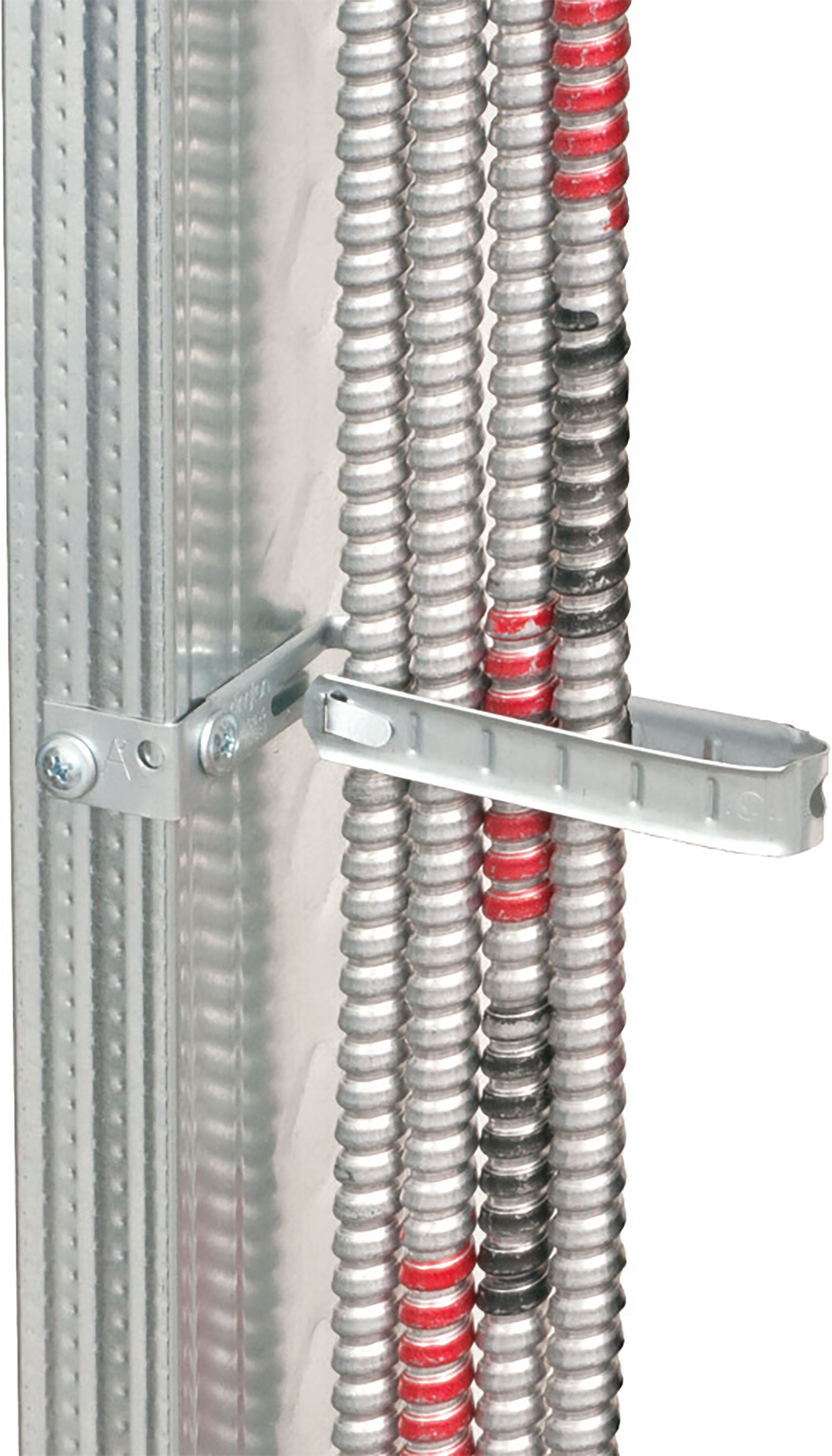

four MC cables secured to metal stud with cable support

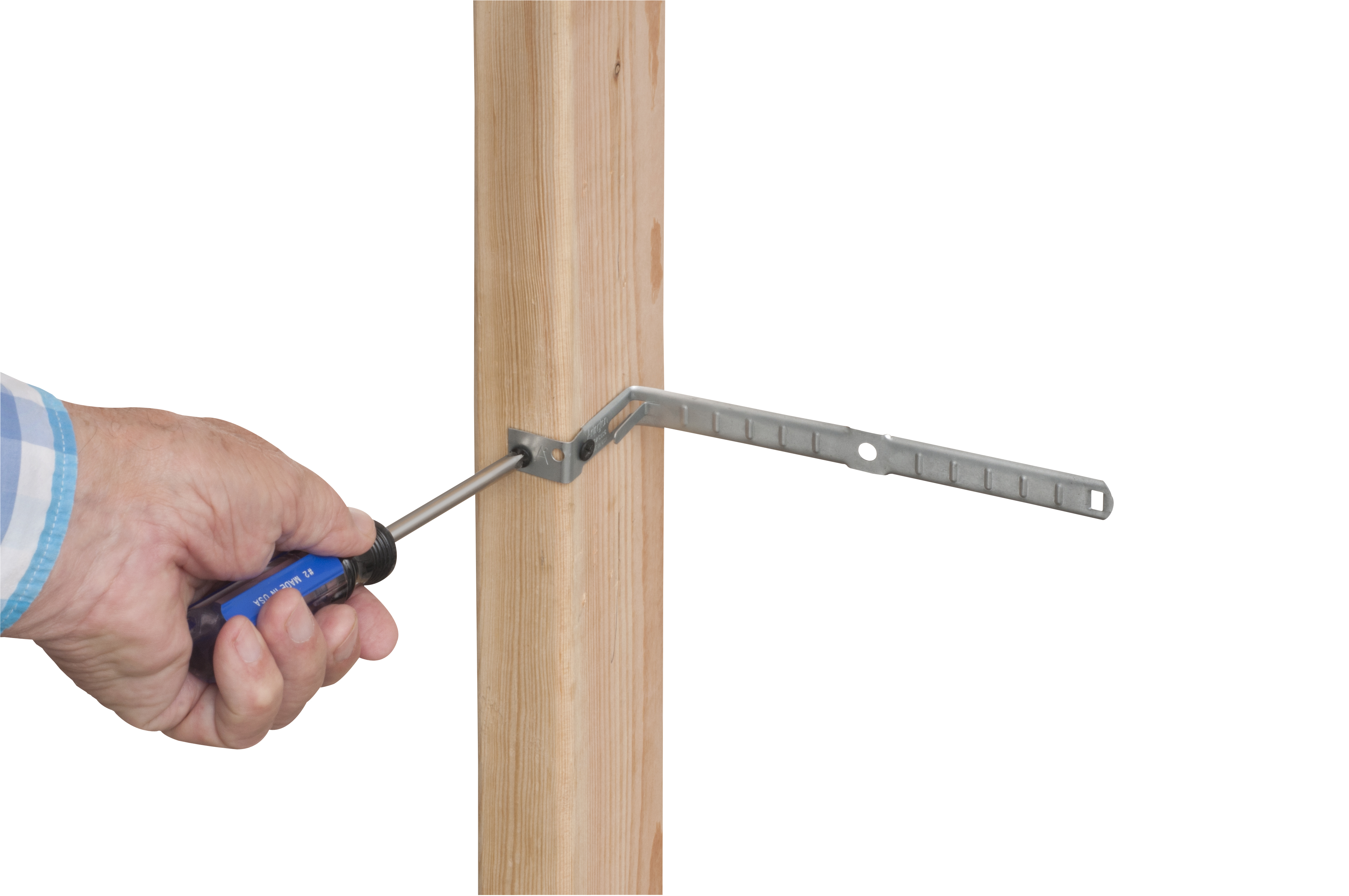

person installing cable support to wooden stud with screwdriver

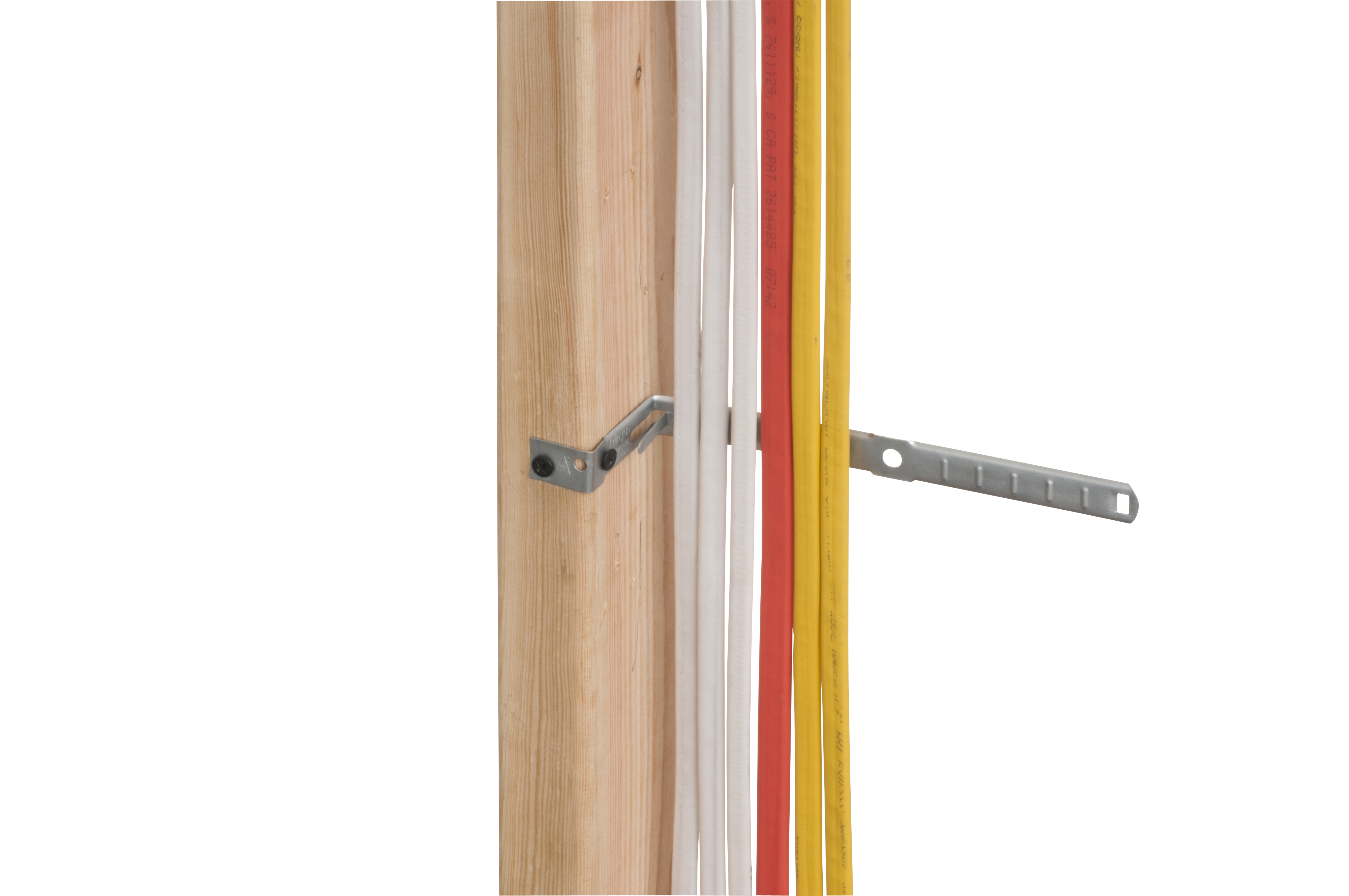

six NM cables ready to be secured to wooden stud with cable support

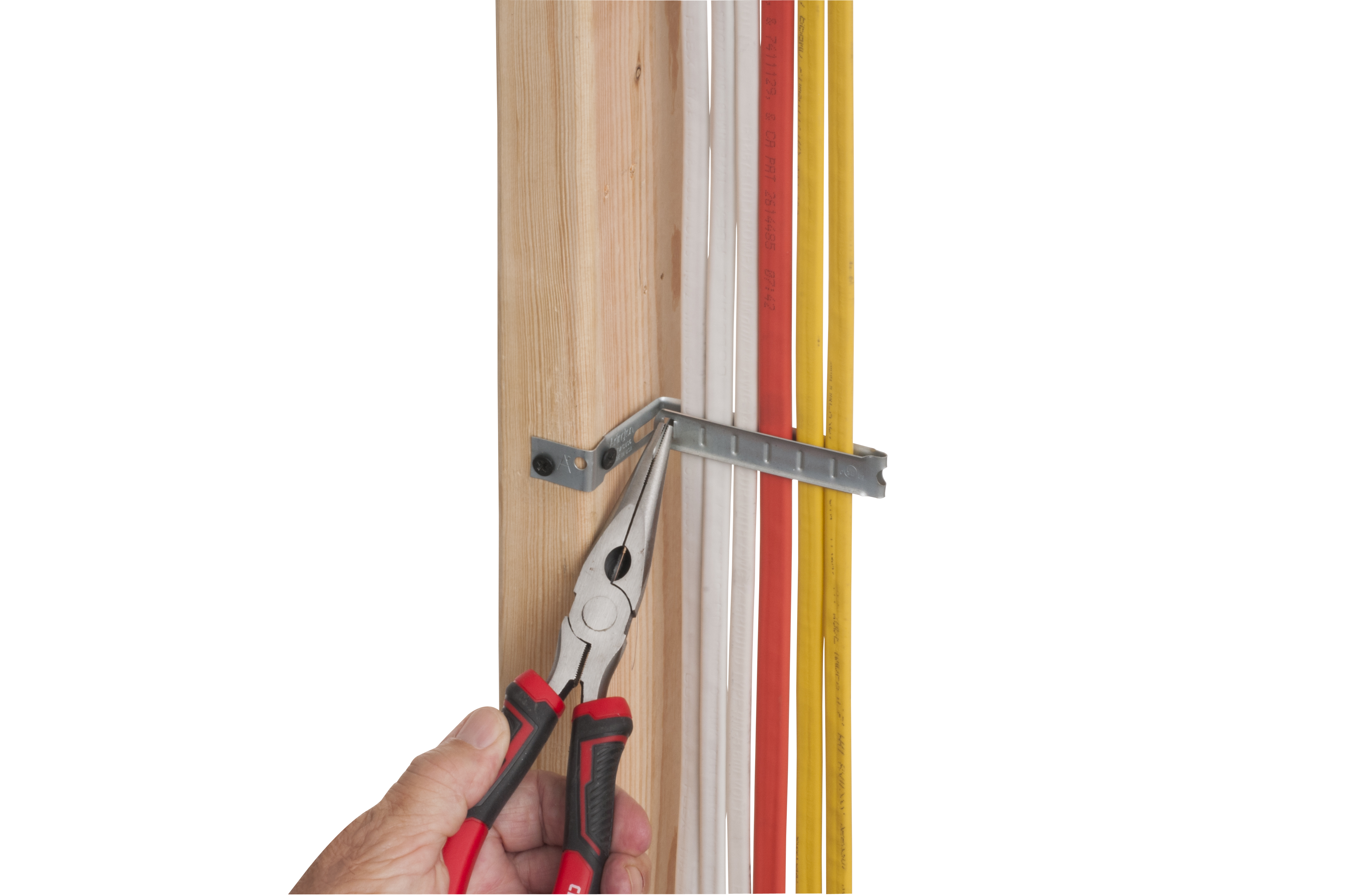

person securing cable support with pliers

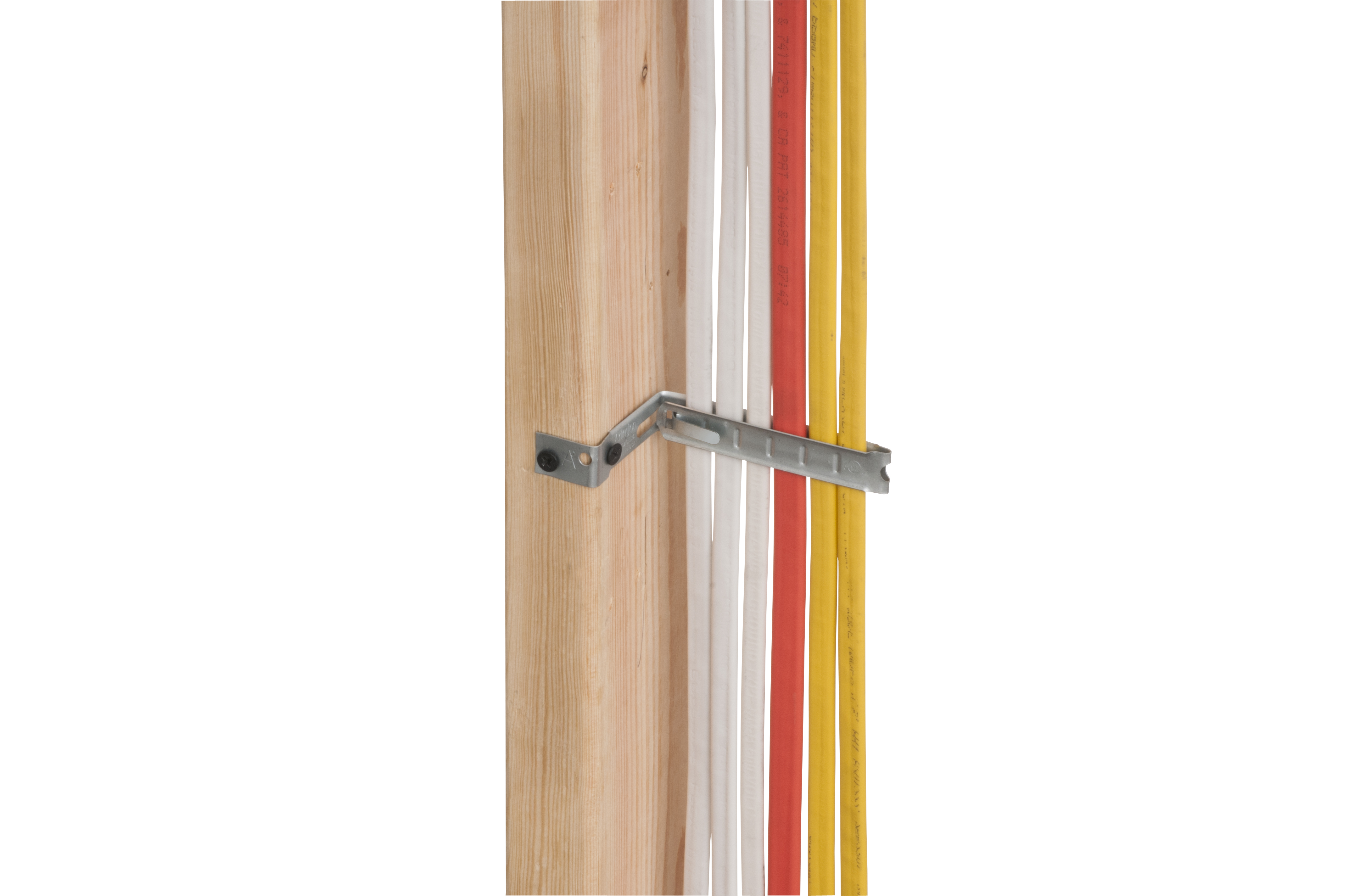

six NM cables secured to wooden stud with cable support

Basic Information

Part Number	CUS6
Description	Economical galvanized steel Cable Support holds cable secure and centered on a metal or wood stud. It's perfect for fastening and positioning up to six individual NM cables, or four metal cables on a 2x4.
UPC-A	018997208279
Unit Packaging	100pcs
Standard Packaging	100pcs
Country of Origin
Listing

Physical Information

Weight	0.038 lbs/each
Height	8.070"
Width	0.625"
Color	Steel
Material(s)	Galvanized Steel

Technical Information

Line Drawing	CUS6 Line Drawing
Cables	Holds up to six NM cables: 14/2 to 10/3, or four 8/2 and 6/3 with ground. Holds four metal cables 14/2 to 10/4 with ground.
Usage	Holds cable secure on a metal or wood stud.
