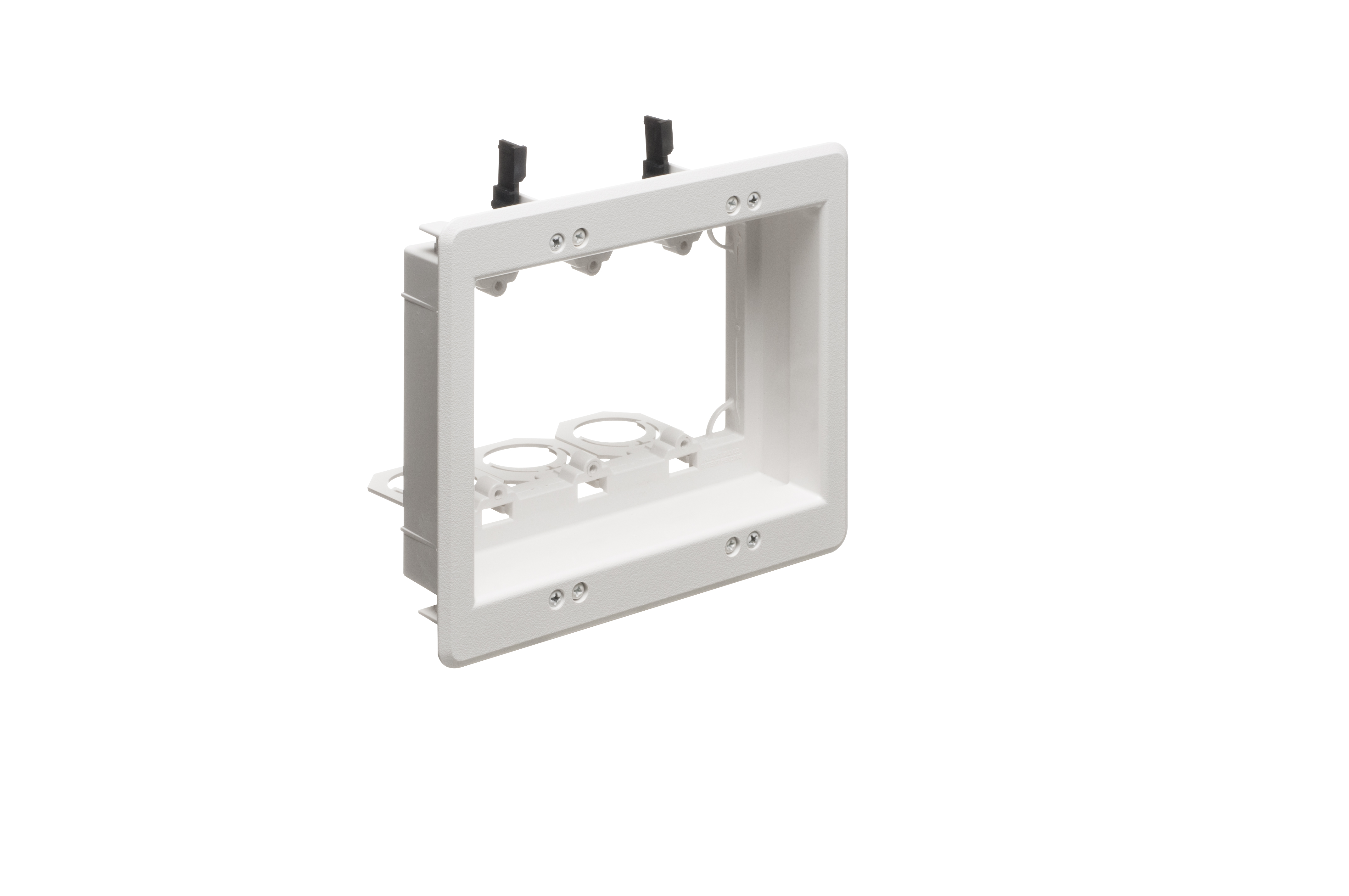

LVU3W Product Information

Recessed Low-Voltage Mounting Bracket
Catalog Page E-mail

Basic Information

Part Number LVU3W
Description Arlington's recessed low voltage mounting brackets are great for keeping low voltage connectors recessed and out of the way. This non-metallic, three gang, white paintable bracket uses mounting wings to attach to walls 1/4" to 1-1/2" thick and can be used for retrofit or new construction. Designed for low voltage class 2 only. It is UL and CSA listed and comes with a recessed bracket, two attachable knockouts, one device plate, one trim plate, and four screws.
UPC 018997200129
Unit Packaging 1pc
Standard Packaging 1pc
Country of Origin
Listing

Physical Information

Instructional Video LVU3W Instructional Video
Weight0.728 lbs/each
Height6.818"
Width7.930"
Color White
Material(s)Paintable Plastic

Technical Information

Line Drawing LVU3W Line Drawing
Trade Size3-Gang
UsageQuick and Easy Installation of Class 2 Low-Voltage Wiring Recessed in the Wall
