box extender with large flanges

BE1X Product Information

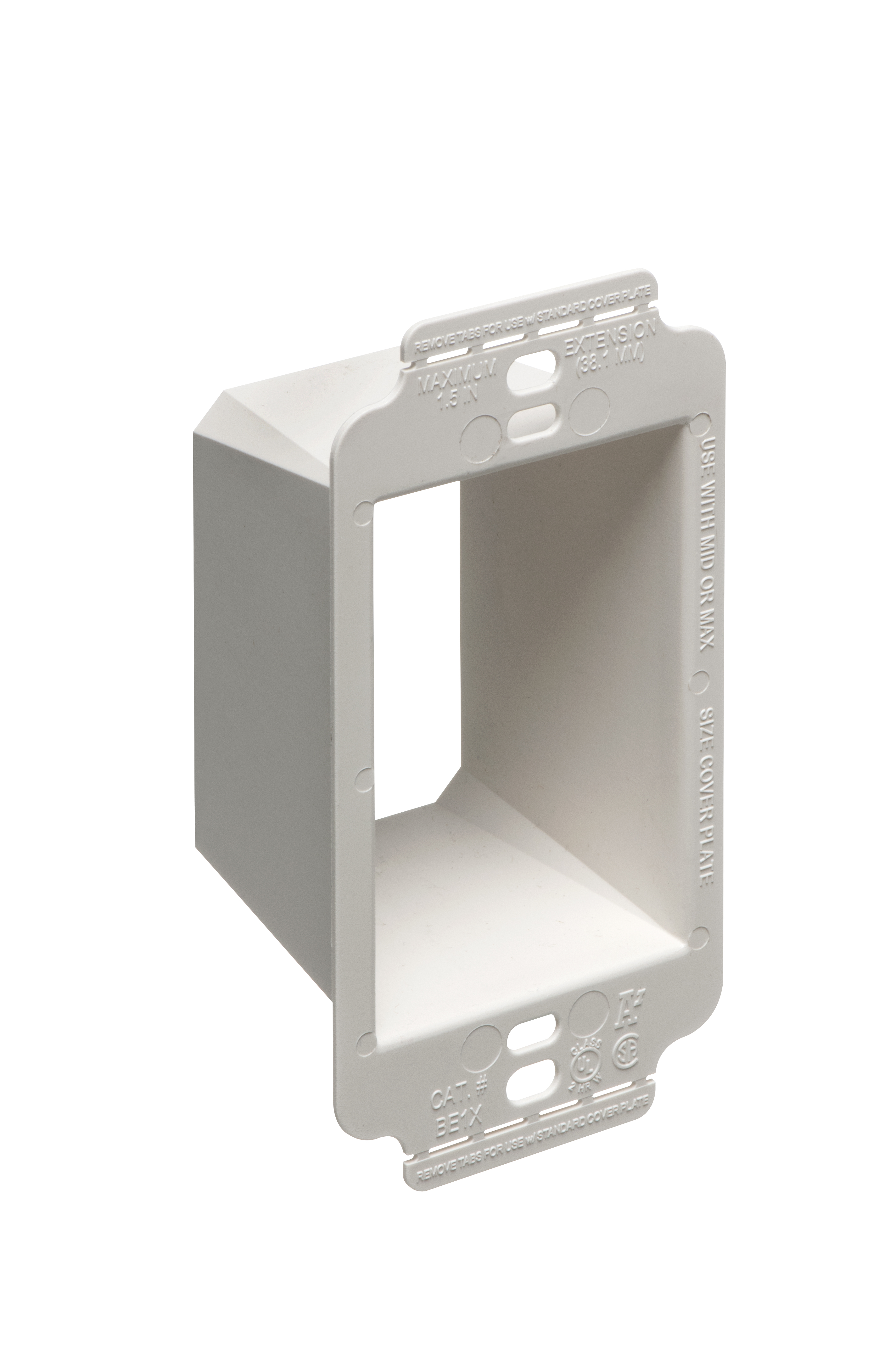

Box Extender with Larger Flange
Specification SheetCatalog Page E-mail

Additional Images

Basic Information

Part Number BE1X

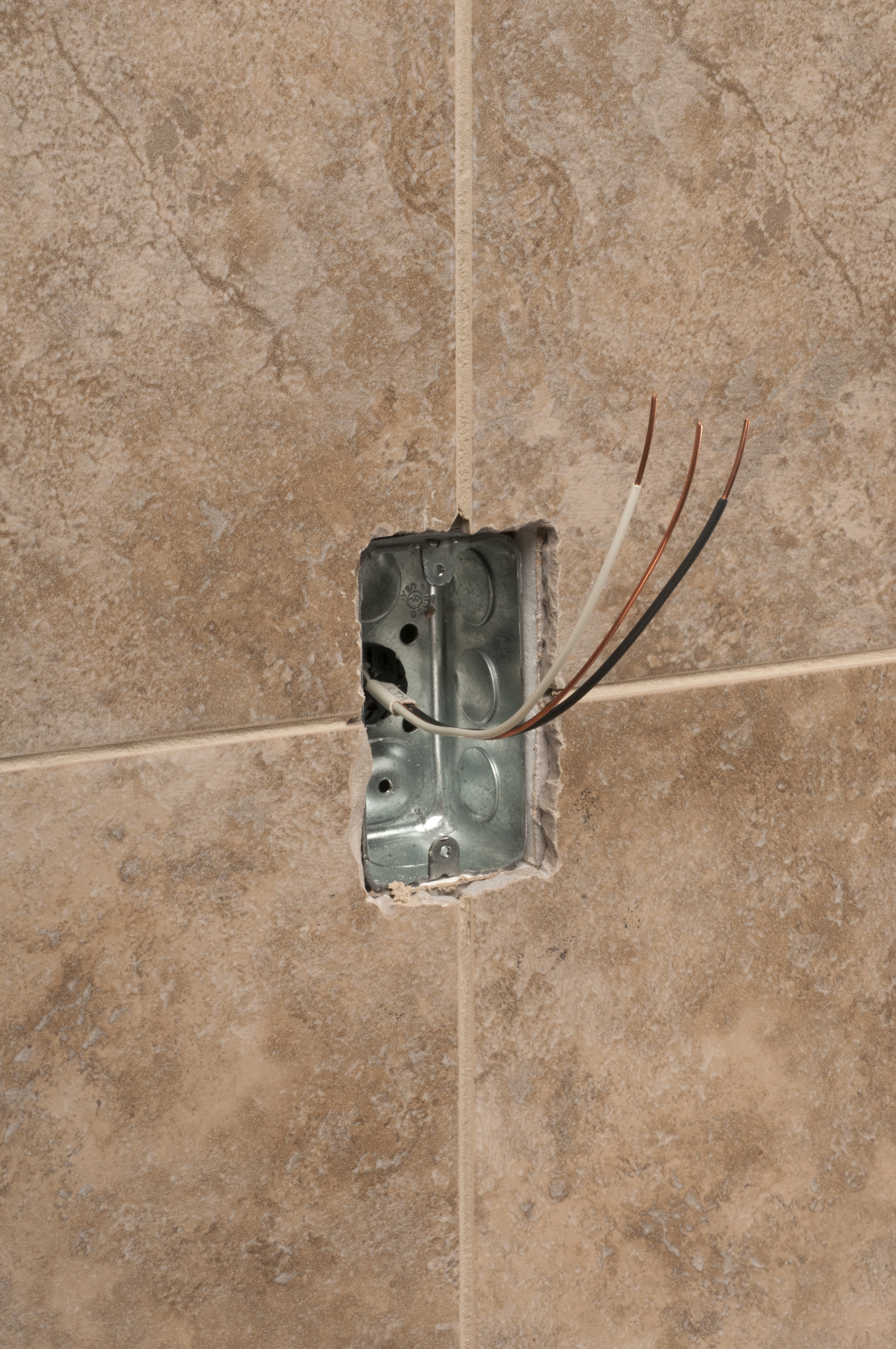

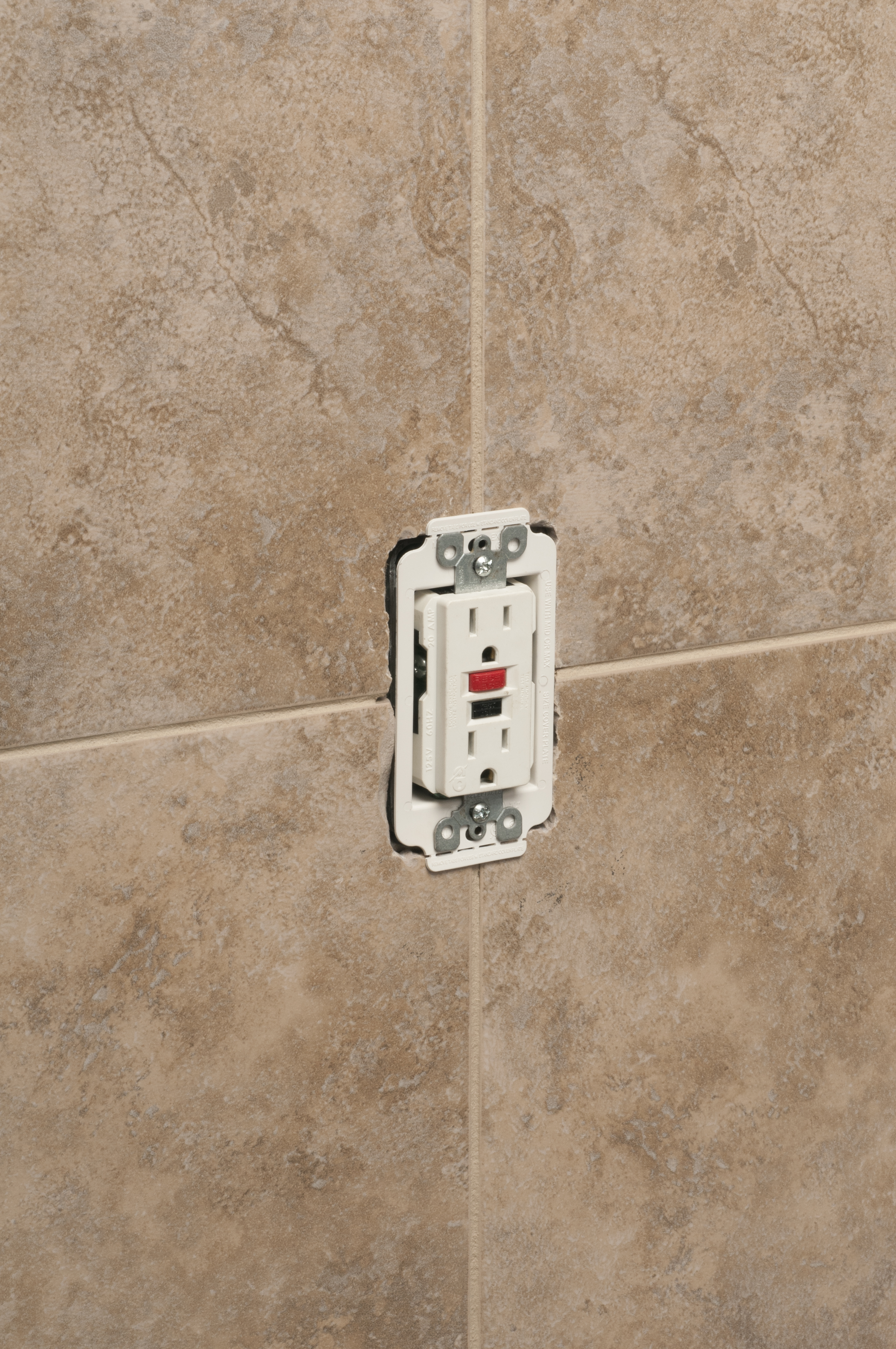

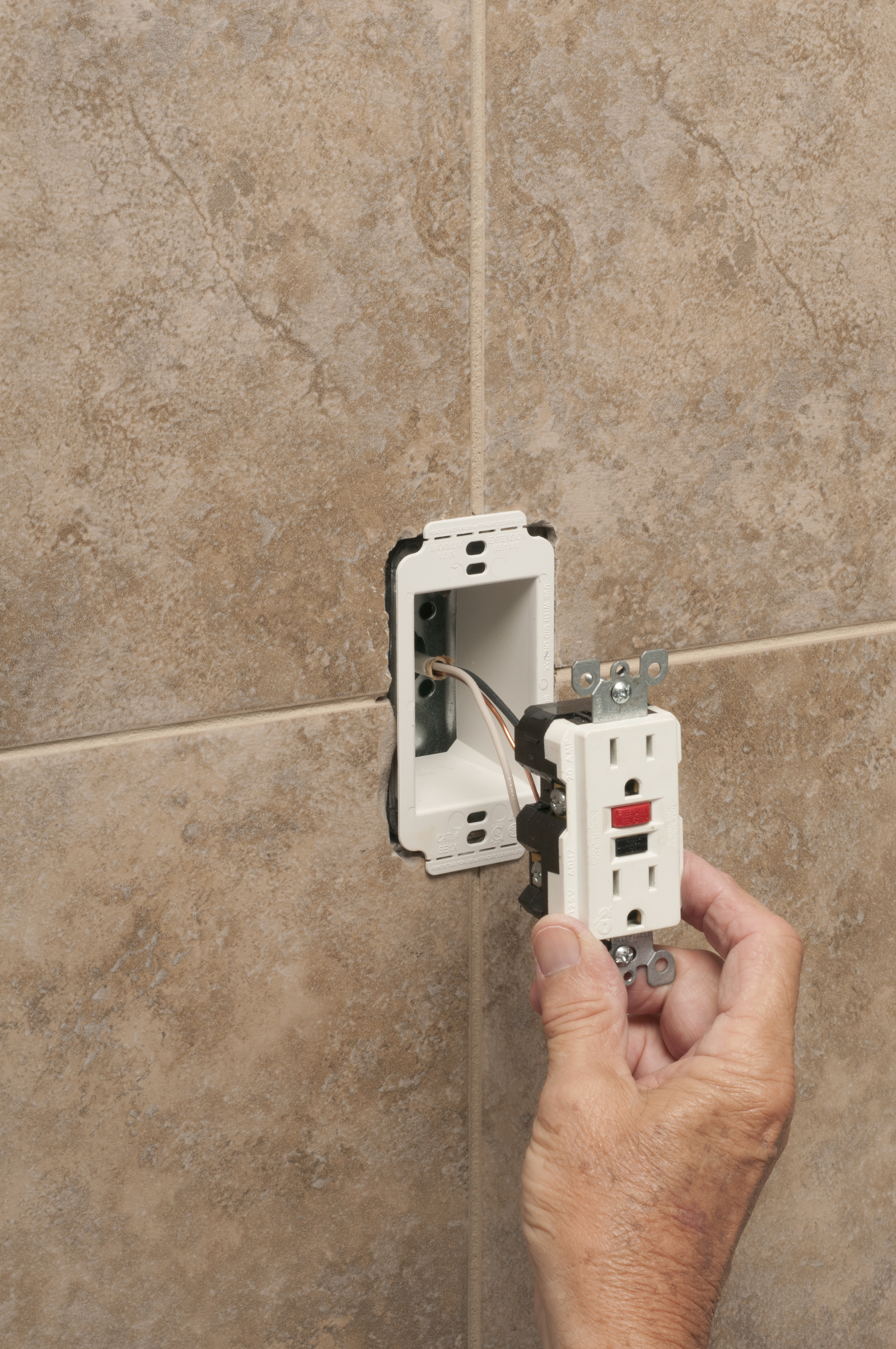

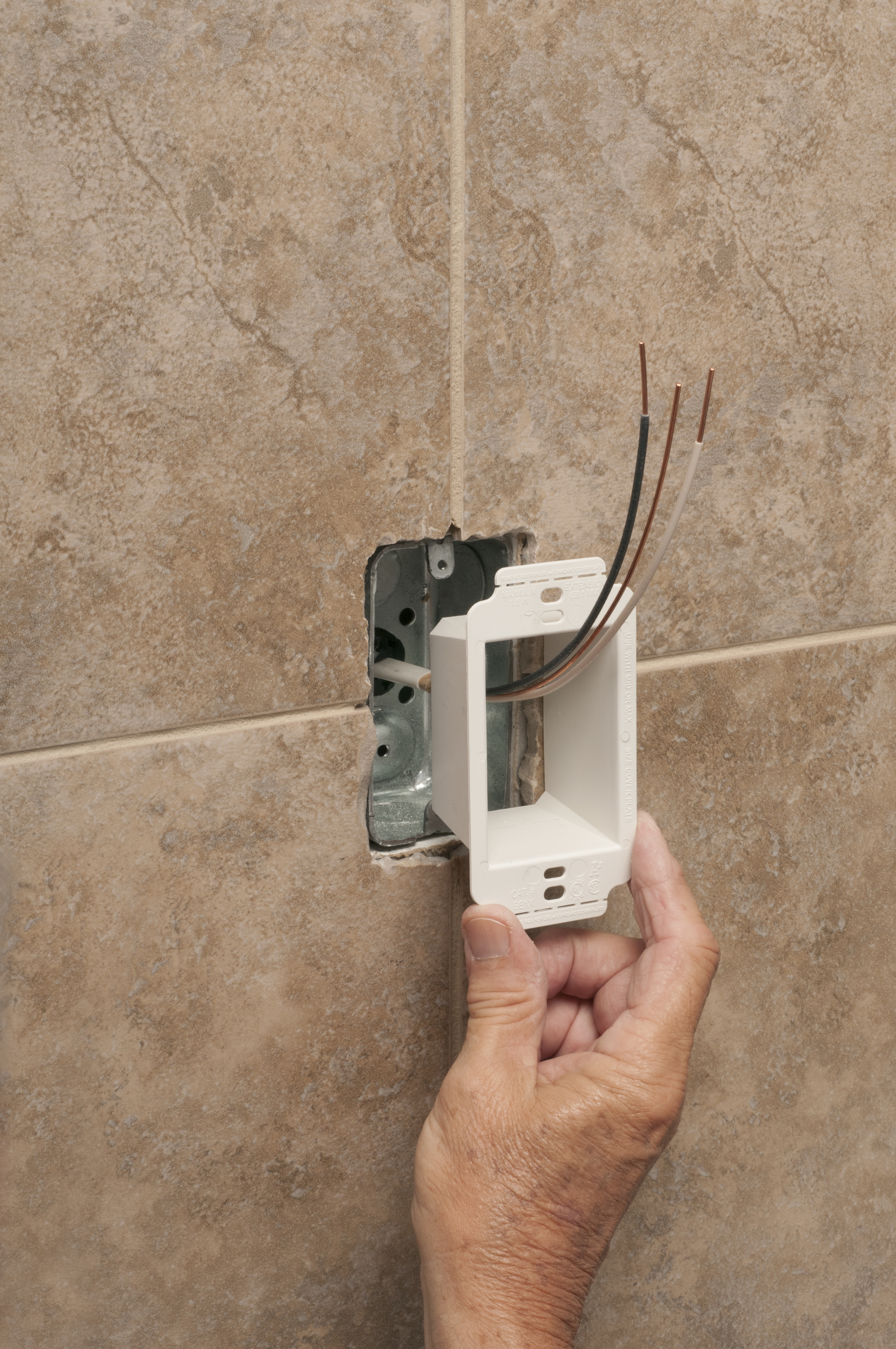

Description Better device support in oversized or miscut wall openings. Box Extender, levels and supports the wiring device where the box is set back from the wall surface extends the box up to 1-1/2". 2 hour fire rating. Single Gang.
UPC 018997401717
Unit Packaging 25pcs
Standard Packaging 250pcs
Country of Origin
Listing

Physical Information

Instructional Video BE1X Instructional Video
Instruction Sheet BE1X Instruction Sheet
Weight0.038 lbs/each
Height4.628"
Width2.325"
Color White
Material(s)Plastic

Technical Information

Line Drawing BE1X Line Drawing

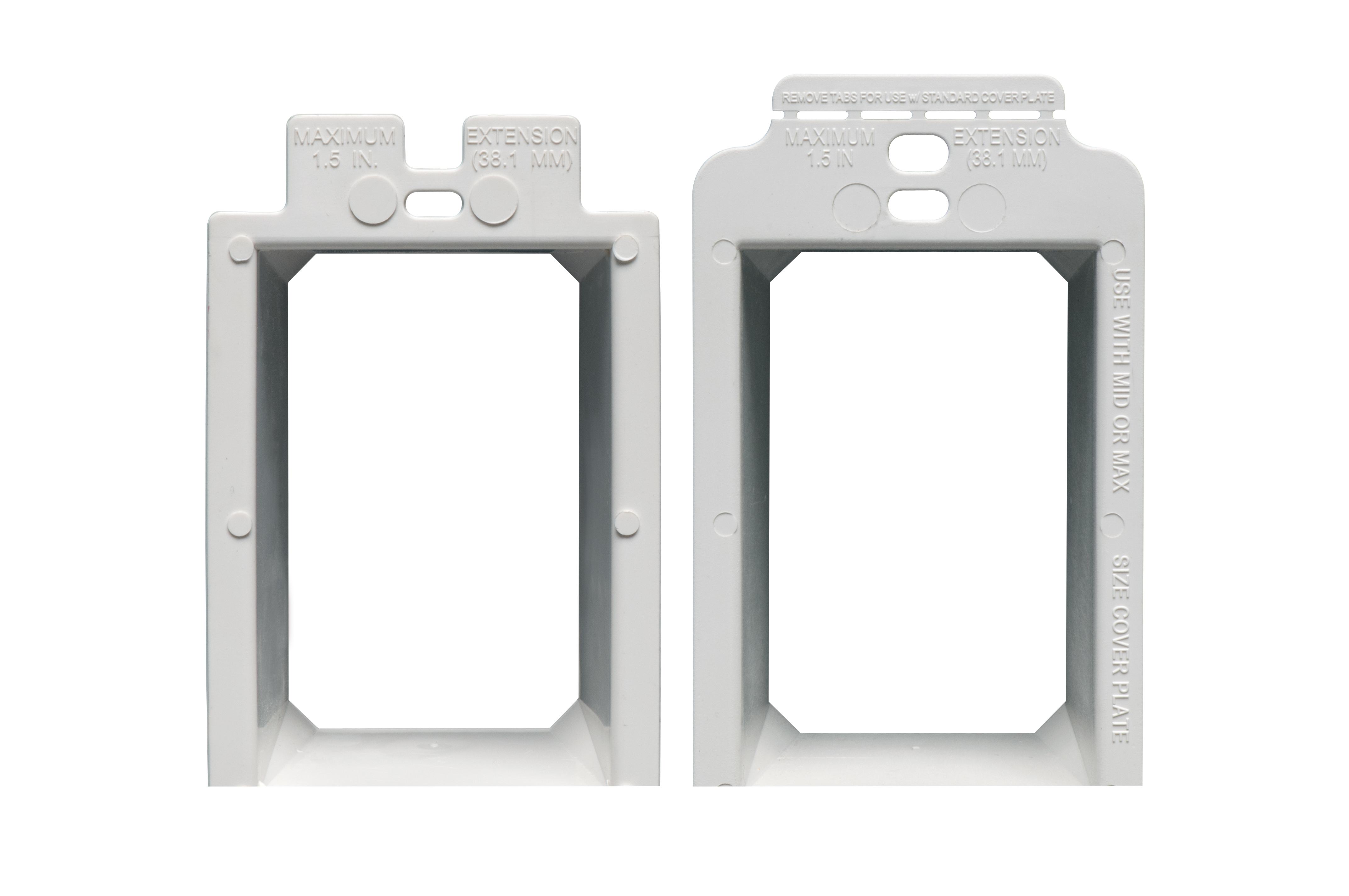

DescriptionSingle-gang with larger flange.. Better device support in oversized or miscut wall openings.
Trade Size1-Gang

Comes With

(1)Single Gang Box Extender
