RTS4 Product Information

Roof Topper™ Conduit and Raceway Supports
Specification SheetCatalog Page E-mail

Additional Images

Basic Information

Part Number RTS4

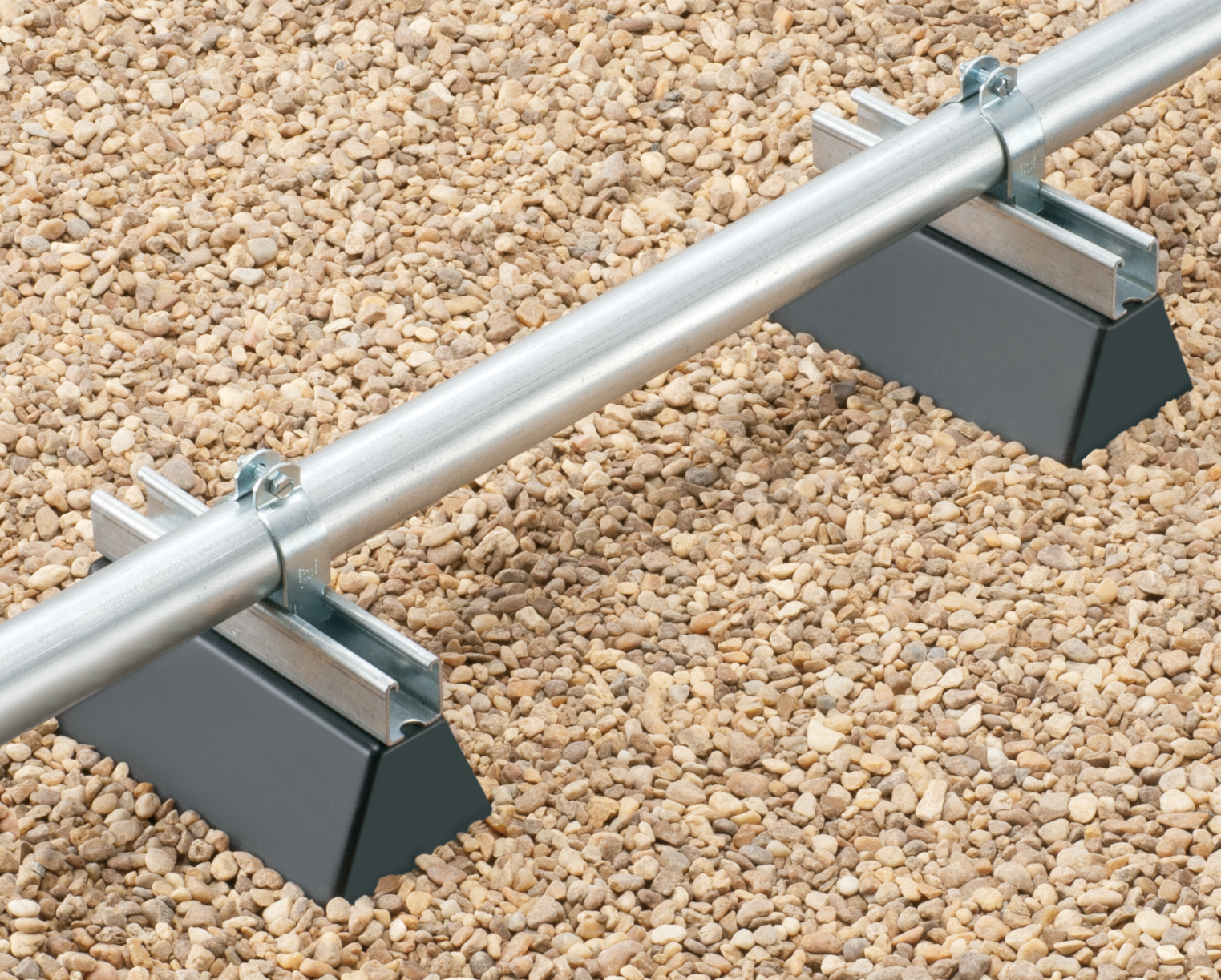

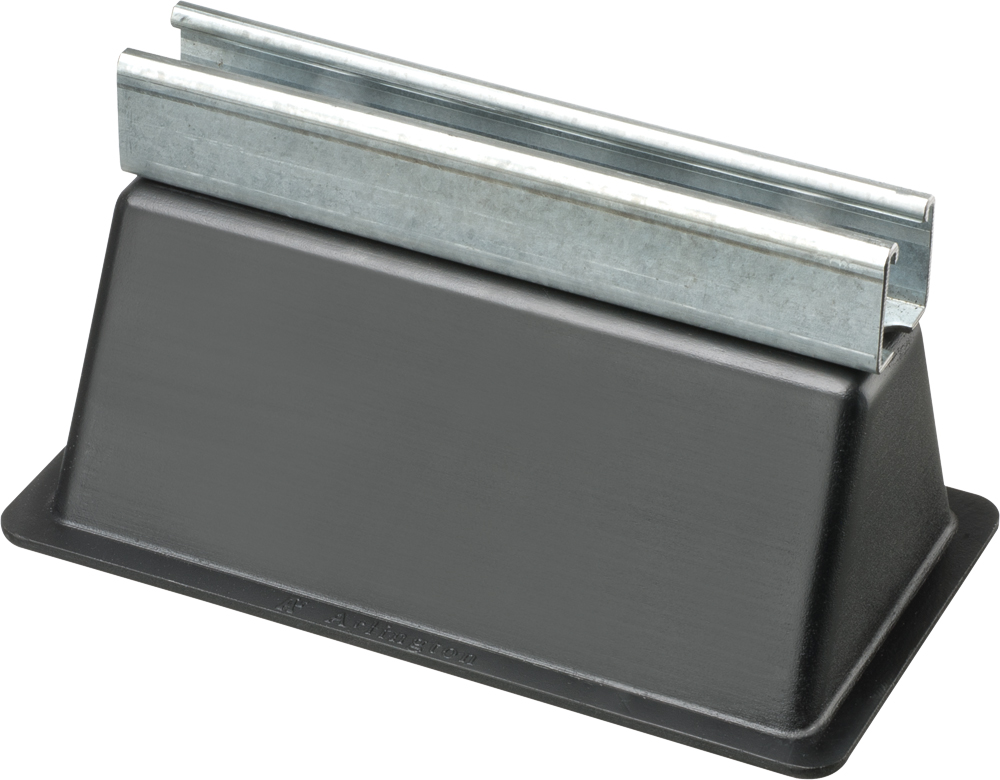

Description For running conduit or raceways on roofs safely, Arlington's Roof Topper is the solution for you. Designed to meet the 2014 NEC requirements for temperature adjustment for circular conduit, the sturdy base sets on the roof deck without fasteners. This Roof Topper supports and raises conduit or raceway 4" off the roof surface. It is made of 100 percent UV resistant recycled material and supports up to 2000lbs. Comes with a 9" strut.
UPC 018997104922
Unit Packaging 10pcs
Standard Packaging 10pcs
Country of Origin

Physical Information

Weight2.894 lbs/each
Height4.000"
Width6.000"
Color Black / Silver
Material(s)100% UV Recycled Plastic

Technical Information

Line Drawing RTS4 Line Drawing
Load Rating1,000lbs
Trade Size9" W x 5-5/8" H
UsageRaise conduit off roof surface to comply with 2011 NEC requirements.
