NM95X Product Information

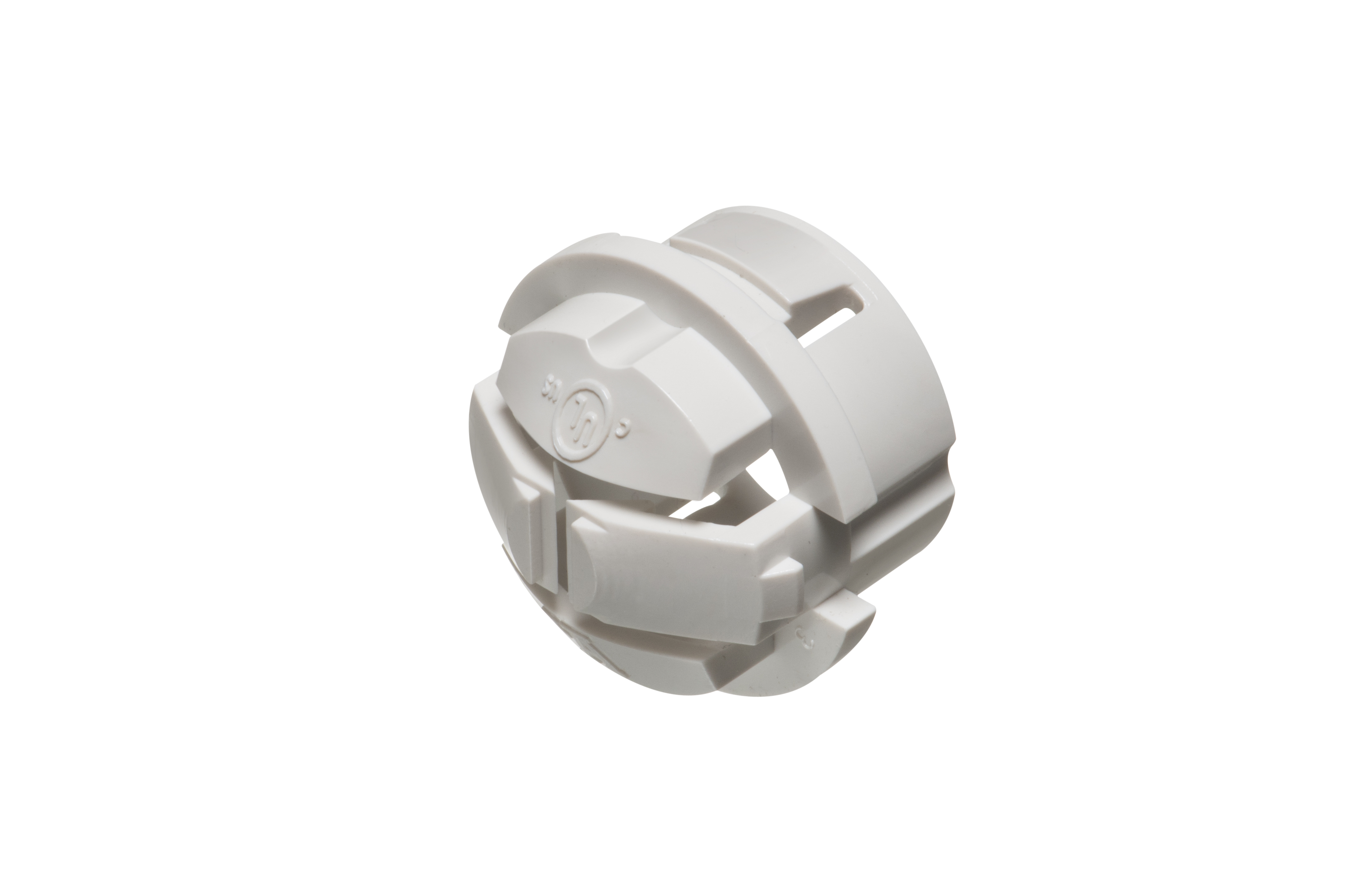

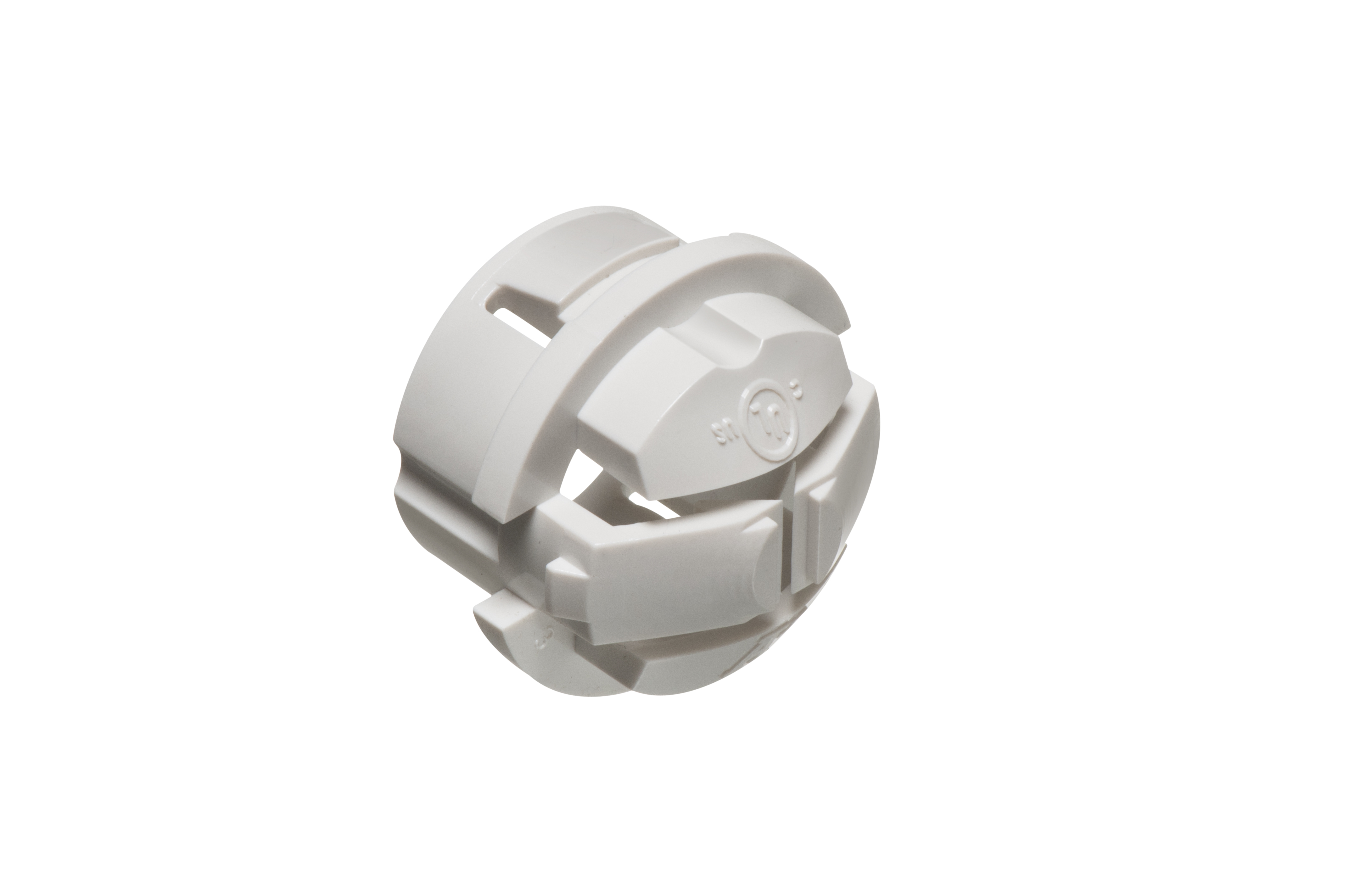

White Button™ Non-Metallic Push-In Connector
Specification SheetCatalog Page E-mail

Basic Information

Part Number NM95X

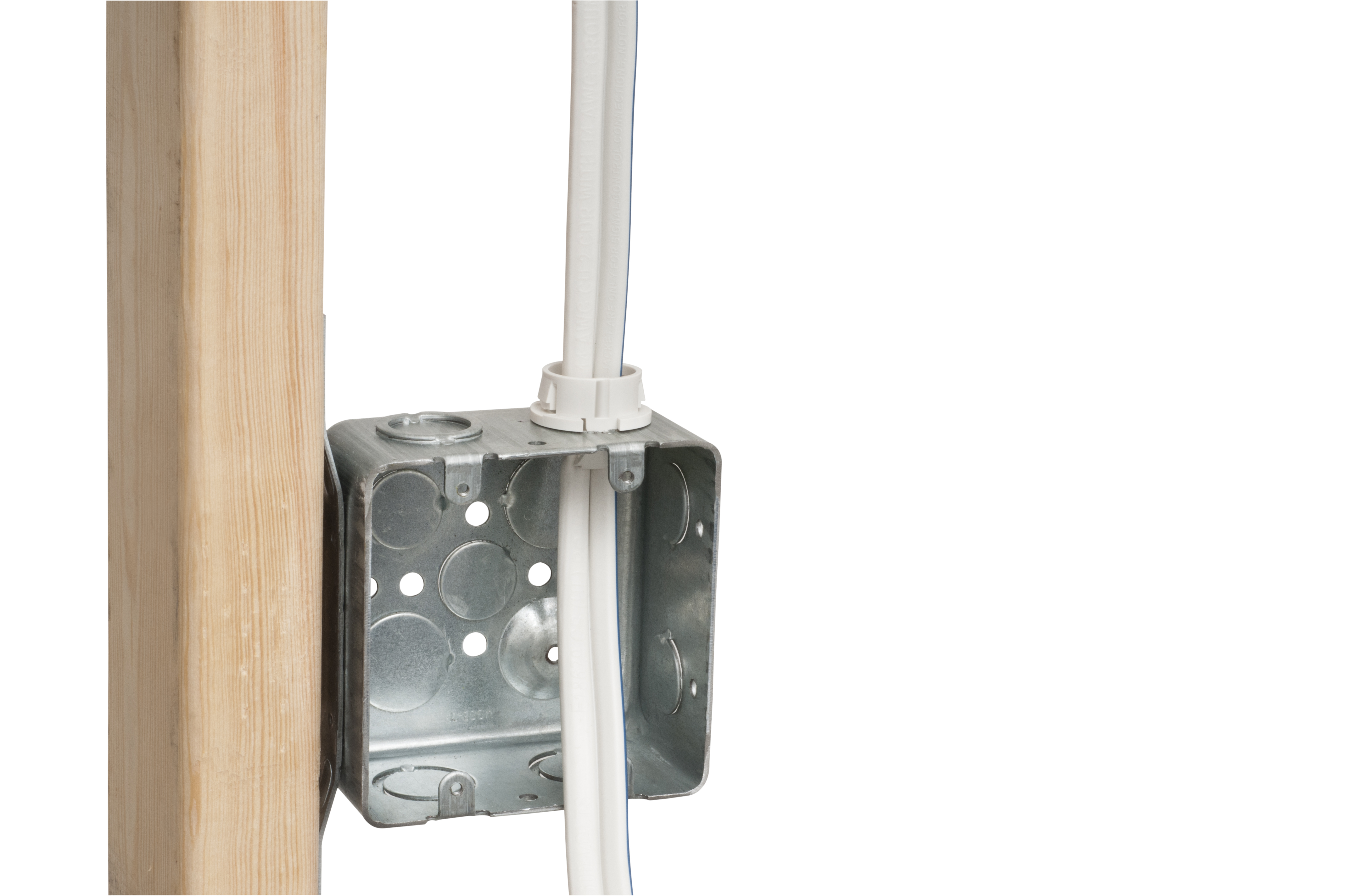

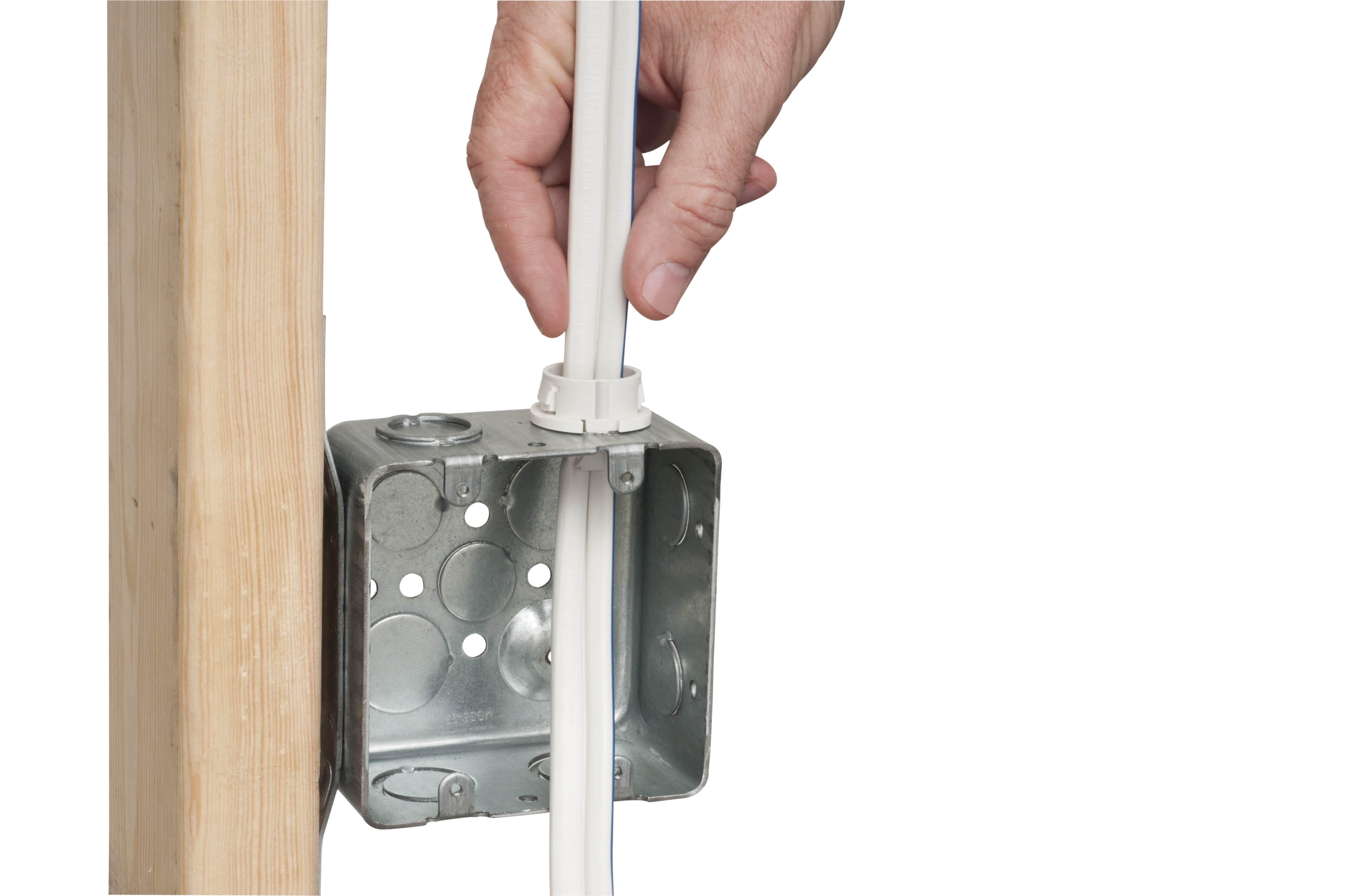

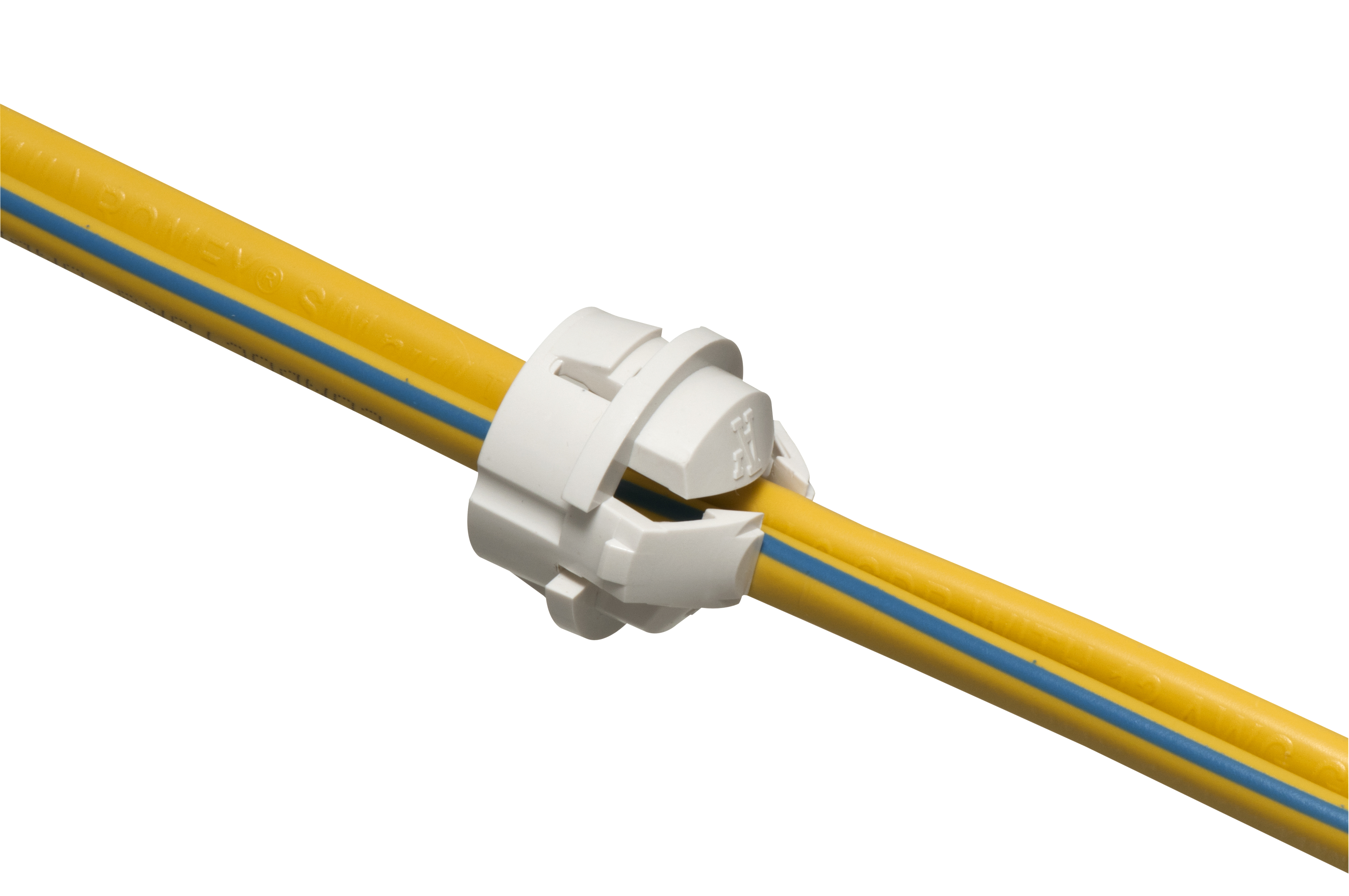

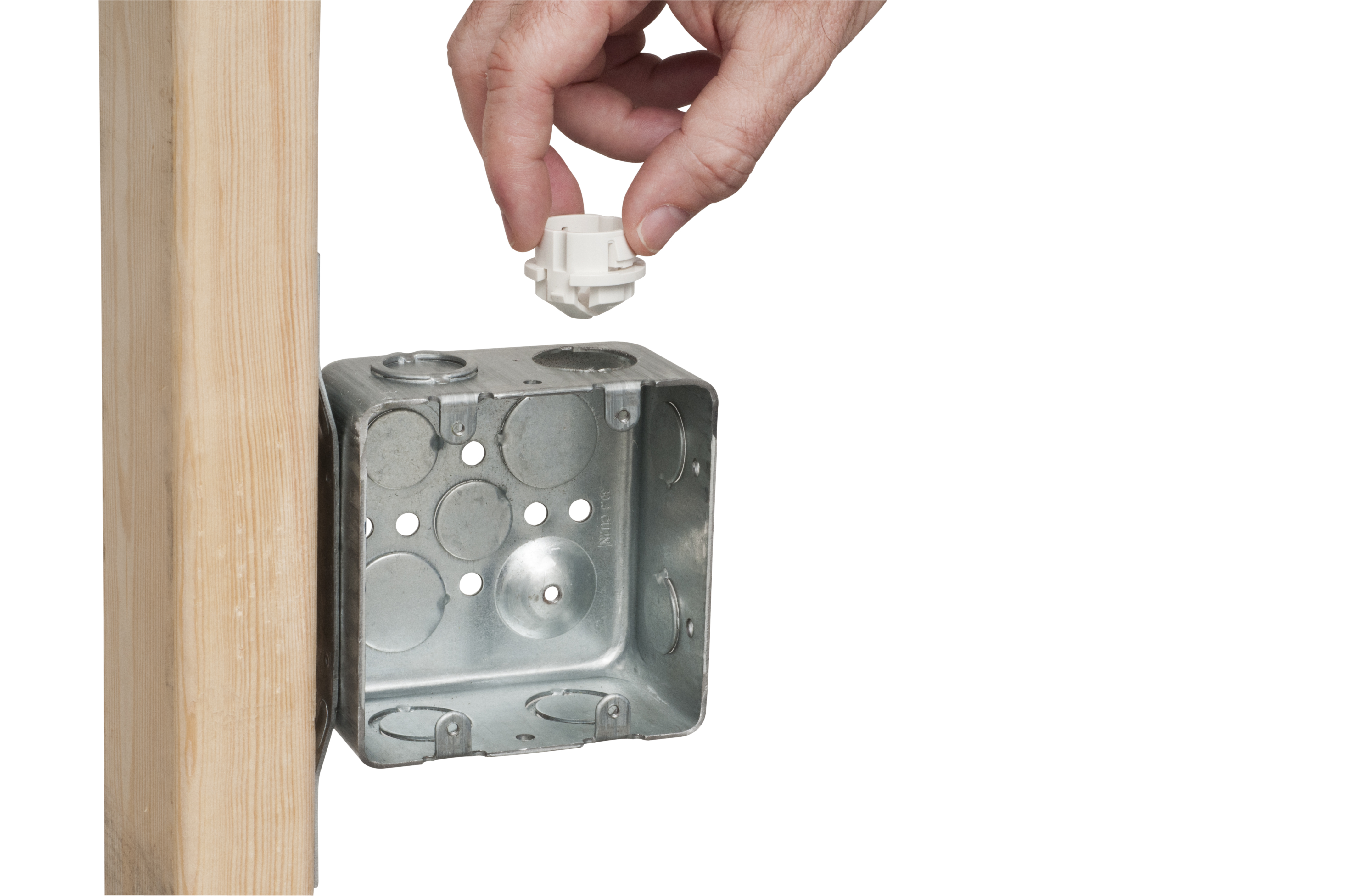

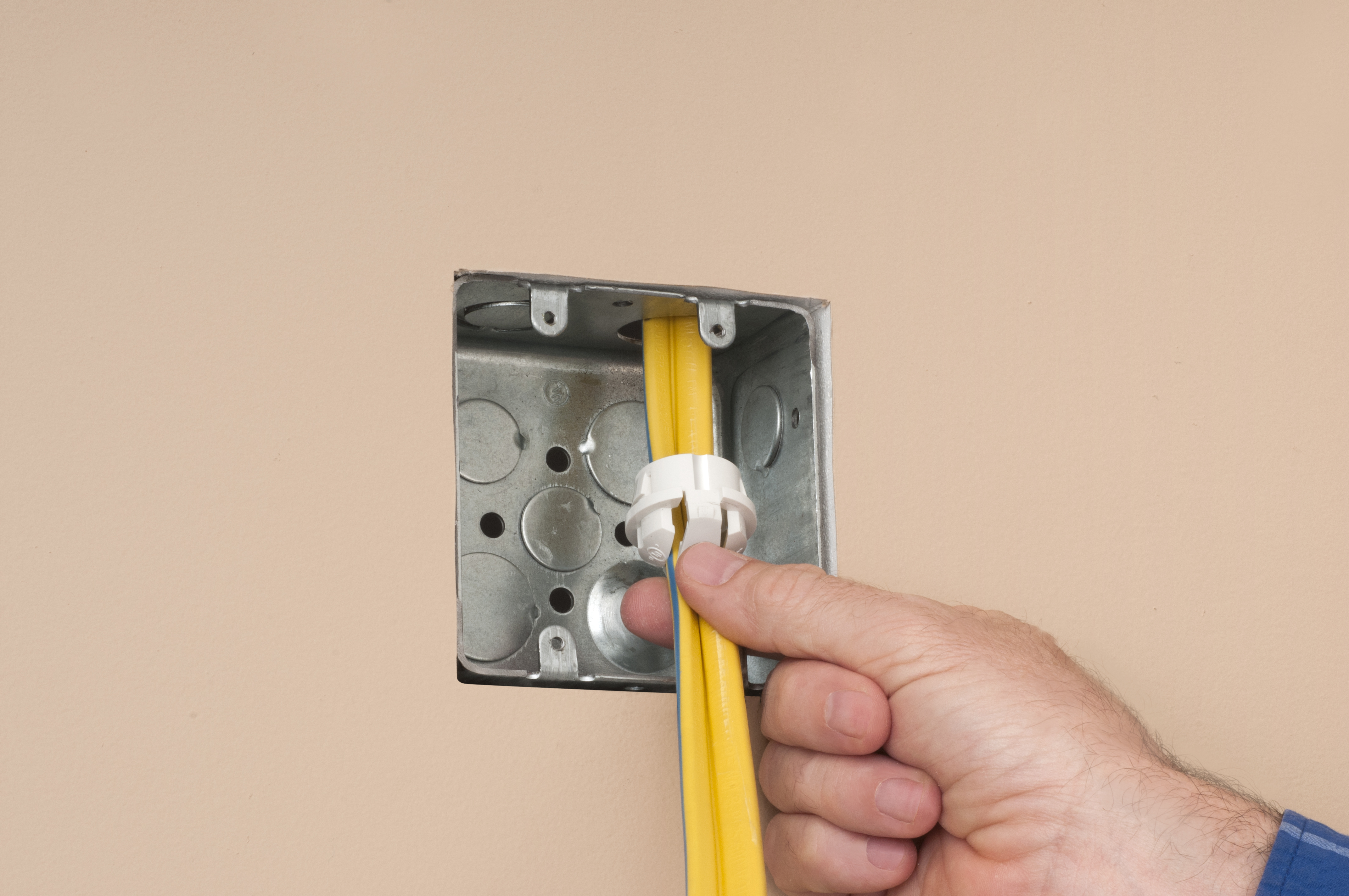

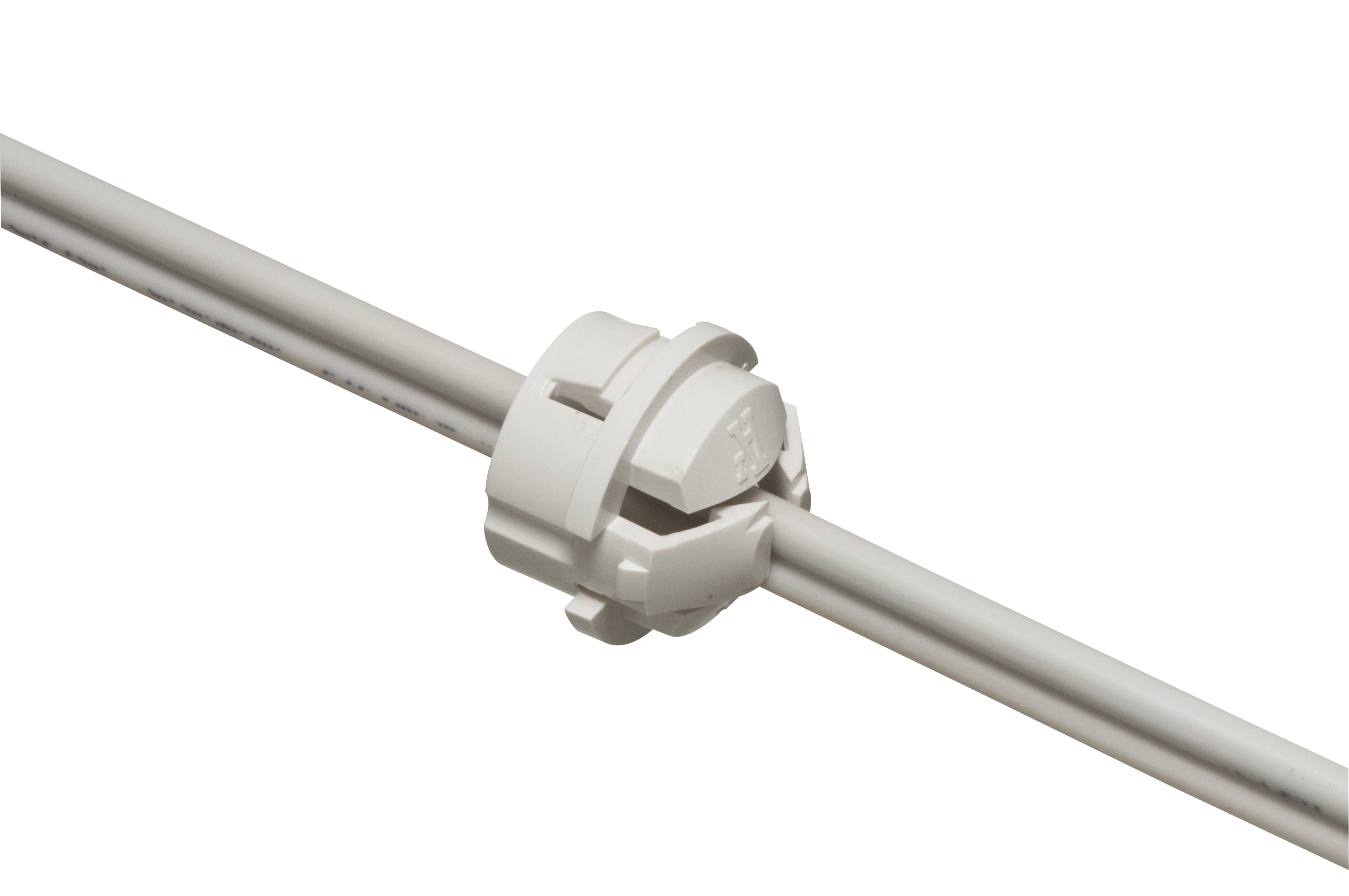

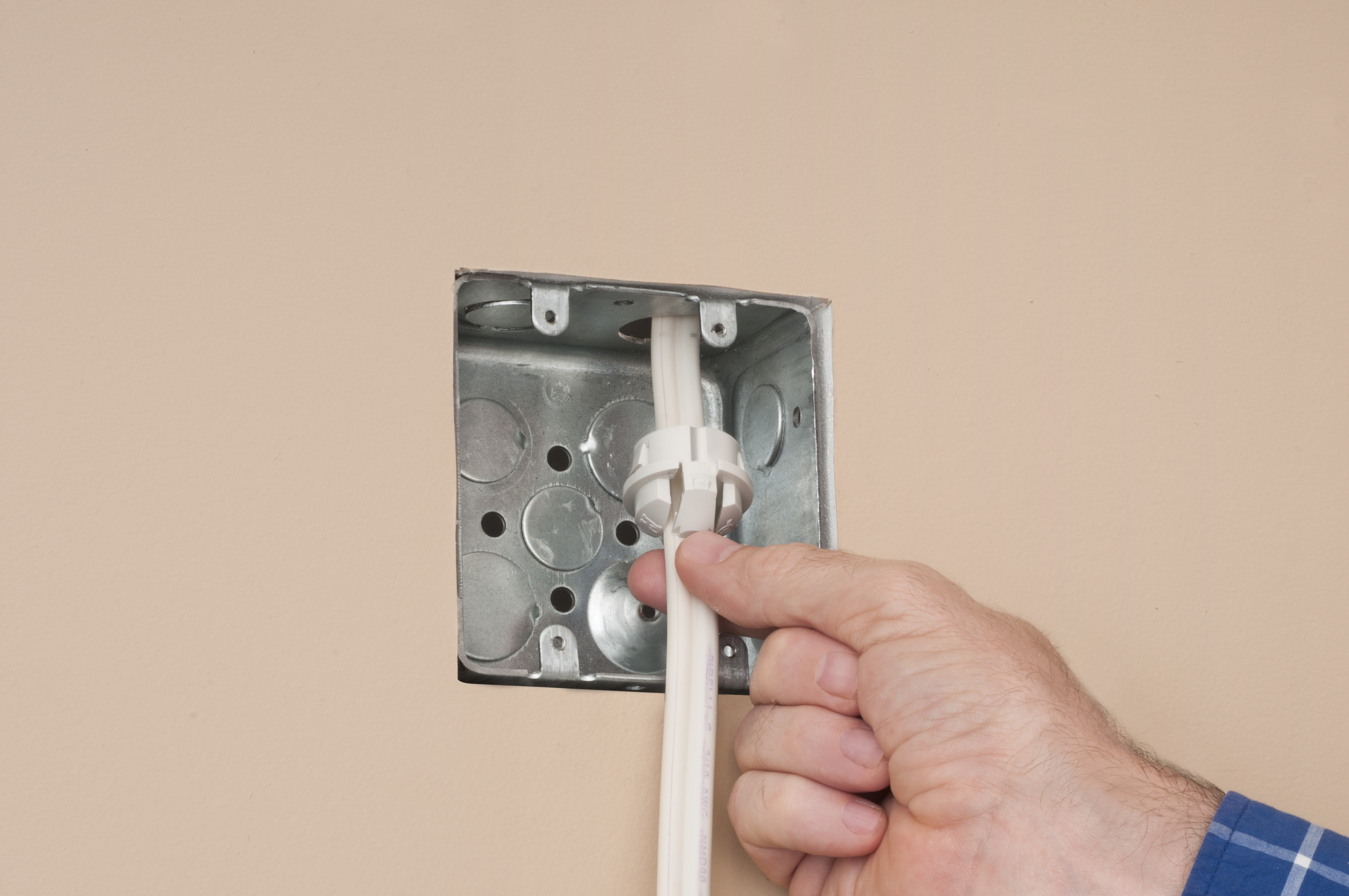

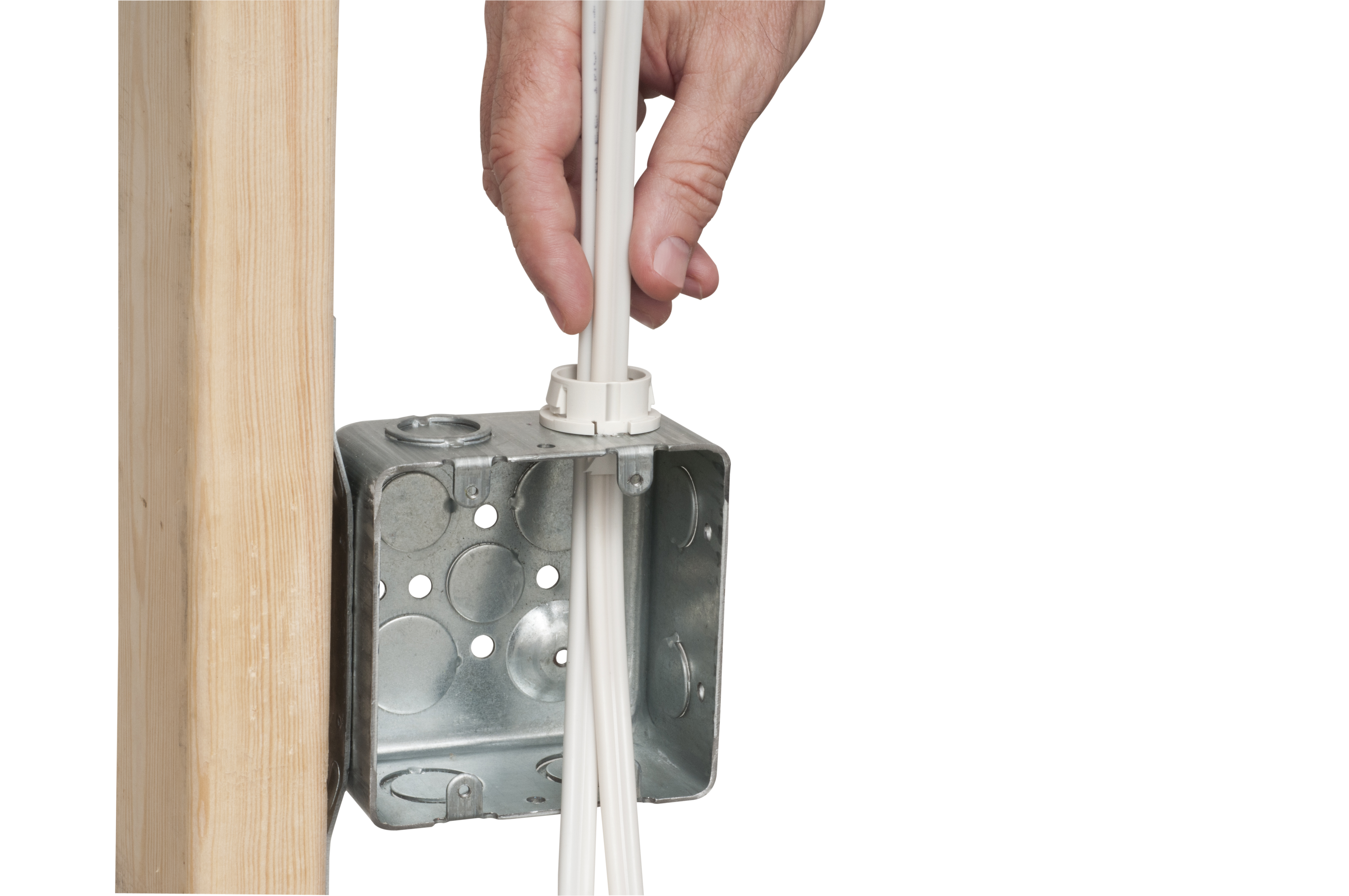

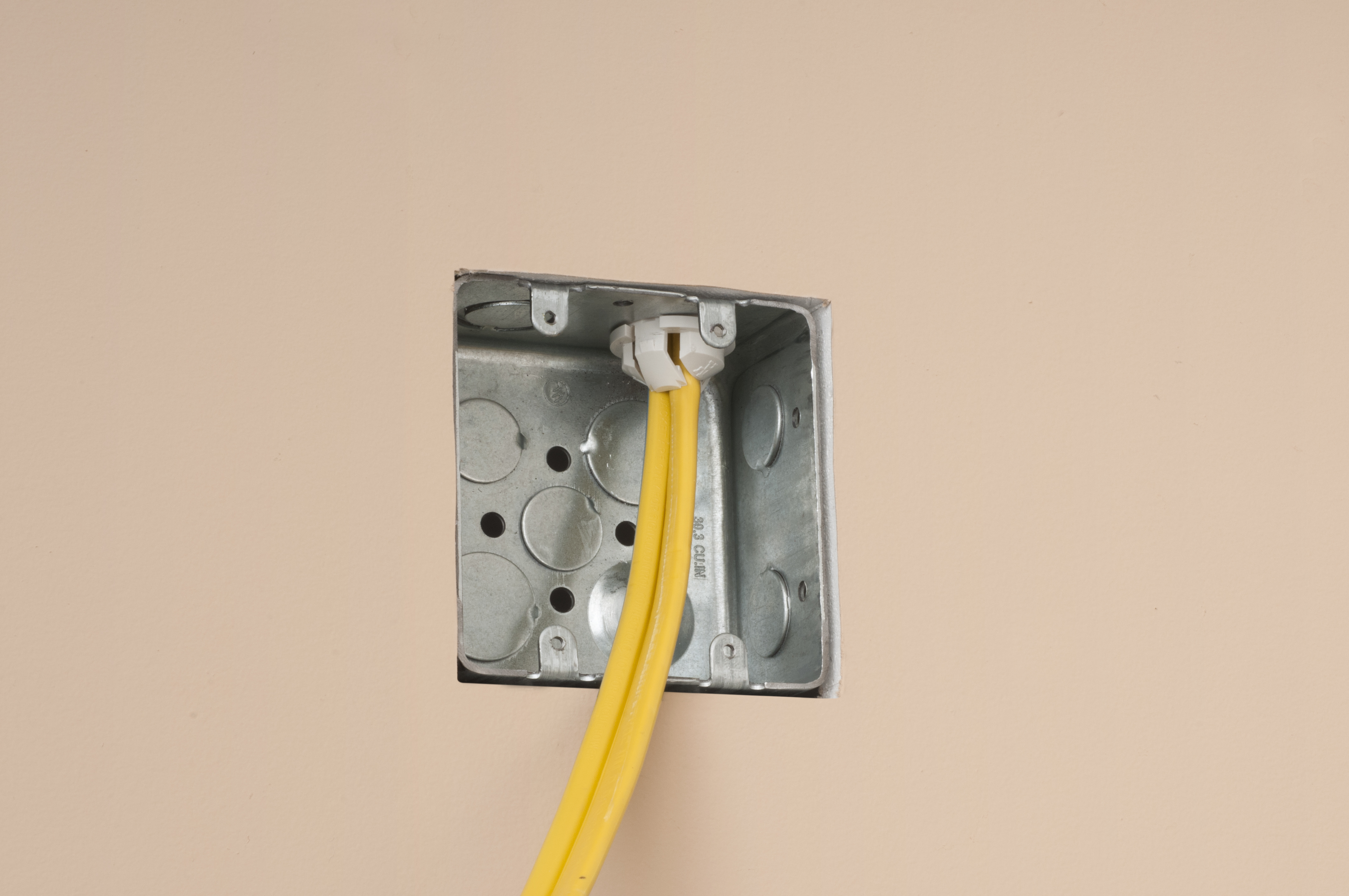

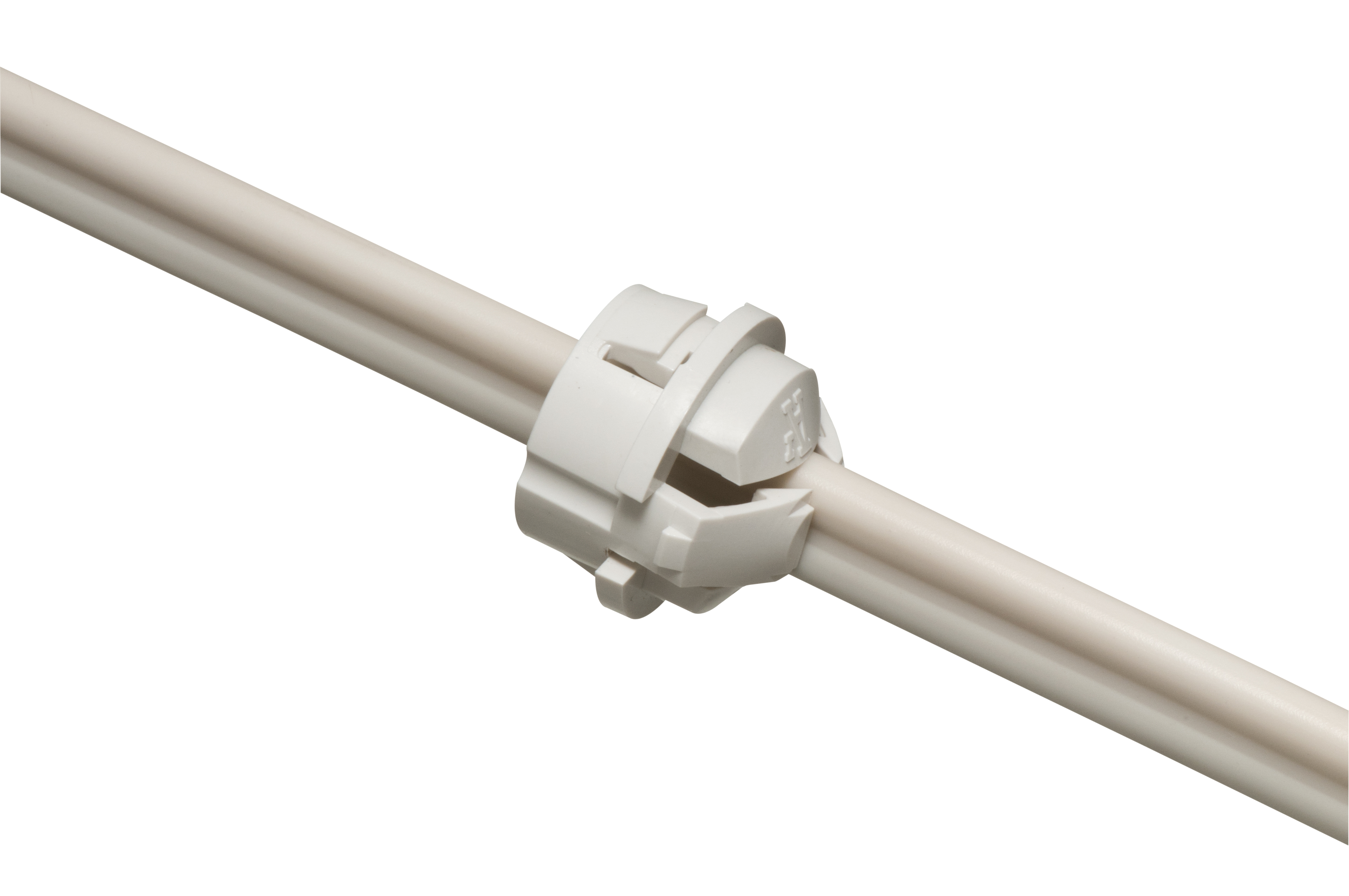

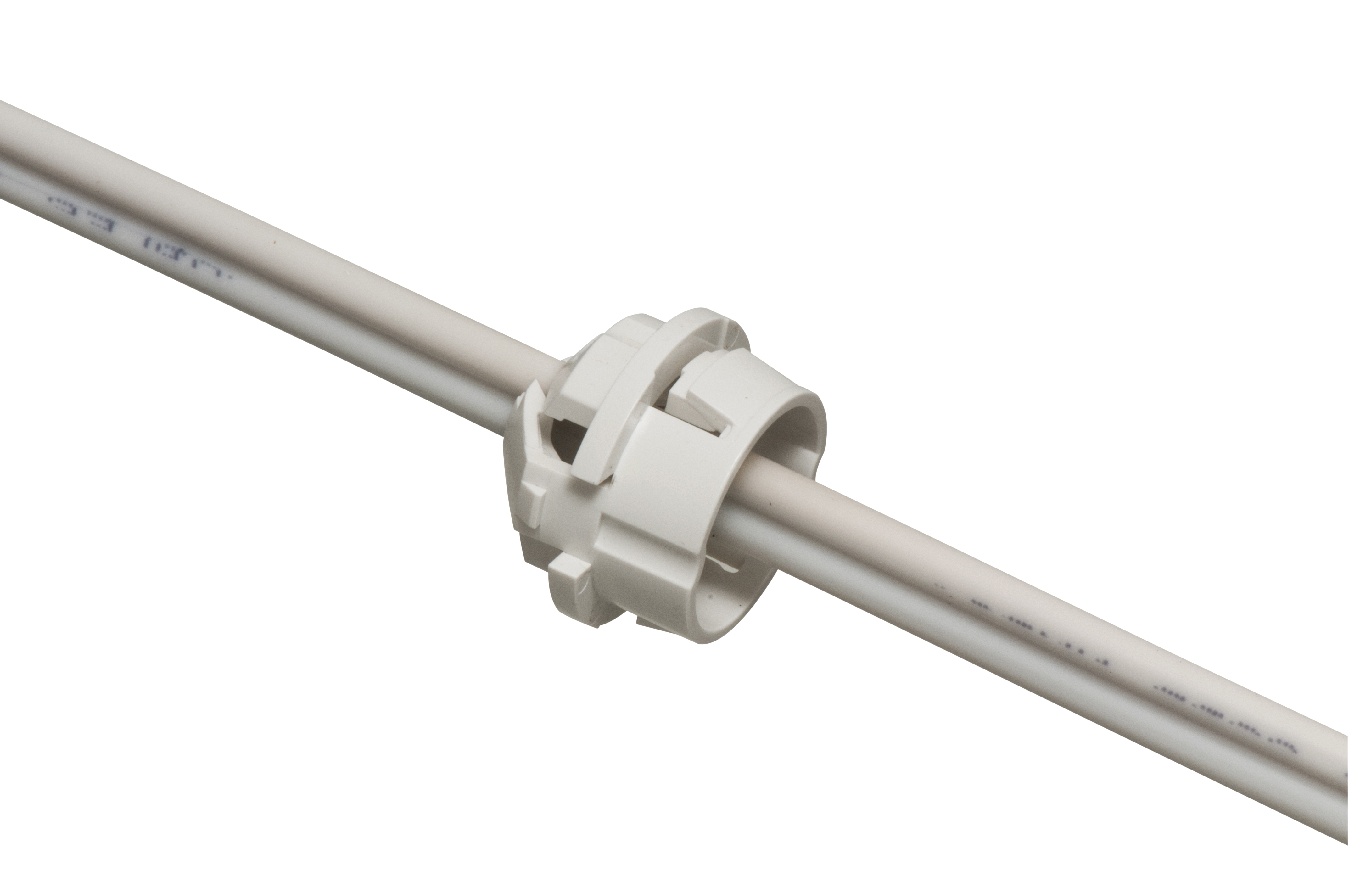

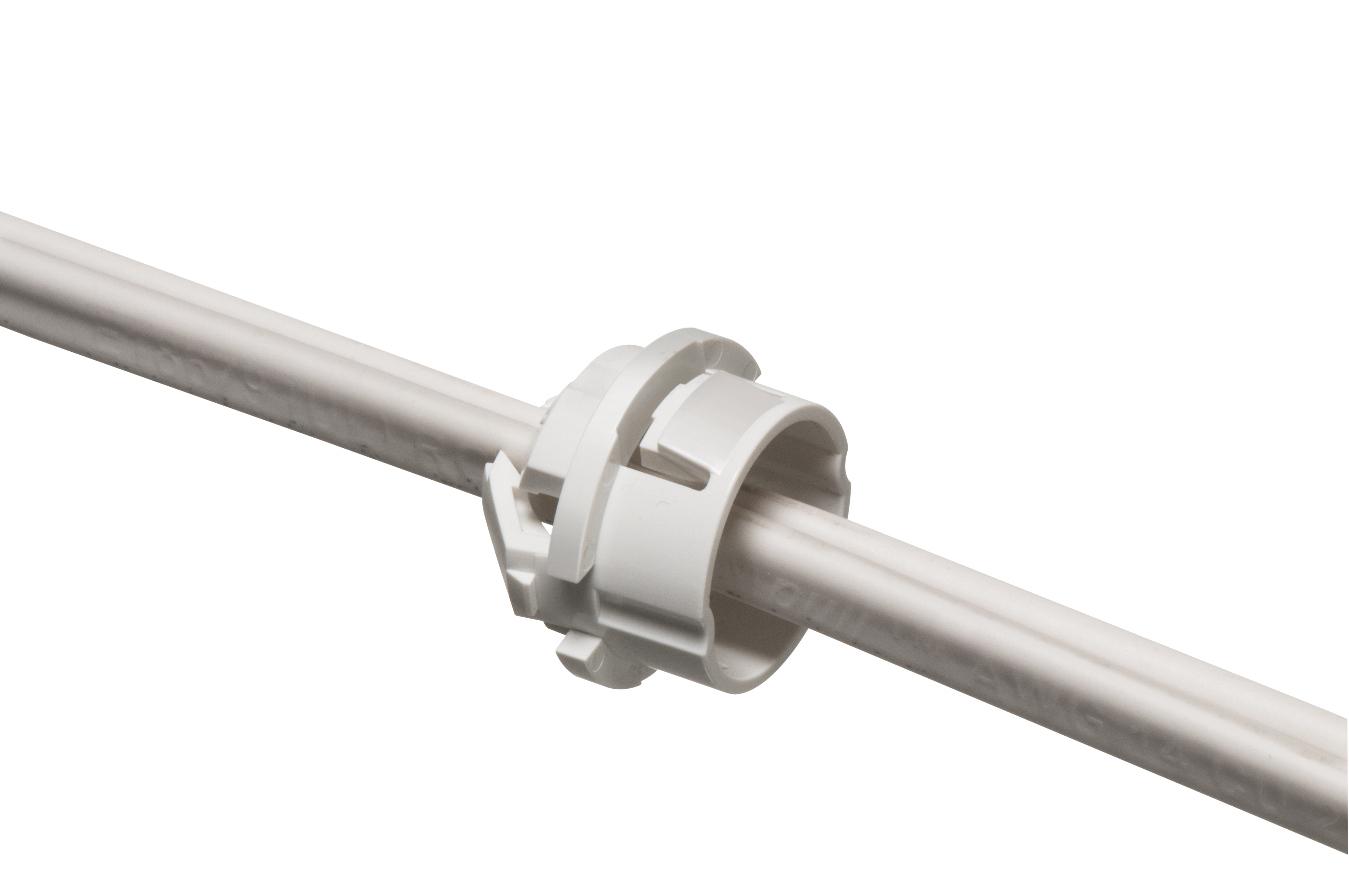

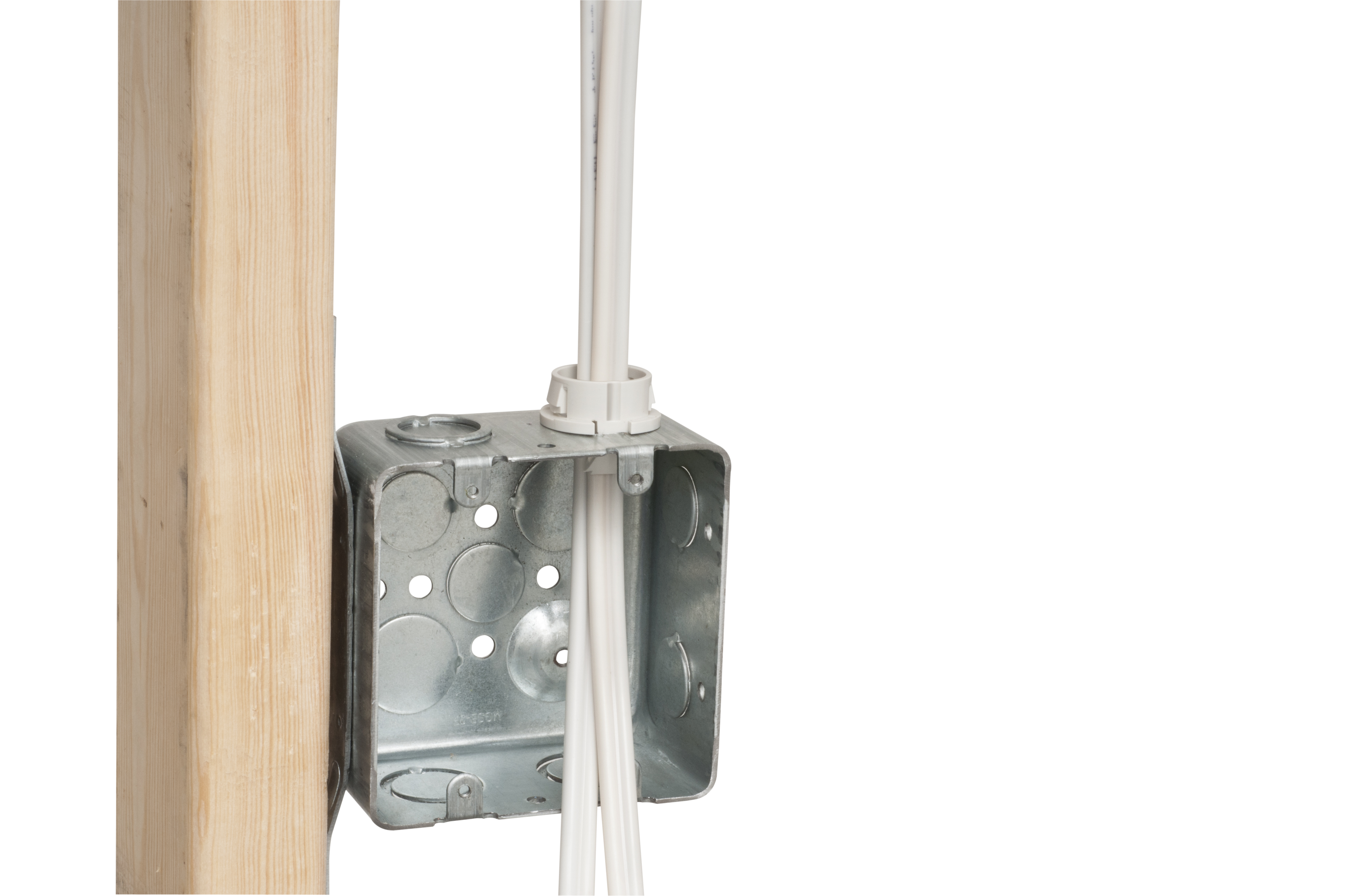

Description 3/4" White Button TM Non-Metallic Push-In Connector from inside or outside of the box. It works with a wide variety of NM cables including NMB-PCS and Canada&s NMD90.
UPC 018997211934
Unit Packaging 50pcs
Standard Packaging 500pcs
Country of Origin
Listing

Physical Information

Instructional Video NM95X Instructional Video
Weight0.011 lbs/each
Height1.290"
Width1.290"
Color White
Material(s)Plastic

Technical Information

Line Drawing NM95X Line Drawing

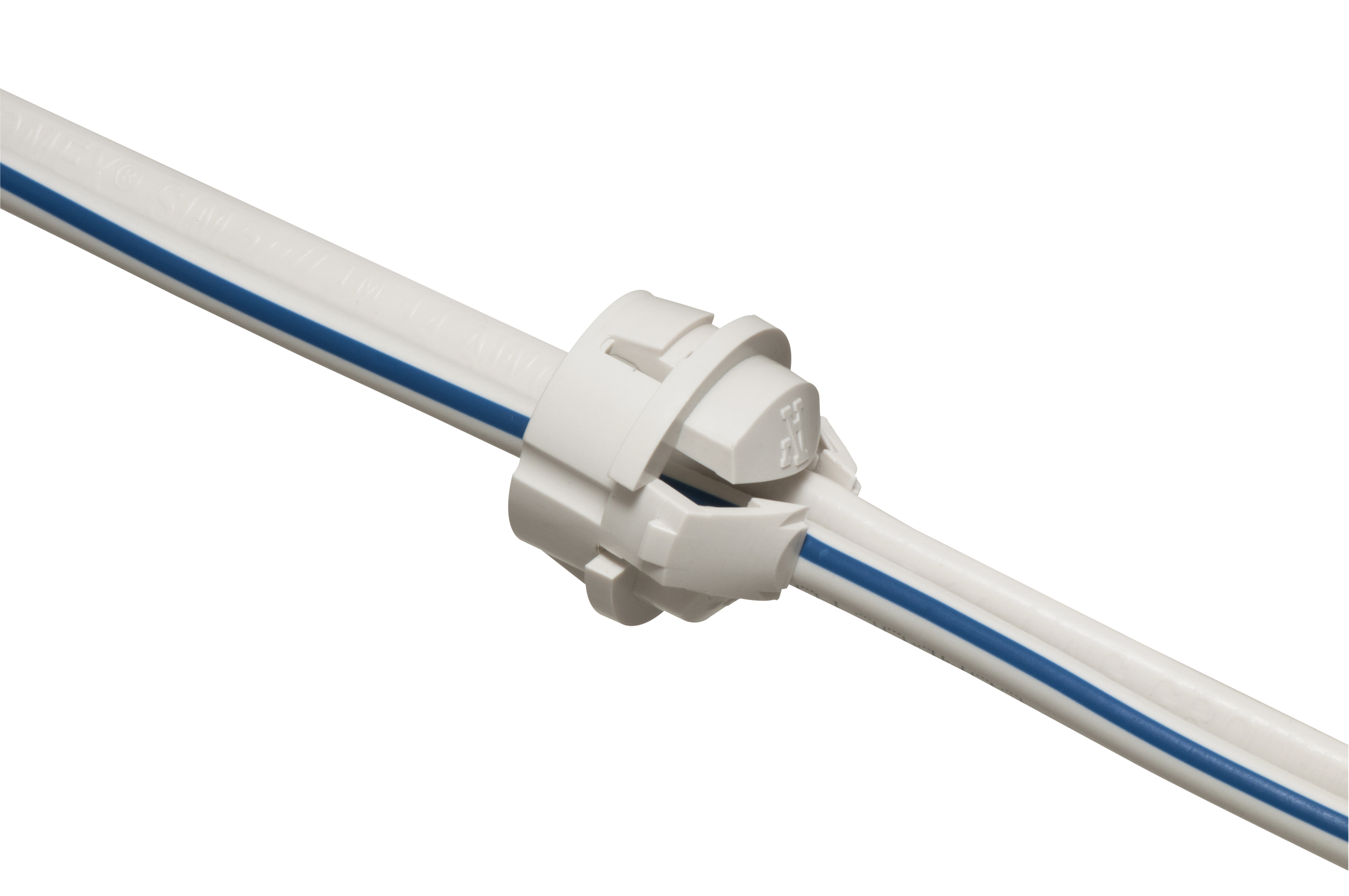

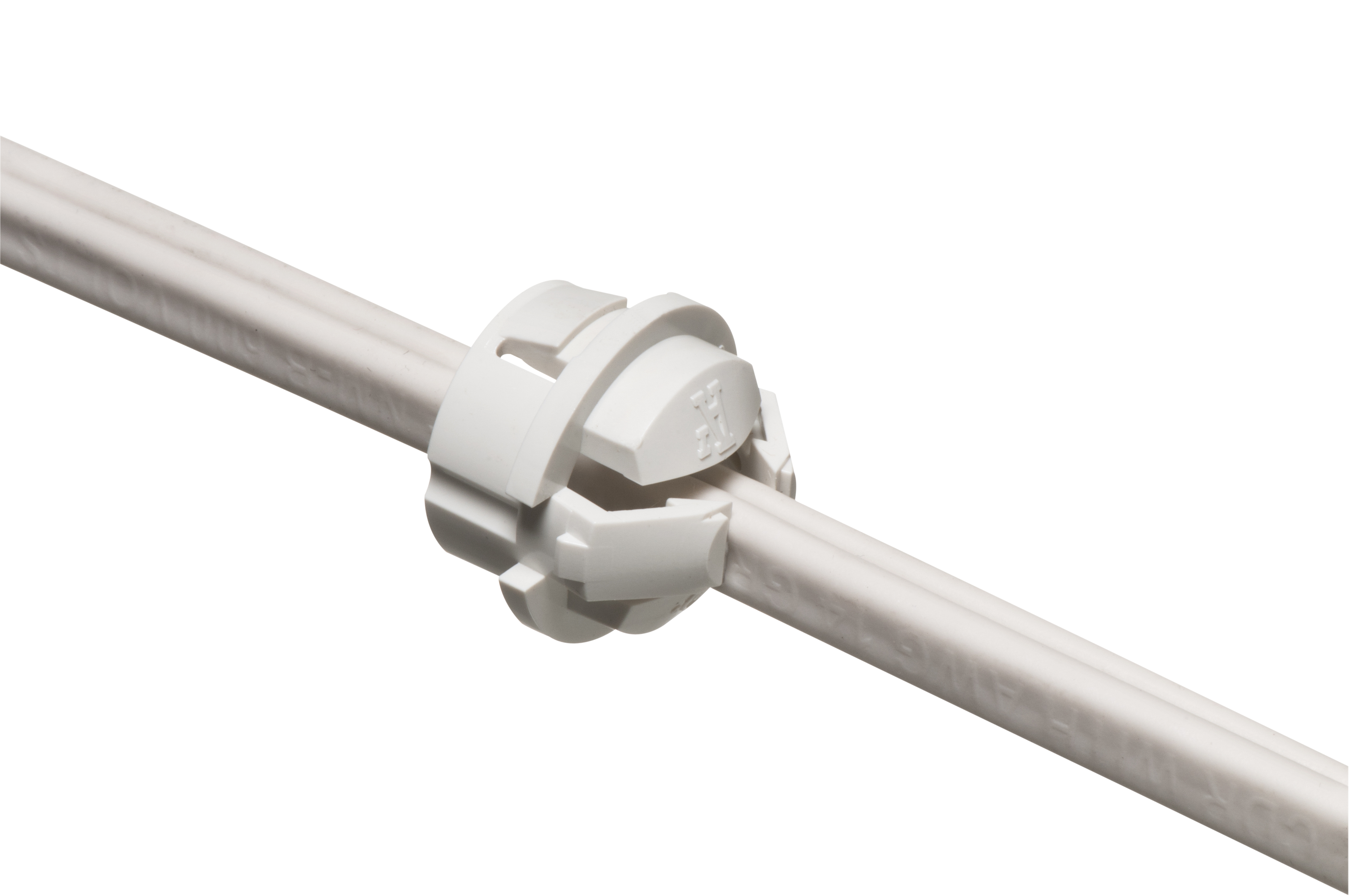

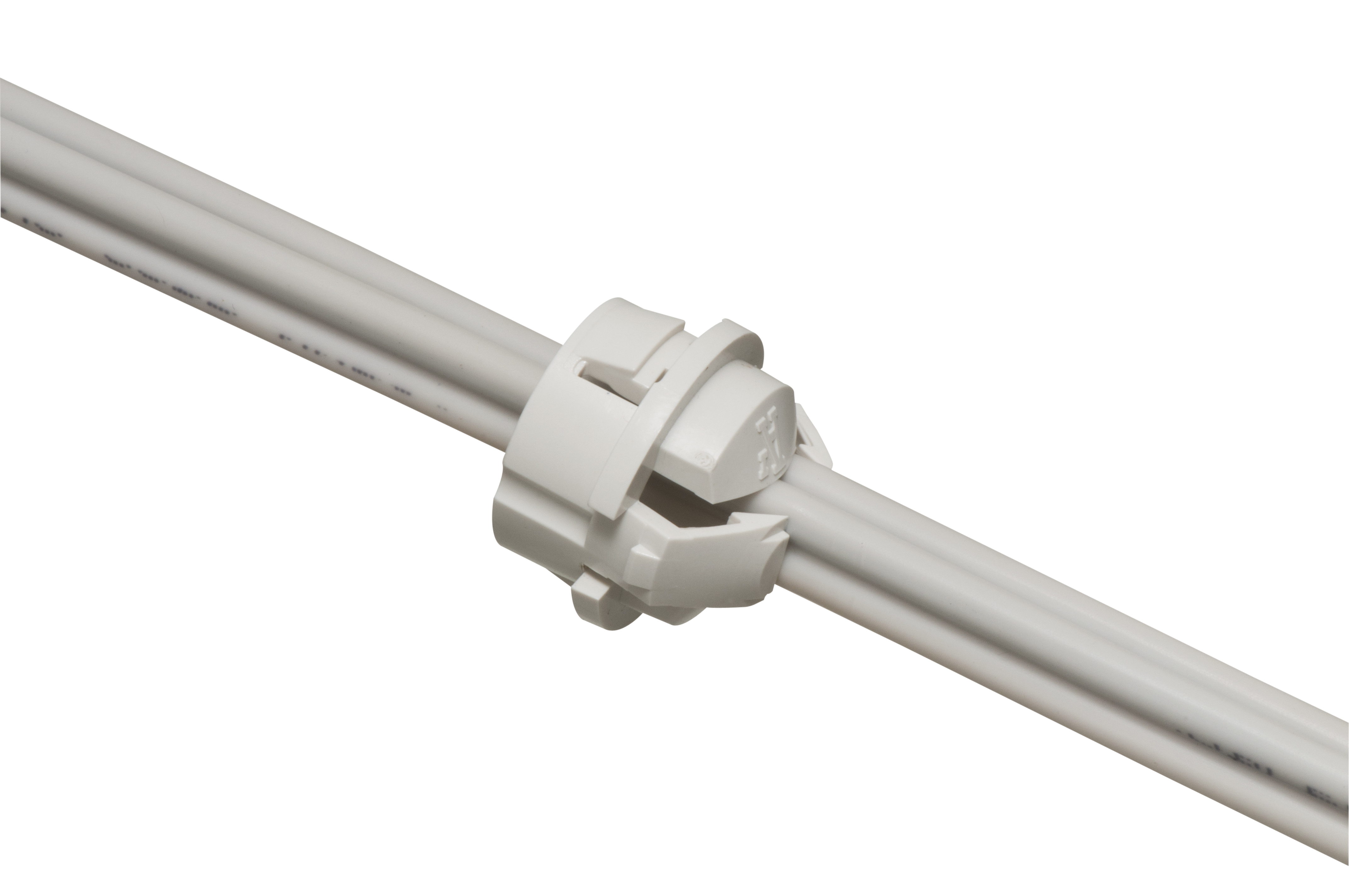

Cable RangesOne 14/2 to 6/2, One 14/3 to 6/3, One 12/4, One 12/2/2, Two 14/2 to 10/2, Two 14/3 to 10/3, One 14/2 and One 12/2, One 14/2 and One 10/2, One 12/2 and One 10/2, One 14/3 and One 12/3, One 14/2 NMB-PCS, One 12/2 NMB-PCS, One or Two 14/2 to 10/2 NMD90
Knockout Size(s)3/4"
Trade Size3/4"
