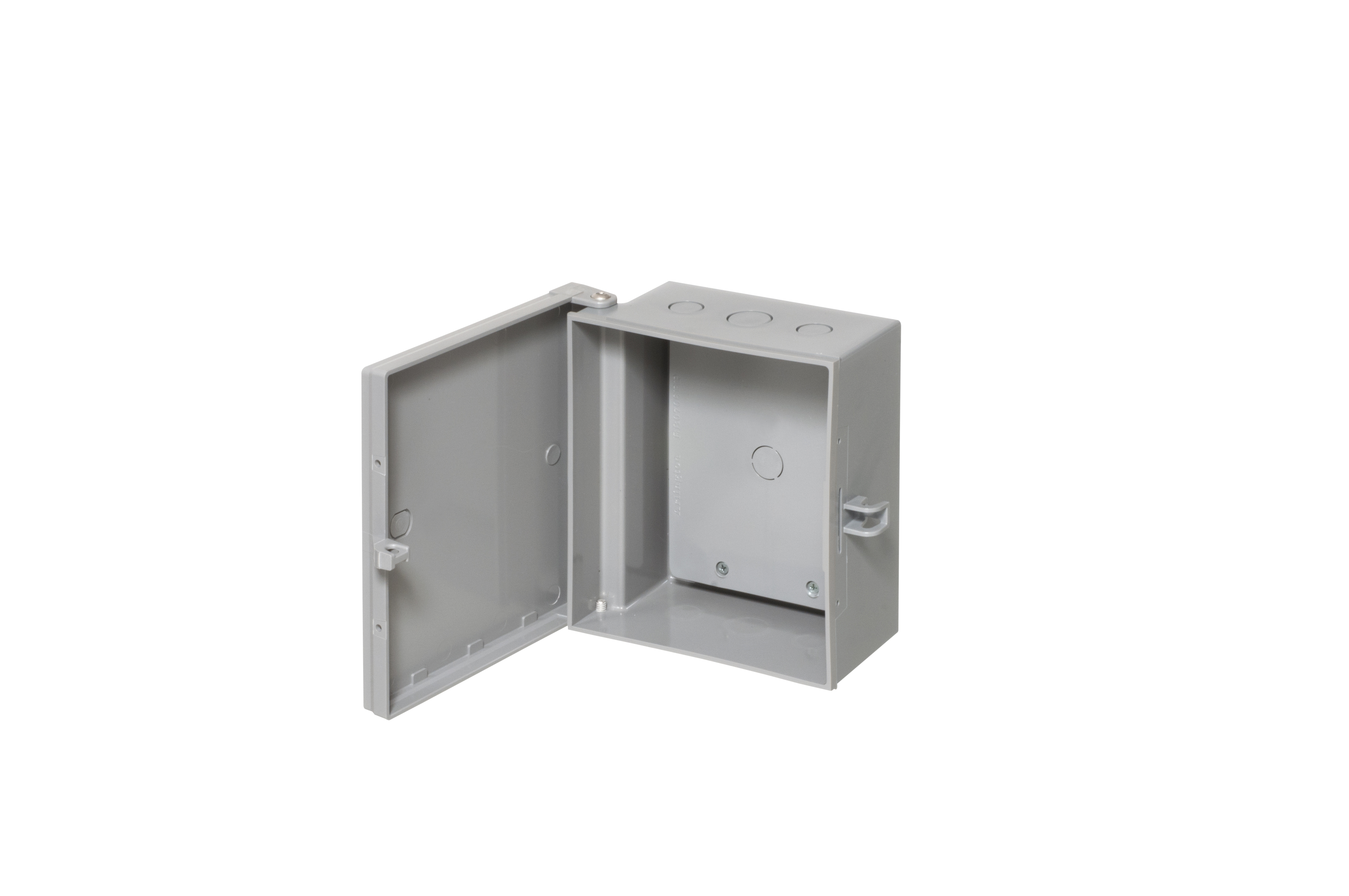

enclosure box with back plate

EB0708BP Product Information

Heavy-Duty Non-Metallic Enclosure Box with back plate

Specification Sheet Catalog Page E-mail

Additional Images

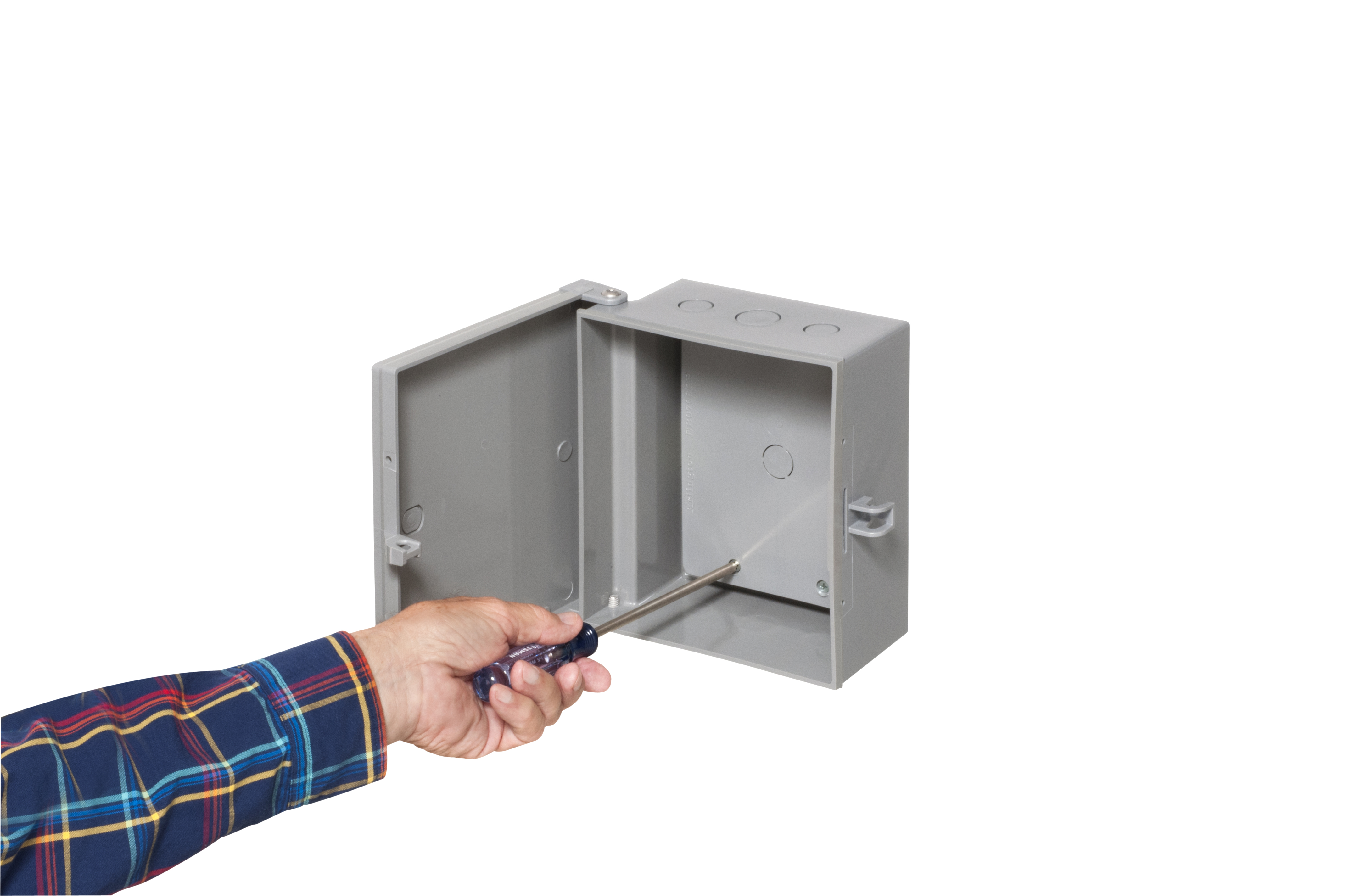

person installing back plate to enclosure box with screwdriver

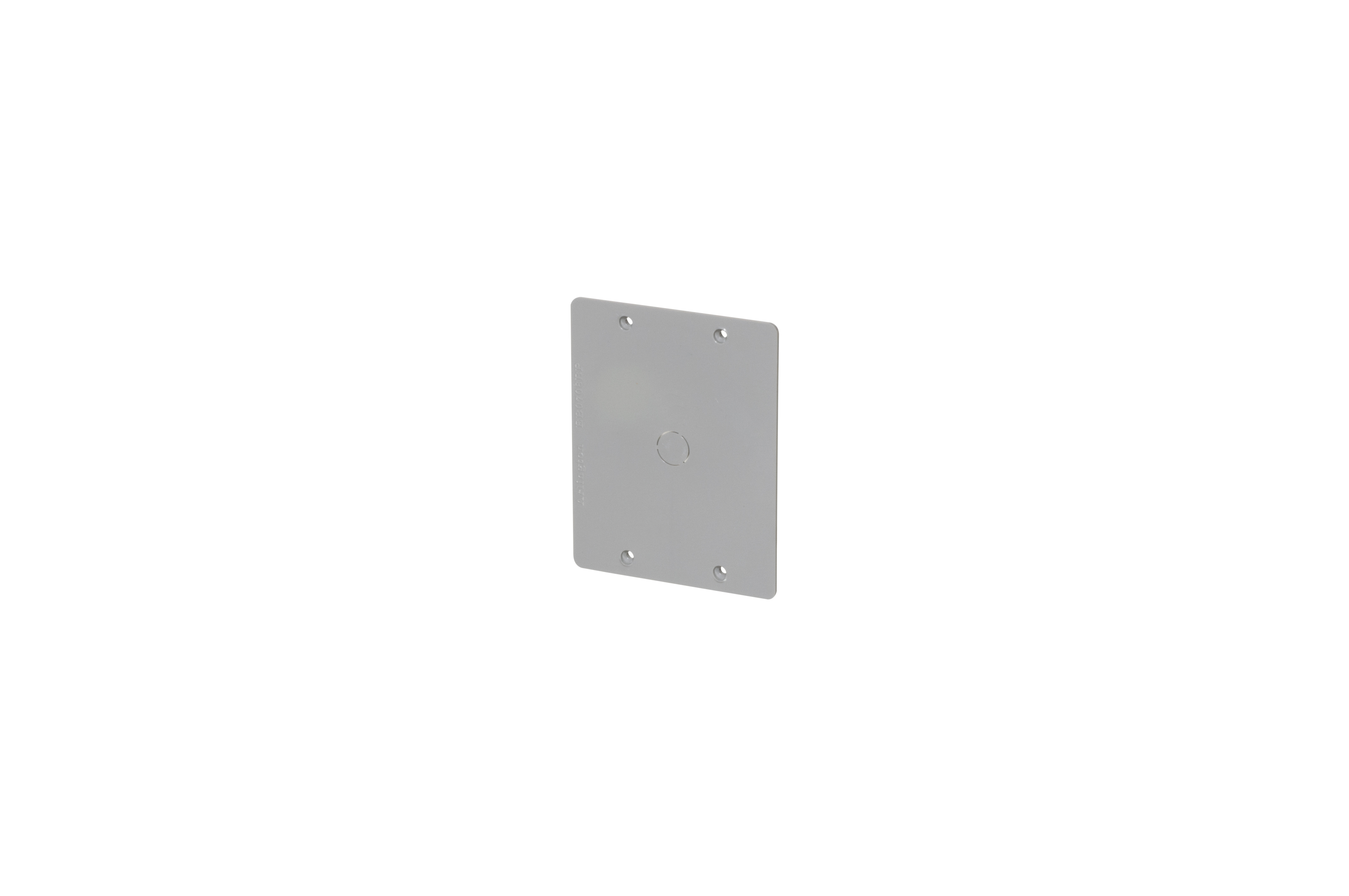

back plate

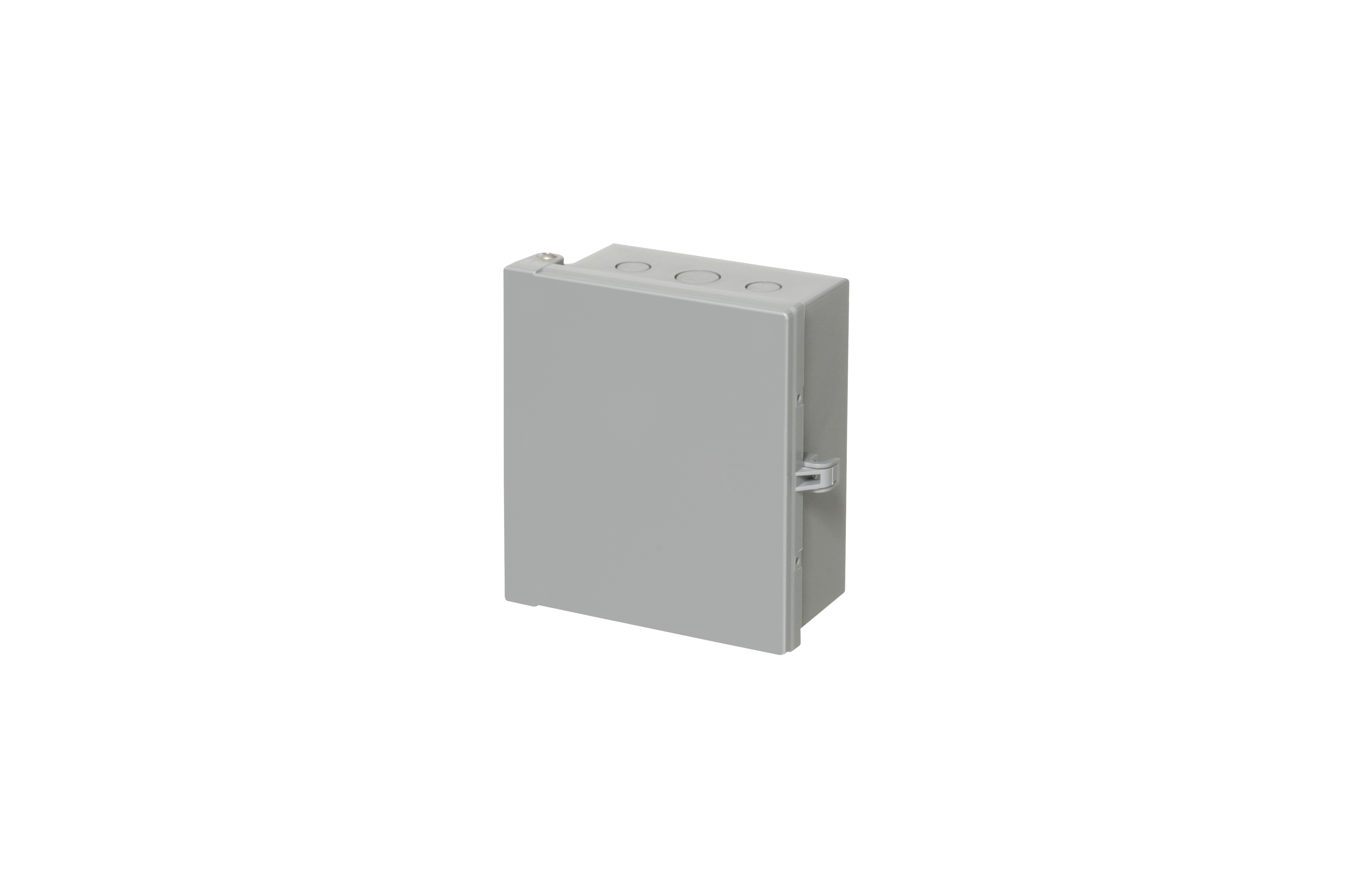

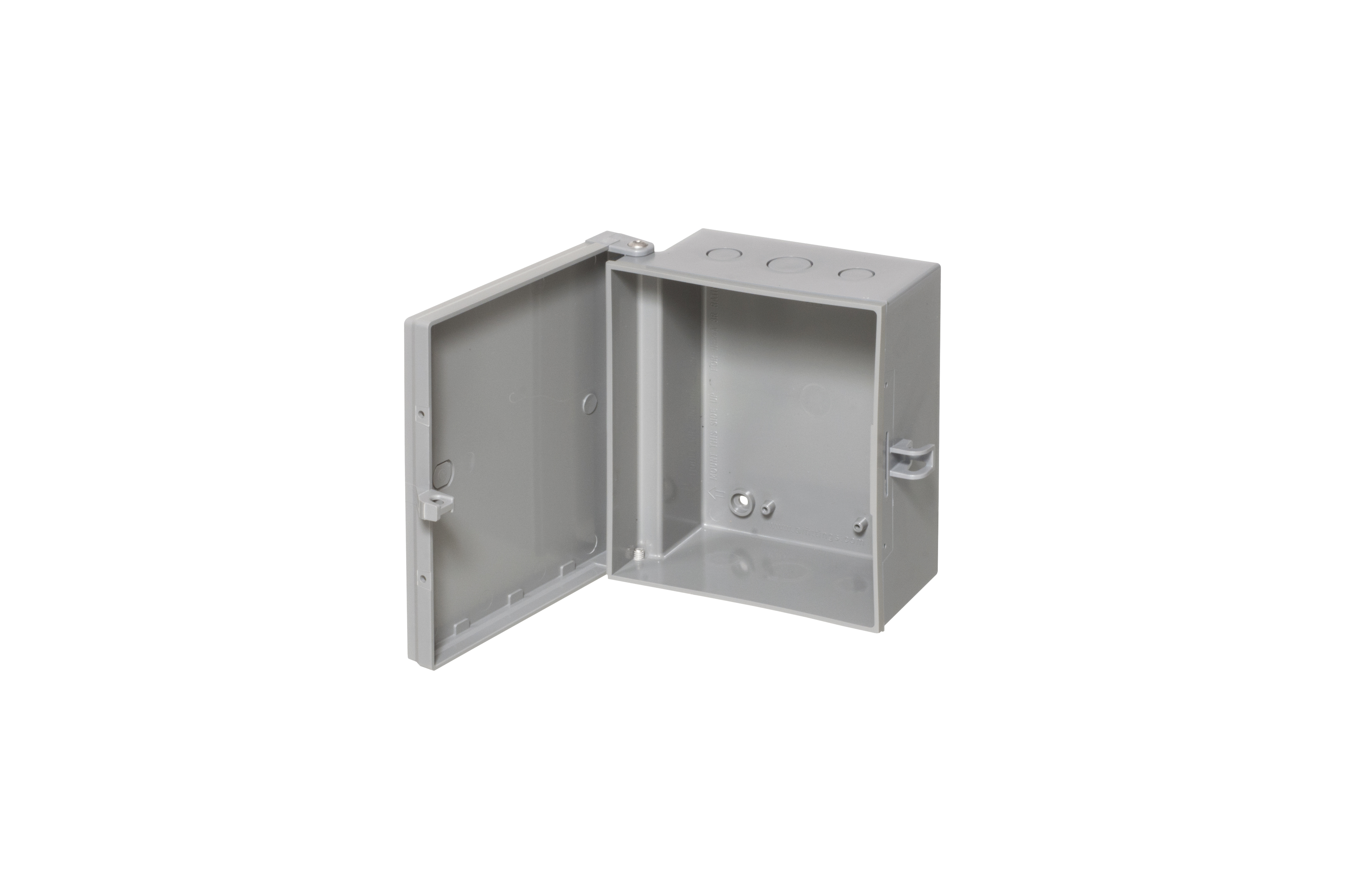

enclosure box

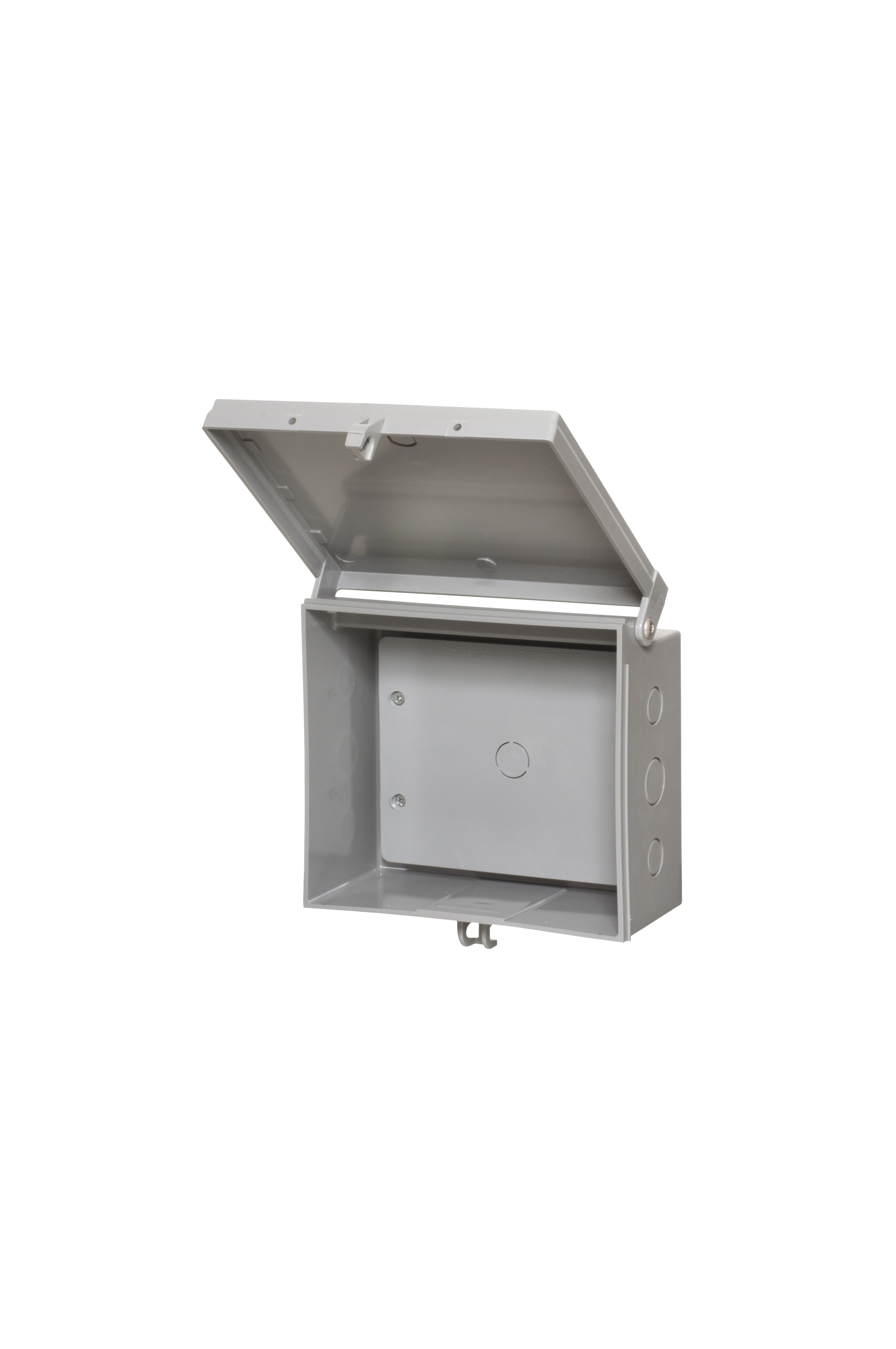

enclosure box

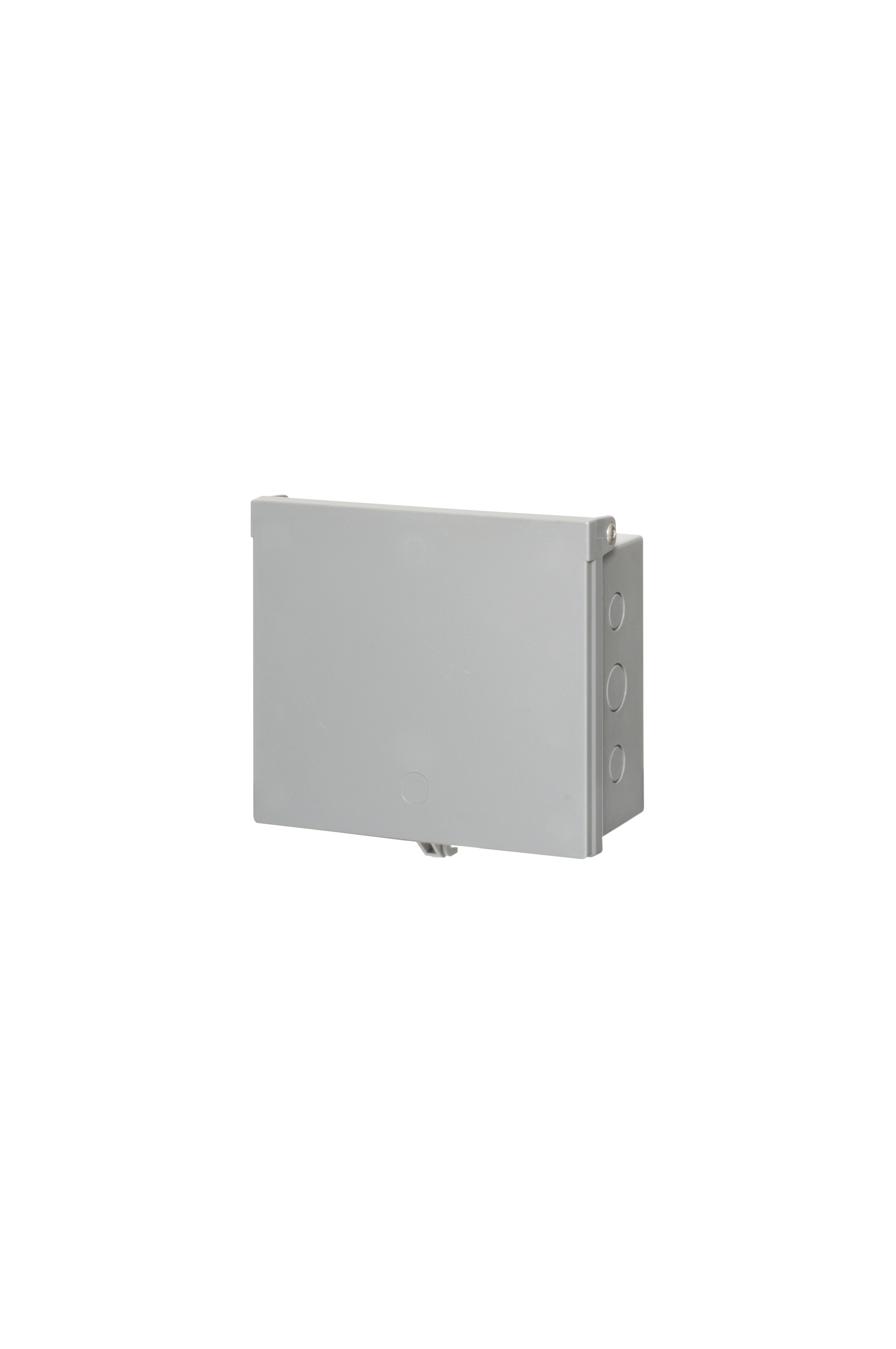

enclosure box

enclosure box

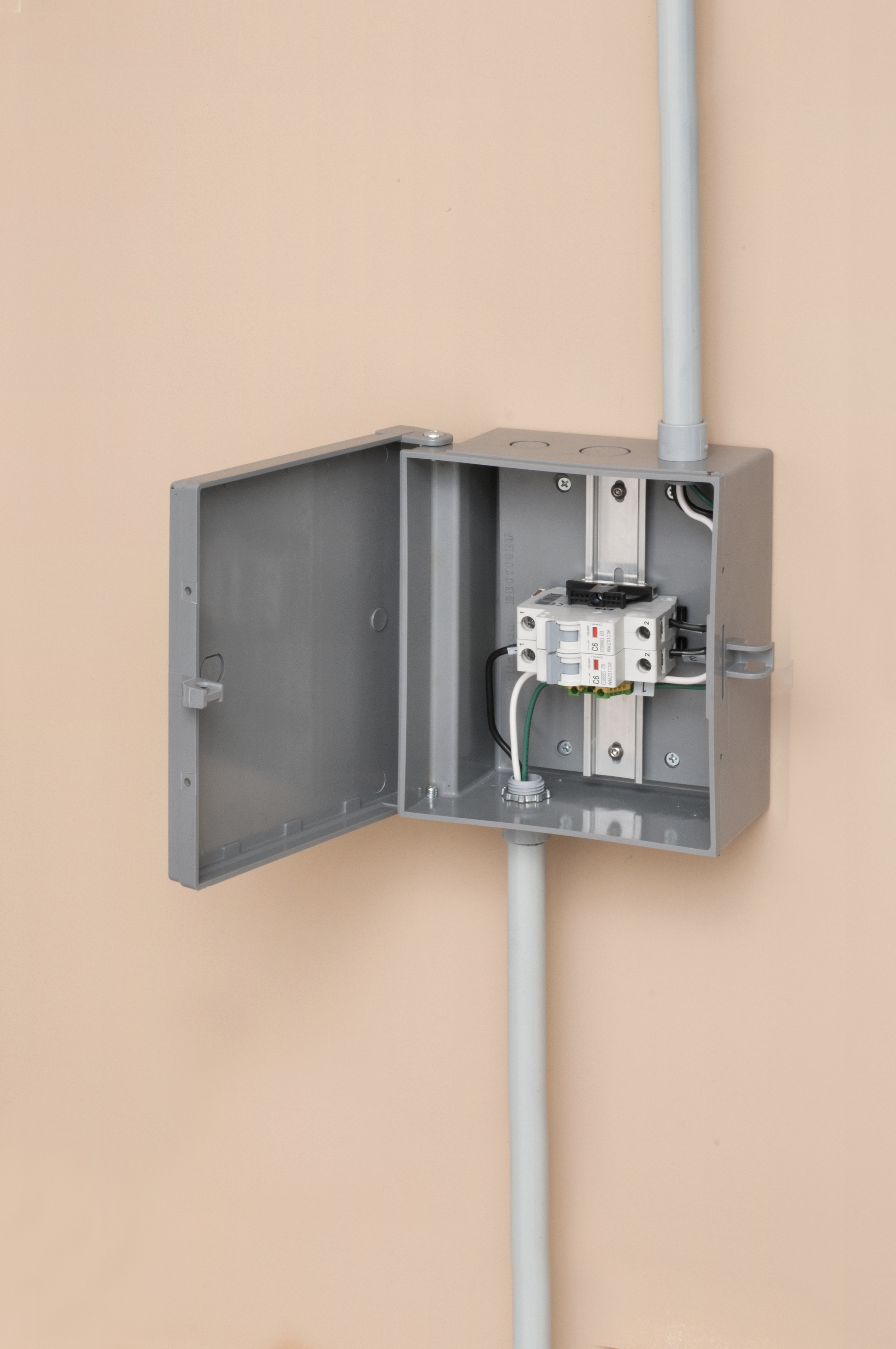

enclosure box with equipment installed inside

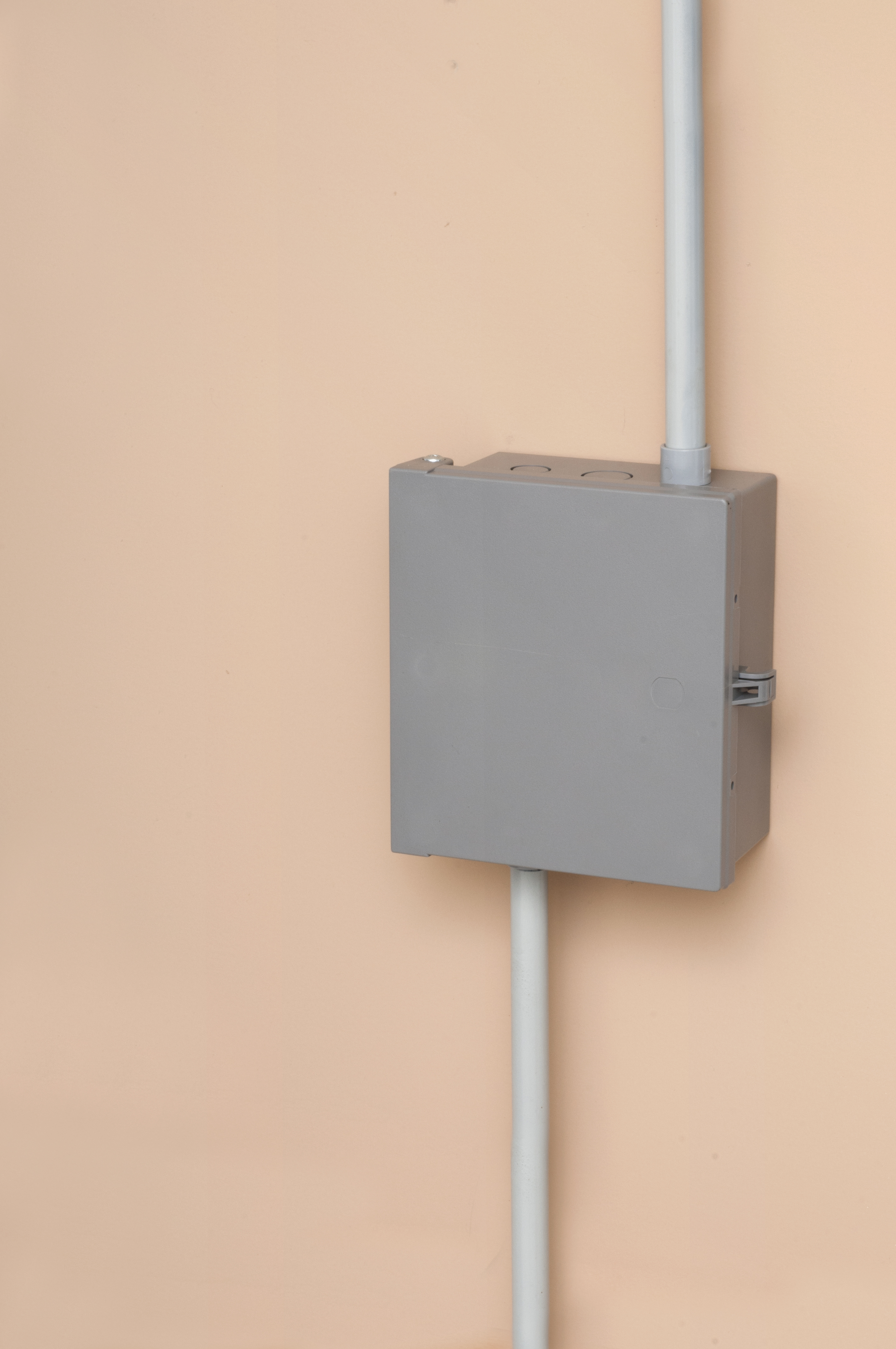

enclosure box with conduit attached from above and below

enclosure box with equipment installed inside

EB1212-5

EB1212-6

Basic Information

Part Number	EB0708BP
Description	NEMA 3R rated, outdoor rated non-metallic enclosure. The included back plate allows for components to be mounted even after the enclosure is mounted. Gray, 7" x 8" x 3.5".
UPC-A	018997231703
Unit Packaging	1pc
Standard Packaging	4pcs
Country of Origin
Listing

Physical Information

Weight	1.700 lbs/each
Height	7.000"
Width	5.500"
Color	Gray
Material(s)	UV-Rated Plastic

Technical Information

Line Drawing	EB0708BP Line Drawing
Features	Lockable
Trade Size	8.120" X 6.890" X 3.500"

Comes With

(1)	Non-Metallic Enclosure
(1)	Back Plate
(4)	#8 x 5/8" Long Screws
