adjustable fan and fixture box

FBA426 Product Information

Adjustable Non-Metallic Box for New Construction
Specification SheetCatalog Page E-mail

Additional Images

Basic Information

Part Number FBA426

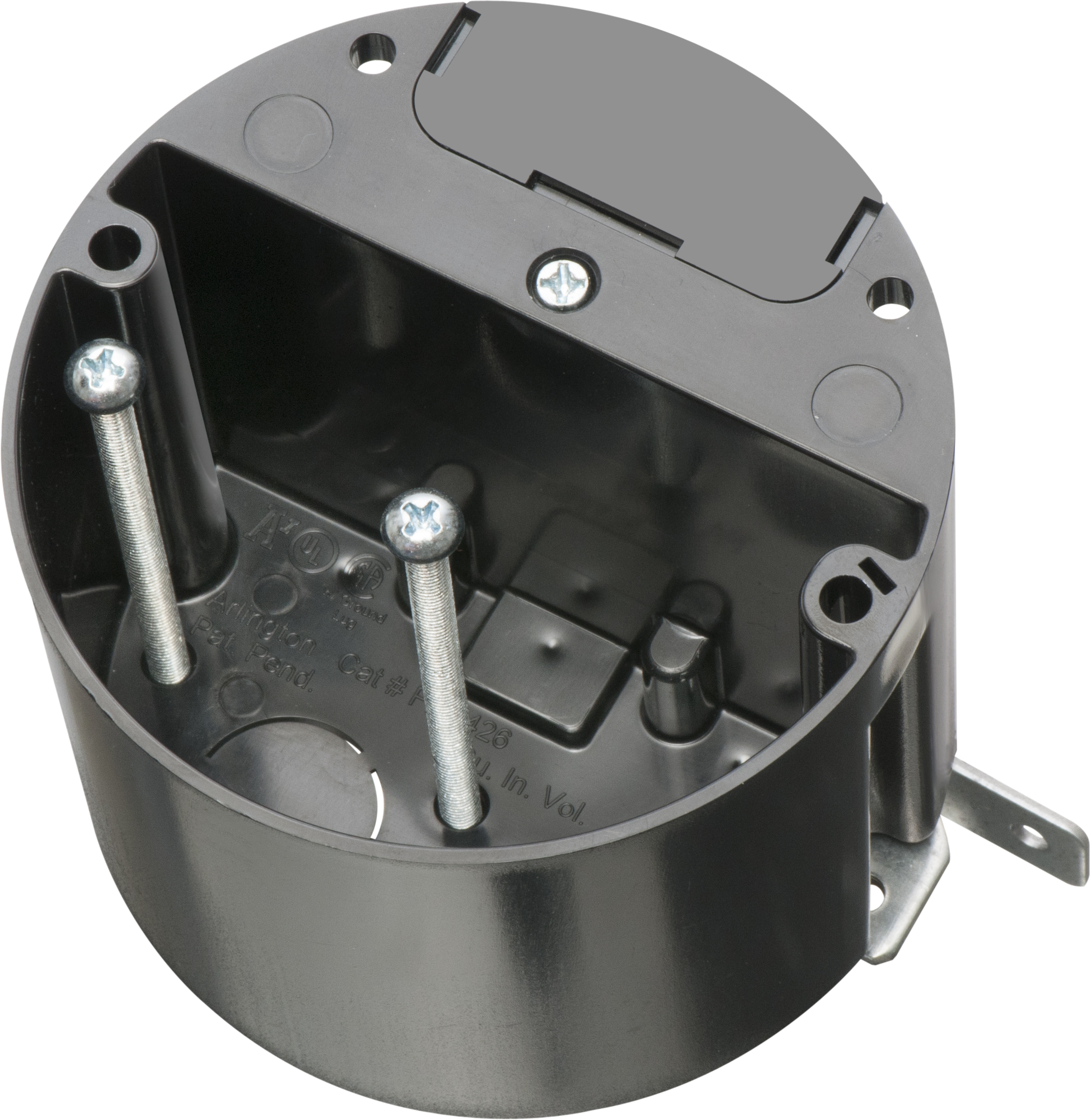

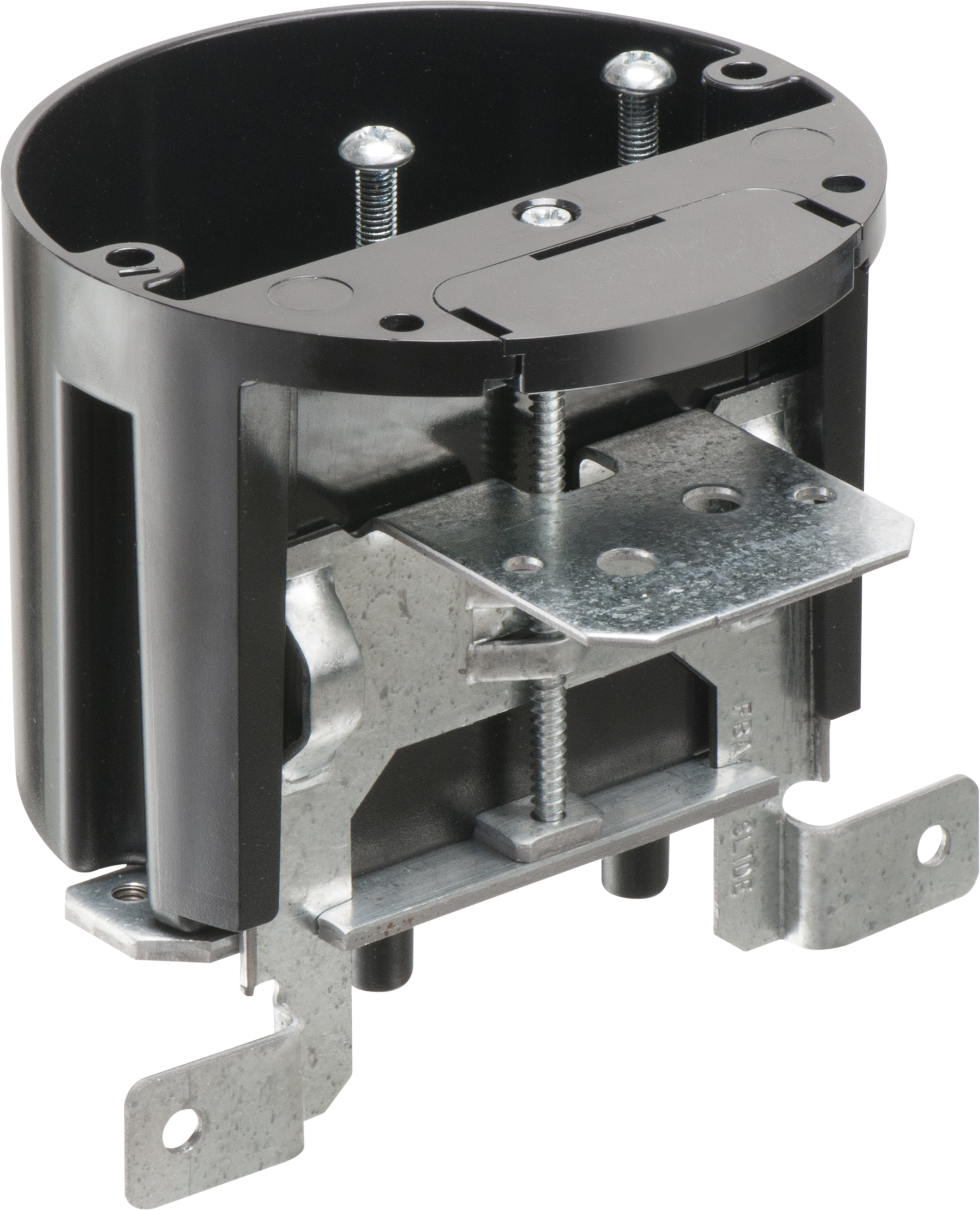

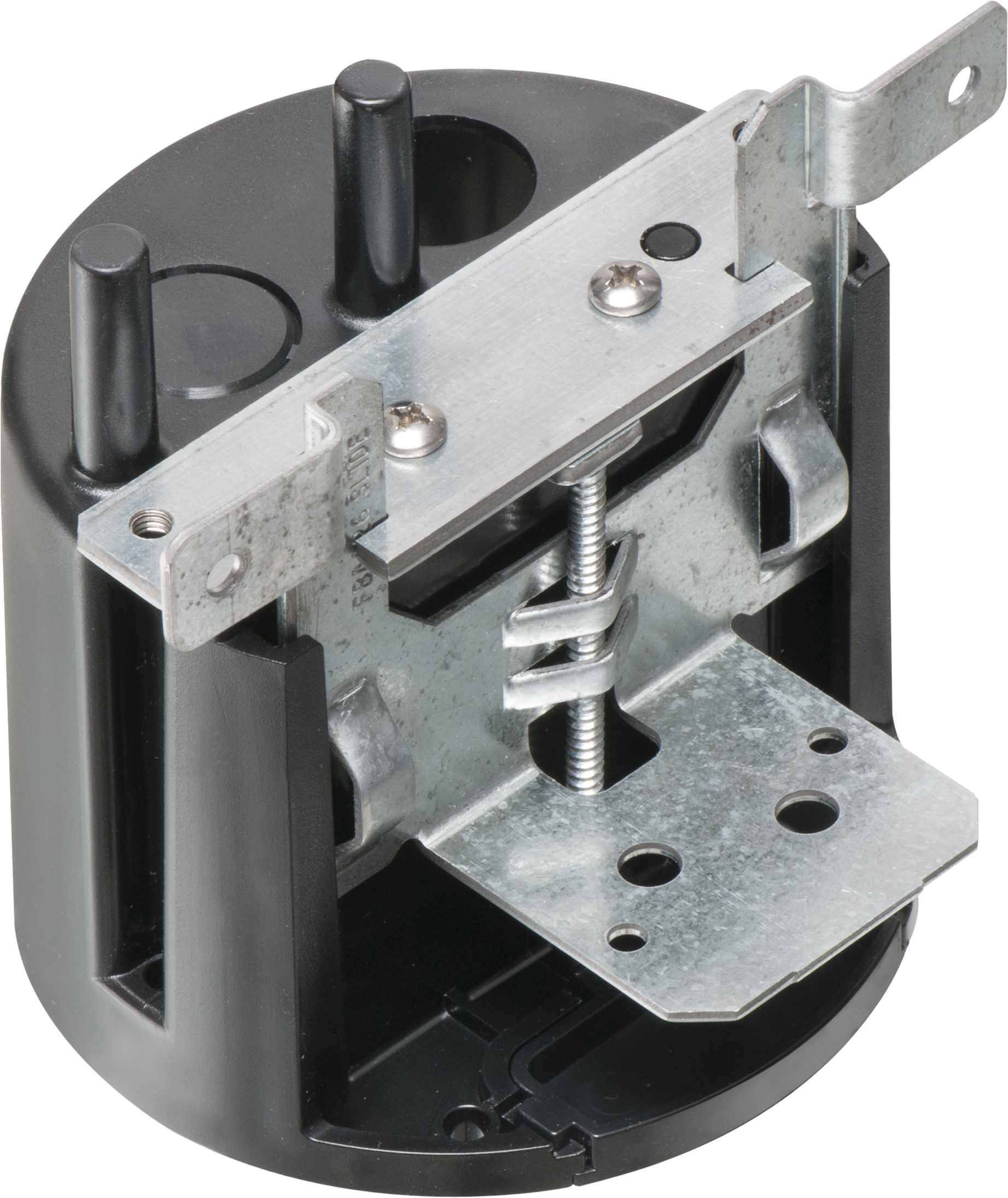

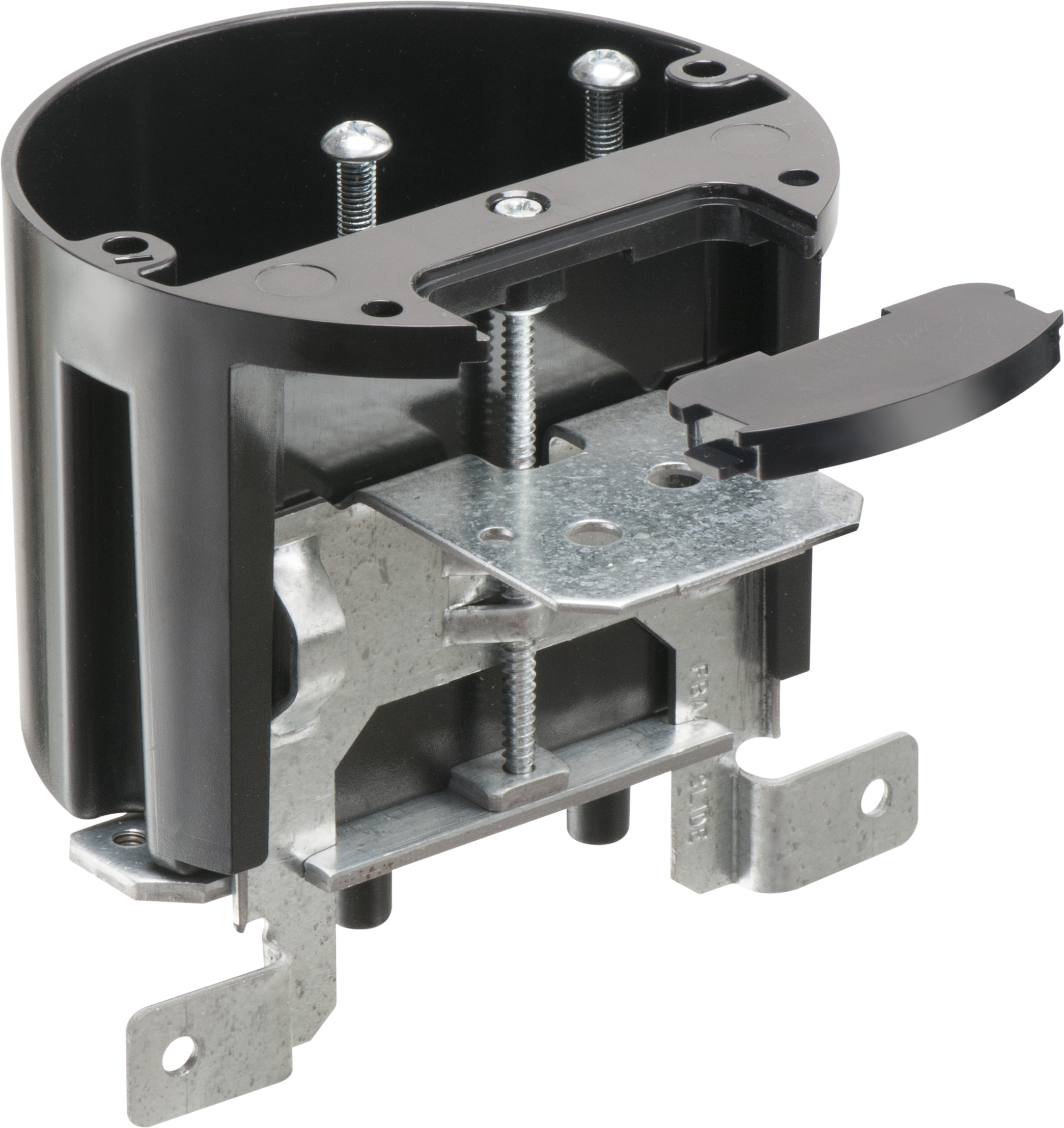

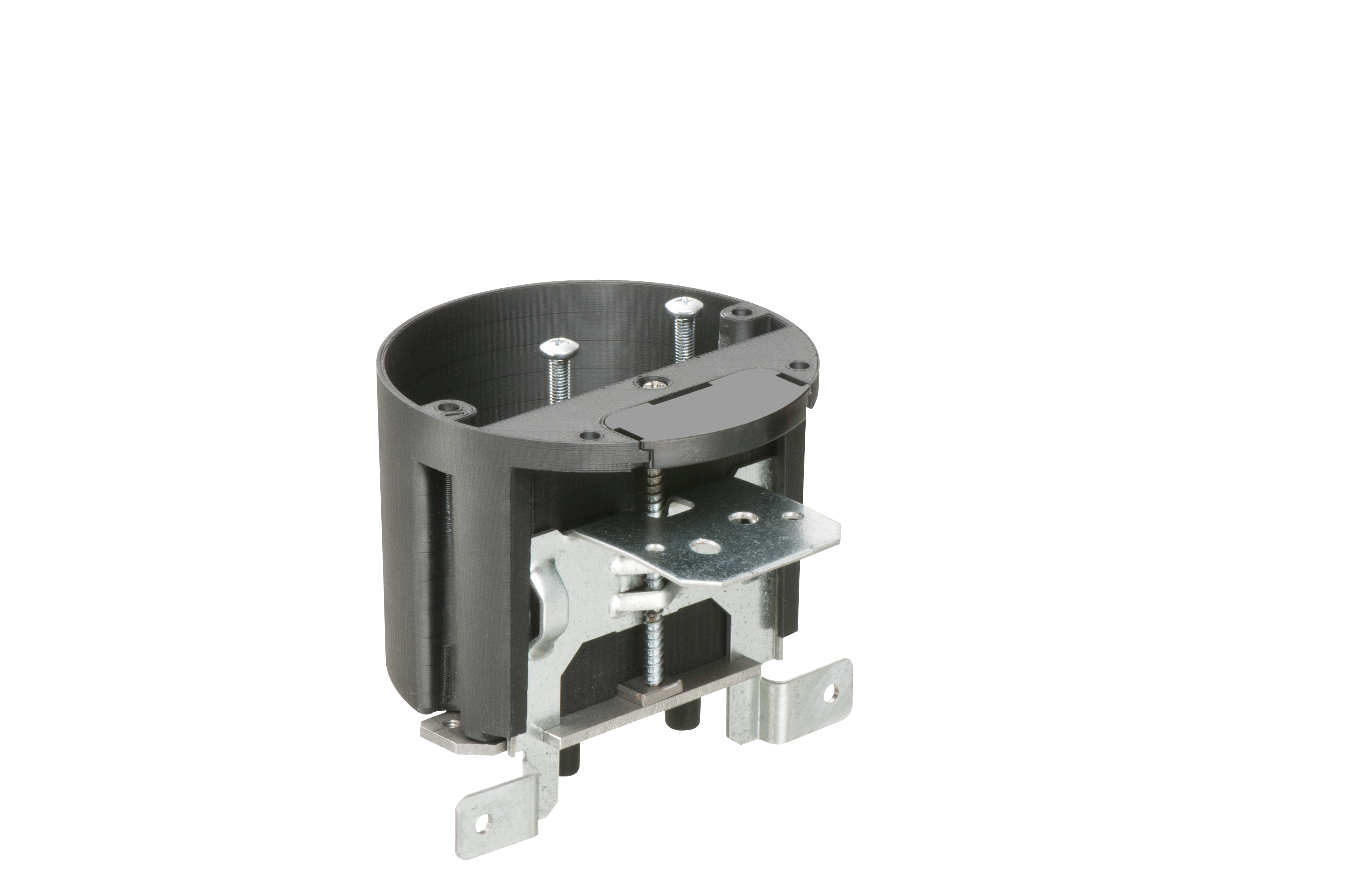

Description Adjustable in and out box for fan and ceiling fixtures. Mounts securely to joist on new construction. 2 Hour Fire Rating. 21.0 cu. in. Adjusts from 1/2" to 1-1/2".
UPC 018997025753
Unit Packaging 25pcs
Standard Packaging 25pcs
Country of Origin
Listing

Physical Information

Instructional Video FBA426 Instructional Video
Instruction Sheet FBA426 Instruction Sheet
Weight0.618 lbs/each
Height4.000"
Width4.800"
Color Black
Material(s)Plastic

Technical Information

Line Drawing FBA426 Line Drawing
Cubic Inches21.0
StyleRound, adjustable fan/fixture box, 21.0 cu. in.
Trade Size1/2" x 1-1/2"

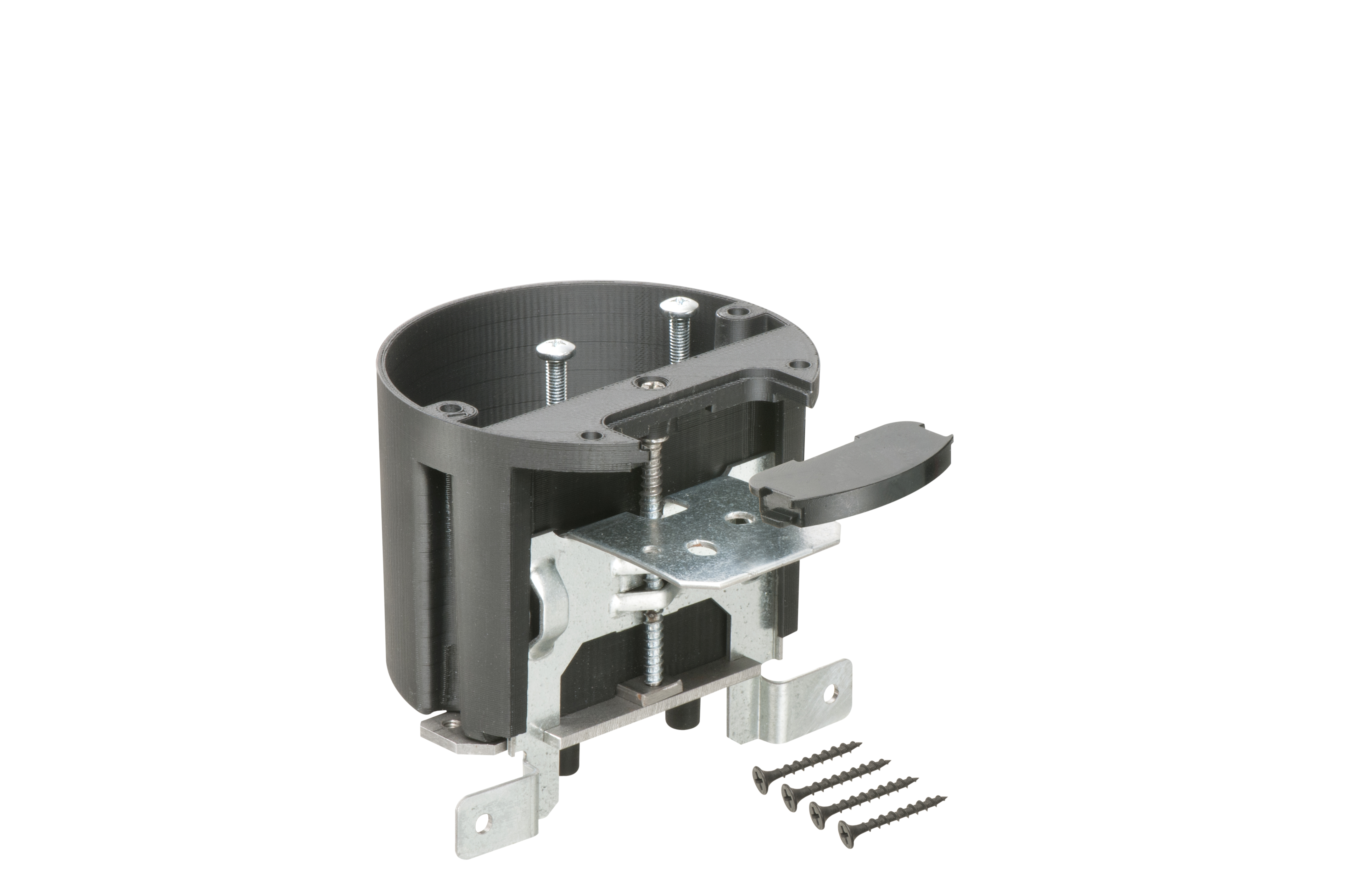

Comes With

(1)NM94 Cable Connector
(1)Adjustable Box
(4)#6 x 1-5/8" Long Screws
(2)#10-32 x 4" Long Screws
