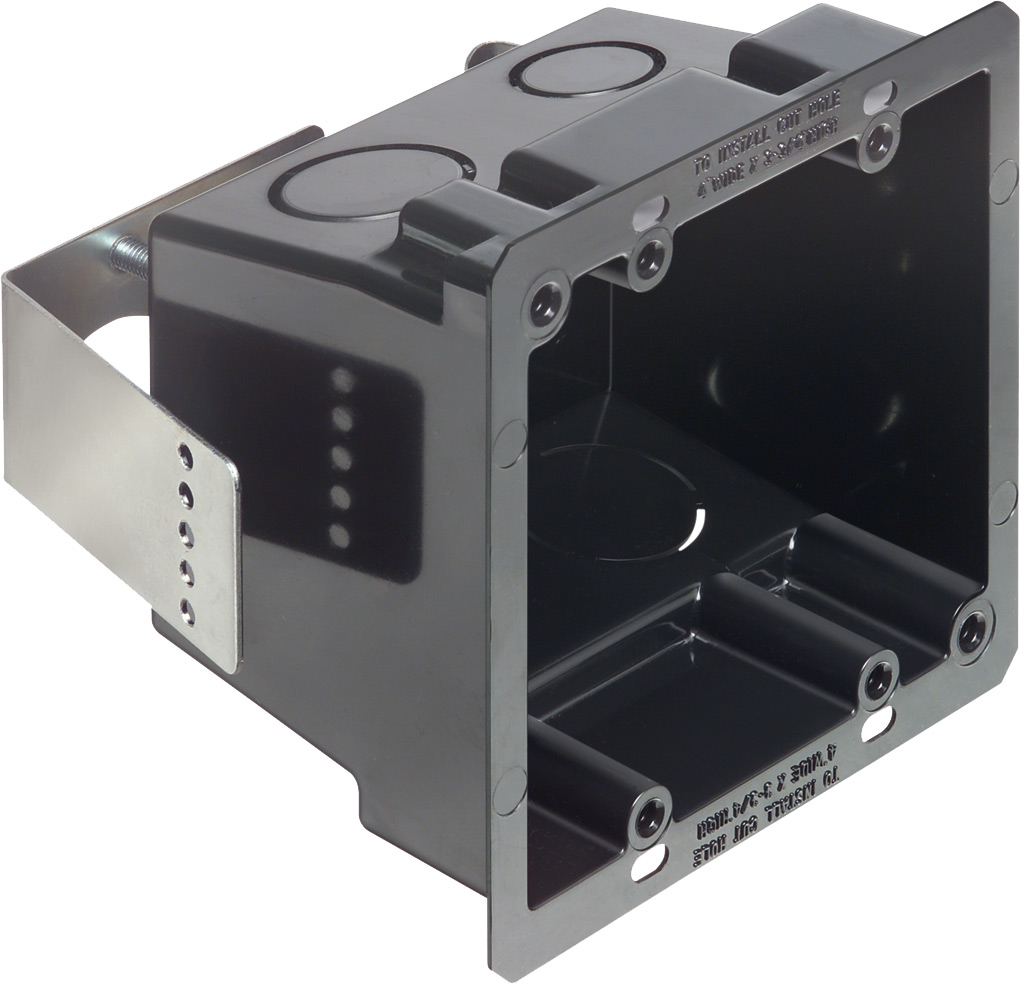

two gang 4x4 box with steel spring clip

FSR404BL Product Information

Non-Metallic and Plated Steel 4x4 Box
Catalog Page E-mail

Additional Images

Basic Information

Part Number FSR404BL
Description Non Metallic 4x4 box for retrofit construction. Screw hole patterns for 4x4 and two gang devices. Color Black. 27.5 cu. in. 2 Hour Fire Rating.6 lb rating for Walls, 10lb rating for ceilings.
UPC 018997005960
Unit Packaging 25pcs
Standard Packaging 25pcs
Country of Origin
Listing

Physical Information

Instructional Video FSR404BL Instructional Video
Weight0.335 lbs/each
Height4.250"
Width4.185"
Color Black
Material(s)Plastic / Plated Steel

Technical Information

Line Drawing FSR404BL Line Drawing
Cubic Inches27.5
StylePlastic 4x4 Box
Trade Size2-Gang

Comes With

(1)NM95 Cable Connector
(1)NM94 Cable Connector
(1)4x4 non-metallic box with fastening clip
