F103F Product InformationScrew-On Non-Metallic Vapor Box for Devices Specification SheetCatalog Page E-mail |
Basic Information
| Part Number | F103F |

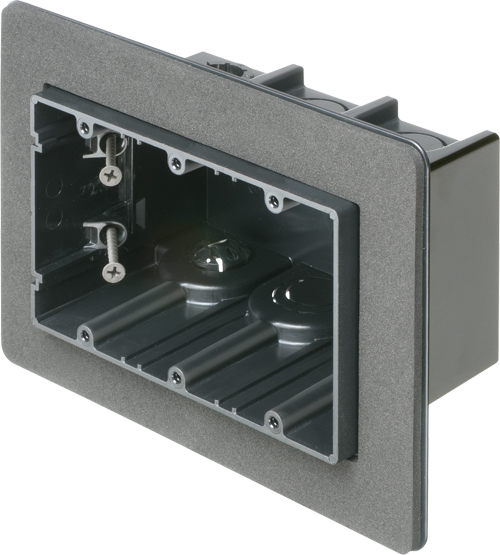

| Description | One Box Vapor Boxes for Devices. Flange forms a protective barrier against air infiltration. 2 Hour Fire Rating. Three Gang. Screw On. 59 cu. in. |
| UPC-A | 018997069016 |
| Unit Packaging | 10pcs |
| Standard Packaging | 10pcs |
| Country of Origin |  |
| Listing |
|
| Available w/ Grounding Clip | Yes - Order Part Number F103FGC |
Physical Information
| Weight | 0.508 lbs/each |
| Height | 5.990" |
| Width | 8.125" |
| Color |  Black |
| Material(s) | Plastic |
Technical Information
| Line Drawing | F103F Line Drawing |
| Cubic Inches | 59.0 |
| Style | Screw-On |
| Trade Size | 3-Gang |
| Usage | Protects Against Air Infiltration |
Comes With
| (7) | NM94 Cable Connectors |
| (6) | Gaskets for knockouts |
| (1) | Flange Gasket |
| (1) | 3-Gang One Box™ Vapor Box |
| (2) | #6 x 1-5/8" Long Screws |
