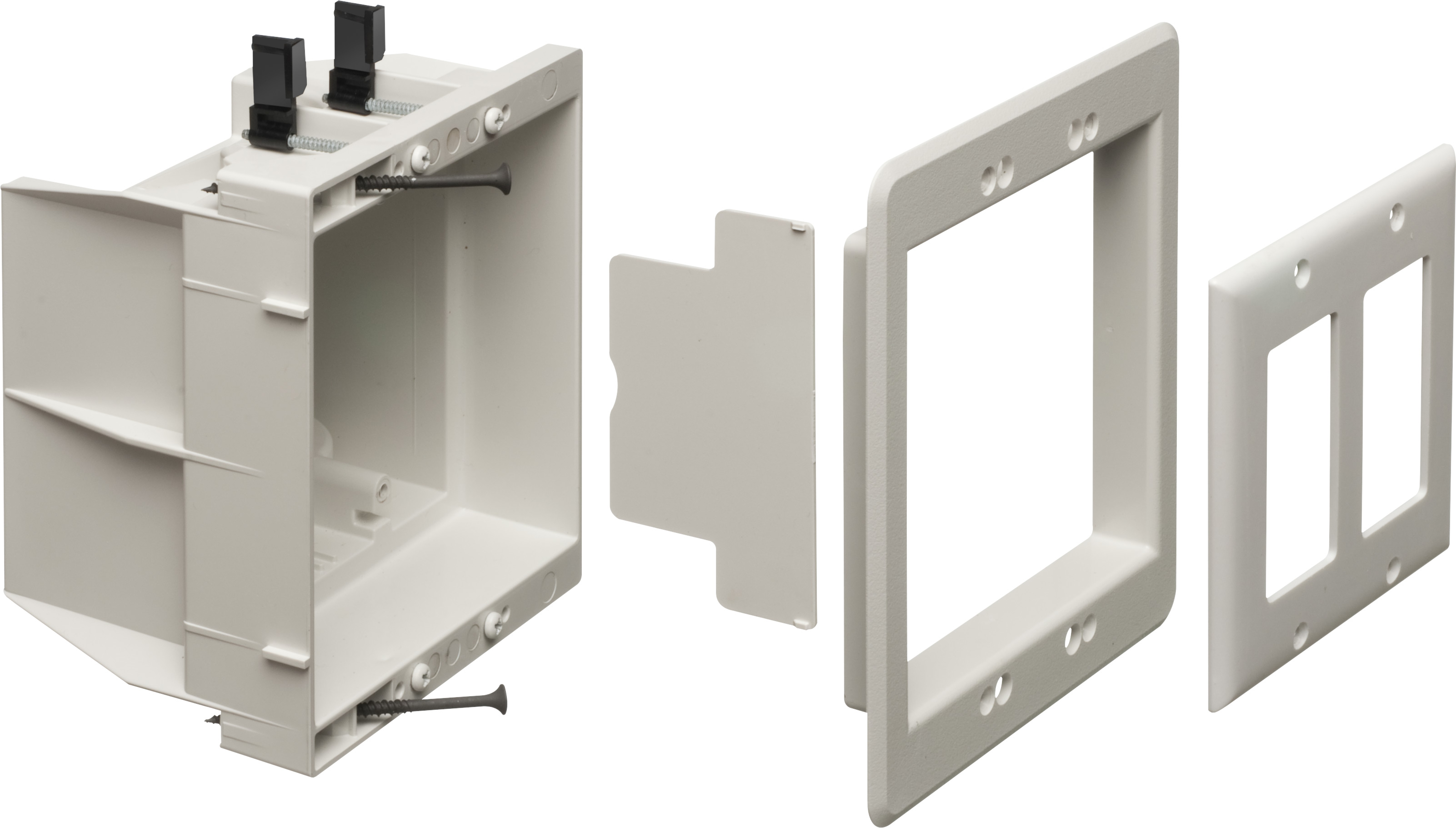

exploded view of all in-box components

DVFR2W Product Information

Recessed Indoor InBox™ for New & Retrofit Construction
Specification SheetCatalog Page E-mail

Additional Images

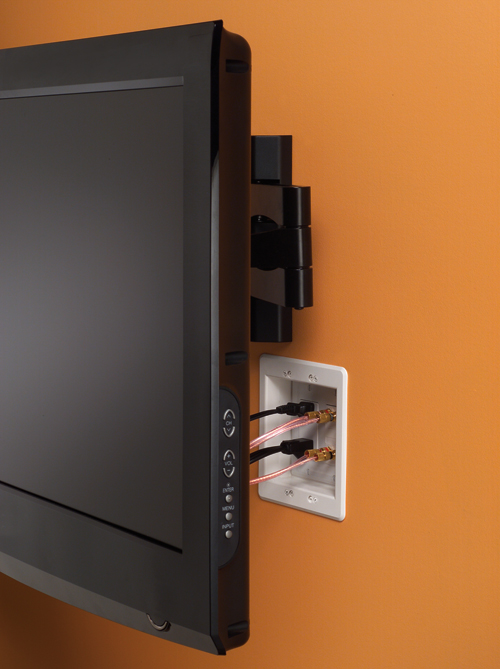

TV on wall with power and speakers wired to in-box behind the TV

Basic Information

Part Number DVFR2W
Description Recessed indoor inbox for new and retrofit construction. 2 hour fire rating. Two gang. White
UPC 018997143310
Unit Packaging 1pc
Standard Packaging 4pcs
Country of Origin
Listing
Available w/ Grounding Clip Yes - Order Part Number DVFR2WGC

Physical Information

Instructional Video DVFR2W Instructional Video
Instruction Sheet DVFR2W Instruction Sheet
Weight0.838 lbs/each
Height6.012"
Width 6.698"
Color White
Material(s)Plastic
PaintableYes

Technical Information

Line Drawing DVFR2W Line Drawing
Cubic Inches34.0
Trade Size2-Gang

Comes With

(1)Trim Plate
(1)NM95 Cable Connector
(2)NM94 Cable Connectors
(1)Low-voltage divider
(1)2-Gang Recessed IN BOX®
(1)2-Gang Decorator-Style / GFCI Wall Plate with screws
(2)#8 x 3" Long Screws
(4)#6-32 x 1/2" Long Screws
