Arlington

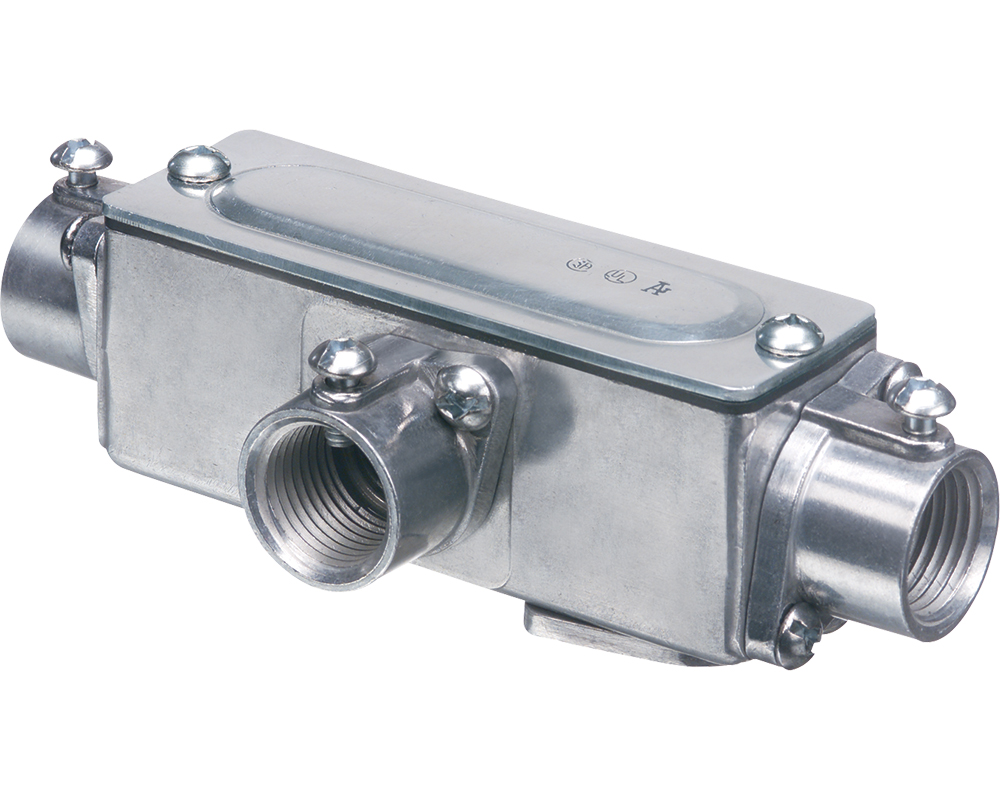

conduit body in LR configuration

930 Product Information

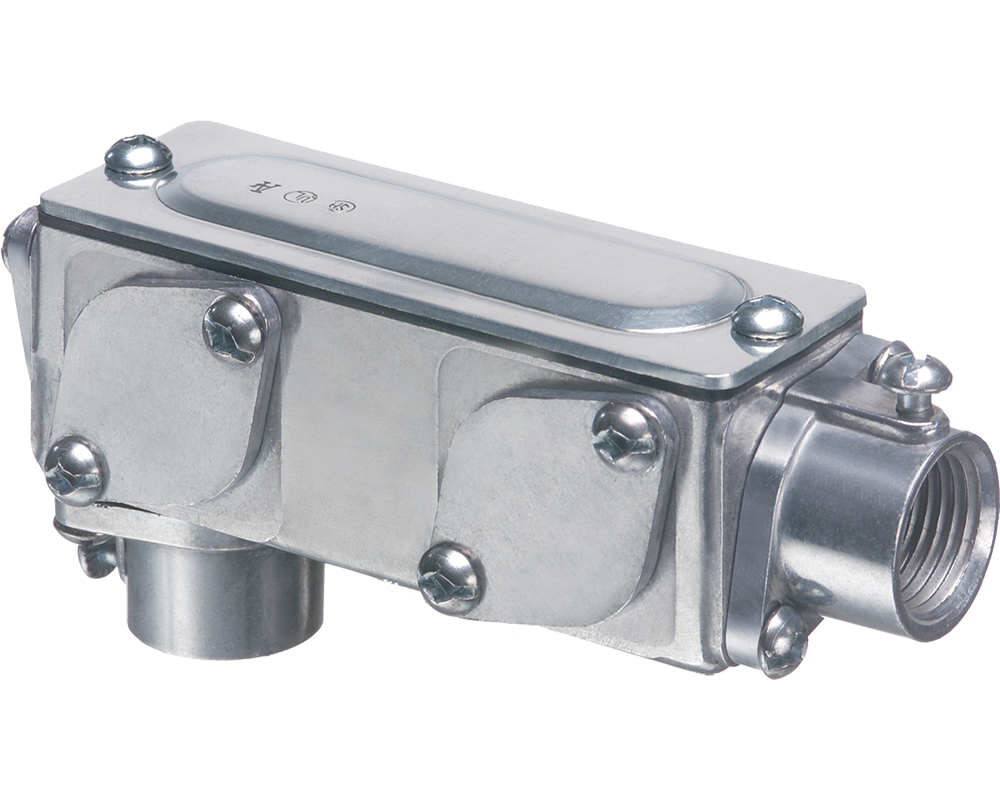

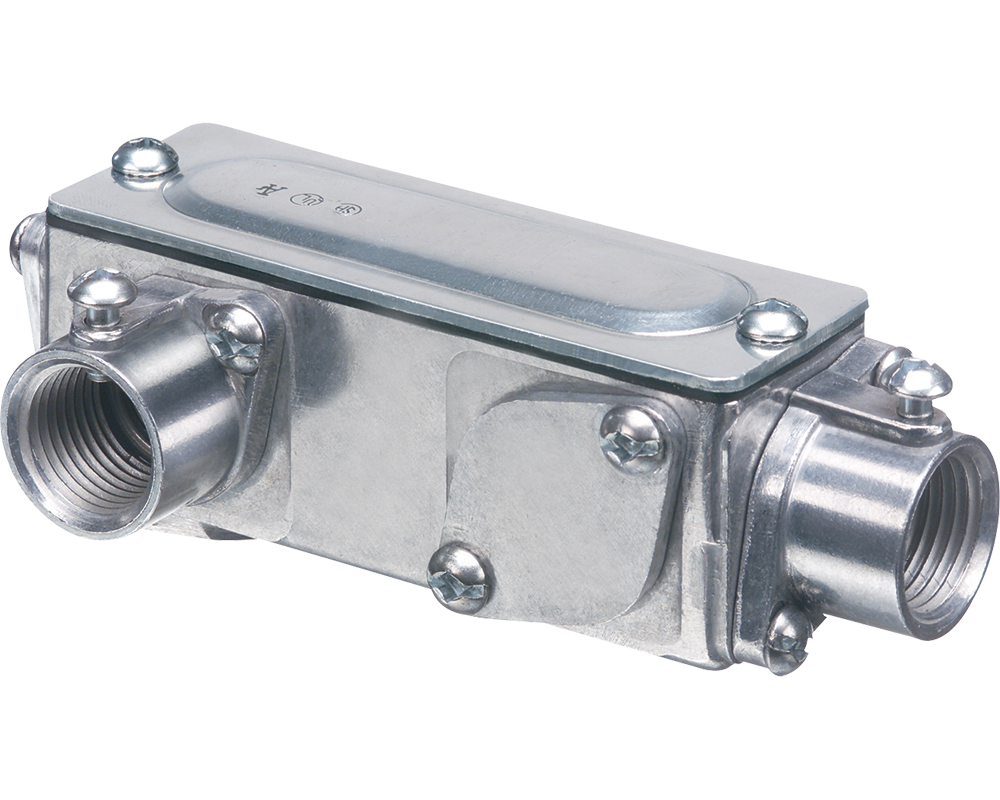

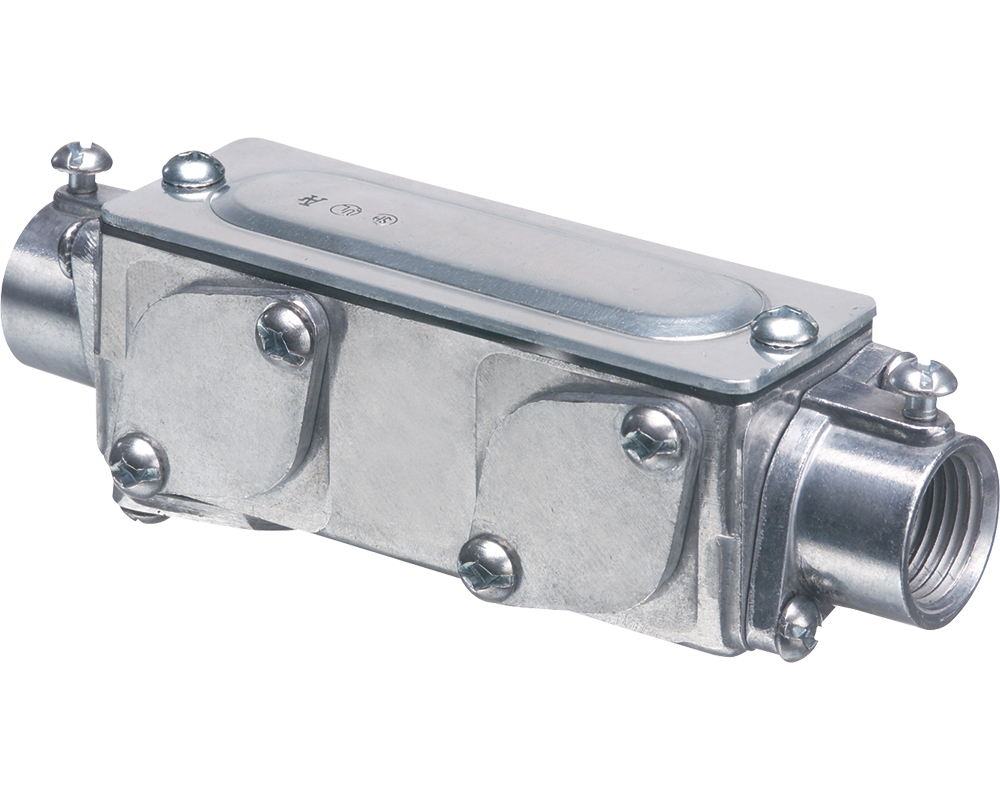

AnyBODY™ Metallic Conduit Body
Specification SheetCatalog Page E-mail

Additional Images

Basic Information

Part Number 930
Description Copper free aluminum die-cast. five conduit bodies in one. Ships as an LB but converts to a T, LL, LR, or C. Combination threaded IMC or Rigid and set screw EMT. Trade Size 1/2".
UPC 018997179005
Unit Packaging 10pcs
Standard Packaging 10pcs
Listing

Physical Information

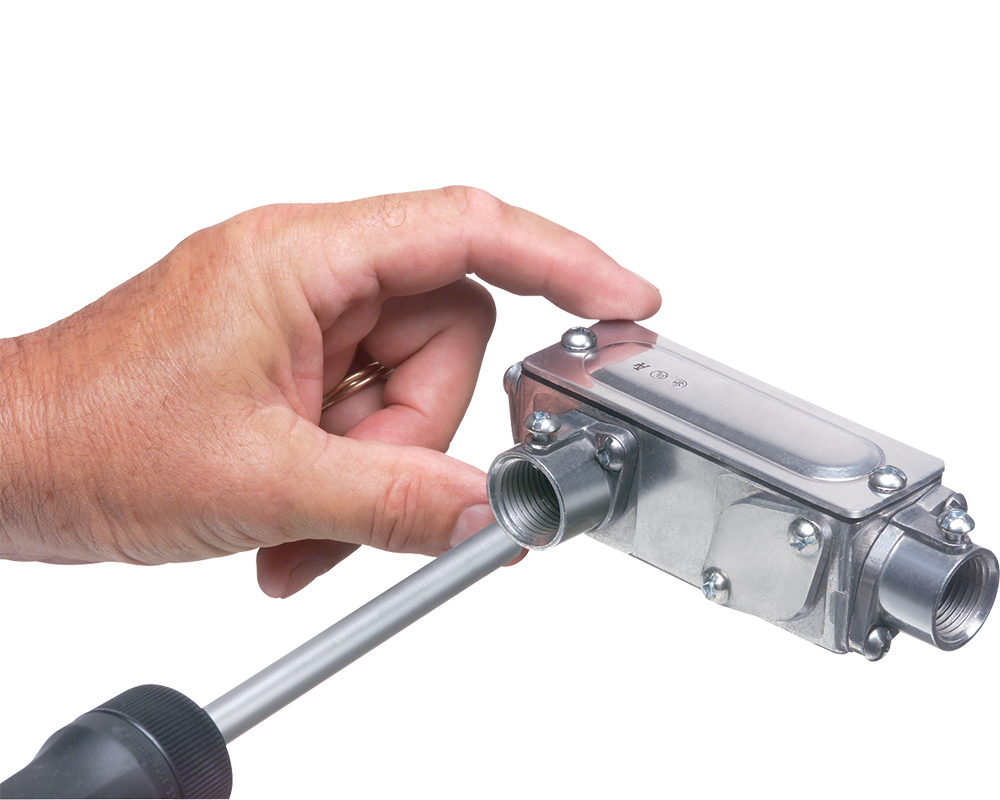

Instructional Video 930 Instructional Video
Weight0.580 lbs/each
Height5.110"
Width2.520"
Color Silver
Material(s)Copper-Free Aluminum

Technical Information

Line Drawing 930 Line Drawing
Conduit TypeThreaded IMC or Rigid and Set-Screw EMT
NEC ComplianceSection 314.16 (c) (2) of the 2014 NEC
Trade Size1/2"
Volume4.80 Cubic Inches

Comes With

(3)Threaded Flanges
(4)Cover Plates
(1)Aluminum Body
(1)Access Cover Gasket
(1)Access Cover
