Arlington
press-on fan and fixture mounting box

FB415 Product Information

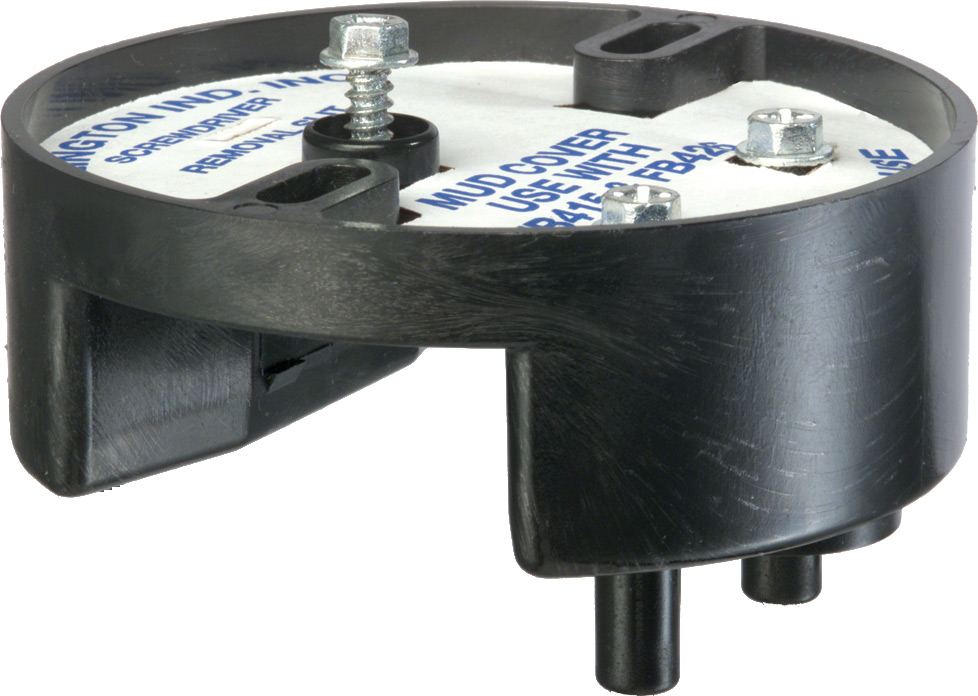

Press-On Fan & Fixture Mounting Box
Specification SheetCatalog Page E-mail

Additional Images

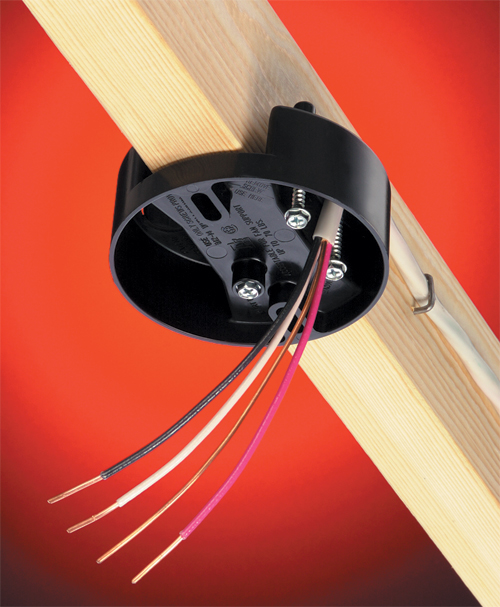

ceiling box mounted to joist ceiling box mounted to joist with NM cable run to box

Basic Information

Part Number FB415
Description Press on Fan and Fixture Mounting Box. 70lb Fan, 200lb Fixture. 2 Hour Fire Rating. For 1/2" and 5/8" drywall. 10.3 cu. in.
UPC 018997721679
Unit Packaging 25pcs
Standard Packaging 25pcs
Country of Origin
Listing

Physical Information

Weight0.204 lbs/each
Height4.250"
Width4.250"
Color Black
Material(s)Plastic

Technical Information

Line Drawing FB415 Line Drawing
Cubic Inches10.3
Trade SizeFor 1/2" or 5/8" drywall
103.0 cubic inch
Usage1/2" or 5/8" Drywall

Comes With

(1)NM94 Cable Connector
(1)Mud Cover
(1)Box
(2)#12 x 2" Long Screws
(1)#10 x 1" Long Screw
