adjustable floor box

FLBAR101NL Product Information

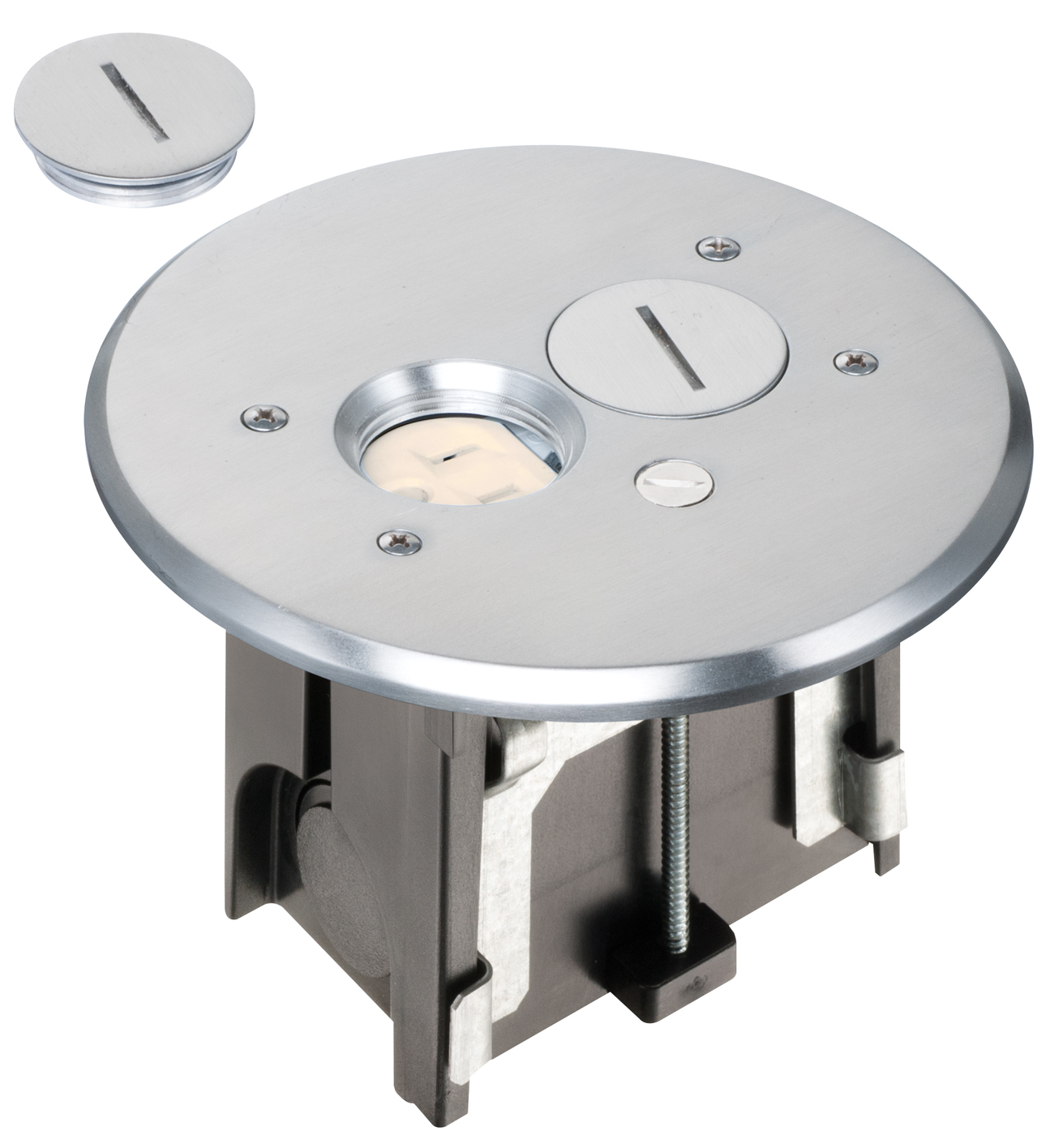

Adjustable Floor Boxes with Metallic Covers
Specification SheetCatalog Page E-mail

Additional Images

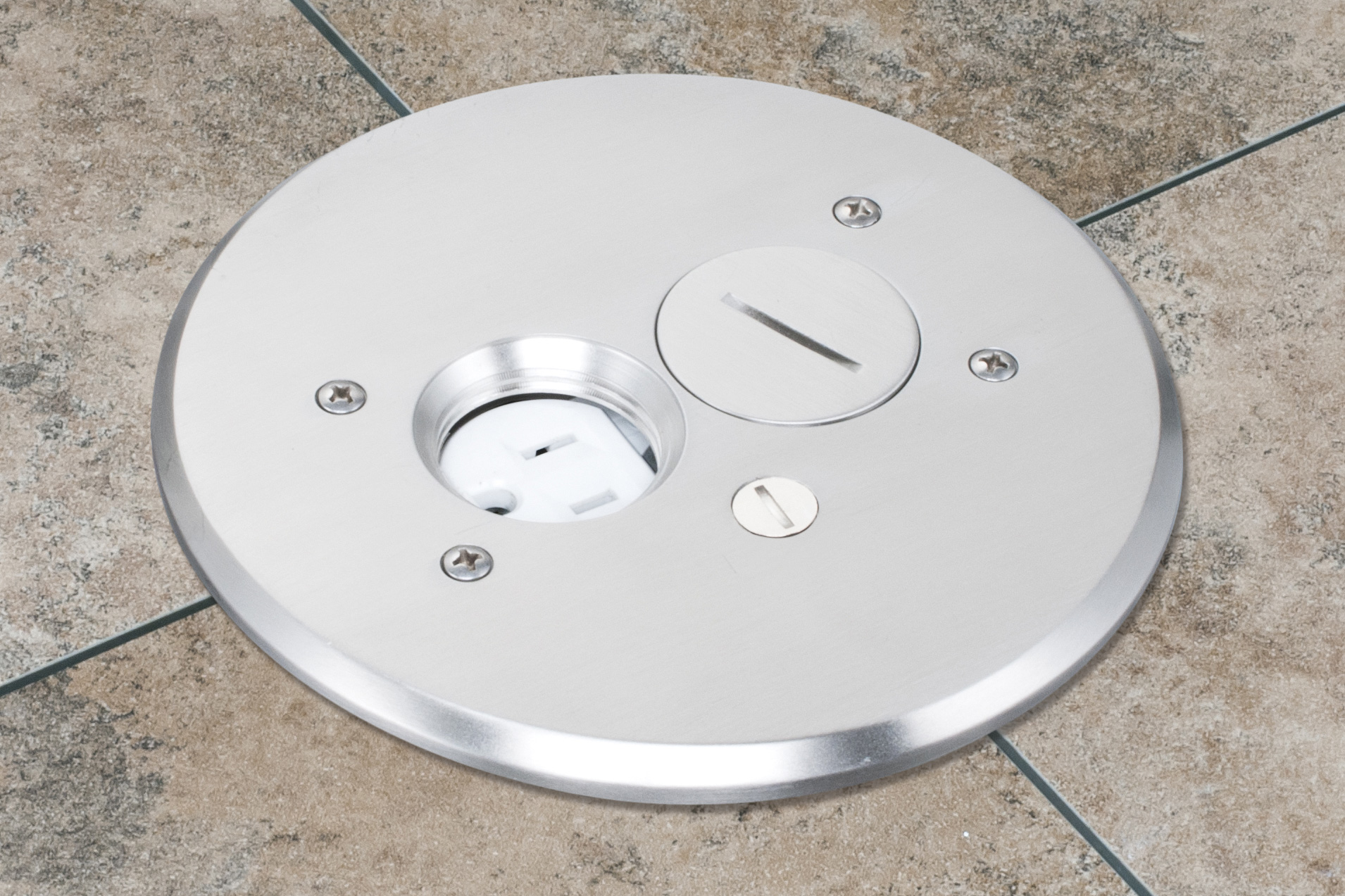

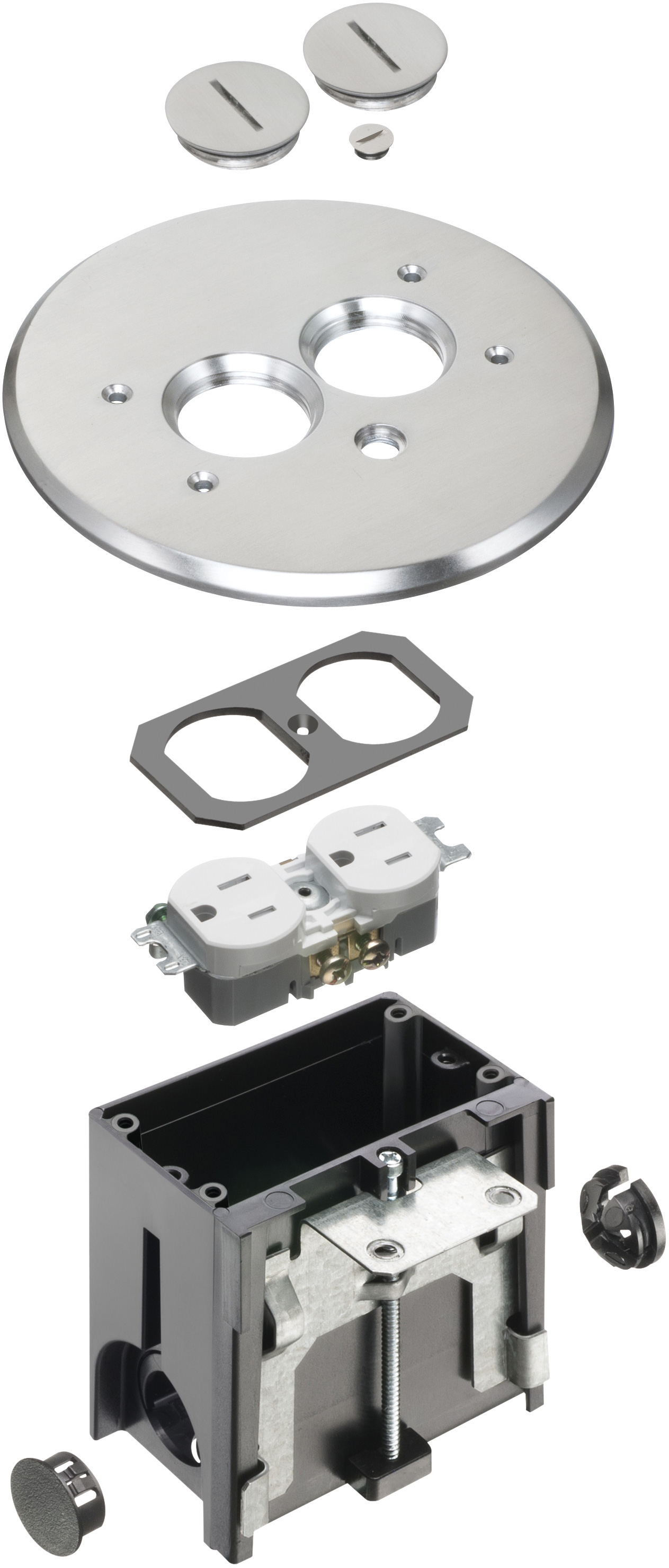

exploded view of components included in adjustable floor box kit floor box in tiled floor

Basic Information

Part Number FLBAR101NL
Description Round Metallic adjustable floor box. Nickel with threaded plugs. Includes tamper resistant duplex receptacle, cover plate with gasket and Arlington NM94 connector and Arlington NM900 knockout plug.
UPC 018997524515
Unit Packaging 1pc
Standard Packaging 4pcs
Listing
Available w/ Grounding Clip Yes - Order Part Number FLBAR101NLGC

Physical Information

Instructional Video FLBAR101NL Instructional Video
Instruction Sheet FLBAR101NL Instruction Sheet
Weight1.800 lbs/each
Height5.800"
Width5.800"
ColorNickel-Plated (Cover)
Material(s)Plastic (Box)

Technical Information

Line Drawing FLBAR101NL Line Drawing
Cubic Inches18.3
StyleAdjustable floor box with round metallic cover and threaded blanks
Trade Size1-Gang
UsageNew floor construction

Comes With

(2)Threaded Plugs
(1)Tamper-Resistant Duplex Receptacle
(1)NM94 Cable Connector
(1)NM900 Snap-In Blank
(1)Metal Clip
(1)Cover
(1)Back Plate
(1)Adjustment Screw Cap
(1)Adjustable Floor Box
(5)#6-32 x 1/2" Long Screws
(4)#6 Drywall Screws
