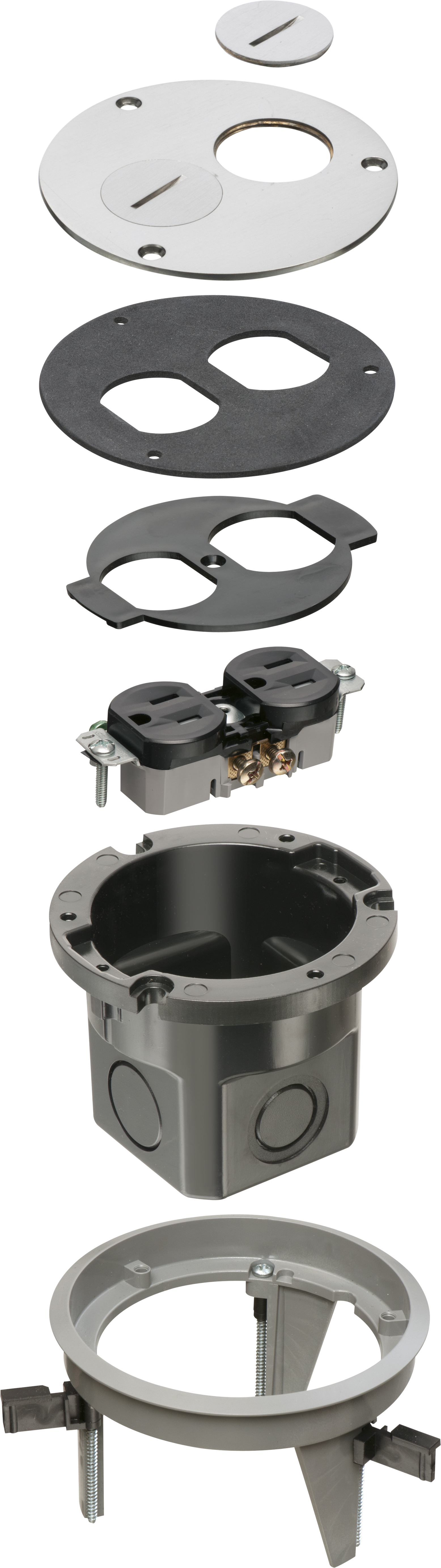

exploded view of components included in floor box kit

FLB4362NL Product Information

Arlington®'s DROPIN® FLOOR BOX KITS offer the fastest way to install a box nearly flush in an EXISTING floor.

Specification Sheet Catalog Page E-mail

Additional Images

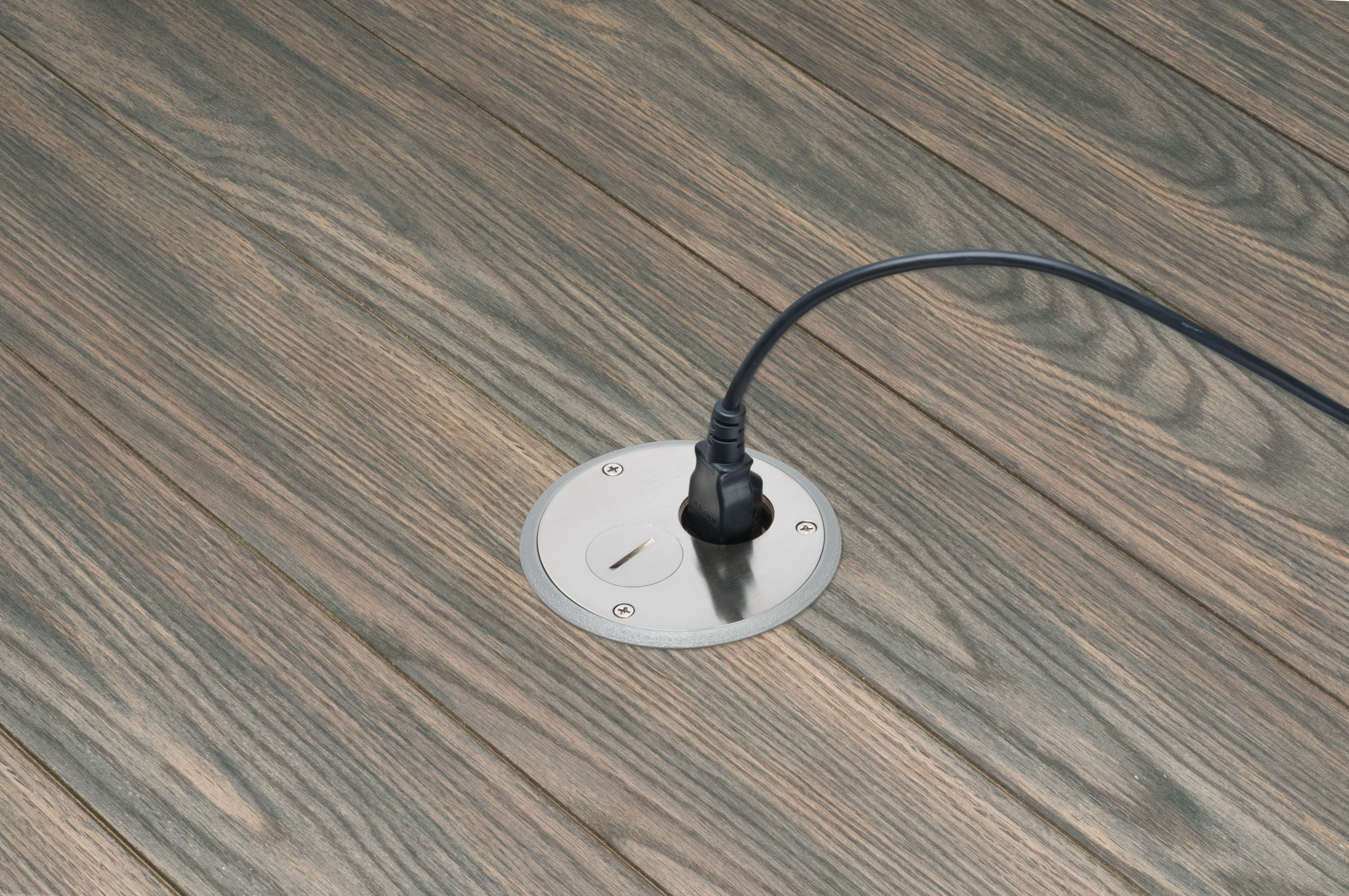

floor box in wooden floor with device plugged into receptacle

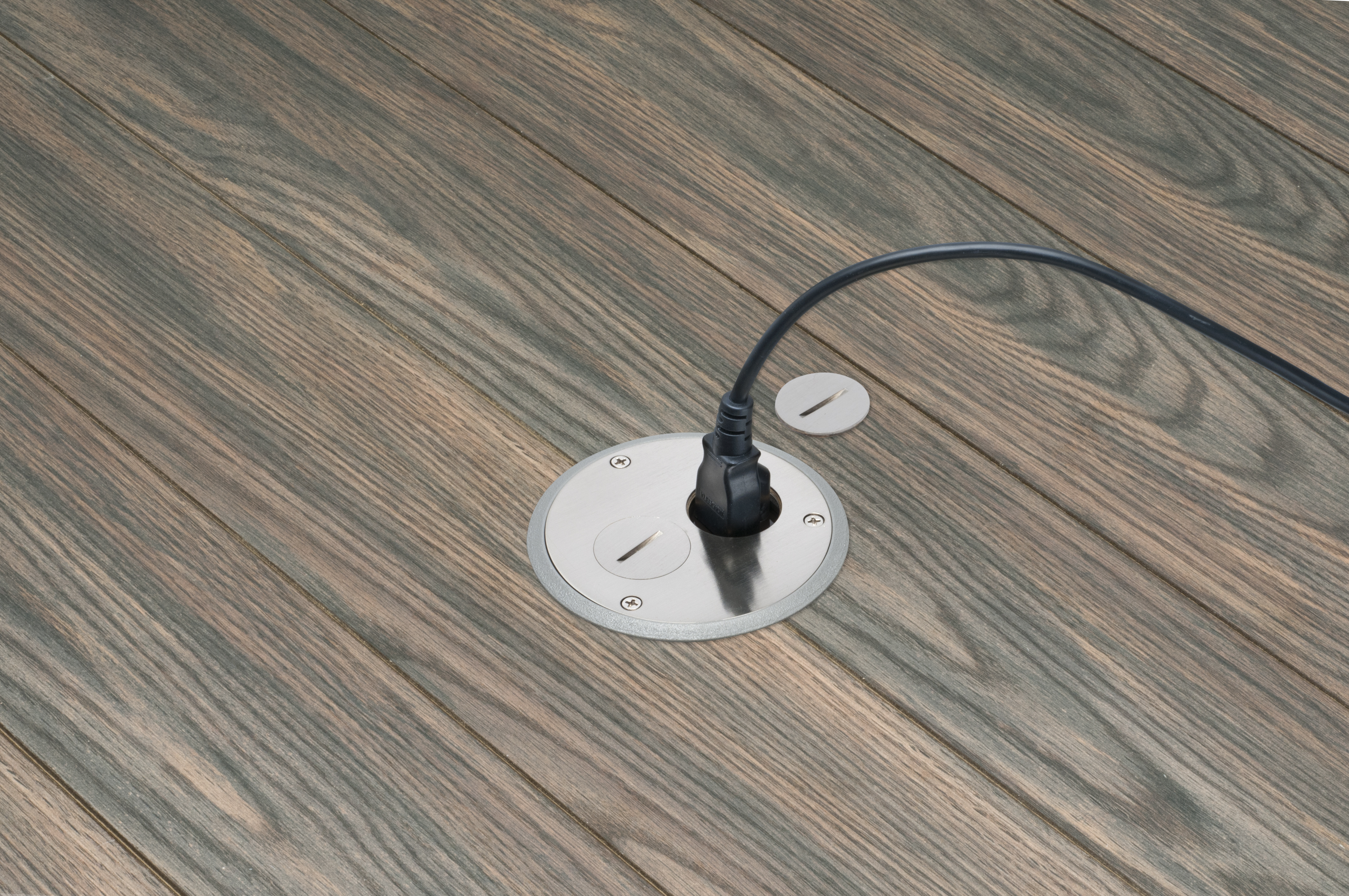

floor box in wooden floor with device plugged into receptacle

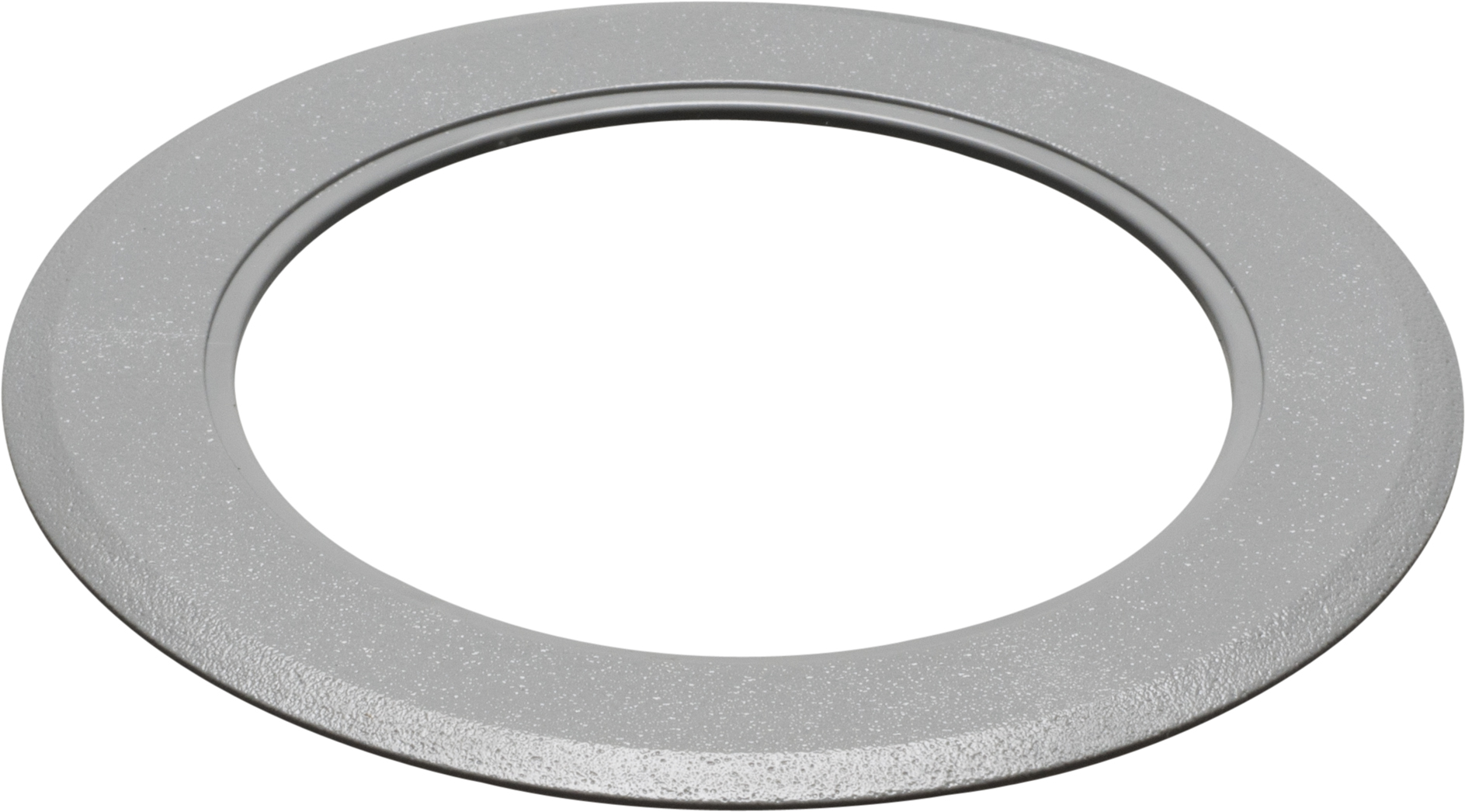

carpet ring for floor box

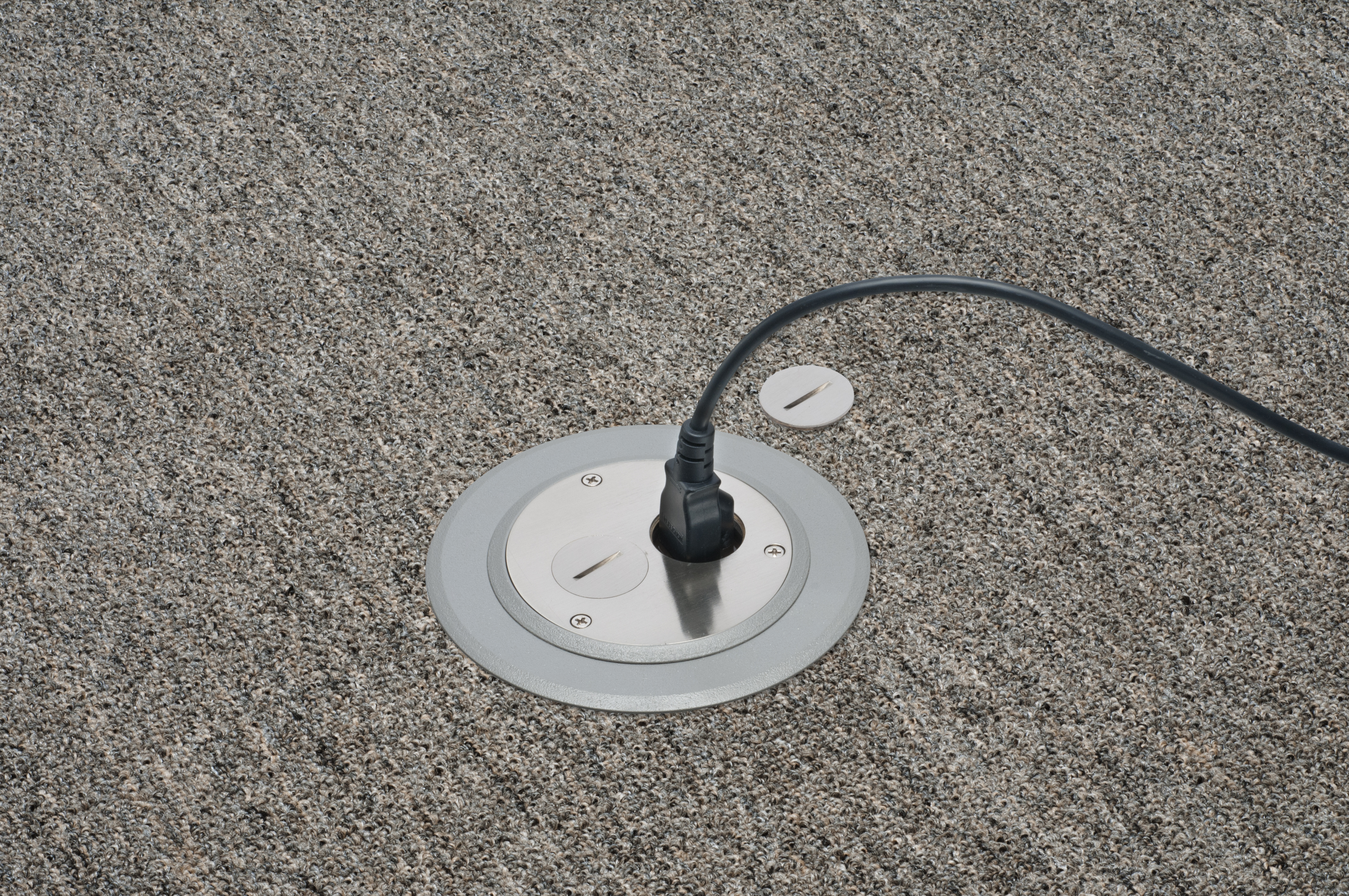

floor box in carpeted floor with device plugged into receptacle

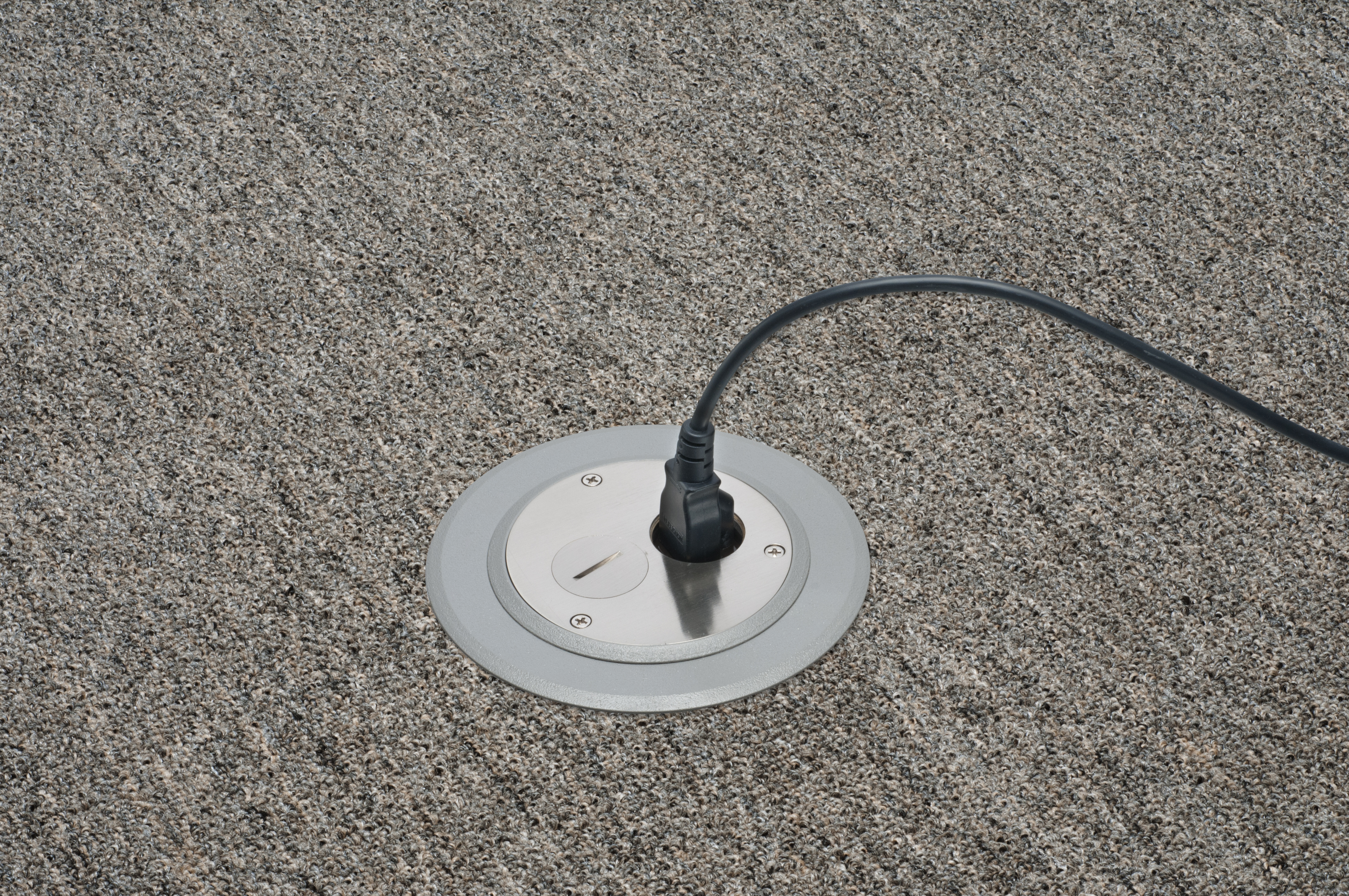

floor box in carpeted floor with device plugged into receptacle

Basic Information

Part Number	FLB4362NL
Description	Nickel, round cover kit box with threaded plugs and blank cover.
UPC-A	018997098122
Unit Packaging	1pc
Standard Packaging	1pc

Physical Information

Instructional Video	FLB4362NL Instructional Video
Weight	1.100 lbs/each
Height	6.250"
Width	6.250"
Color	Nickel
Cover Color	Nickel
Material(s)	Nickel/Plastic

Technical Information

Line Drawing	FLB4362NL Line Drawing
Trade Size	1-Gang

Comes With

(2)	Threaded Plugs
(1)	NM95 Cable Connector
(1)	NM94 Cable Connector
(1)	Mounting Bracket
(1)	Gasket support plate
(1)	Gasket
(1)	Cover
(1)	Carpet Ring
(1)	Box
(1)	15A Tamper-Resistant Duplex Receptacle
(3)	#8 x 1/2" Long Screws
(1)	#6 x 1/2" Long Screw
