Arlington
adjustable floor box

FLBA101BL Product Information

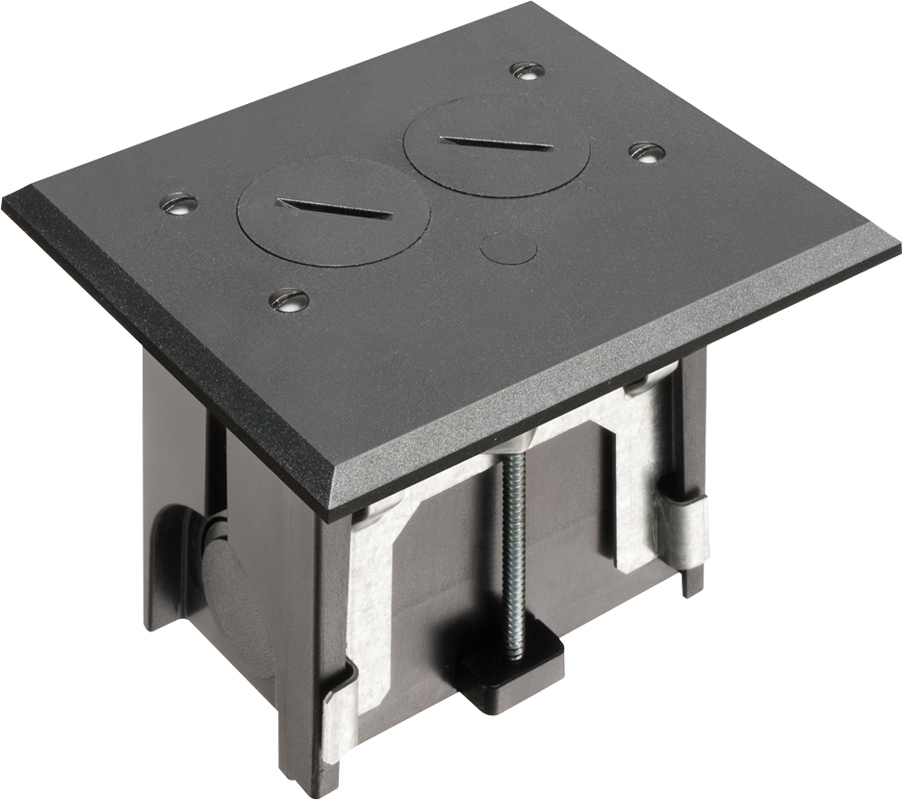

Adjustable Non-Metallic Floor Box for New Floors
Specification SheetCatalog Page E-mail

Additional Images

Basic Information

Part Number FLBA101BL
Description Non Metallic adjustable floor box. Black with threaded plugs. Includes tamper resistant duplex receptacle, cover plate with gasket and Arlington NM94 connector and Arlington NM900 knockout plug.
UPC 018997043467
Unit Packaging 1pc
Standard Packaging 4pcs
Country of Origin
Listing

Physical Information

Instructional Video FLBA101BL Instructional Video
Instruction Sheet FLBA101BL Instruction Sheet
Weight0.692 lbs/each
Height5.155"
Width4.250"
Color Black (Cover)
Material(s)Plastic (Box)

Technical Information

Line Drawing FLBA101BL Line Drawing
Cubic Inches18.3
StyleNon-metallic, adjustable gasketed floor box with threaded lids
Trade Size1-Gang
UsageNew floor construction

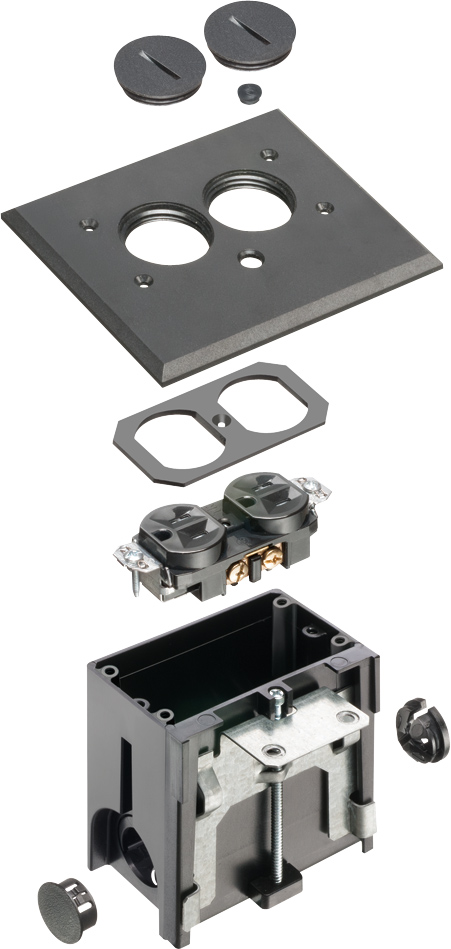

Comes With

(2)Threaded Plugs
(1)Tamper-Resistant Duplex Receptacle
(1)NM94 Cable Connector
(1)NM900 Snap-In Blank
(1)Metal Clip
(1)Cover
(1)Back Plate
(1)Adjustment Screw Cap
(1)Adjustable Floor Box
(5)#6-32 x 1/2" Long Screws
(4)#6 Drywall Screws
