Arlington
floor box kit for new concrete

FLBC101W Product Information

Non-Metallic Floor Boxes for New Concrete Pours
Specification SheetCatalog Page E-mail

Additional Images

Basic Information

Part Number FLBC101W
Description Non Metallic concrete floor box with non metallic covers for new concrete pours. White with Threaded plugs. Includes Box, Mud Cover, Four 3-1/4 plugs, two 1" plugs, 1/8" spacer 1/4" spacer. one 1/2" spacer, one 3/4" spacer, Mounting bracket, Duplex receptacle, Gasketed cover plate.
UPC 018997043528
Unit Packaging 1pc
Standard Packaging 1pc
Country of Origin
Listing

Physical Information

Instructional Video FLBC101W Instructional Video
Instruction Sheet FLBC101W Instruction Sheet
Weight1.898 lbs/each
Height6.500"
Width4.125"
Color White (Cover)
Material(s)Plastic

Technical Information

Line Drawing FLBC101W Line Drawing
Submittal Drawing FLBC101W Submittal Drawing
StyleNon-metallic floor box, rectangular cover with threaded plugs
Trade Size1-Gang

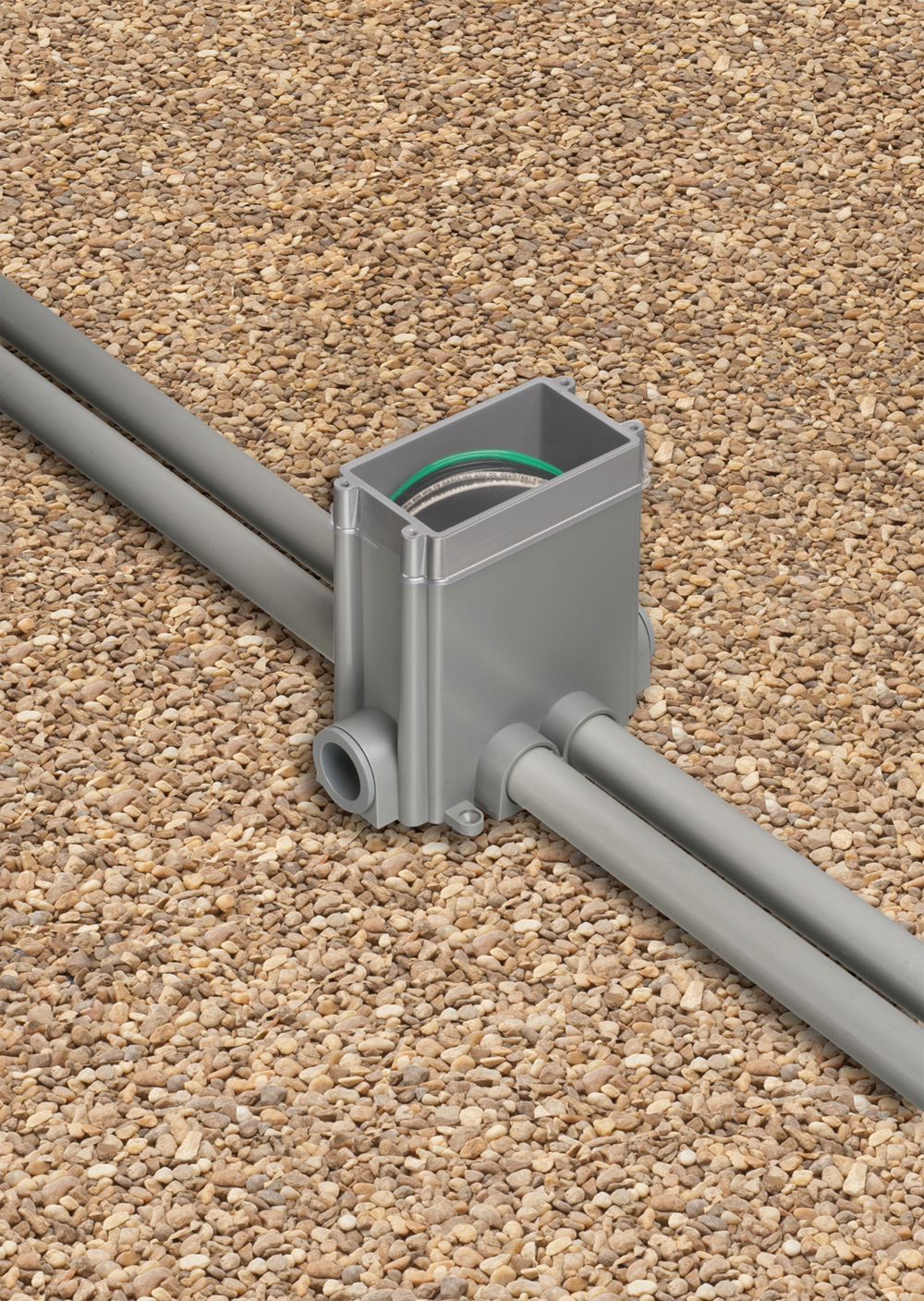

UsageFor new concrete

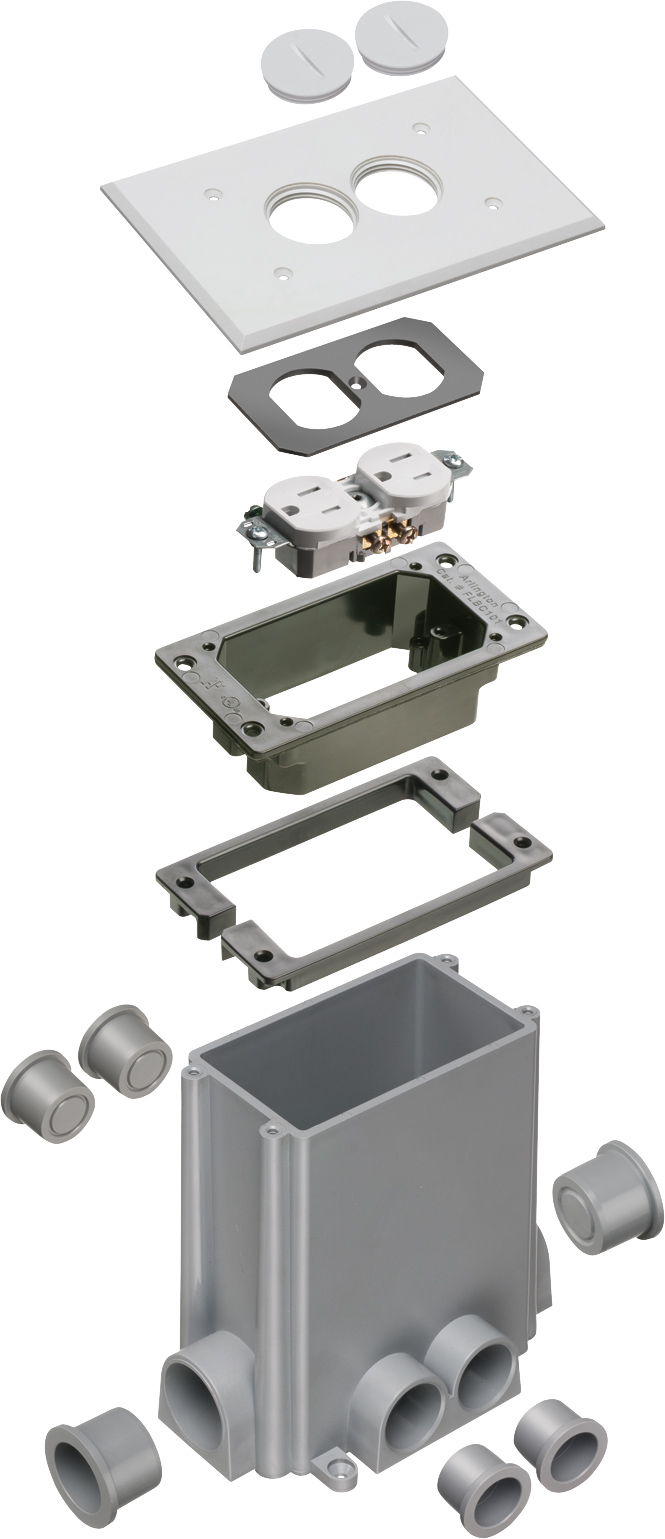

Comes With

(2)Threaded Plugs
(1)Tamper-Resistant Duplex Receptacle
(1)Mud Cover
(1)Mounting bracket with gasket
(1)Cover plate with gasket
(1)Concrete Box
(1)Back Plate
(1)3/4" Spacer Set
(4)3/4" Plugs
(1)1/8" Spacer Set
(1)1/4" Spacer Set
(1)1/2" Spacer Set
(2)1" Plugs
(4)#8 x 5/8" Long Sheet Metal Screws
(4)#8 x 1-1/4" Long Sheet Metal Screws
(5)#6-32 x 1/2" Long Screws
