intersystem grounding bridge with PVC adapter and cover

GBB50P Product Information

Intersystem Grounding Bridge with PVC Adaptor
Specification SheetCatalog Page E-mail

Additional Images

Basic Information

Part Number GBB50P
Description Intersystem grounding bridge, has 4 termination points, one more than required by the NEC. Cable range 4 termination points for #4 to #14 solid or stranded. Attaches to grounding conductor with lay in style lug with a cable range of #6 to #1/0 grounding wire solid or stranded. Bronze with white Cover. Comes with PVC adapter for 1/2" PVC pipe.
UPC 018997097255
Unit Packaging 1pc
Standard Packaging 10pcs
Listing

Physical Information

Instructional Video GBB50P Instructional Video
Weight0.676 lbs/each
Height3.461"
Width4.575"
Color Bronze
Material(s)Bronze (Bridge) / Paintable Plastic (Cover)

Technical Information

Line Drawing GBB50P Line Drawing

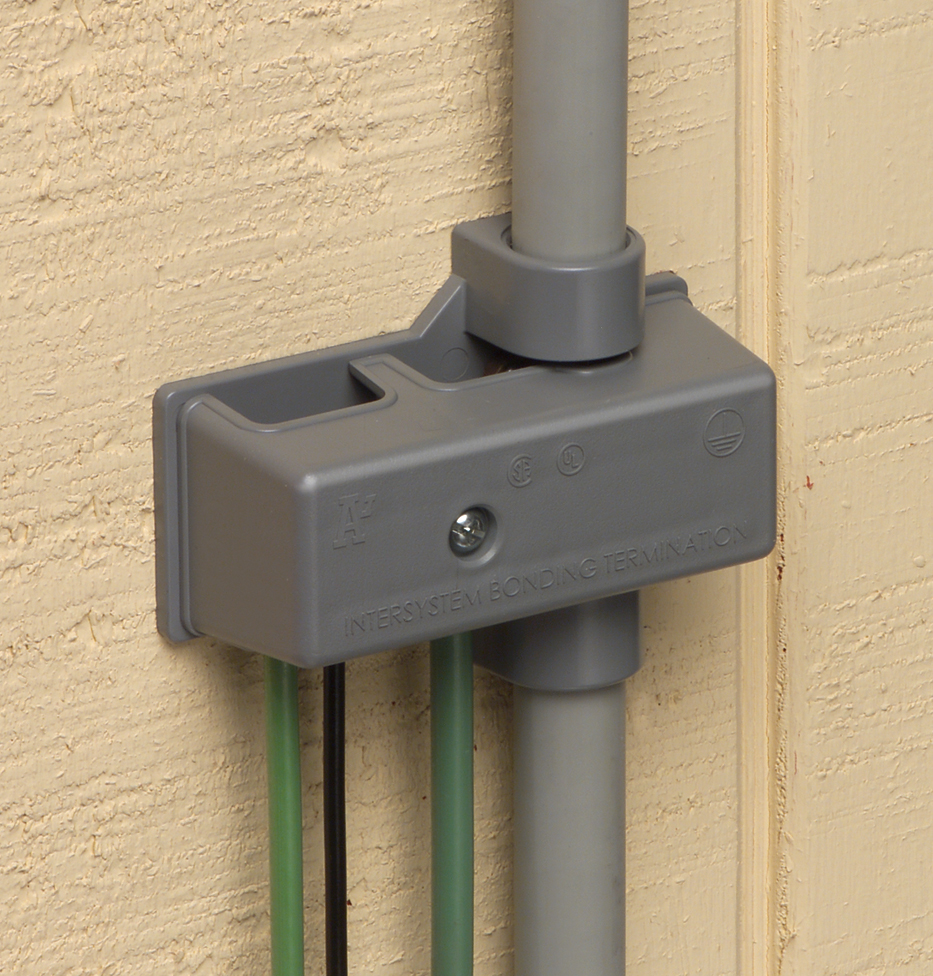

ApplicationProvides Reliable Intersystem Bonding Between Power and Communication Grounding Systems

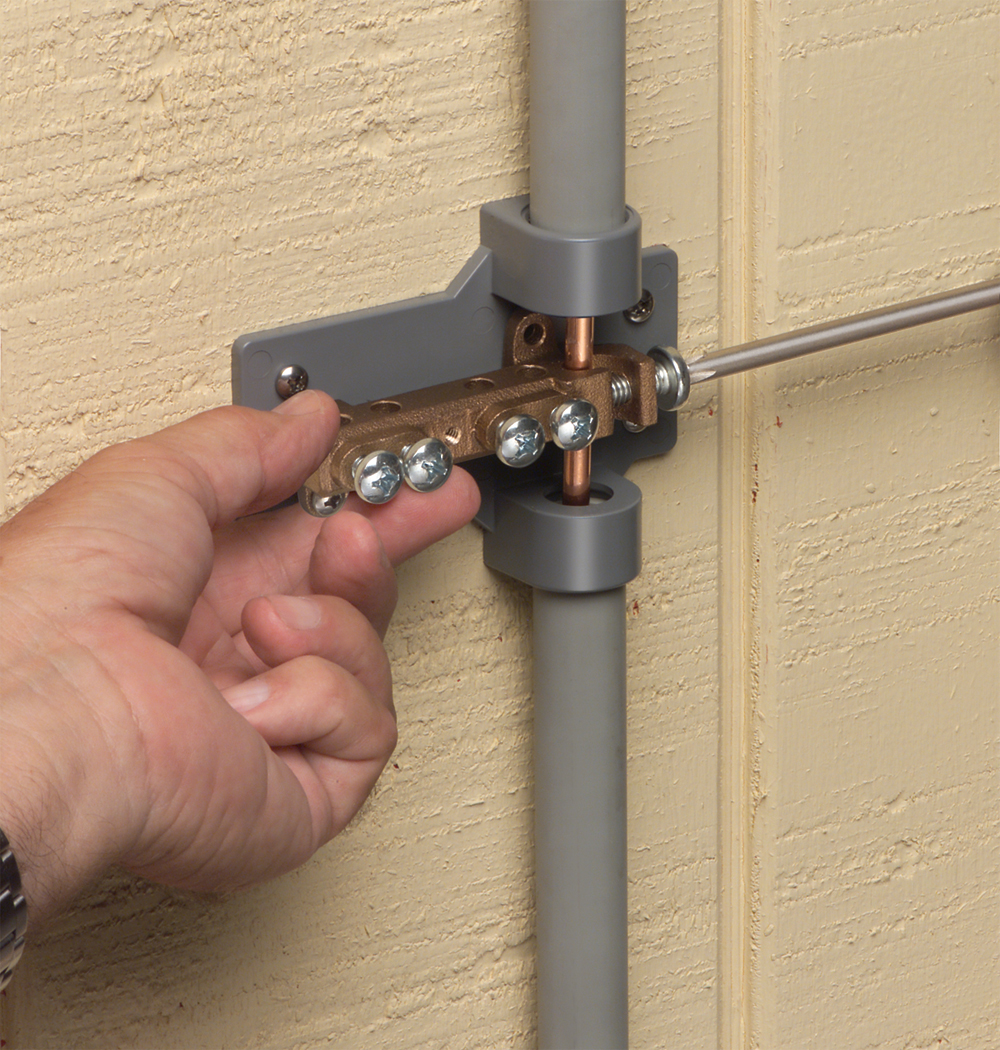

Equipment Grounding Conductor#6 to #1/0 Copper or Aluminum - Solid or Stranded
Grounding Electrode#6 to #1/0 Copper or Aluminum - Solid or Stranded
Intersystem Bonding and Grounding Conductors#14 to #4 Copper or Aluminum - Solid or Stranded
Pipe Size1/2" PVC Conduit
Termination Points(4) Four
Trade Size#6 to #1/0 Grounding Electrode

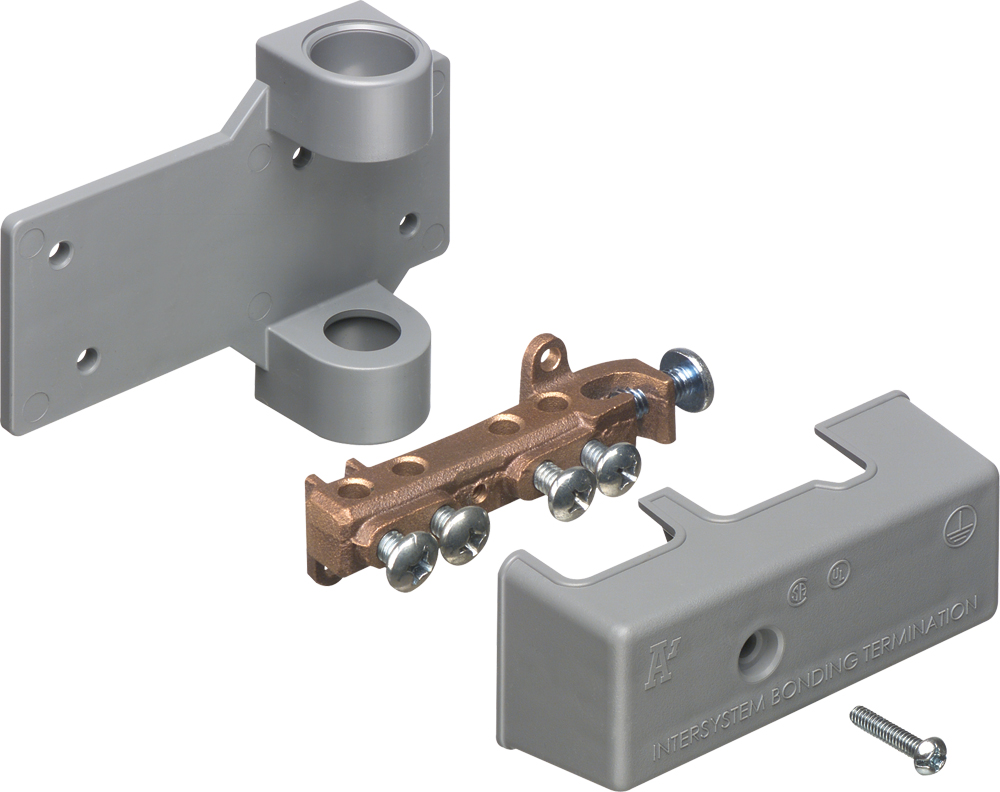

Comes With

(1)Intersystem Grounding Bridge
(1)Cover

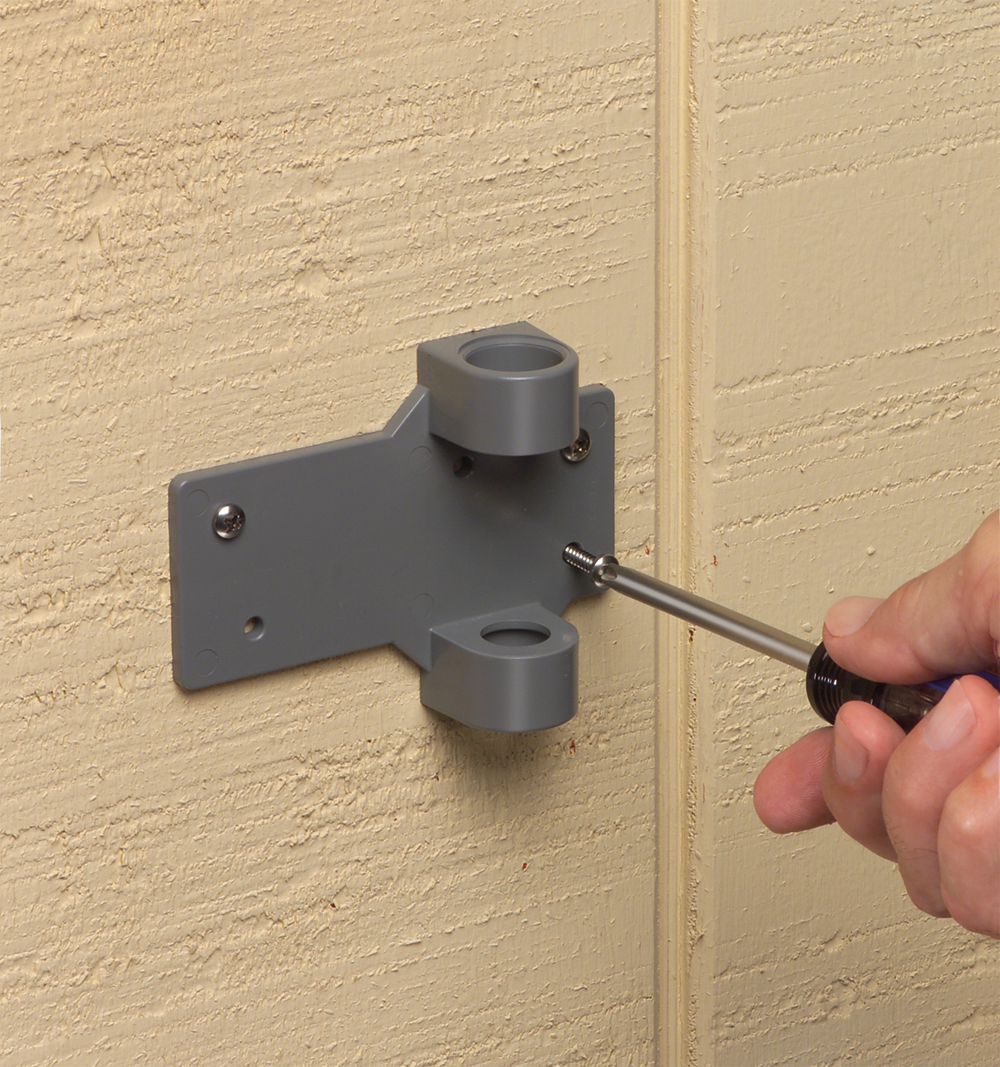

(1)Conduit Adapter Plate
(1)#10-24 x 1" Long Screw for Cover
