recessed TV box with angled openings

TVB712GC Product Information

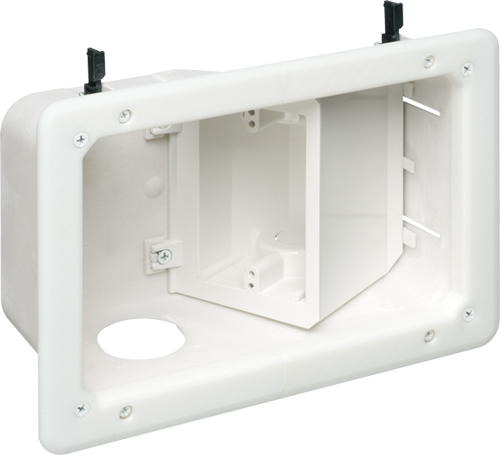

Recessed TV Box™ with Angled Openings
Specification SheetCatalog Page E-mail

Additional Images

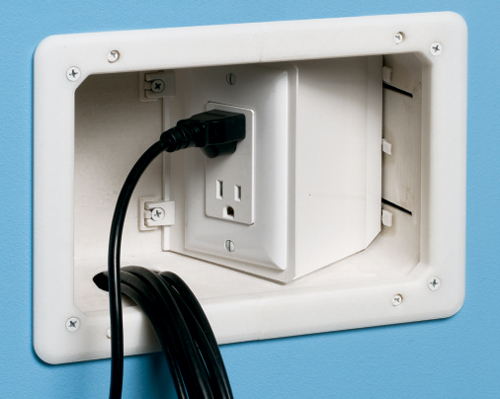

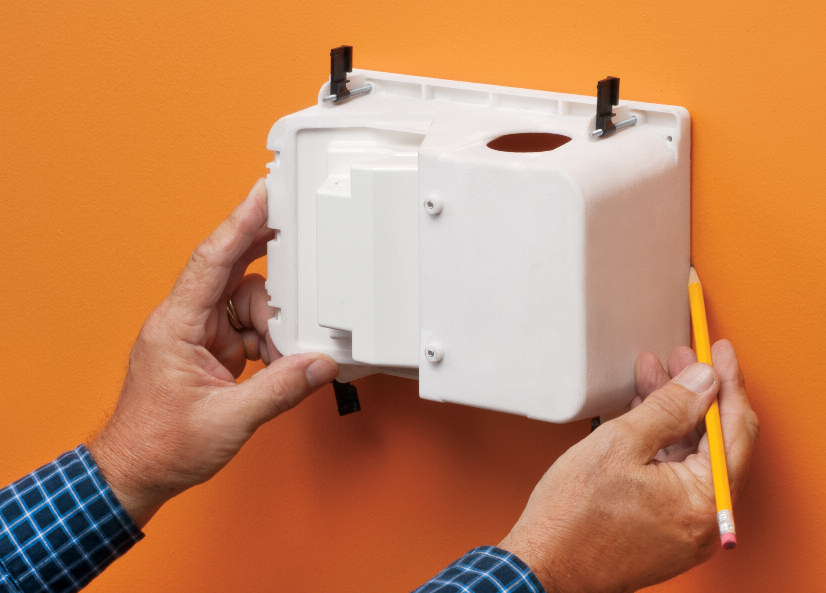

recessed TV box mounted in wall with power and low voltage devices plugged in person tracing box without flange on wall where TV box will be installed

Basic Information

Part Number TVB712GC
Description Plastic recessed TV BOX with angles opening for new or old construction. Combo box for power and low voltage. paintable trim plate. With Grounding Clip.
UPC 018997097149
Unit Packaging 1pc
Standard Packaging 1pc
Country of Origin
Available w/ Grounding Clip Yes - Order Part Number TVB712GCGC

Physical Information

Weight1.260 lbs/each
Color White

Technical Information

Line Drawing TVB712GC Line Drawing
Trade Size2-Gang

Comes With

(1)Trim Plate
(1)NM Cable Connector
(1)Mounting Bracket
(1)Low Voltage Plate
(1)Line Voltage Box
(2)#8-32 x 1/2" Long Screws
(4)#8 x 3/4" Long Screws
