low profile in-box

DBVR1W Product Information

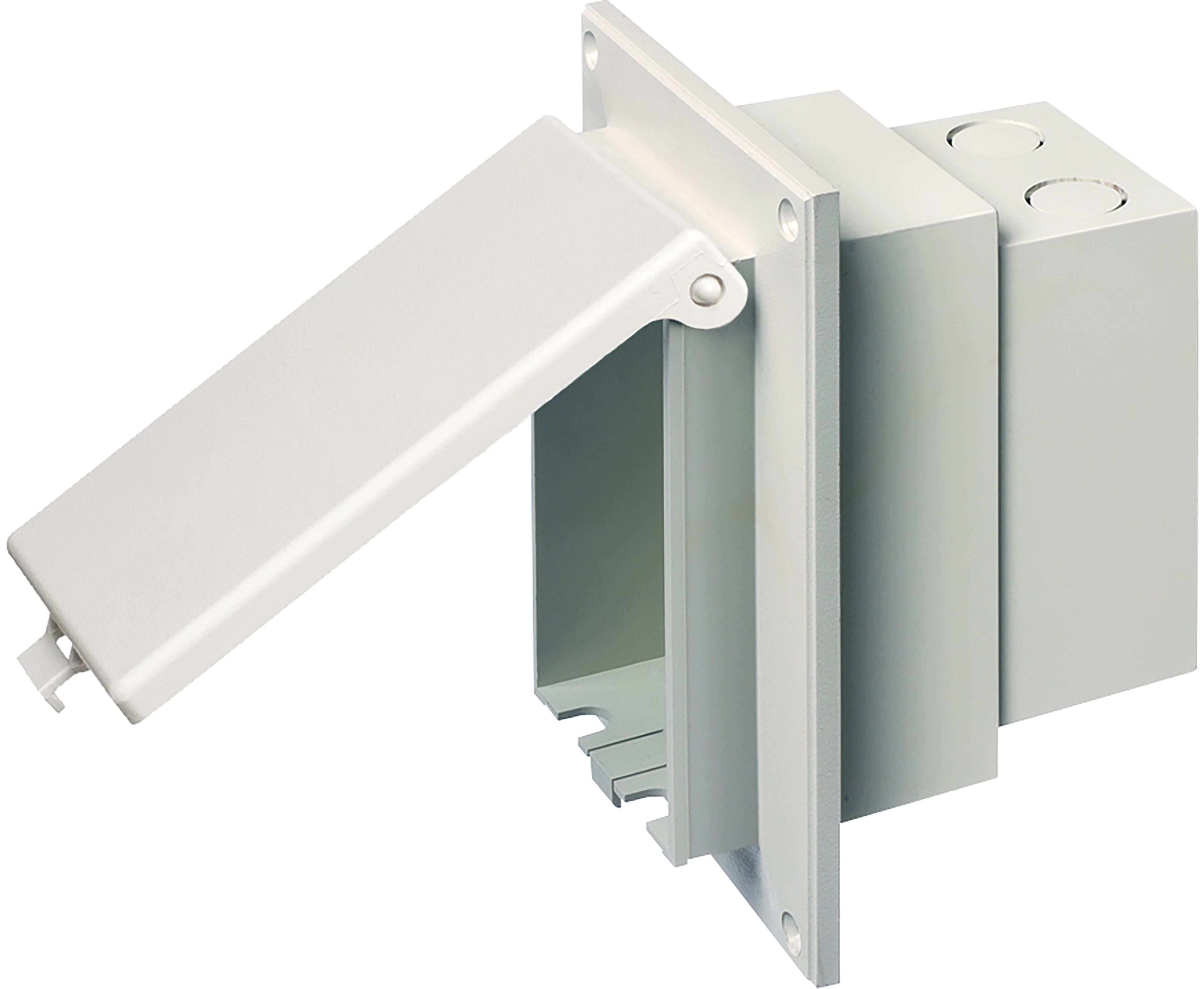

Low Profile InBox™ for Flat Surface (Retrofit)
Specification SheetCatalog Page E-mail

Additional Images

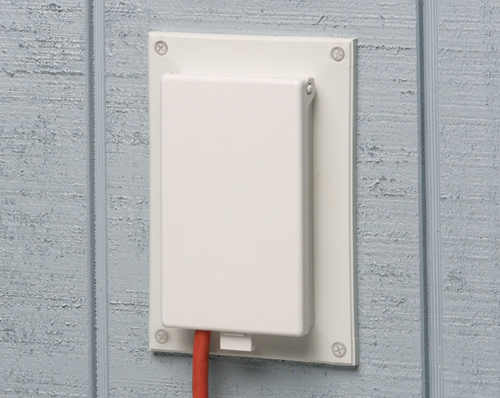

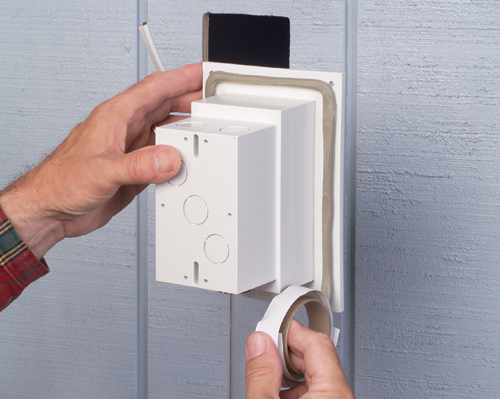

person applying caulking to in-box flange extension cord plugged into outdoor electrical box with cover closed

Basic Information

Part Number DBVR1W
Description Low profile Inbox for flat surface retrofit construction. With weather proof while in use Extra Duty white paintable cover. Vertical.
UPC 018997143143
Unit Packaging 1pc
Standard Packaging 4pcs
Country of Origin
Listing
Available w/ Grounding Clip Yes - Order Part Number DBVR1WGC

Physical Information

Instructional Video DBVR1W Instructional Video
Weight1.094 lbs/each
Height7.186"
Width4.934"
Color White
Material(s)UV-Rated Plastic
PaintableYes

Technical Information

Line Drawing DBVR1W Line Drawing
NEC ComplianceMeets 2021 NEC Section 406.9 (B) for the protection of exterior outlets which require the use of an extra-duty weatherproof while-in-use cover for all outdoor 15 or 20 AMP receptacles.
StyleVertical
Trade Size1-Gang

Comes With

(1)Weatherproof-in-use extra-duty cover
(1)Single-Gang Wall Plate with screw(s)
(1)Single-Gang Decorator-Style / GFCI Wall Plate with screws
(1)Roll of caulk
(1)NM94 Cable Connector
(2)Bug Plugs
(1)Box
(4)#8-32 x 3/4" Long Screws
(4)#8 x 1-1/2" Long Screws
