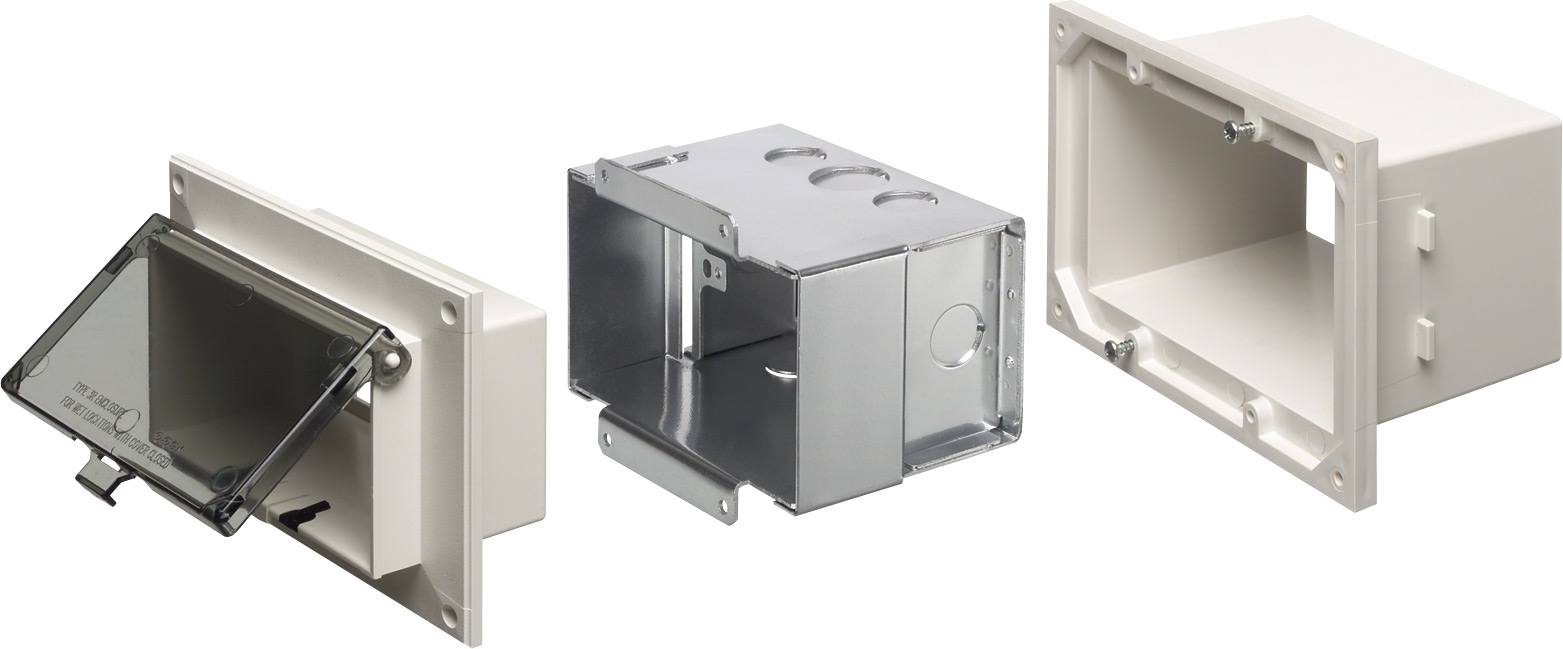

exploded view of in-box cover, metal box, and adapter sleeve

DSHB1W Product Information

InBox™ with Metal Box for New Brick Construction
Specification SheetCatalog Page E-mail

Additional Images

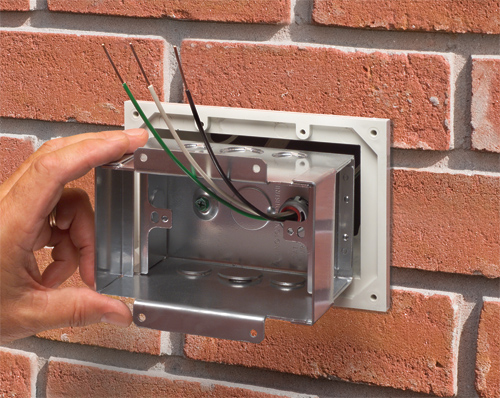

person installing metal box into adapter sleeve on brick wall

Basic Information

Part Number DSHB1W
Description Low profile Inbox with metal box. Includes adapter sleeve for new brick. Horizontal with weatherproof while in use white cover and white box.
UPC 018997436115
Unit Packaging 1pc
Standard Packaging 4pcs

Physical Information

Instruction Sheet DSHB1W Instruction Sheet
Weight3.250 lbs/each
Color White
Material(s)UV-Rated Plastic

Technical Information

Line Drawing DSHB1W Line Drawing
NEC ComplianceMeets 2021 NEC Section 406.9 (B) for the protection of exterior outlets which require the use of an extra-duty weatherproof while-in-use cover for all outdoor 15 or 20 AMP receptacles.
Trade Size1-Gang

Comes With

(1)Weatherproof-in-use extra-duty cover
(1)Single-Gang Wall Plate with screw(s)
(1)Single-Gang Decorator-Style / GFCI Wall Plate with screws
(1)Roll of caulk
(1)Mud Cover
(2)Bug Plugs
(1)Adapter Sleeve
(4)#8-32 x 5/8" Long Screws
(4)#8-32 x 1/2" Long Screws
