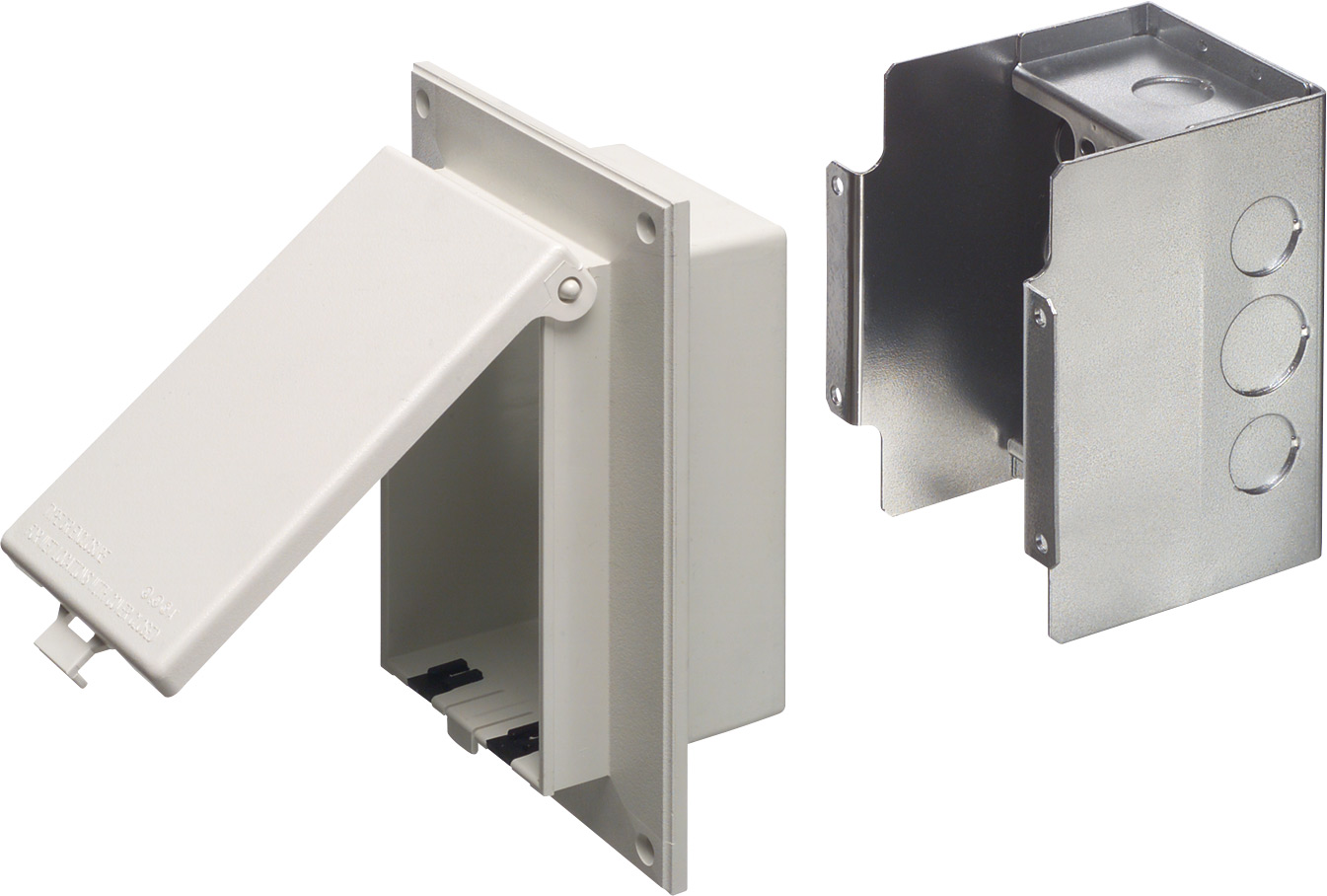

DSBHR1W Product InformationInBox™ with Metal Box for Flat Surface (Retrofit) Specification SheetCatalog Page E-mail |
Basic Information
| Part Number | DSBHR1W |
| Description | Low profile Inbox with metal box for flat surface retrofit construction. With weather proof while in use Extra Duty white paintable cover. Horizontal. |
| UPC | 018997096579 |
| Unit Packaging | 1pc |
| Standard Packaging | 4pcs |
| Listing |
|
Physical Information
| Instruction Sheet | DSBHR1W Instruction Sheet |
| Weight | 2.450 lbs/each |
| Height | 4.937" |
| Width | 7.196" |
| Color |  White |
| Material(s) | UV-Rated Plastic |
| Paintable | Yes |
Technical Information
| Line Drawing | DSBHR1W Line Drawing |
| NEC Compliance | Meets 2021 NEC Section 406.9 (B) for the protection of exterior outlets which require the use of an extra-duty weatherproof while-in-use cover for all outdoor 15 or 20 AMP receptacles. |
| Style | Horizontal |
| Trade Size | 1-Gang |
Comes With
| (1) | Weatherproof-in-use extra-duty cover |
| (1) | Single-Gang Wall Plate with screw(s) |
| (1) | Single-Gang Decorator-Style / GFCI Wall Plate with screws |
| (1) | Roll of caulk |
| (2) | Bug Plugs |
| (1) | Box |
| (4) | #8-32 x 3/4" Long Screws |
| (4) | #8 x 1-1/2" Long Screws |
