box extender with large flanges

BE4X Product Information

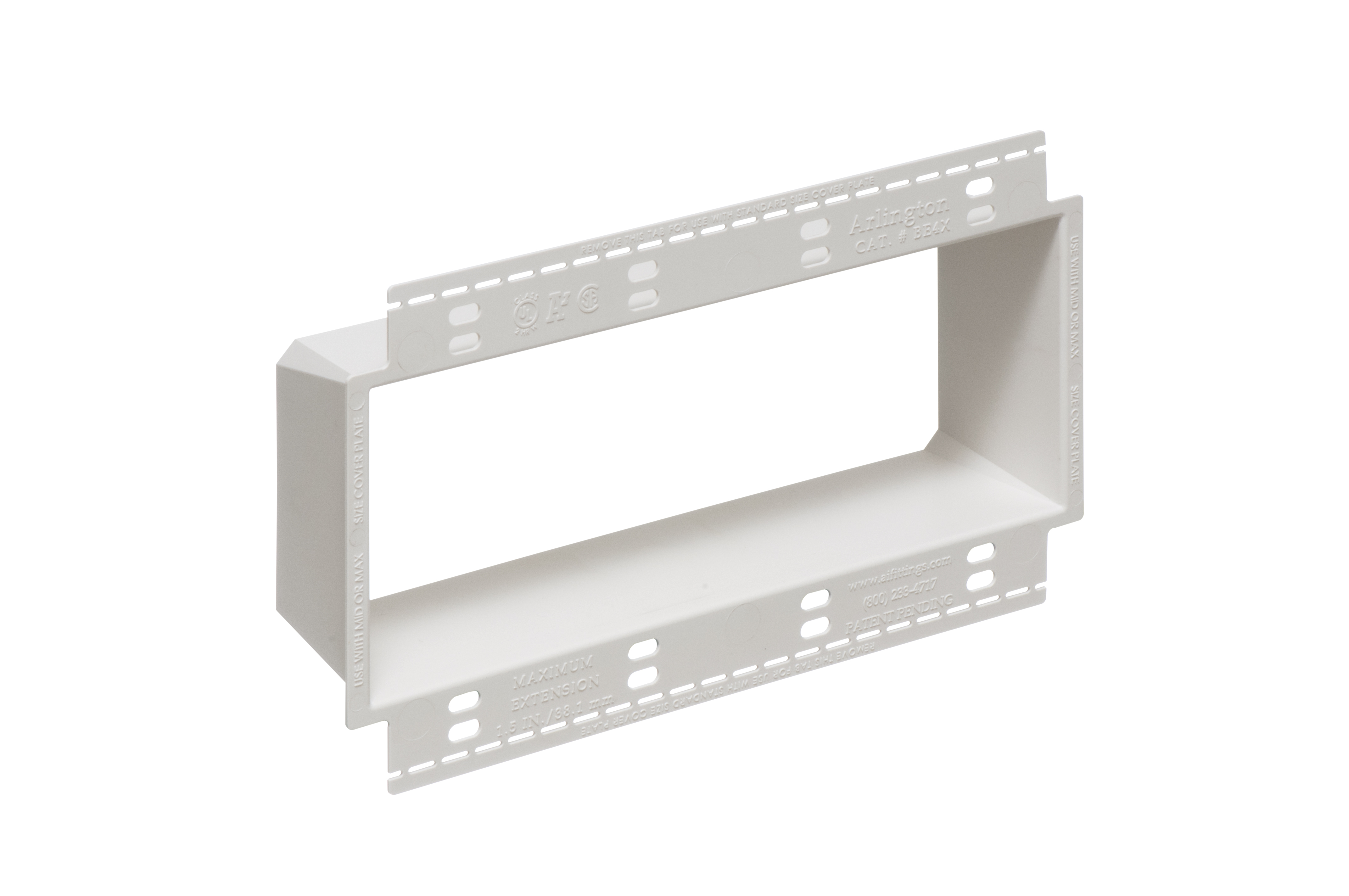

The four-gang BE4X has a slightly larger flange that provides extra device support when the wall opening is miscut or oversized.
Specification SheetCatalog Page E-mail

Additional Images

Basic Information

Part Number BE4X

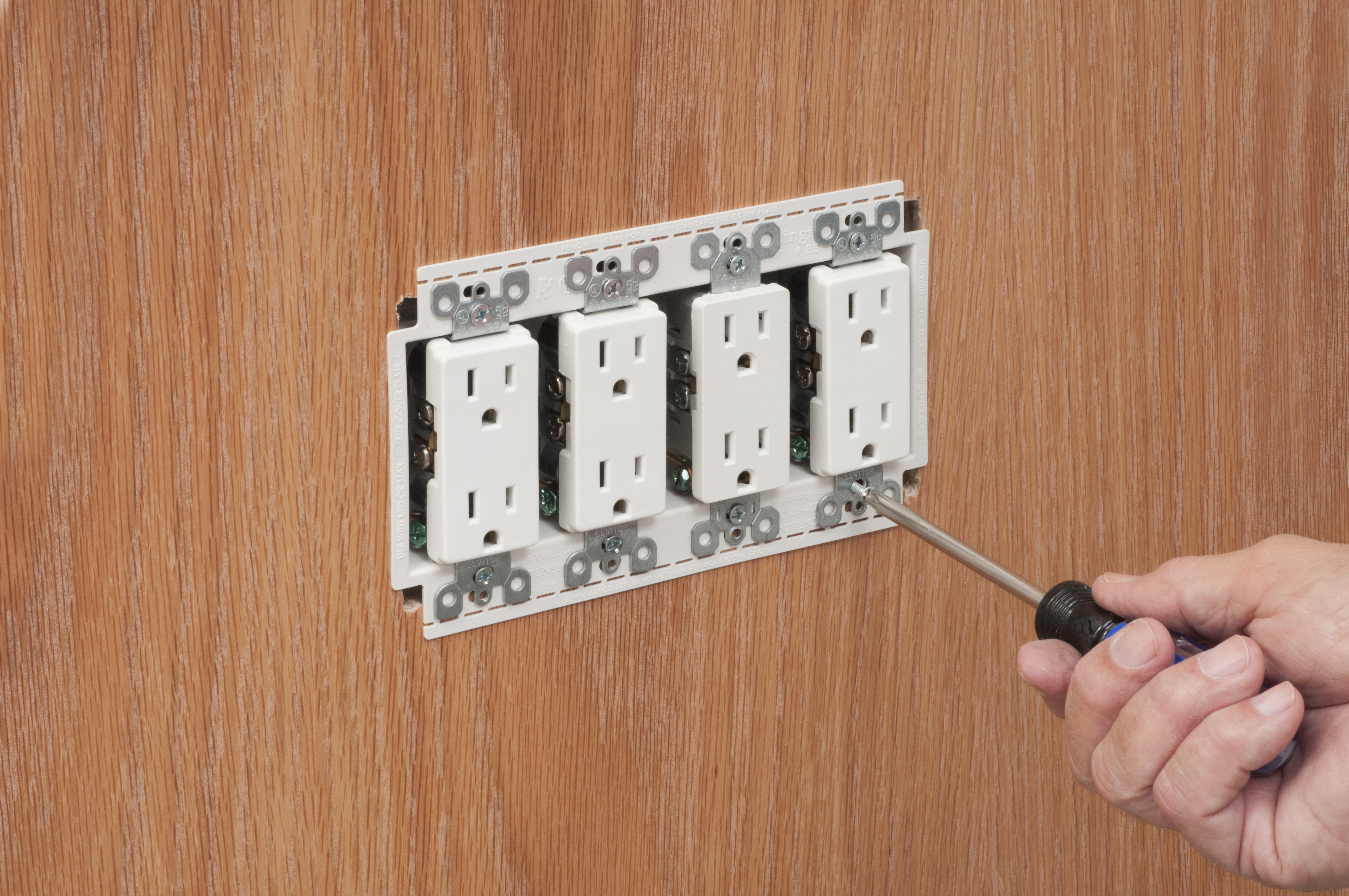

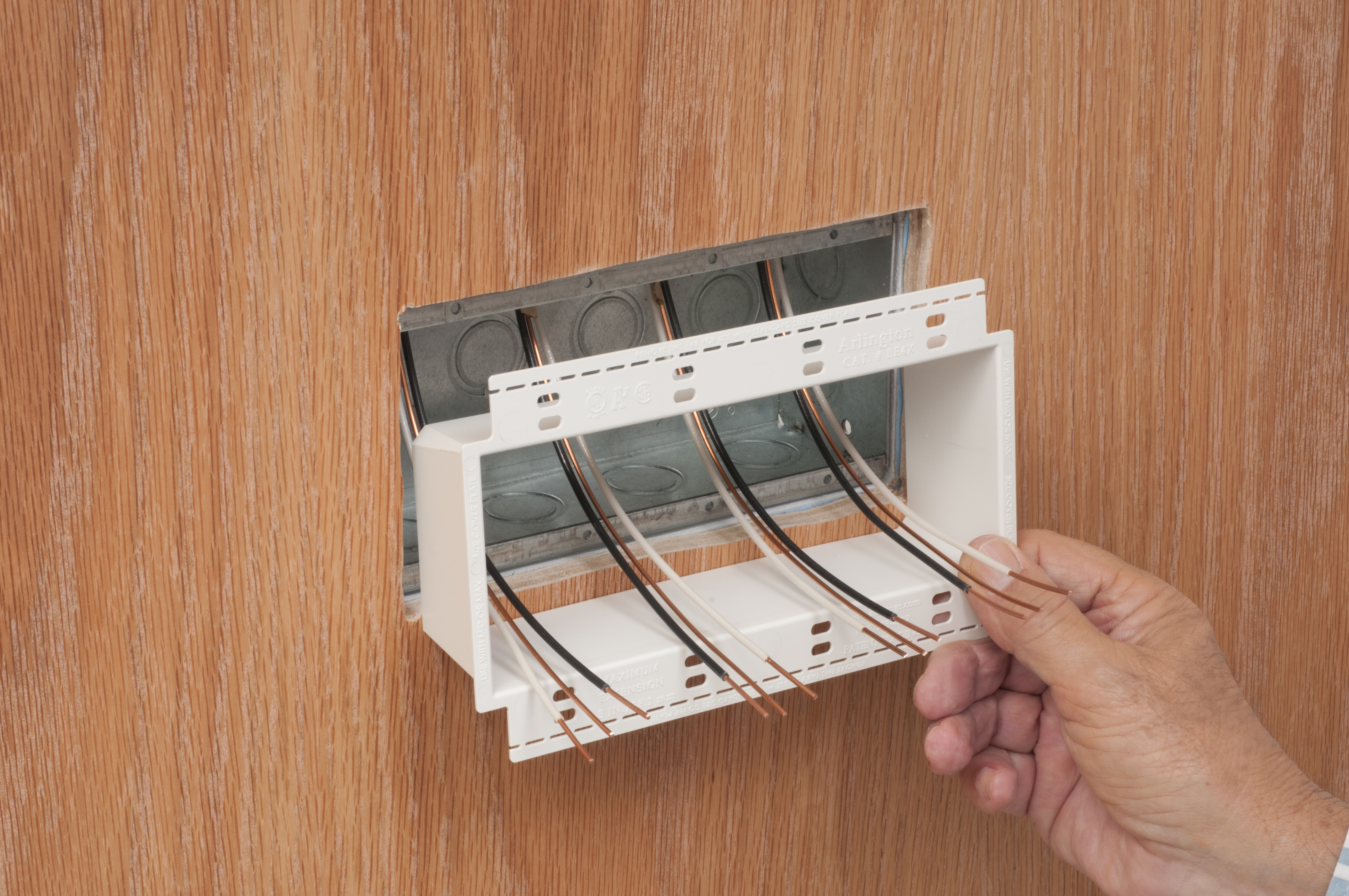

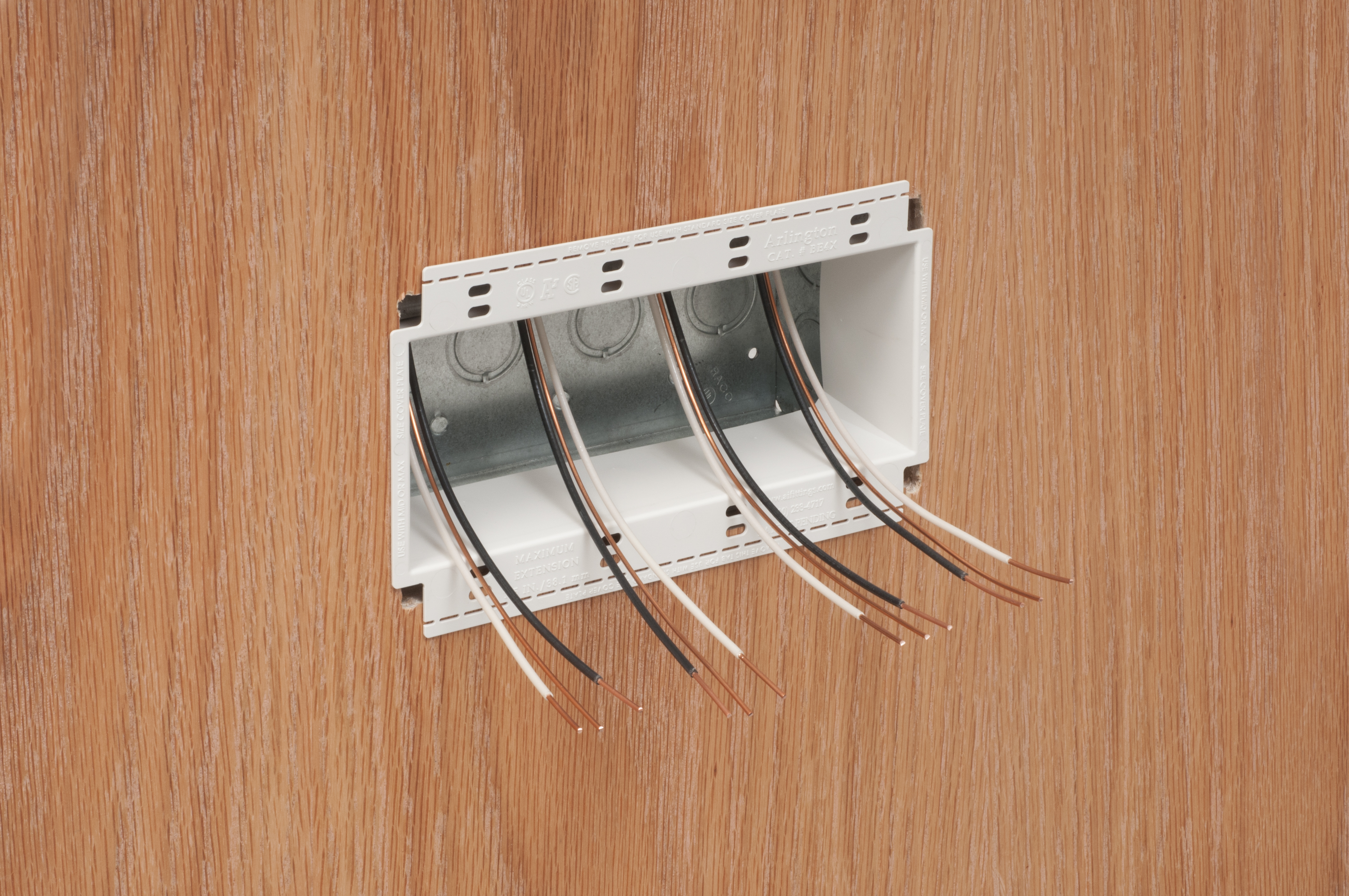

Description Better device support in oversized or miscut wall openings with the help of larger perforated flanges. Our box extender levels and supports the wiring device where the box is set back from the wall surface and extends the box up to 1-1/2". 2 hour fire rating. Four Gang.
UPC 018997489753
Unit Packaging 10pcs
Standard Packaging 10pcs
Country of Origin
Listing

Physical Information

Instructional Video BE4X Instructional Video
Instruction Sheet BE4X Instruction Sheet
Weight0.094 lbs/each
Height4.625"
Width7.749"
Color White
Material(s)Plastic

Technical Information

Line Drawing BE4X Line Drawing
Trade Size4-Gang

Comes With

(1)4-Gang Box Extender
