one-box vapor outlet box

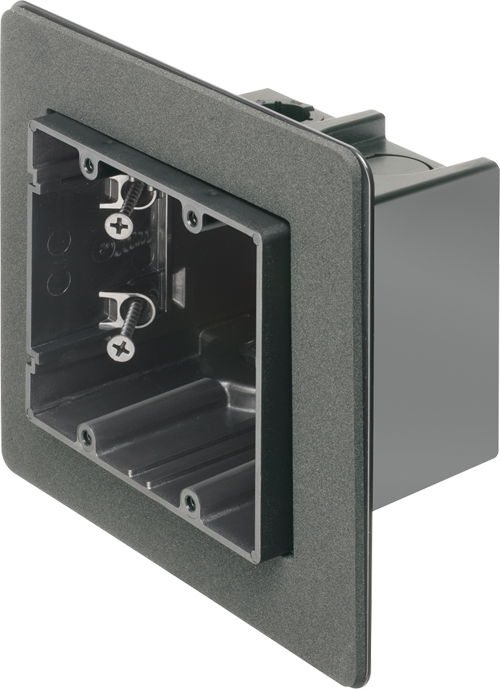

F102F Product Information

Screw-On Non-Metallic Vapor Box for Devices
Specification SheetCatalog Page E-mail

Basic Information

Part Number F102F
Description One Box Vapor Boxes for Devices. Flange forms a protective barrier against air infiltration. 2 Hour Fire Rating. Two gang. Screw On. 42 cu. in.
UPC 018997069009
Unit Packaging 10pcs
Standard Packaging 10pcs
Country of Origin
Listing
Available w/ Grounding Clip Yes - Order Part Number F102FGC

Physical Information

Weight0.382 lbs/each
Height5.990"
Width6.313"
Color Black
Material(s)Plastic

Technical Information

Line Drawing F102F Line Drawing
Cubic Inches42.0
StyleScrew-On
Trade Size2-Gang
UsageProtects Against Air Infiltration

Comes With

(4)NM94 Cable Connectors
(4)Gaskets for knockouts
(1)Flange Gasket
(1)2-Gang One Box™ Vapor Box
(2)#6 x 1-5/8" Long Screws
