FBC42251BR Product Information

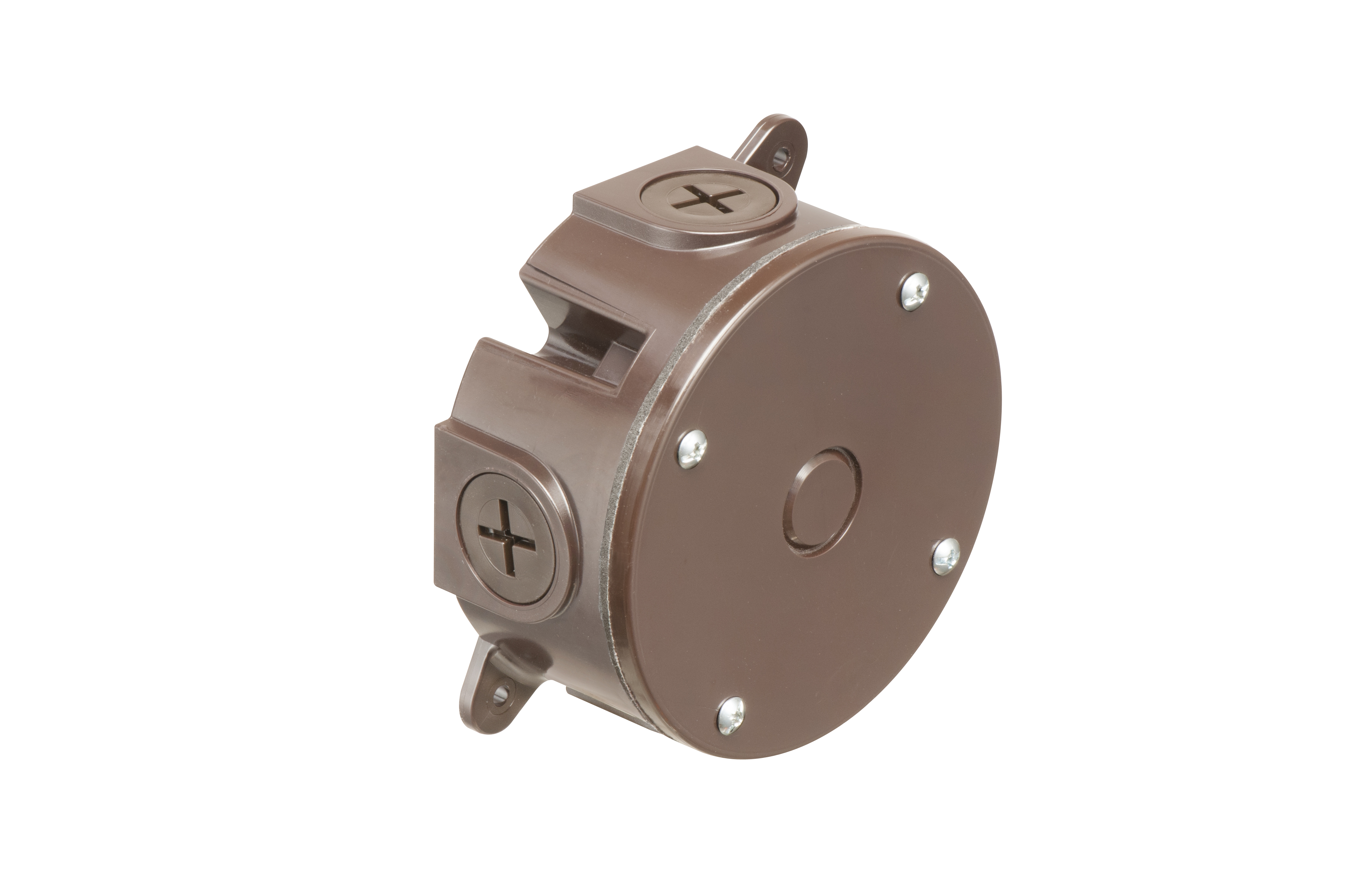

Completely sealed so water stays out and wiring stays dry when used with gasketed accessories. It supports up to a 70 lb fan or fixture securely and safely in a damp or dry location.
Specification SheetCatalog Page E-mail

Additional Images

Basic Information

Part Number FBC42251BR

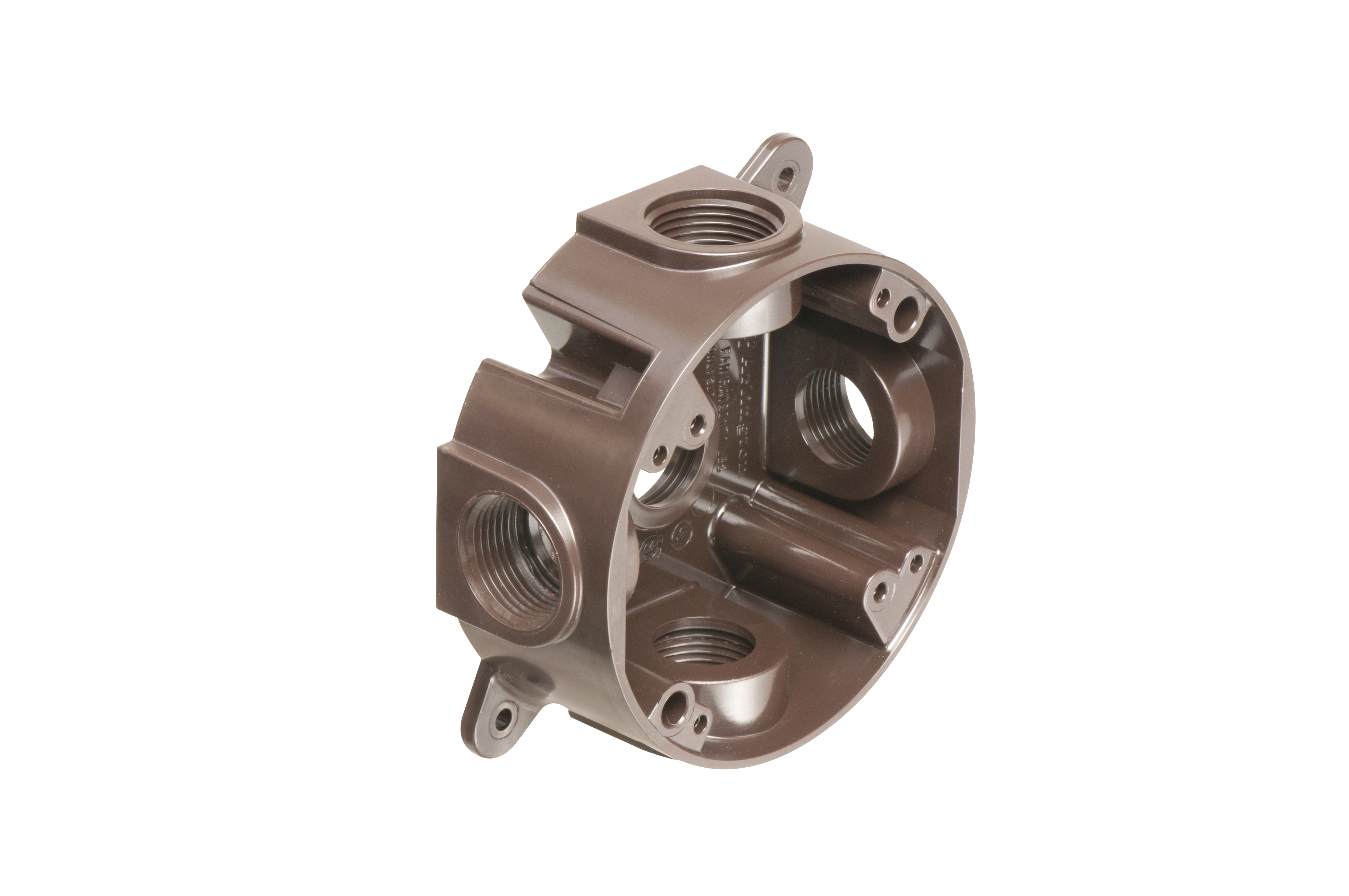

Description Brown non-metallic multi purpose box with 21.8 cubic inches of space. Is rated for a 70lb fan or fixture in dry or damp locations. Comes with (4) 3/4" NPT plugs, (2) 1/2" to 3/4" reducing bushings, and (2) #12x3" screws. UL listed raintight, for use with NEMA 3R accessories, and NEC code-compliant when using gasketed accessory.
UPC 018997340016
Unit Packaging 1pc
Standard Packaging 10pcs
Country of Origin
Listing

Physical Information

Weight0.380 lbs/each
Height4.826"
Width4.642"
Color Brown
Material(s)Plastic

Technical Information

Line Drawing FBC42251BR Line Drawing

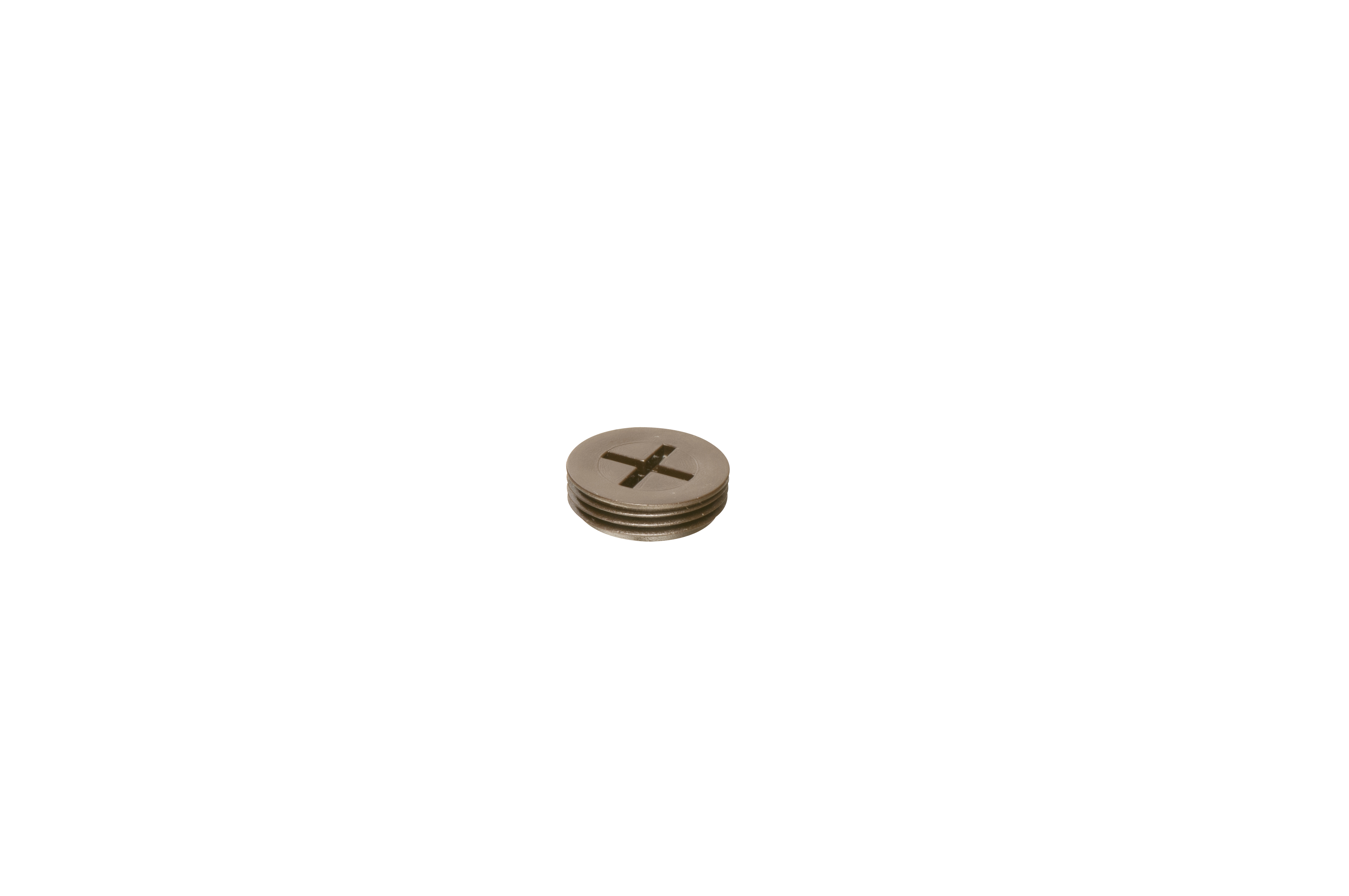

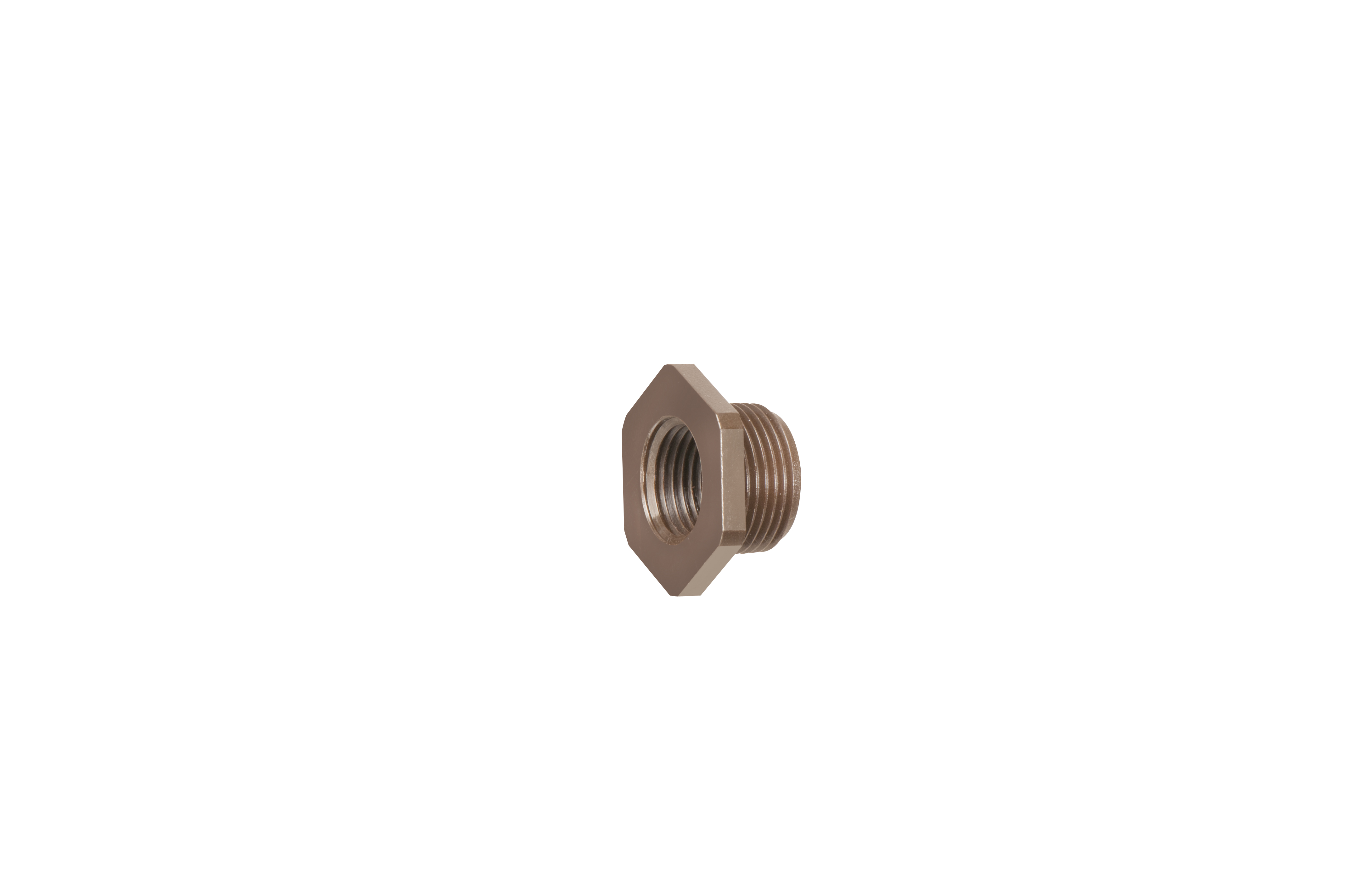

Includes21.8 cu. inch non-metallic box, (4) 3/4" NPT plugs, (2) 1/2" to 3/4" NPT reducing bushings, (2) #12 x 3" screws for fan/fixture bracket.
Trade Size21.8 cu. Inch Box
