gangable floor box kit

FLBC8500 Product Information

Single gang box kit, individual boxes lock together to form two-gang and three-gang boxes.

Specification Sheet Catalog Page E-mail

Additional Images

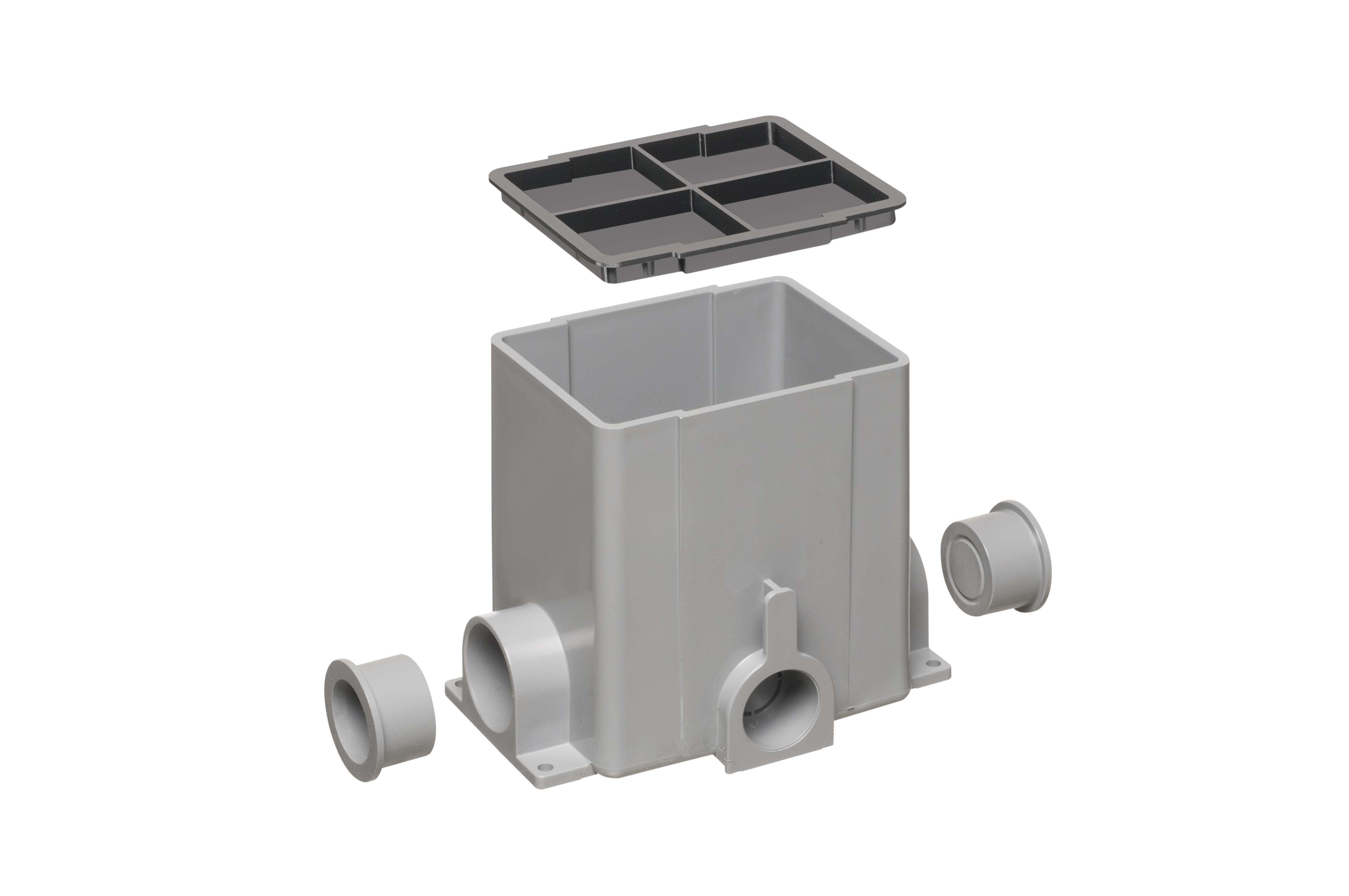

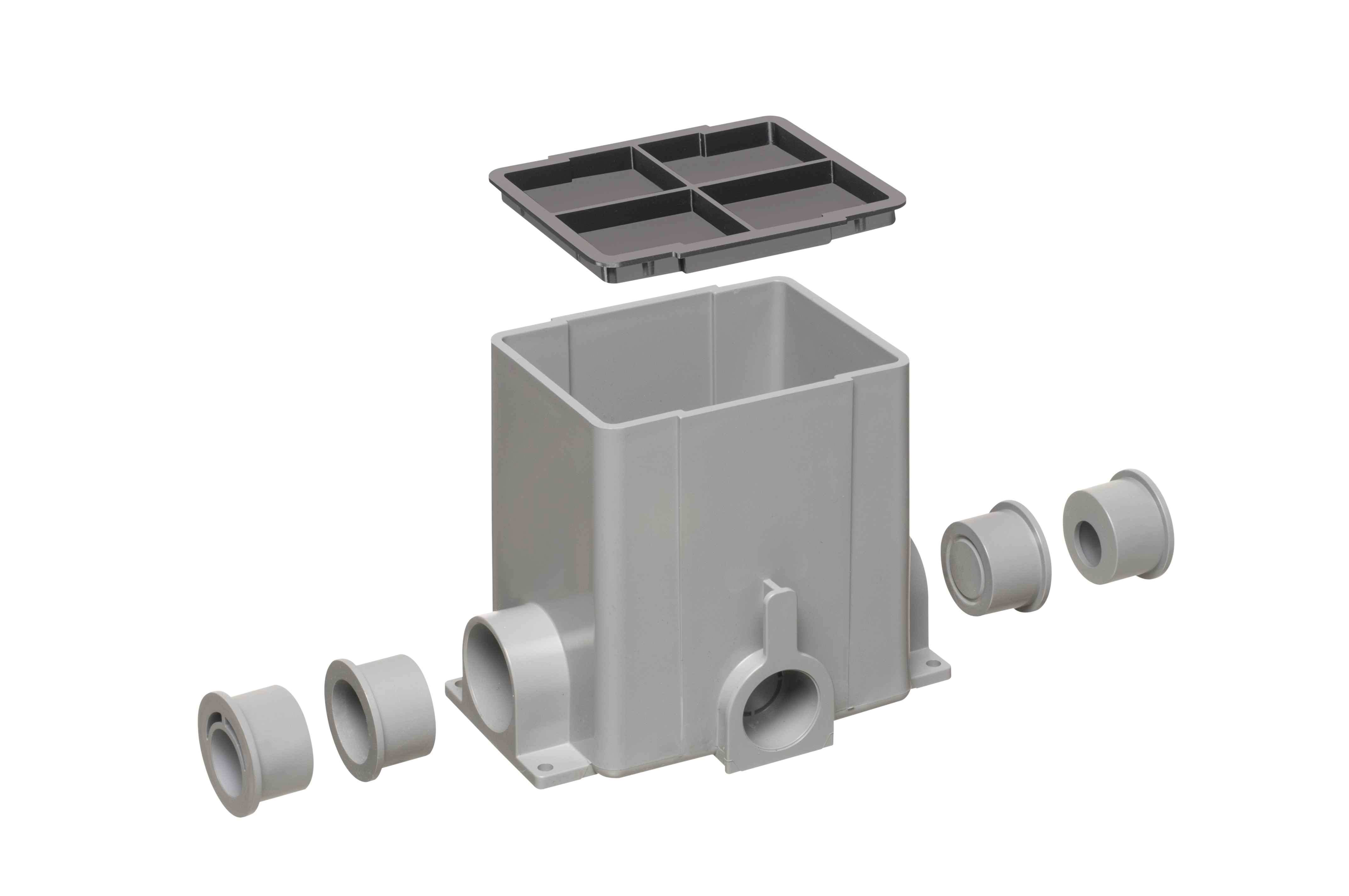

exploded view of components included with concrete can

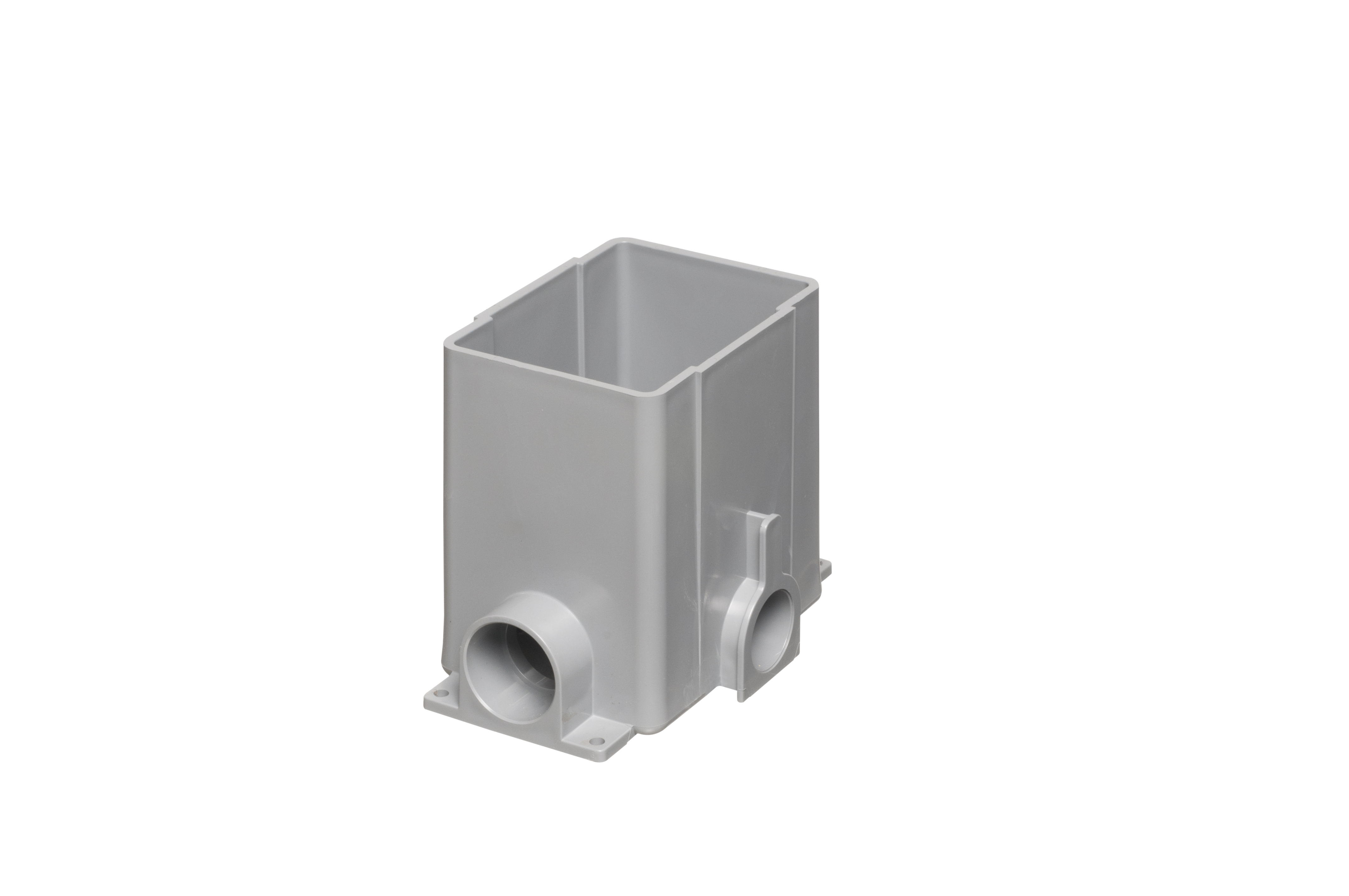

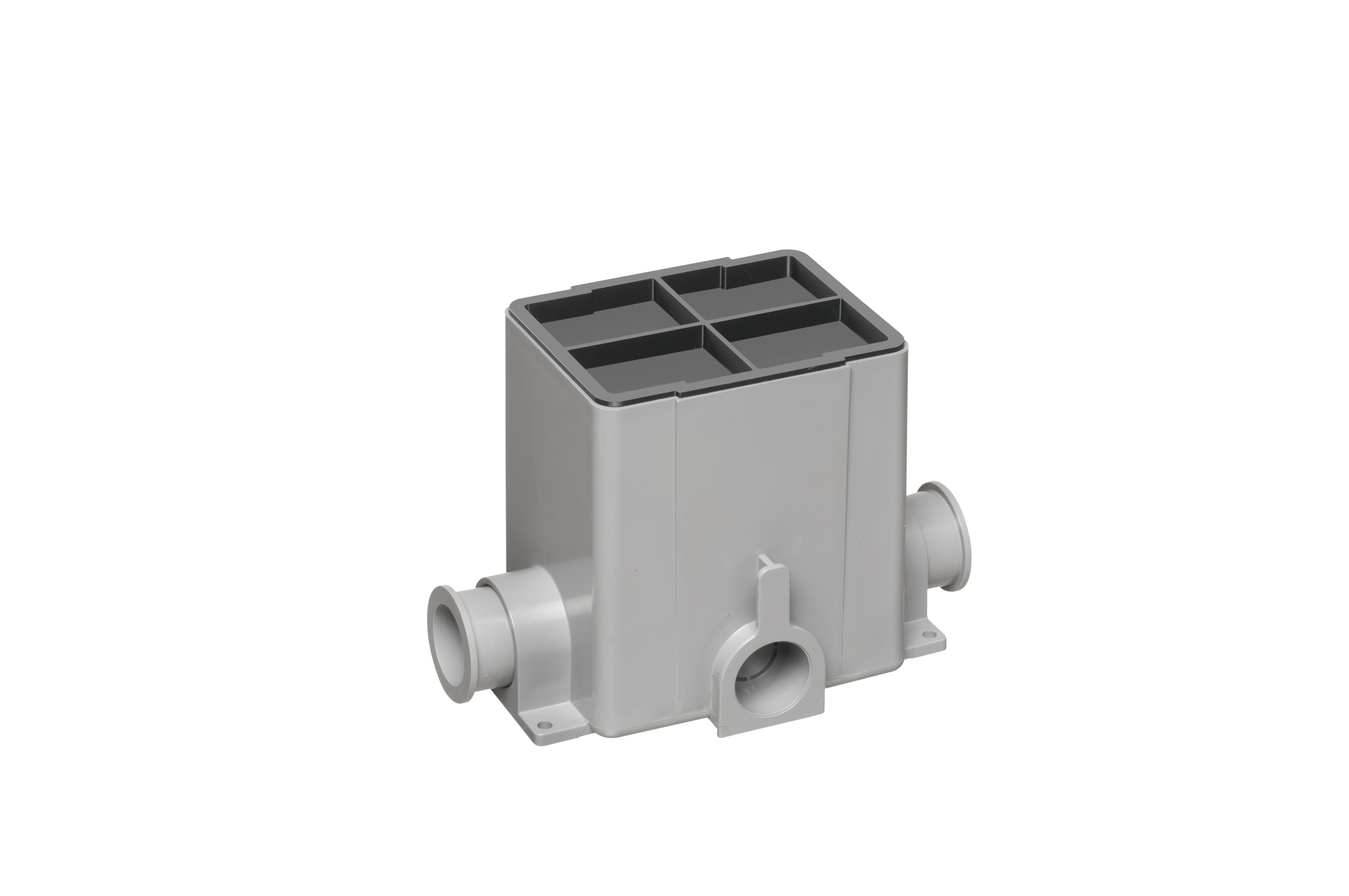

gangable floor box kit

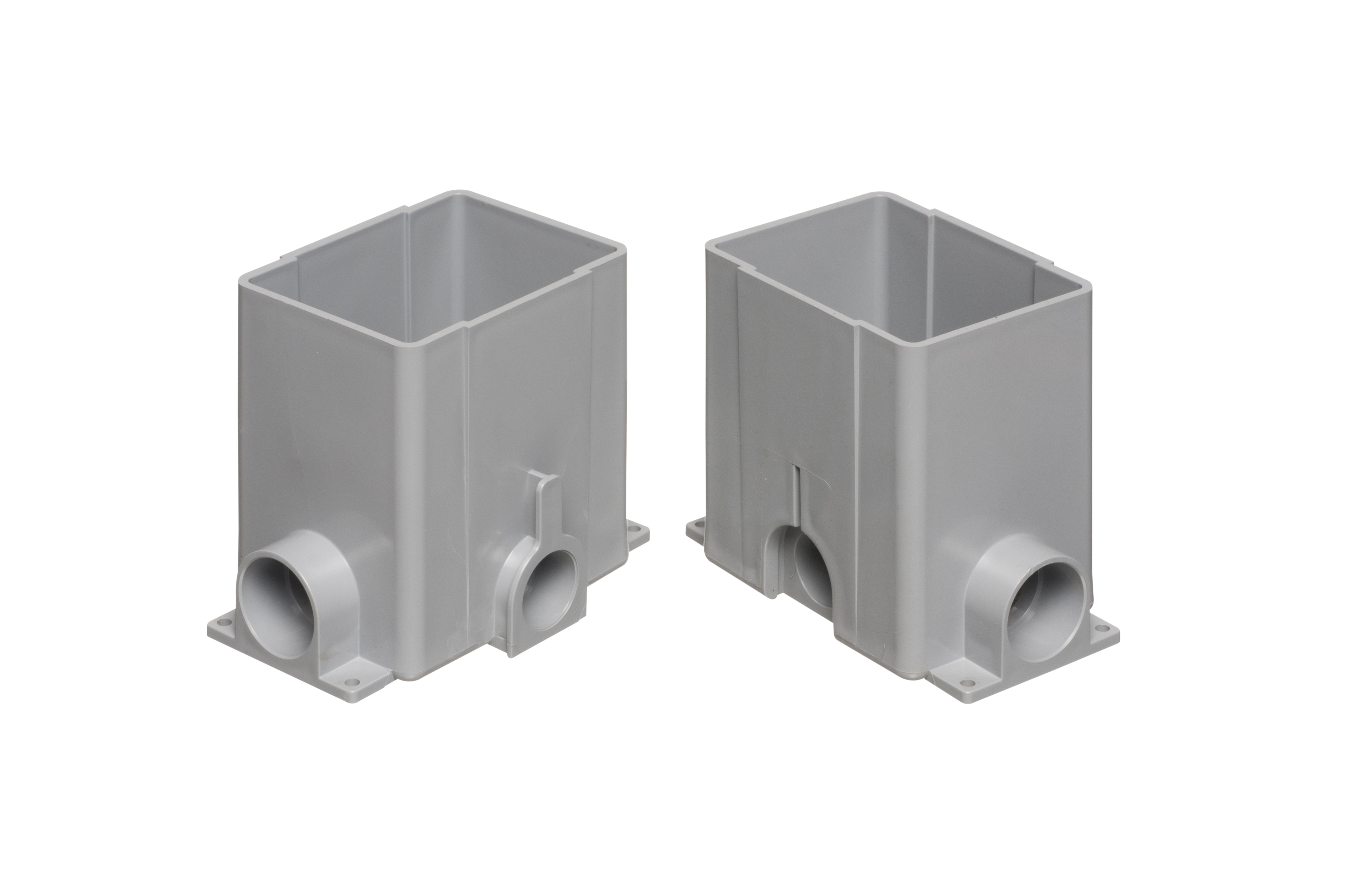

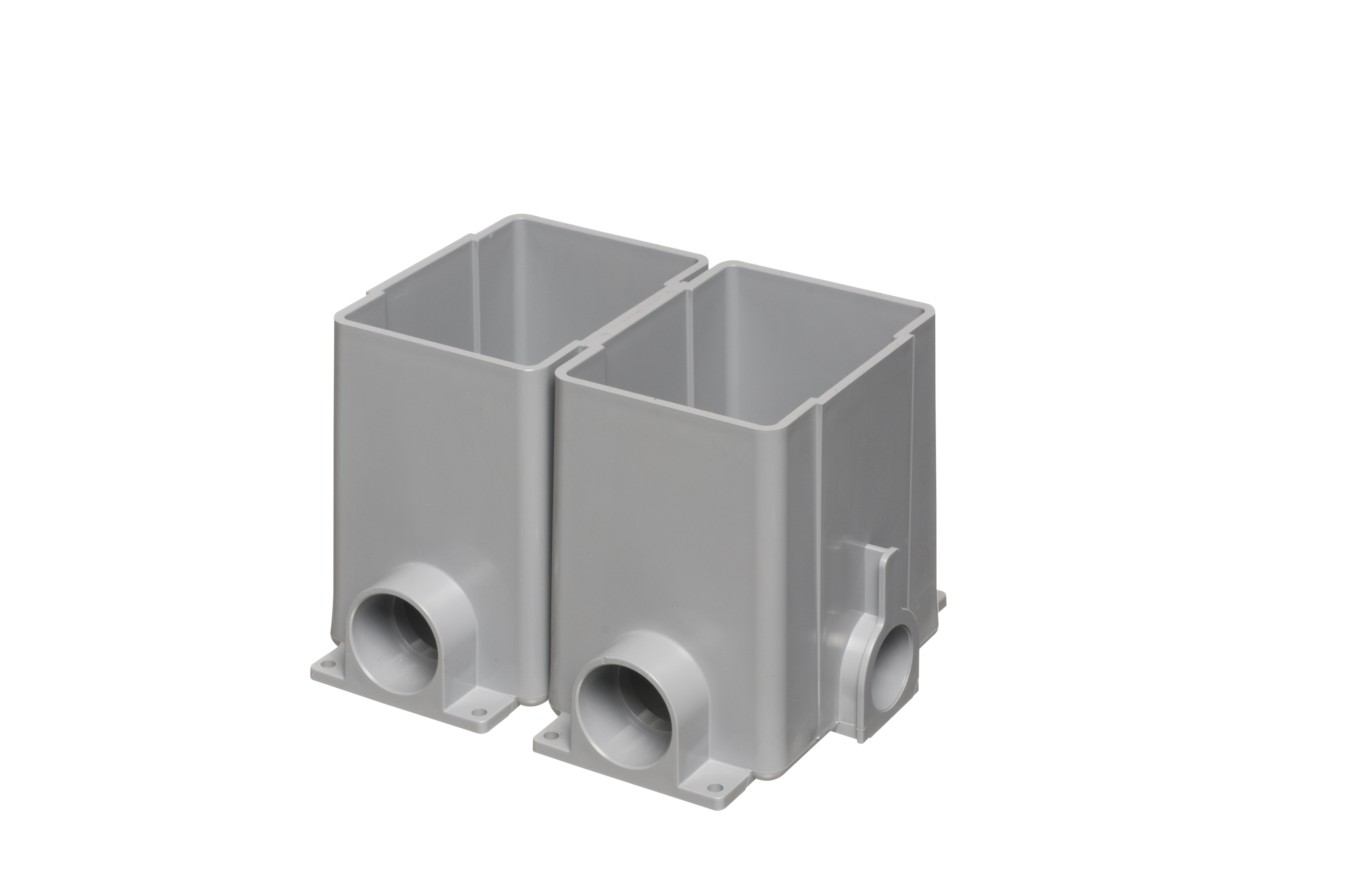

two concrete cans linked together to make a two-gang box

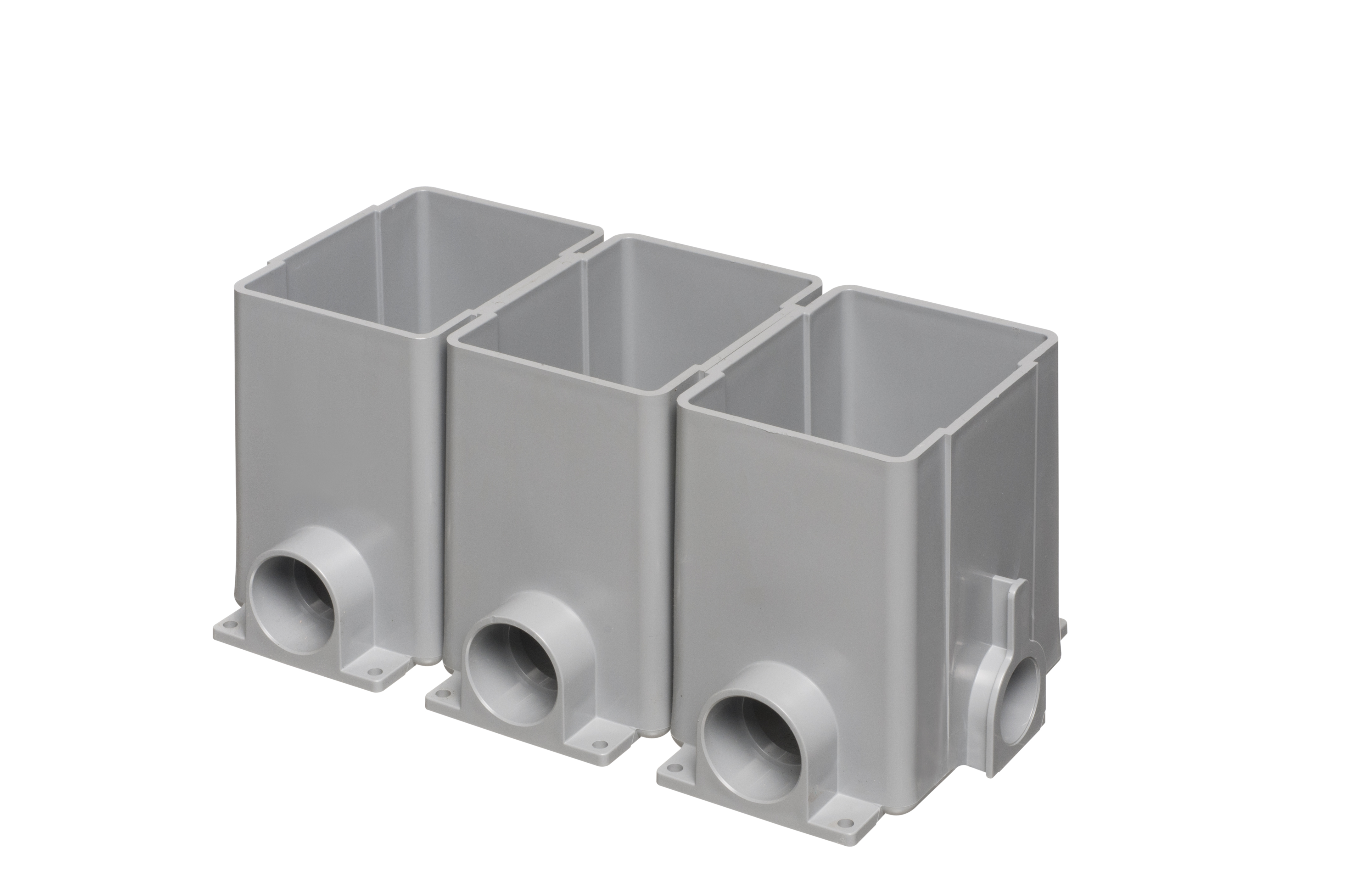

three concrete cans linked together to make a three-gang box

close up of linking mechanism to connect two concrete cans together

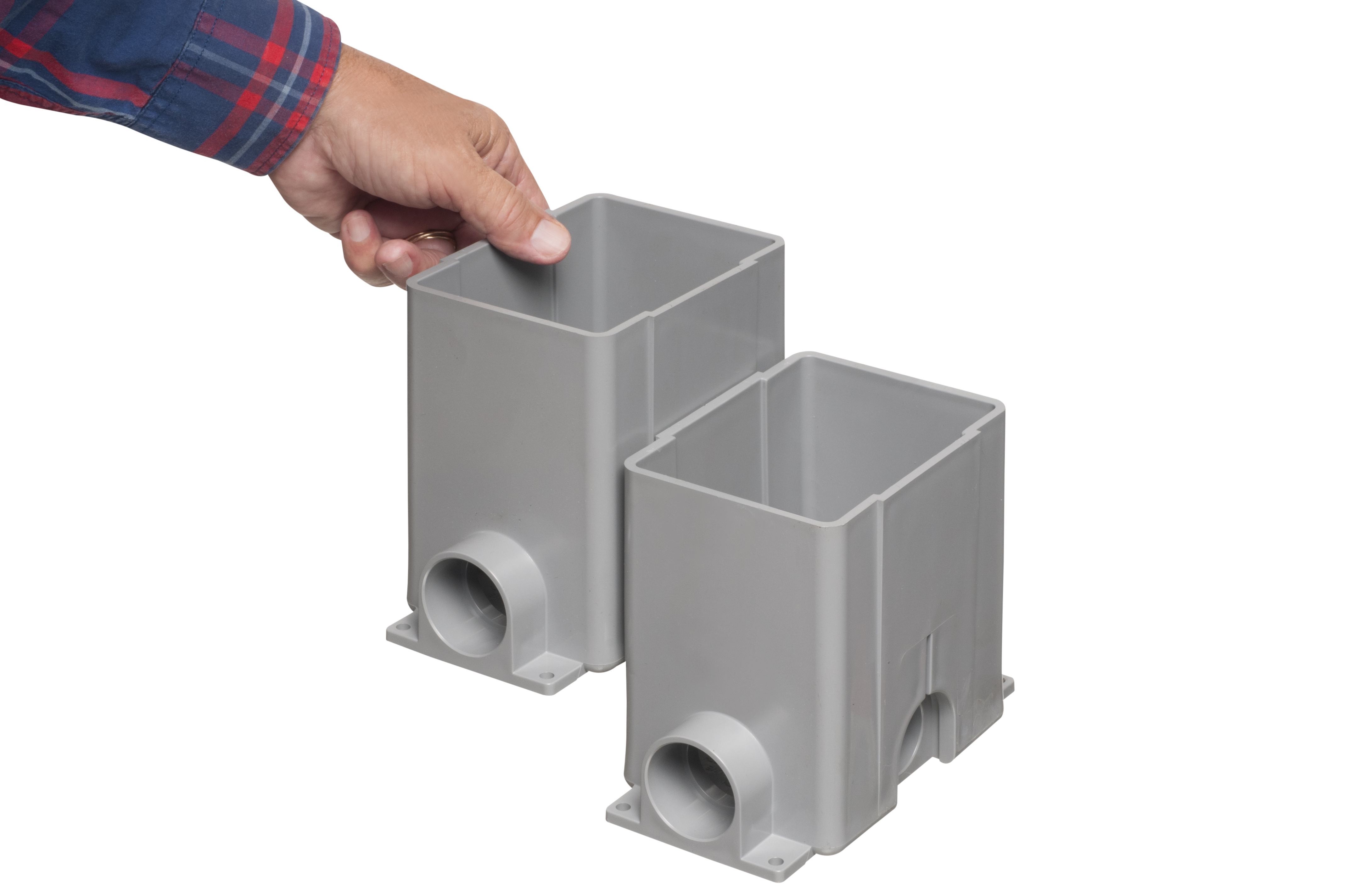

person connecting two concrete cans together

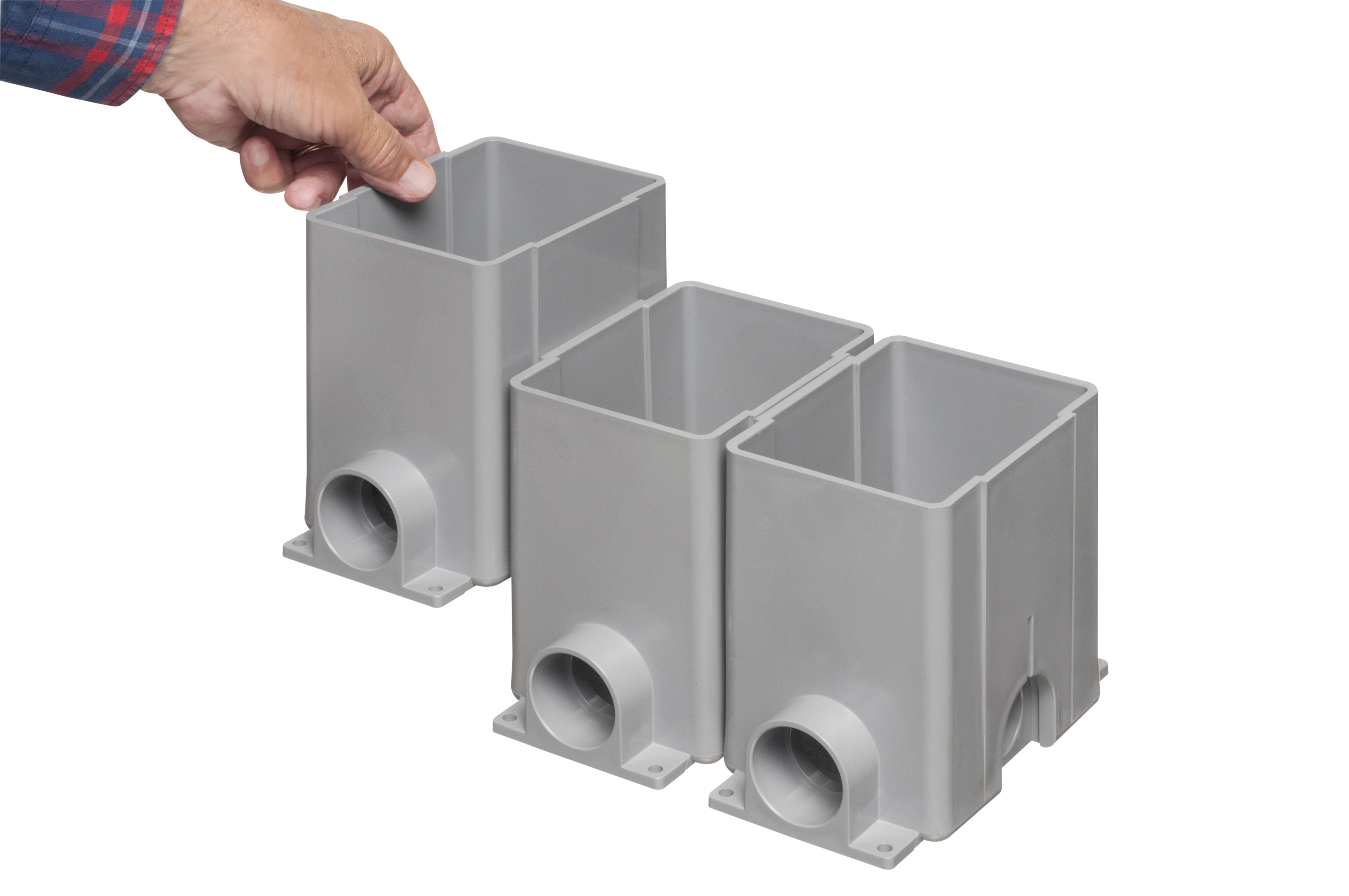

person connecting three concrete cans together

person installing floor box cover on concrete can

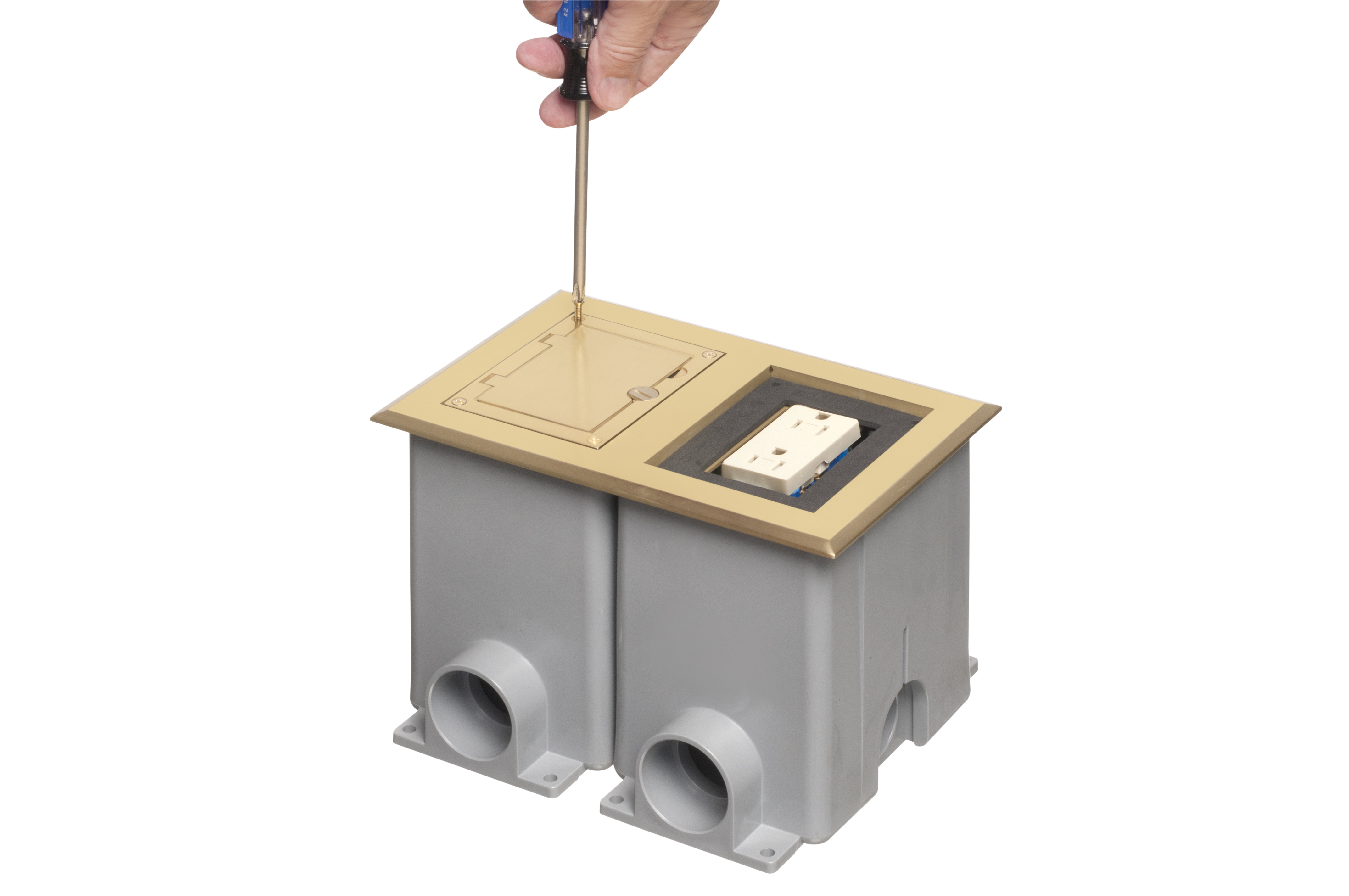

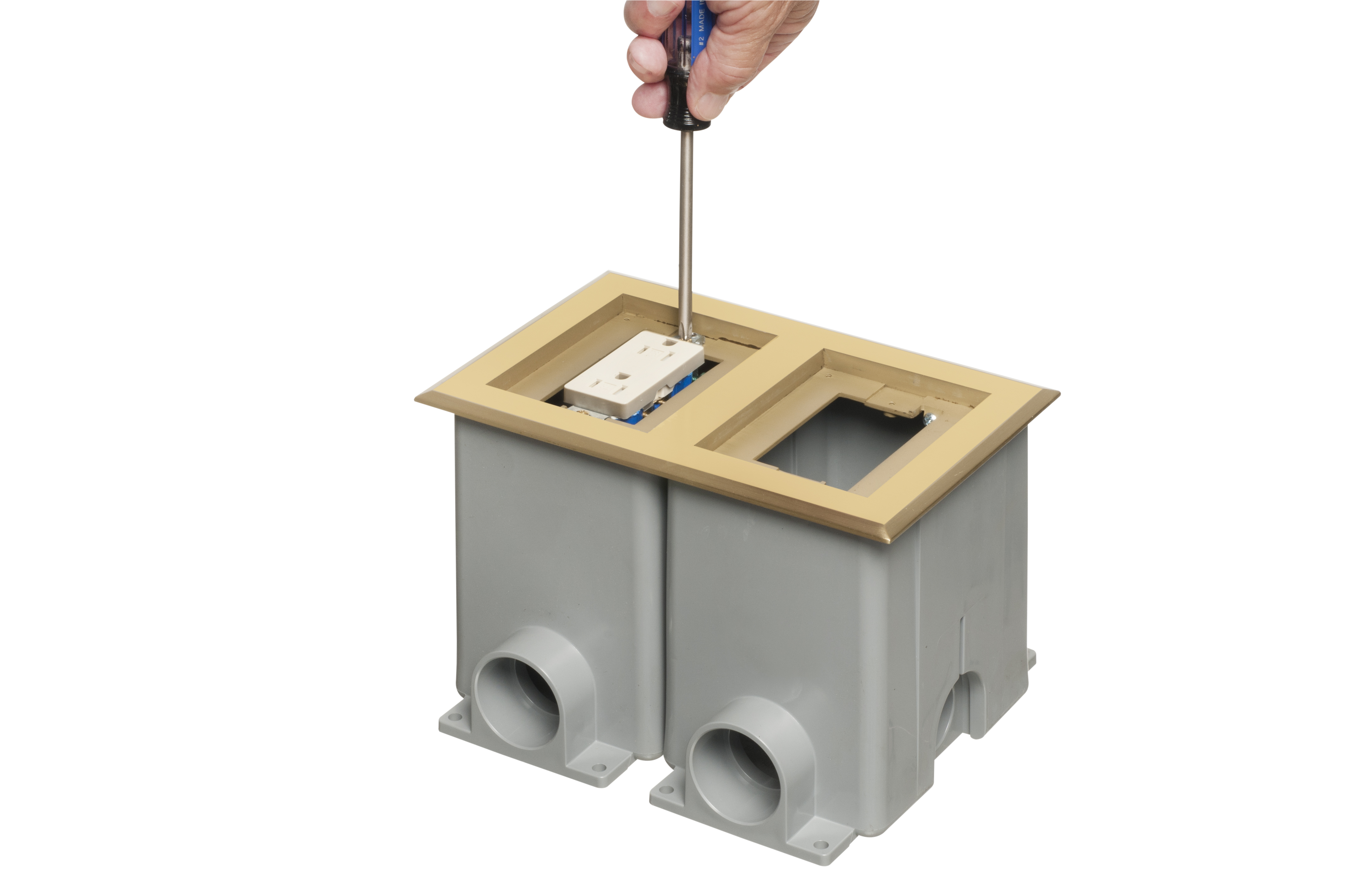

person installing receptacle in floor box with screwdriver

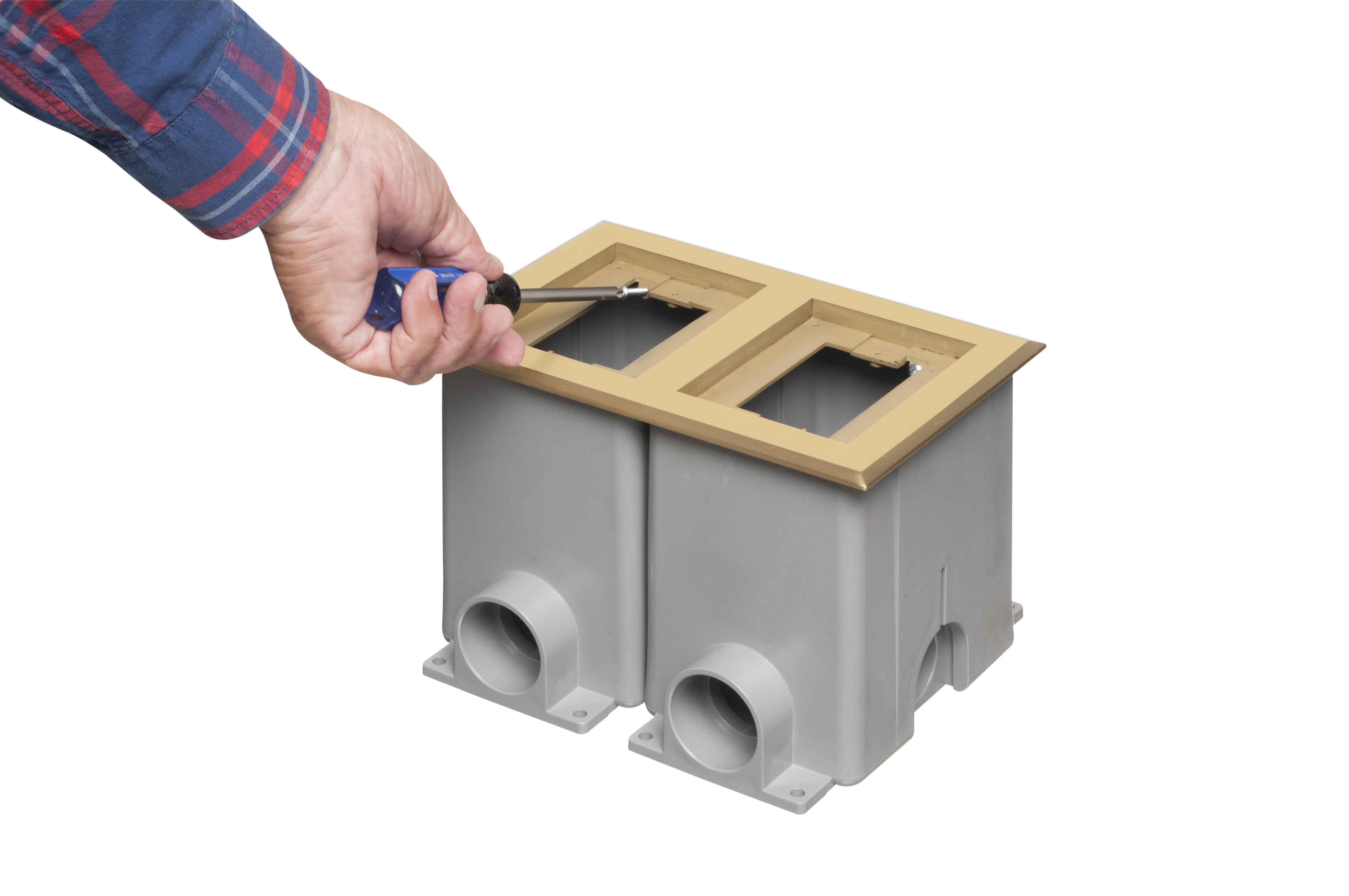

person installing floor box cover with screwdriver

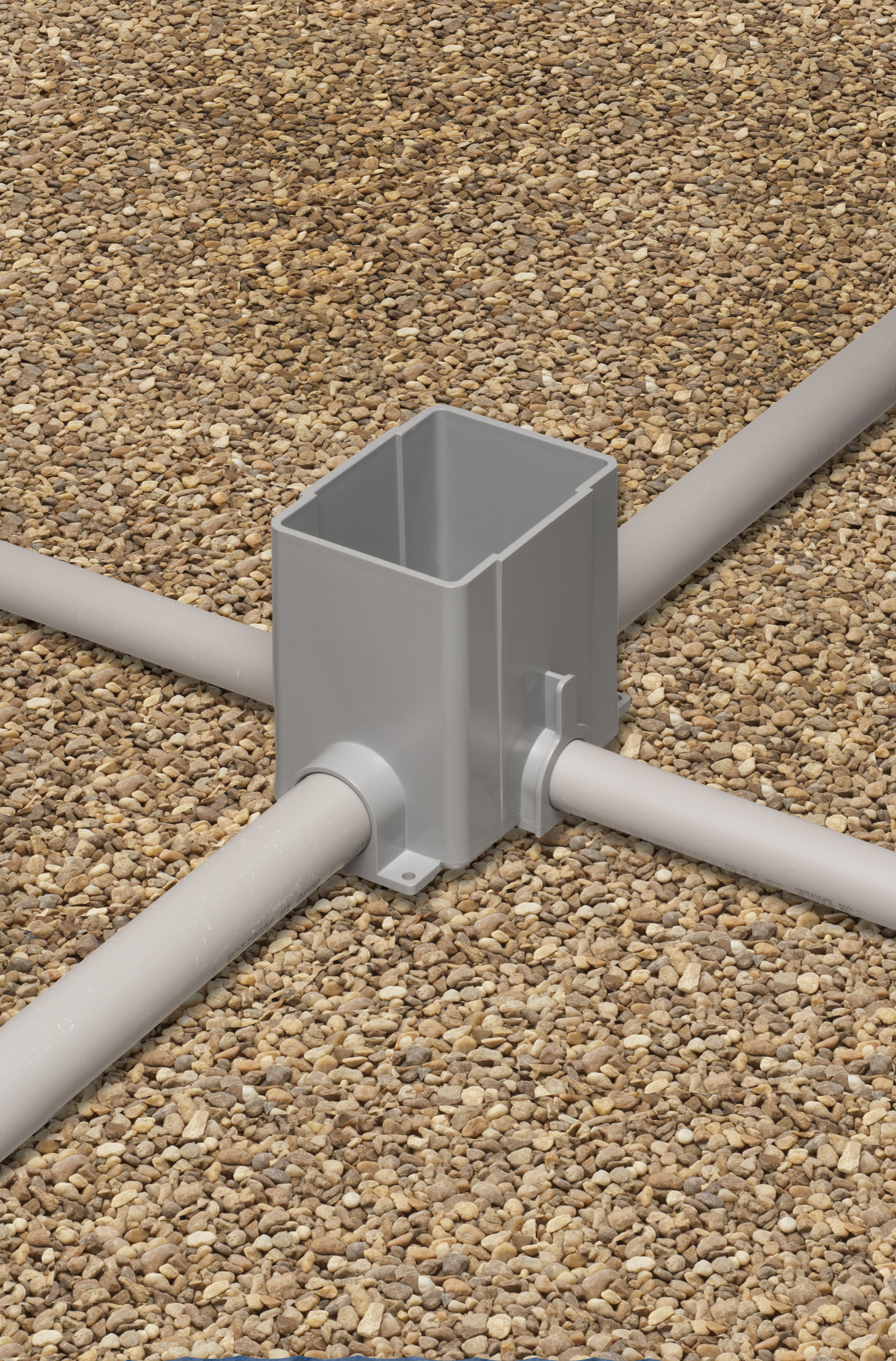

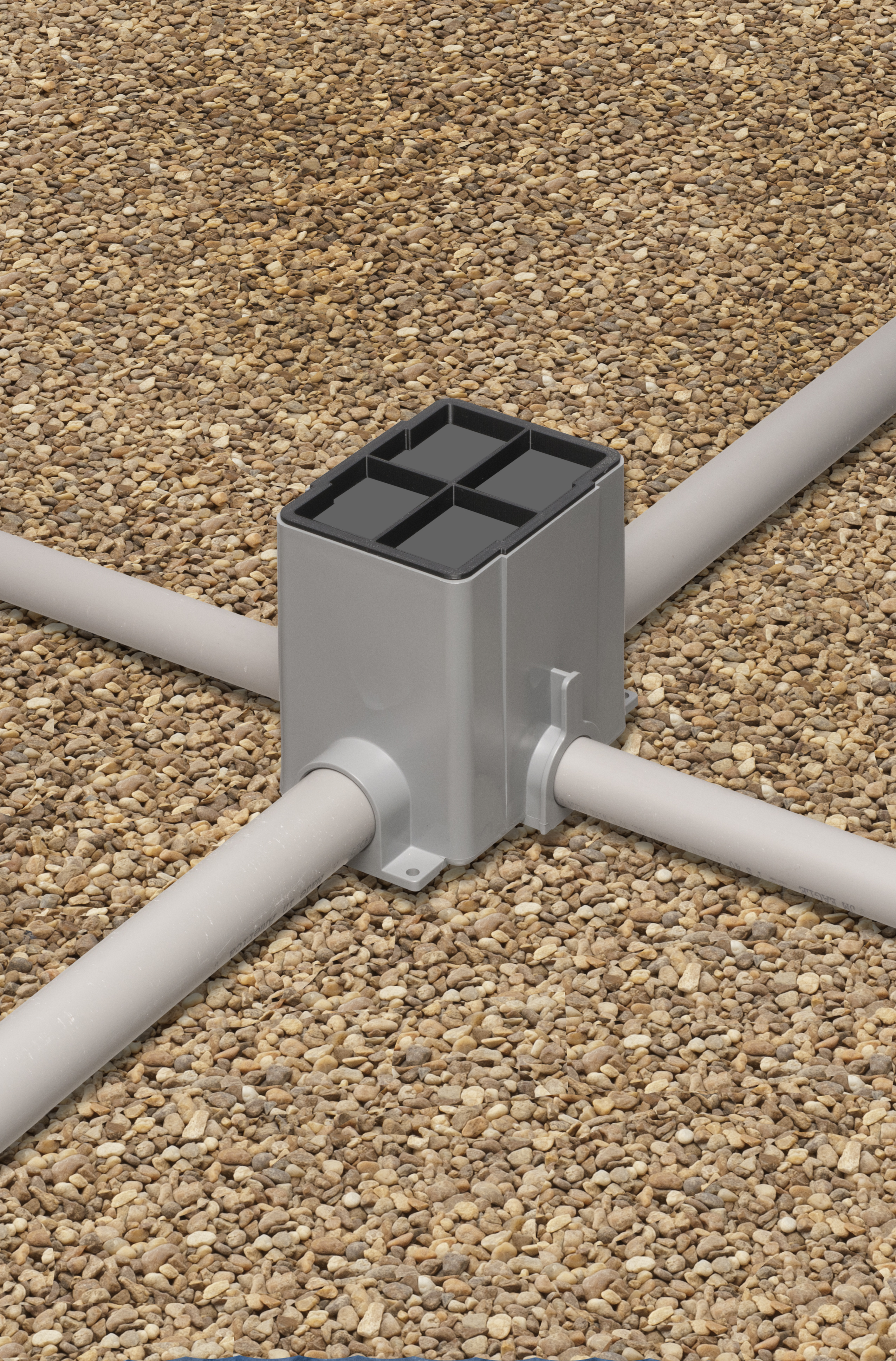

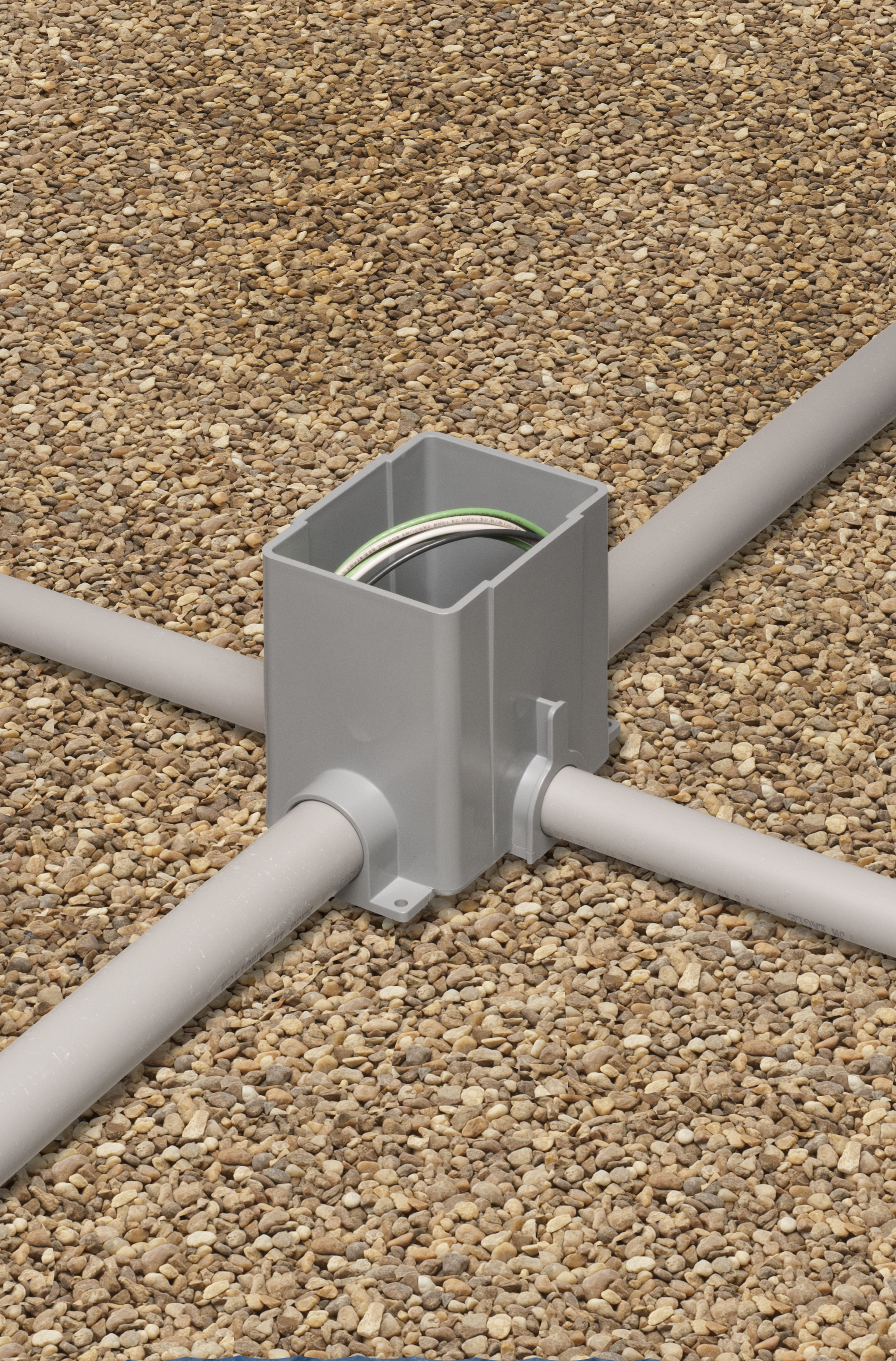

concrete can wired sitting on gravel ready for concrete pour

concrete can wired sitting on gravel ready for concrete pour

concrete can wired sitting on gravel ready for concrete pour

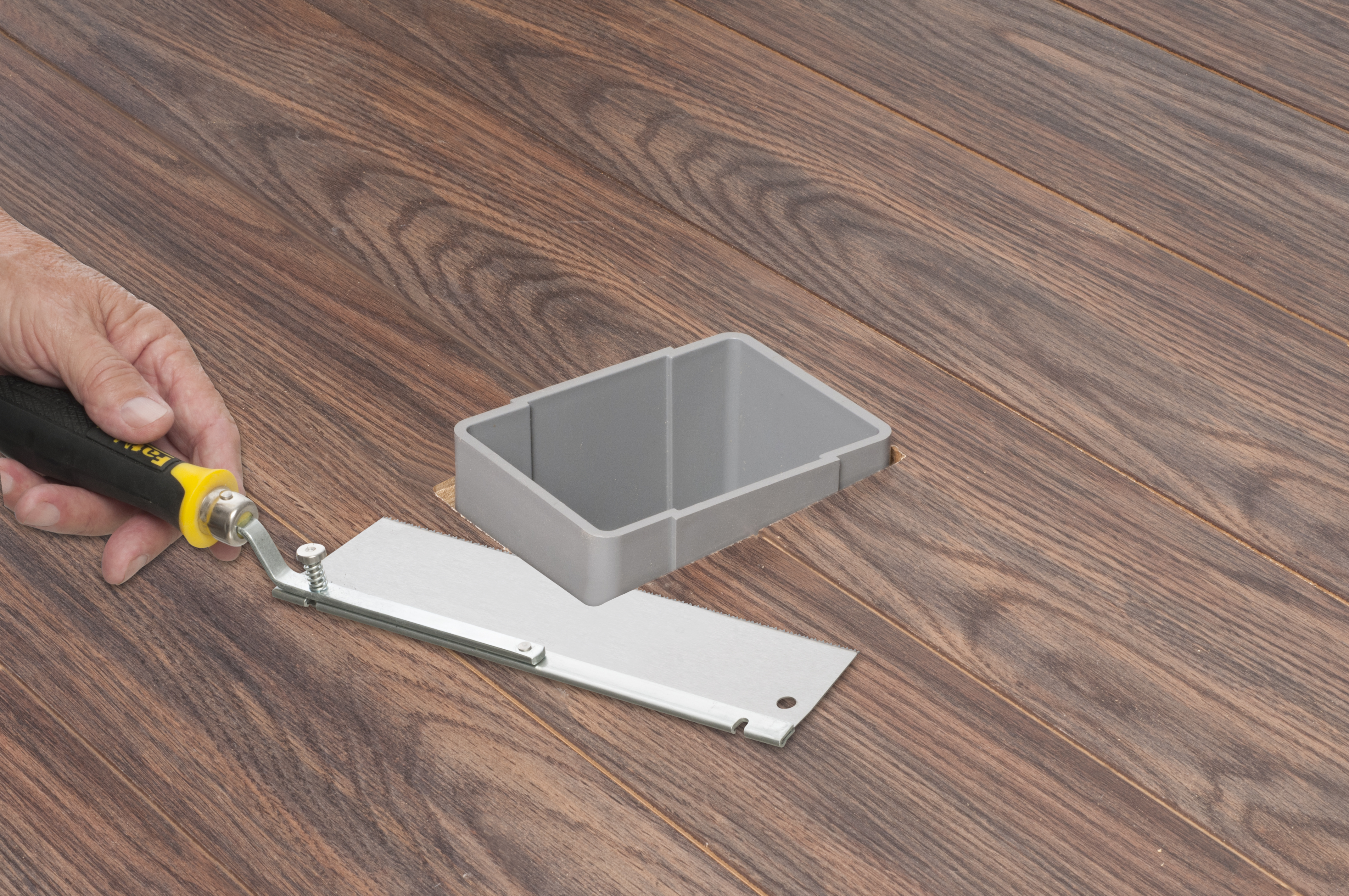

person cutting concrete can flush with floor

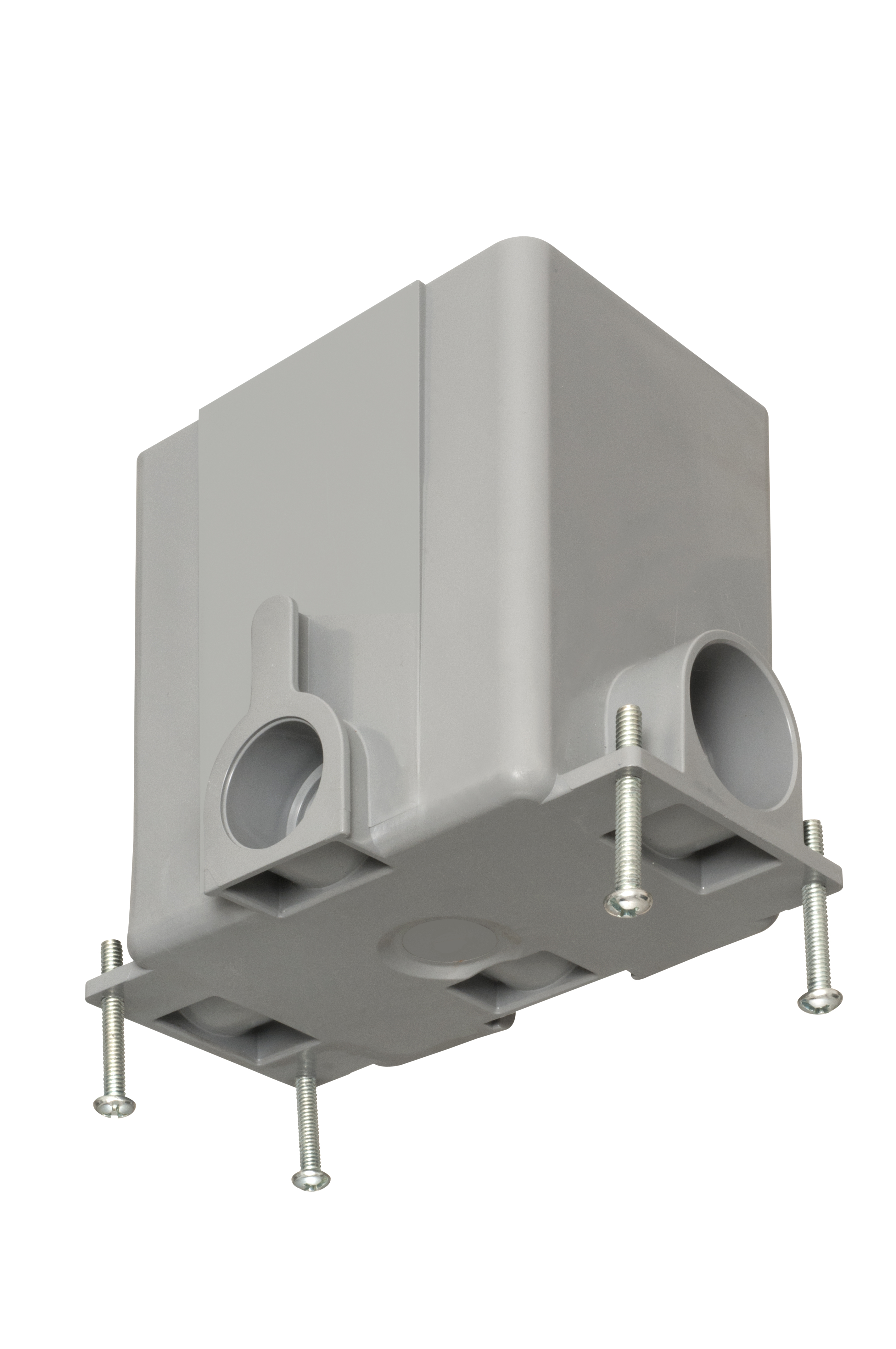

underside of concrete can with bolts threaded on 4 corners

exploded view of components included with concrete can

Basic Information

Part Number	FLBC8500
Description	Single gang non metallic gangable floor box up to 3 gang. Rectangular. Includes (2) 1-1/4" plugs and a mud cover.
UPC-A	018997229502
Unit Packaging	5pcs
Standard Packaging	5pcs
Country of Origin
Listing

Physical Information

Instructional Video	FLBC8500 Instructional Video
Instruction Sheet	FLBC8500 Instruction Sheet
Weight	1.956 lbs/each
Height	7.522"
Width	4.802"
Color	Gray
Material(s)	Plastic

Technical Information

Line Drawing	FLBC8500 Line Drawing
Submittal Drawing	FLBC8500 Submittal Drawing
Trade Size	1-Gang

Comes With

(1)	Mud Cover
(1)	Concrete Box
(2)	1-1/4" to 3/4" Reducing Bushings
(2)	1-1/4" Plugs with 1" knockout
