FLBAR101BR Product InformationAdjustable Non-Metallic Floor Box for New Floors Specification SheetCatalog Page E-mail |
Additional Images
Basic Information
| Part Number | FLBAR101BR |

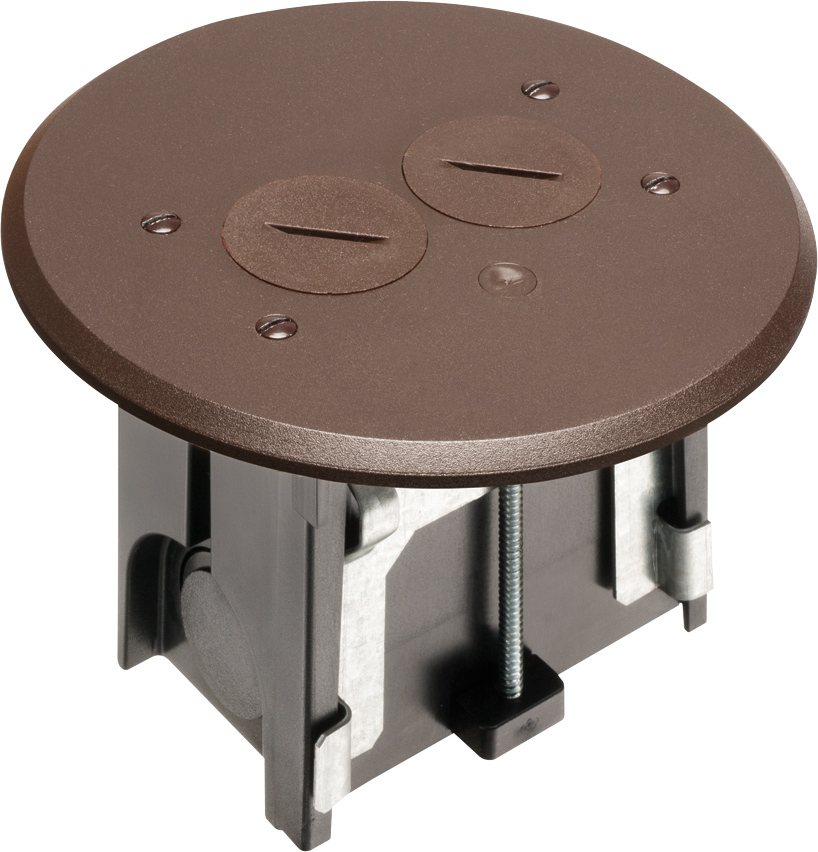

| Description | Round Non Metallic adjustable floor box. Brown with threaded plugs. Includes tamper resistant duplex receptacle, cover plate with gasket and Arlington NM94 connector and Arlington NM900 knockout plug. |
| UPC-A | 018997043511 |
| Unit Packaging | 1pc |
| Standard Packaging | 4pcs |
| Country of Origin |  |
| Listing |
|
Physical Information
| Instructional Video | FLBAR101BR Instructional Video |
| Instruction Sheet | FLBAR101BR Instruction Sheet |
| Weight | 0.702 lbs/each |
| Height | 5.800" |
| Width | 5.800" |
| Color |  Brown (Cover) |
| Material(s) | Plastic |
Technical Information
| Line Drawing | FLBAR101BR Line Drawing |
| Cubic Inches | 18.3 |
| Style | Adjustable floor box with round cover |
| Trade Size | 1-Gang |
| Usage | New floor construction |

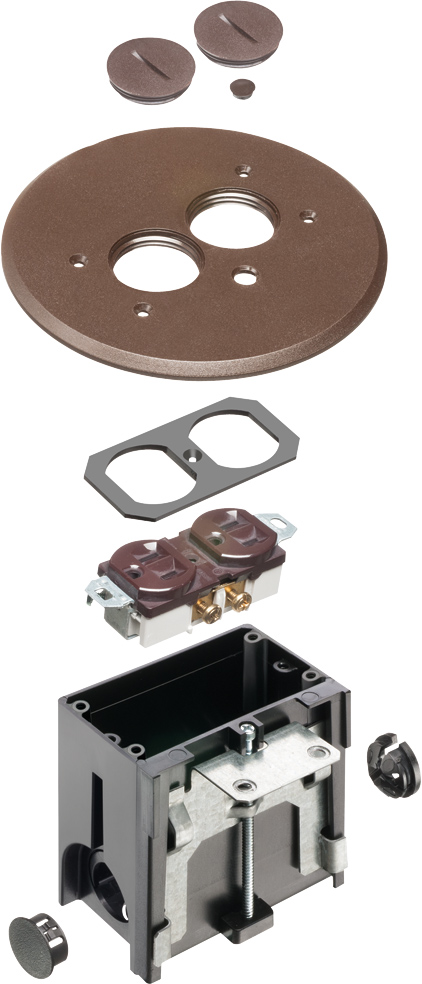

Comes With
| (2) | Threaded Plugs |
| (1) | Tamper-Resistant Duplex Receptacle |
| (1) | NM94 Cable Connector |
| (1) | NM900 Snap-In Blank |
| (1) | Metal Clip |
| (1) | Cover |
| (1) | Back Plate |
| (1) | Adjustment Screw Cap |
| (1) | Adjustable Floor Box |
| (5) | #6-32 x 1/2" Long Screws |
| (4) | #6 Drywall Screws |
