GPLN15B Product Information15" Low Profile Support for 3-Wire Outdoor Light Fixtures Specification SheetCatalog Page E-mail |
Basic Information
| Part Number | GPLN15B |

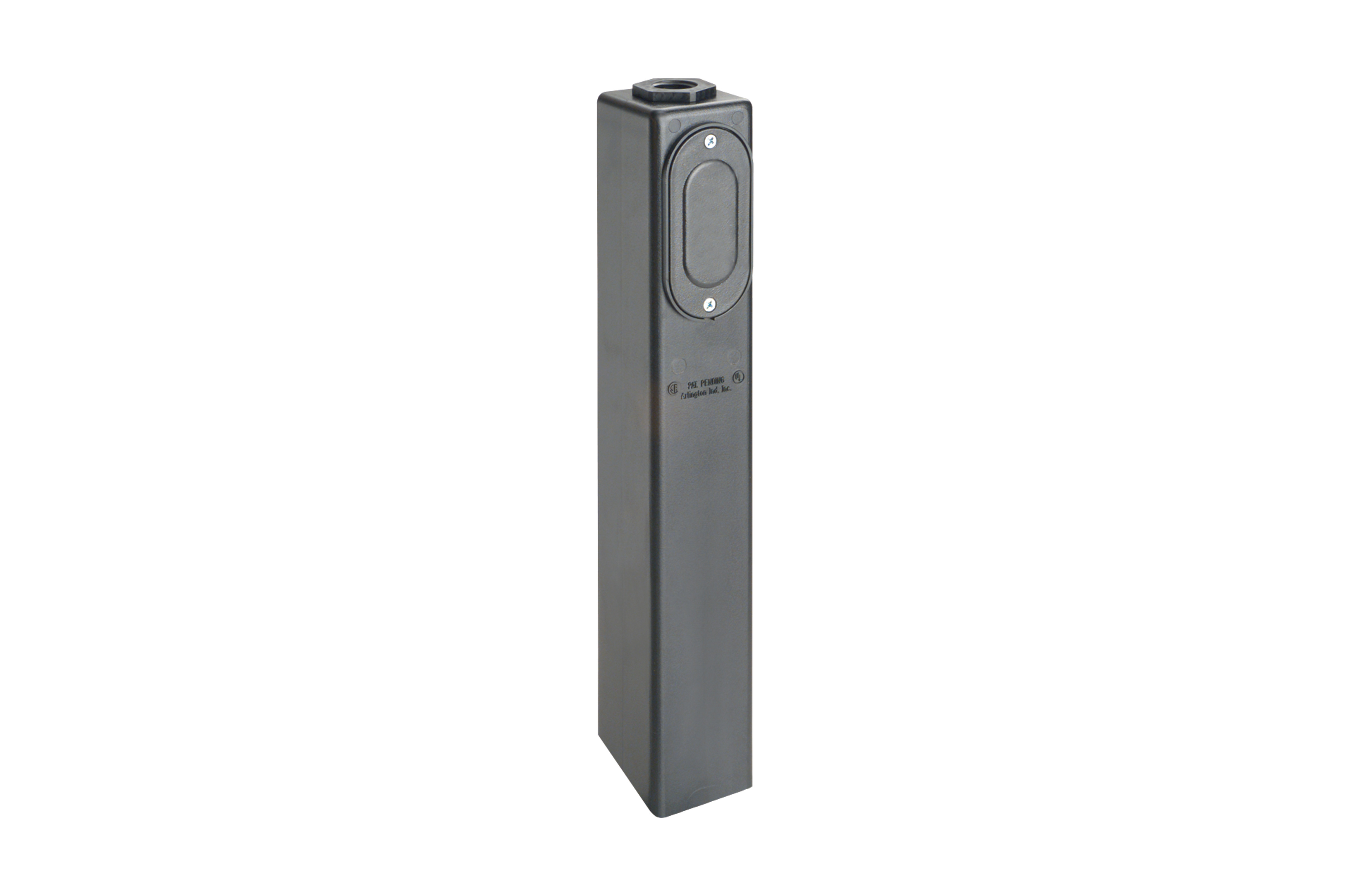

| Description | Gard-N-Post. 15" support for three wire outdoor light fixtures. Comes with 3/4" NPT threaded opening and an installed 3/4" by 1/2" non metallic reducing bushing. For use with 1/2" or 3/4" NPT fixtures. Color Black. Color permanent, no chipping. |
| UPC-A | 018997762054 |
| Unit Packaging | 1pc |
| Standard Packaging | 20pcs |
| Country of Origin |  |
| Listing |
|
Physical Information
| Weight | 0.845 lbs/each |
| Height | 15.000" |
| Width | 2.250" |
| Color |  Black |
| Additional Color Options |  Gray - GPLN15GR |
| Material(s) | UV-Rated Plastic |
Technical Information
| Line Drawing | GPLN15B Line Drawing |
| Application | Installation of a 3-wire lighting fixture outdoors. |
| Trade Size | 15" |
Comes With
| (1) | Non-metallic fixture mounting bushing |
| (1) | Gard-N-Post |
| (1) | Access panel gasket |
| (1) | Access panel cover |
| (2) | #6-32 x 5/8" Long Screws |
