garden post for outdoor GFCI devices

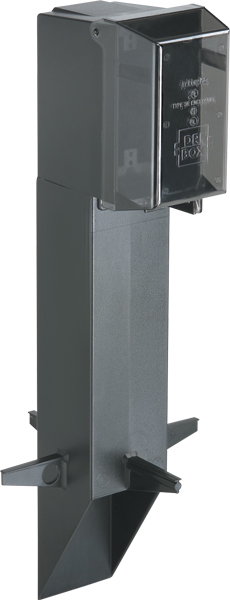

GPD19B Product Information

19.5" Low Profile Enclosure with Built-in Cover
Specification SheetCatalog Page E-mail

Additional Images

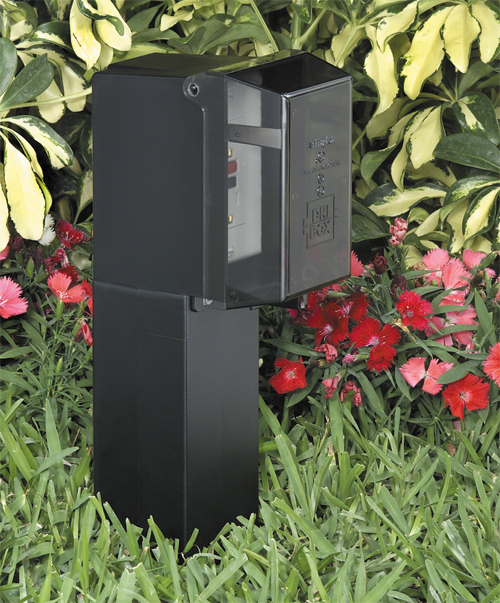

garden post next to flower bed GP19B-5

Basic Information

Part Number GPD19B
Description Gard-N-Post. 19.5" support for GFCI devices outdoors. Built in stabilizers for extra stability. Openings in stabilizers allow for insertion of extra support material. Angle Cut post for easy access to underground wiring. Two 1/2" Knockouts. Color Black. Color is permanent, no chipping. Clear extra duty weatherproof in use cover installed.
UPC 018997770202
Unit Packaging 1pc
Standard Packaging 6pcs
Country of Origin
Listing
Available w/ Grounding Clip Yes - Order Part Number GPD19BGC

Physical Information

Instruction Sheet GPD19B Instruction Sheet
Weight1.978 lbs/each
Height19.500"
Width6.269"
Color Black
Cover Color Clear
Additional Color Options Bronze - GPD19BR
Green - GPD19G
White - GPD19W
Material(s)UV-Rated Plastic

Technical Information

Line Drawing GPD19B Line Drawing
ApplicationInstallation of a weatherproof GFCI device outdoors
Extra-Duty RatedYes
NEC RequirementsMeets 2021 NEC Section 406.9; for the protection of exterior outlets which require the use of an extra-duty weatherproof while-in-use cover for all outdoor 15 or 20 AMP receptacles.
Trade Size19.5"

Comes With

(1)Single-Gang Wall Plate with screw(s)
(1)Single-Gang Decorator-Style / GFCI Wall Plate with screws
(1)Removable knock-out plate
(1)Gard-N-Post
(1)Built-in cover
(2)#8 x 5/8" Long Screws
